X-Ray, CT, MRI Phantoms
Adult Full Body for X-Ray CT, MRI
$36,400

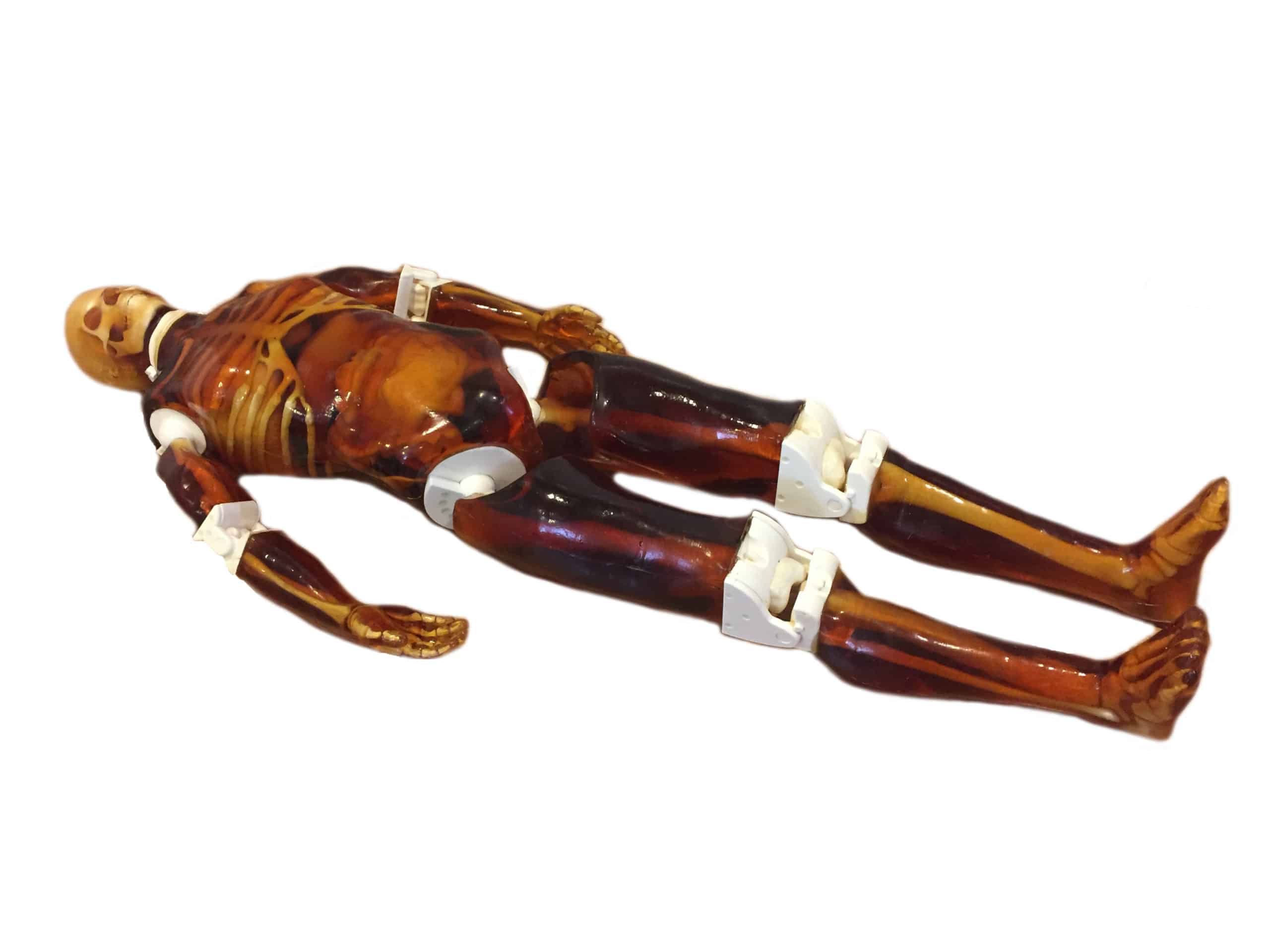

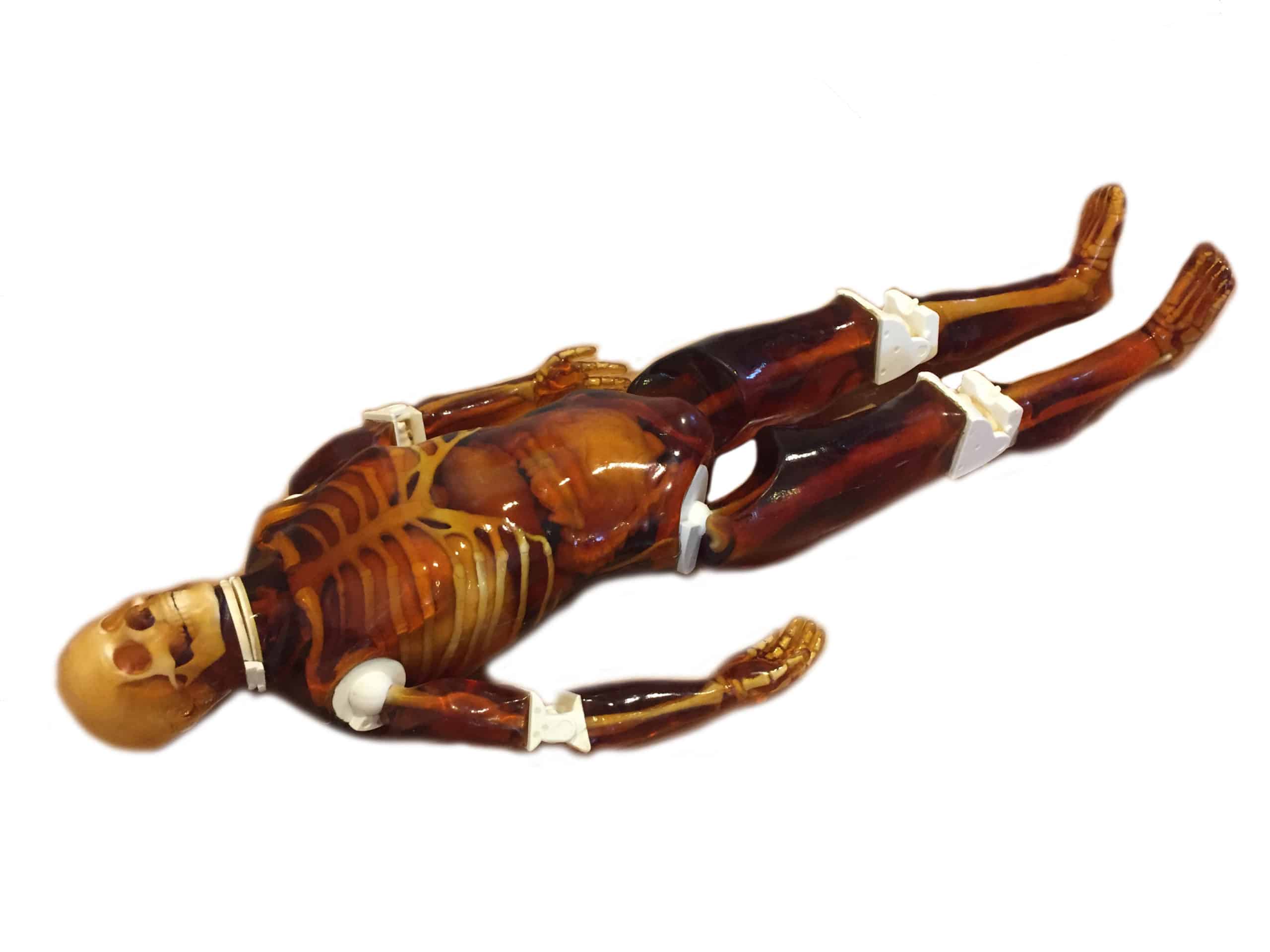

The Adult Full Body Phantom (FB-A01) is a versatile training product compatible with X-Ray/CT and MRI. It is primarily used for providing hands-on experience with diagnostic imaging. The phantom’s bones are individually cast with adjustable three-layered structures, and they can be customized with different pathologies. It is available in transparent or skin-colored versions. PLEASE NOTE: MUSCLES IN THE LEG AND ARMS ARE ONLY INCLUDED IN FB-A02.

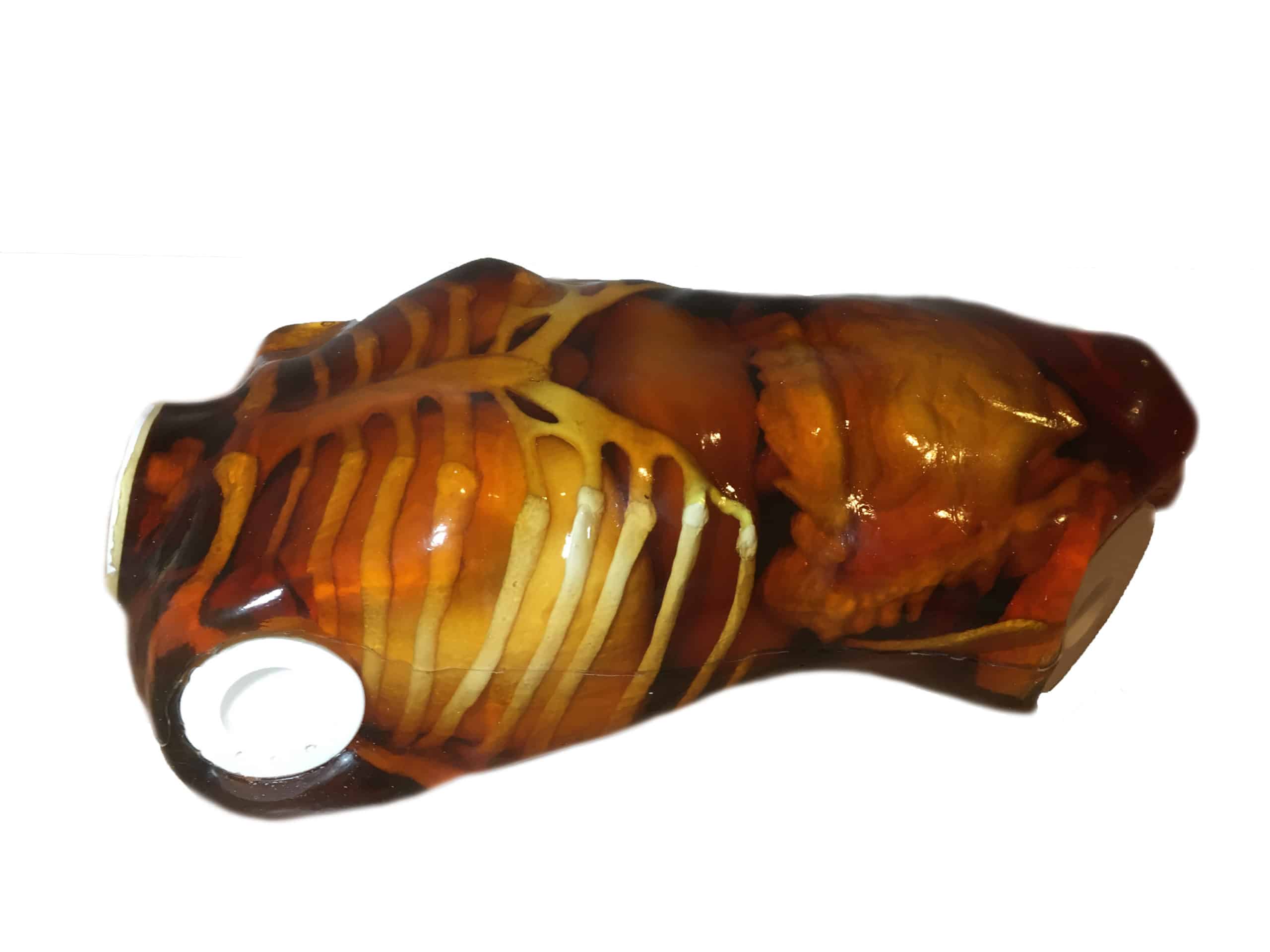

Appearance: Translucent Amber
This product can be customized based on your requirements — contact us.
Adult Full Body Phantom is an X-Ray/CT and MRI-compatible training product. The primary application of this phantom is hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

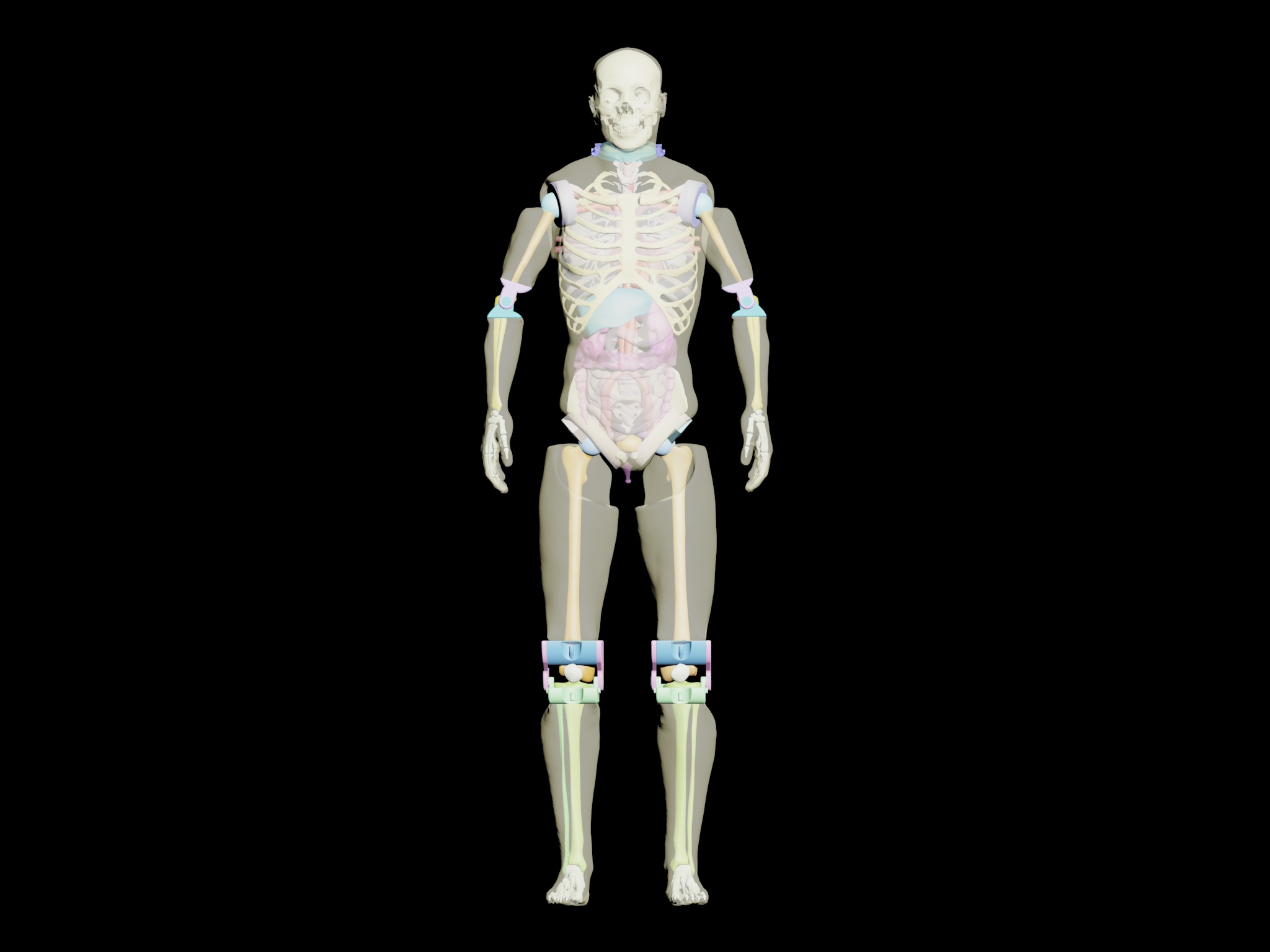

The model of this phantom is based on an adult male body that weighs about 70 kg (154 lbs) and measures 172 cm (69 in) in height.

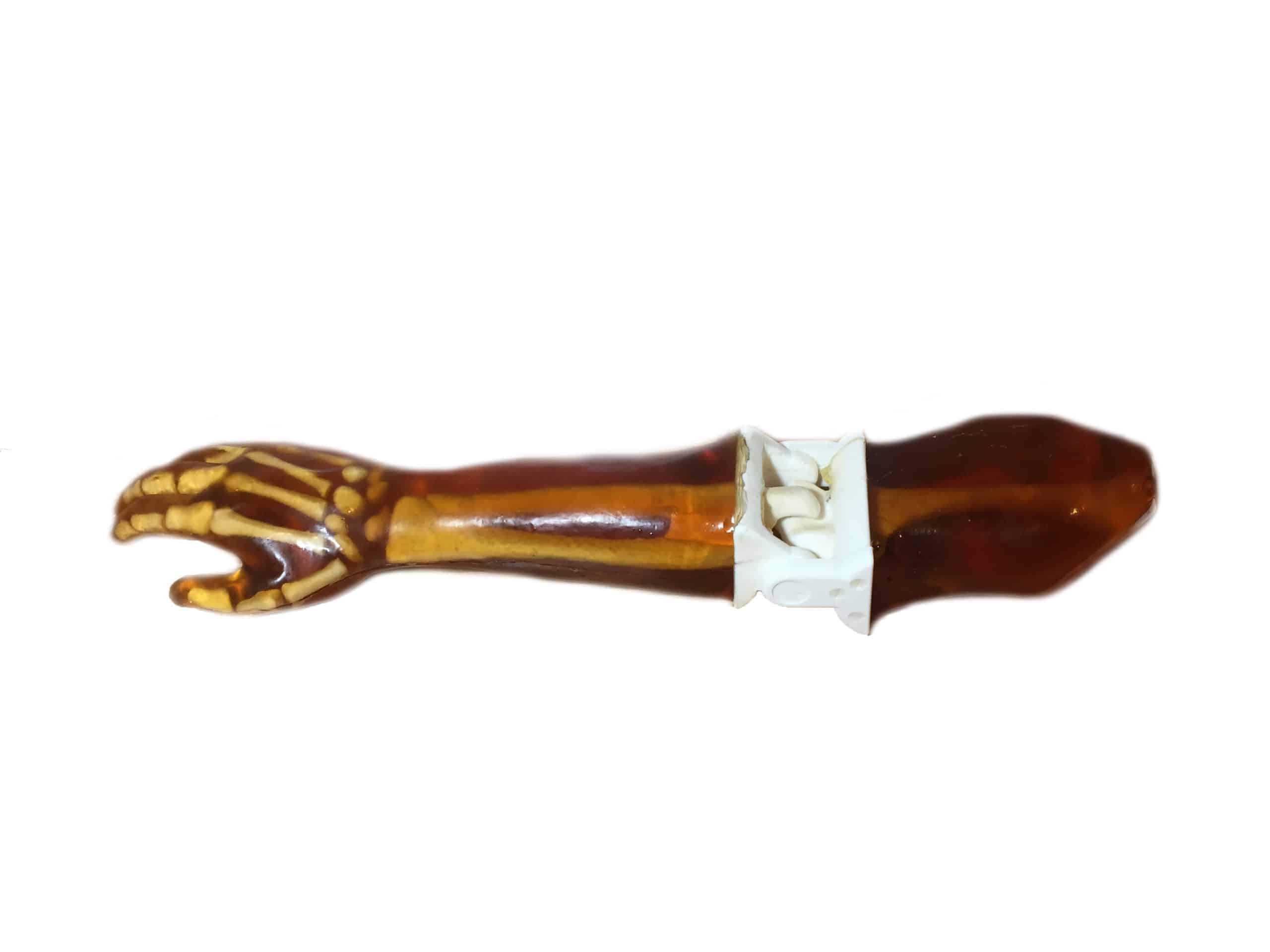

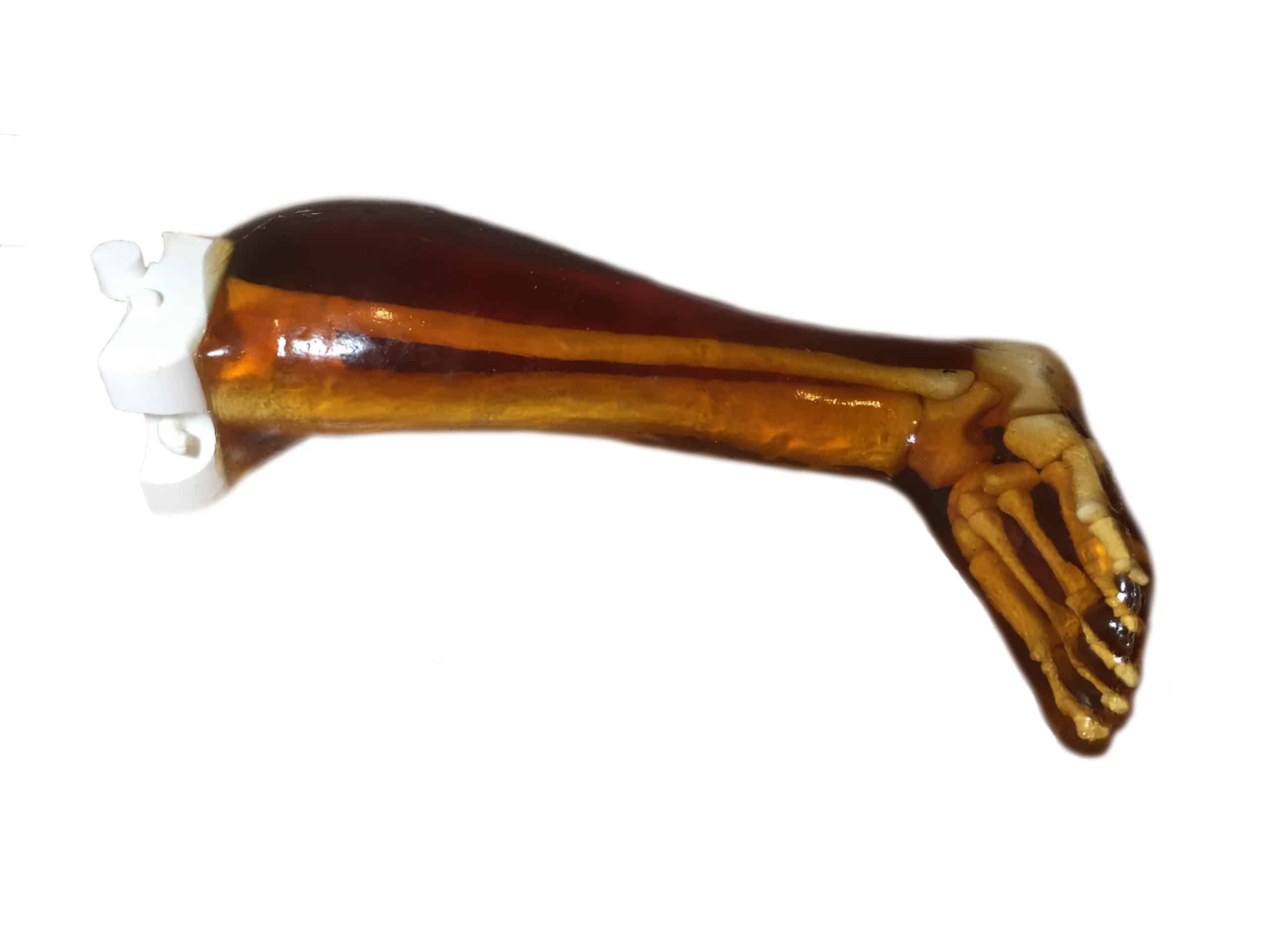

The bones are cast individually from patented epoxy-based composite material and have a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. The phantom is customizable with different pathologies(lesion, tumor, infection, abnormality) upon request. This positioning phantom can be ordered in a translucent or skin-colored version.

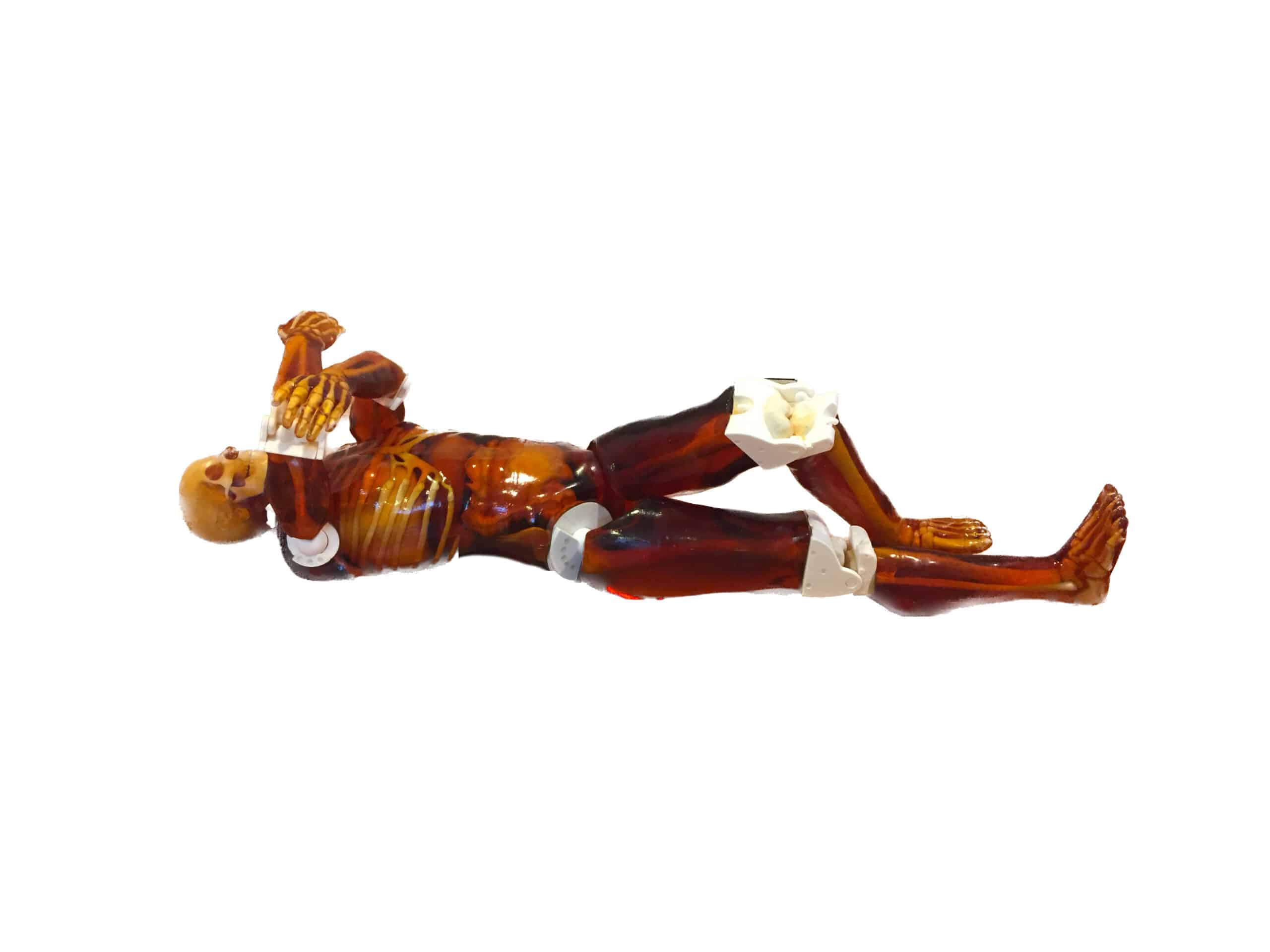

Note: For the purpose of showing the positioning techniques, the phantom with muscles has been used (
Tissue Properties |
||||||
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.5 ± 0.2 | 40 | 55 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Muscle Tissue (Optional) | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
Thermal Properties of our Bone-Mimicking Material |
|||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| Anatomy | Chest | Pelvis | Abdomen | Cervical Spine | Lumbar Spine | Shoulder | Hand | ||||||||
| Projection | PA | LAT | AP | AP | AP | LAT | Odontoid | AP | LAT | AP | Internal Rotation | External Rotation | AP | Internal Rotation | External Rotation |
| KVp | 68 | 66 | 75 | 75 | 57 | 70 | 57 | 77 | 79 | 66 | 66 | 66 | 44 | 45 | 44 |
| mAs | 9.4 | 13.3 | 9.97 | 9.27 | 10 | 12.1 | 11.9 | 9.02 | 11.2 | 9.37 | 9.6 | 9.28 | 10.7 | 9.2 | 9.8 |
| ms | 25 | 35.2 | 26.4 | 24.6 | 26.6 | 32 | 31.7 | 24.2 | 29.9 | 24.8 | 25.4 | 24.6 | 33.7 | 28.3 | 30.9 |
| SID cm | 110 | 115 | 107 | 107 | 107 | 115 | 107 | 107 | 115 | 107 | 107 | 107 | 107 | 107 | 107 |
| Table Height | 111 | 90 | 111 | 111 | 111 | 90 | 111 | 111 | 90 | 107 | 107 | 107 | 107 | 107 | 107 |
| Anatomy | Wrist | Elbow | Foot | Ankle | Knee | ||||||||||
| Projection | AP | Internal Rotation | External Rotation | AP | Internal Rotation | External Rotation | AP | Internal Rotation | External Rotation | AP | Internal Rotation | External Rotation | AP | Internal Rotation | External Rotation |
| KVp | 44 | 45 | 44 | 46 | 44 | 45 | 46 | 45 | 46 | 46 | 47 | 46 | 48 | 48 | 47 |
| mAs | 9.62 | 8.81 | 9.58 | 8.38 | 9.43 | 9.95 | 12.7 | 12.6 | 12.4 | 9.35 | 10.5 | 9.3 | 10.8 | 11.3 | 12 |
| ms | 30.3 | 27.7 | 30.1 | 24.9 | 29.4 | 30.6 | 38.7 | 37.9 | 38.1 | 28.7 | 31.5 | 27.9 | 31.5 | 33.2 | 36.2 |
| SID cm | 107 | 107 | 107 | 107 | 107 | 107 | 115 | 115 | 115 | 107 | 107 | 107 | 107 | 107 | 107 |
| Table Height | 107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 | 107 |
| Anatomy | Skull | Ribs/ Chest | T Spine | C spine | L Spine | Abdomen | Pelvis | Femur | Tib/Fib | Knee | Foot | Scap Y | Humerus | Hand/ Wrist | ||||||
| Projection | AP | LAT | AP/ PA | AP | LAT | AP | AP | LAT | LAT | AP | AP | LAT | AP | LAT | AP | AP | PA/ Oblique | LAT | AP/ Oblique | LAT |
| E.I. | 375 | 286 | 412 | 412 | 782 | 165 | 448 | 862 | 862 | 650 | 584 | 892 | 551 | 342 | 690 | 293 | 631 | 257 | 556 | 155 |
| D.I. | -0.2 | -1.4 | 0.6 | 0.6 | 2.6 | -3.8 | 1 | 2.4 | 2.4 | 1.8 | 1.7 | 3.6 | 0.4 | -1.6 | 1.4 | -2.3 | 1 | -2.9 | 0.5 | -3.6 |
| kVp | 85 | 75 | 80 | 80 | 85 | 75 | 88 | 90 | 85 | 85 | 80 | 80 | 74 | 74 | 75 | 80 | 58 | 80 | 64 | 84 |
| mAs | 20 | 8 | 5 | 20 | 56 | 6.3 | 45 | 63 | 25 | 25 | 16 | 14 | 2.5 | 2.5 | 5.6 | 8 | 2 | 5.6 | 2 | 10 |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Brain Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Diaphragm | 80 |
| Pancreas | 110 |
| Tissue Type | HU Value (Average) |
| Spleen | 110 |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Appearance | Translucent Amber, Skin |

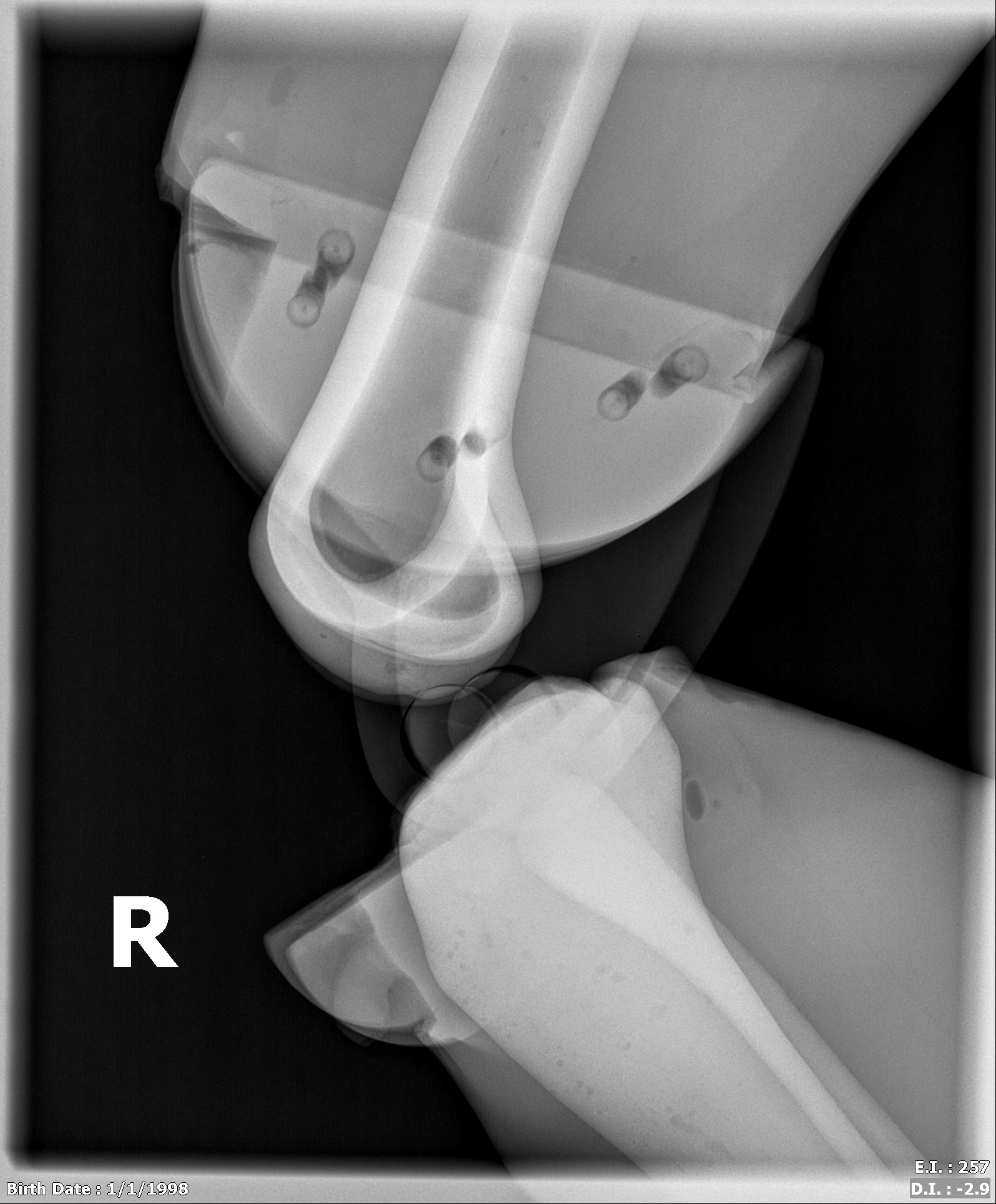

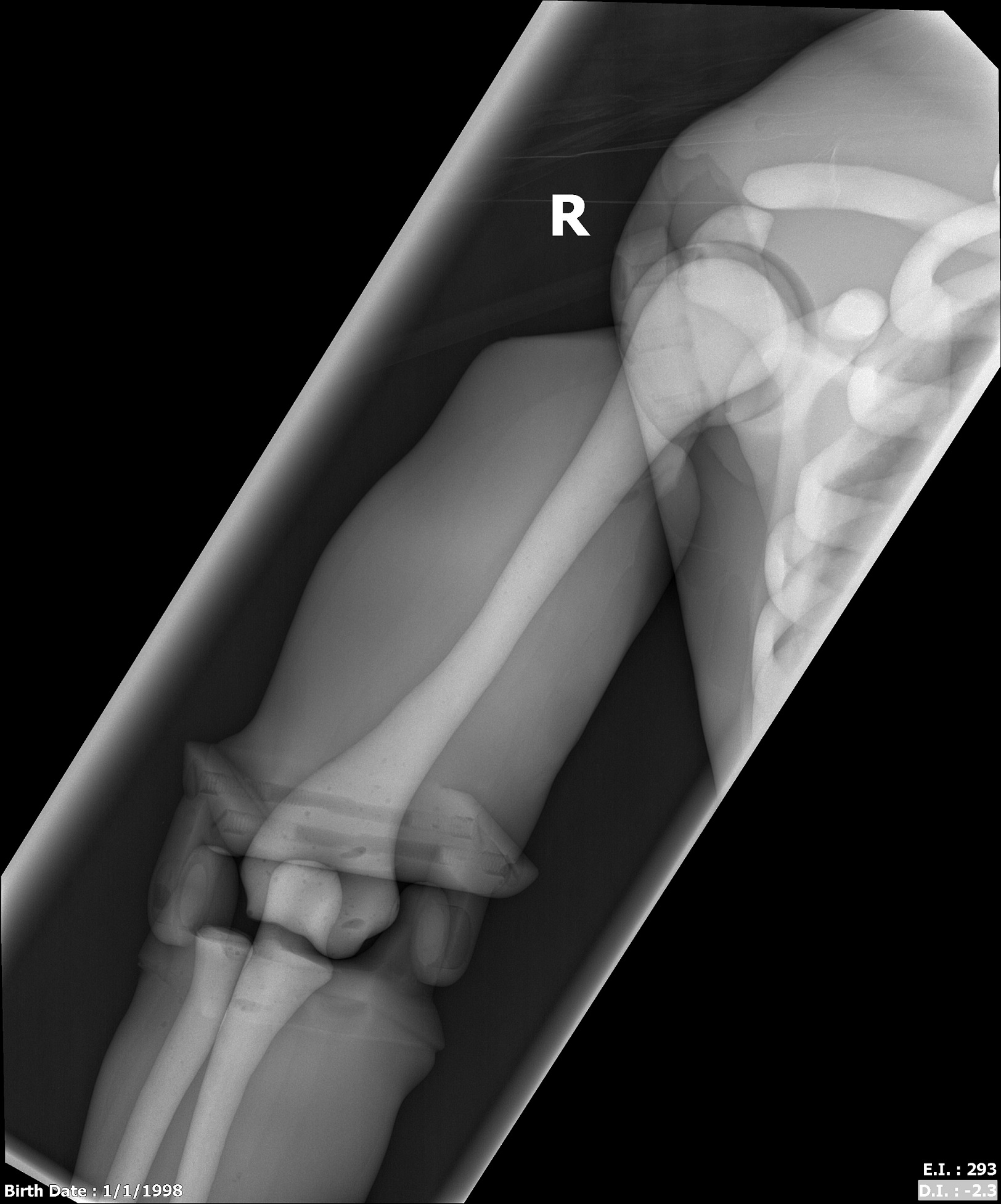

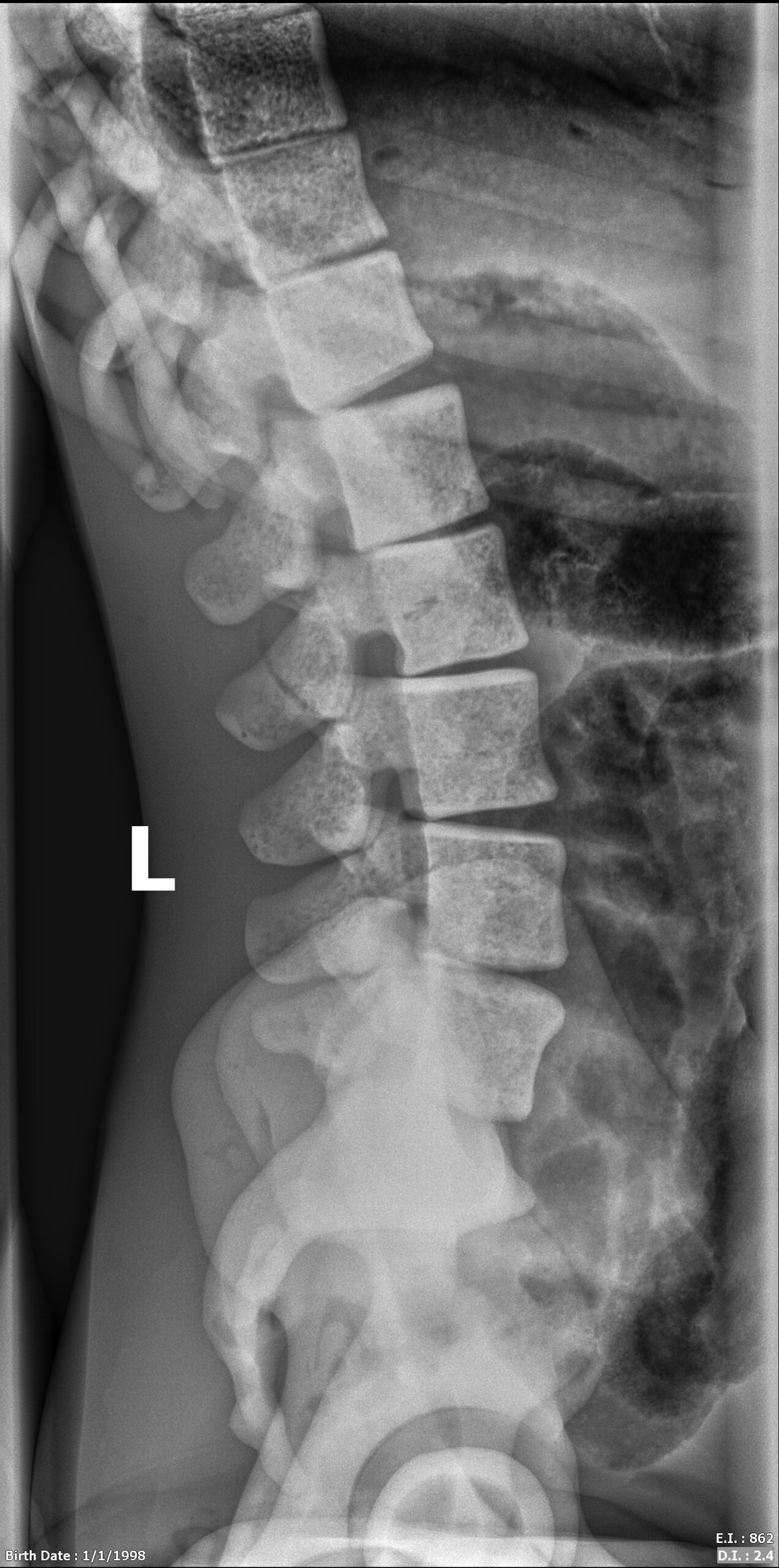

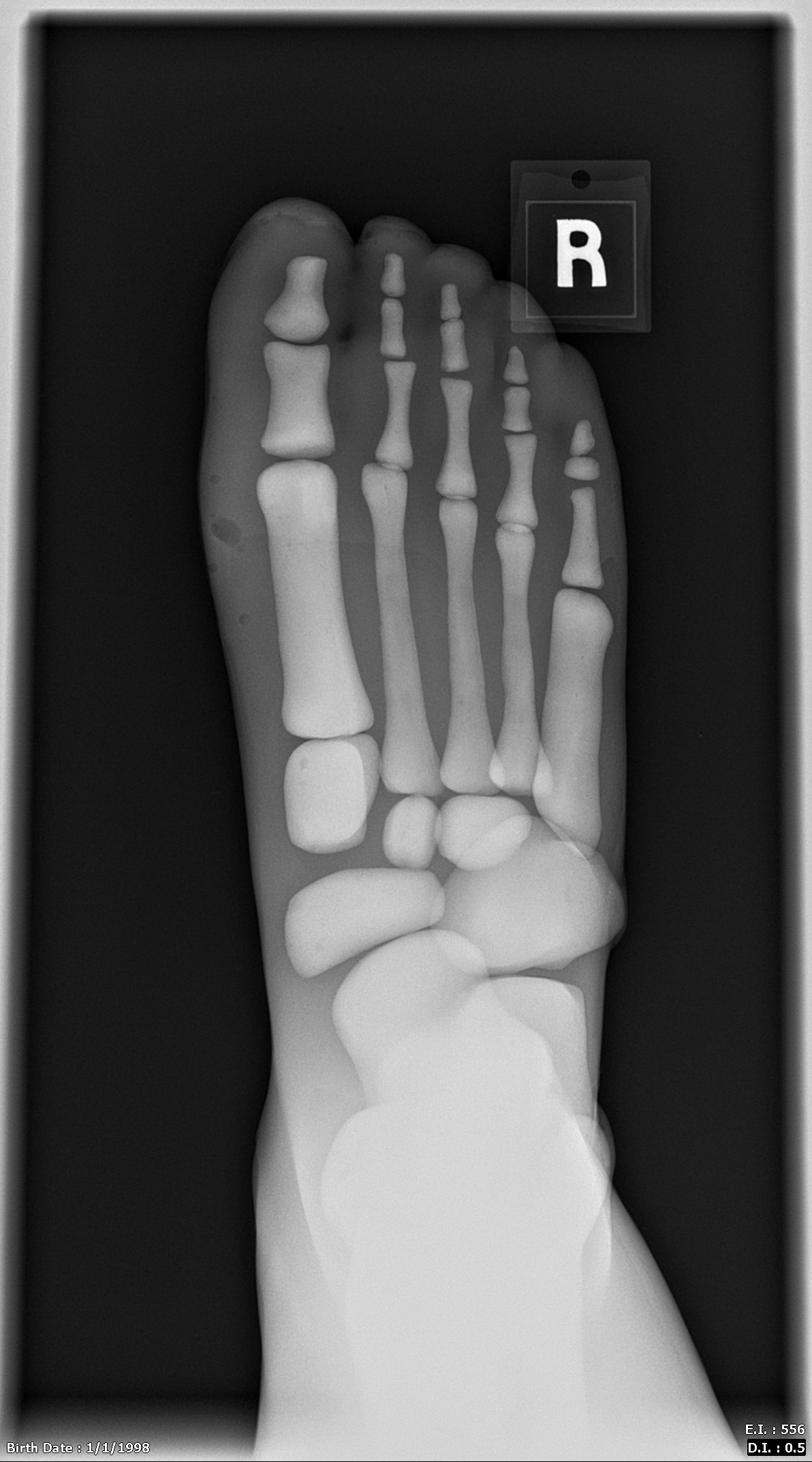

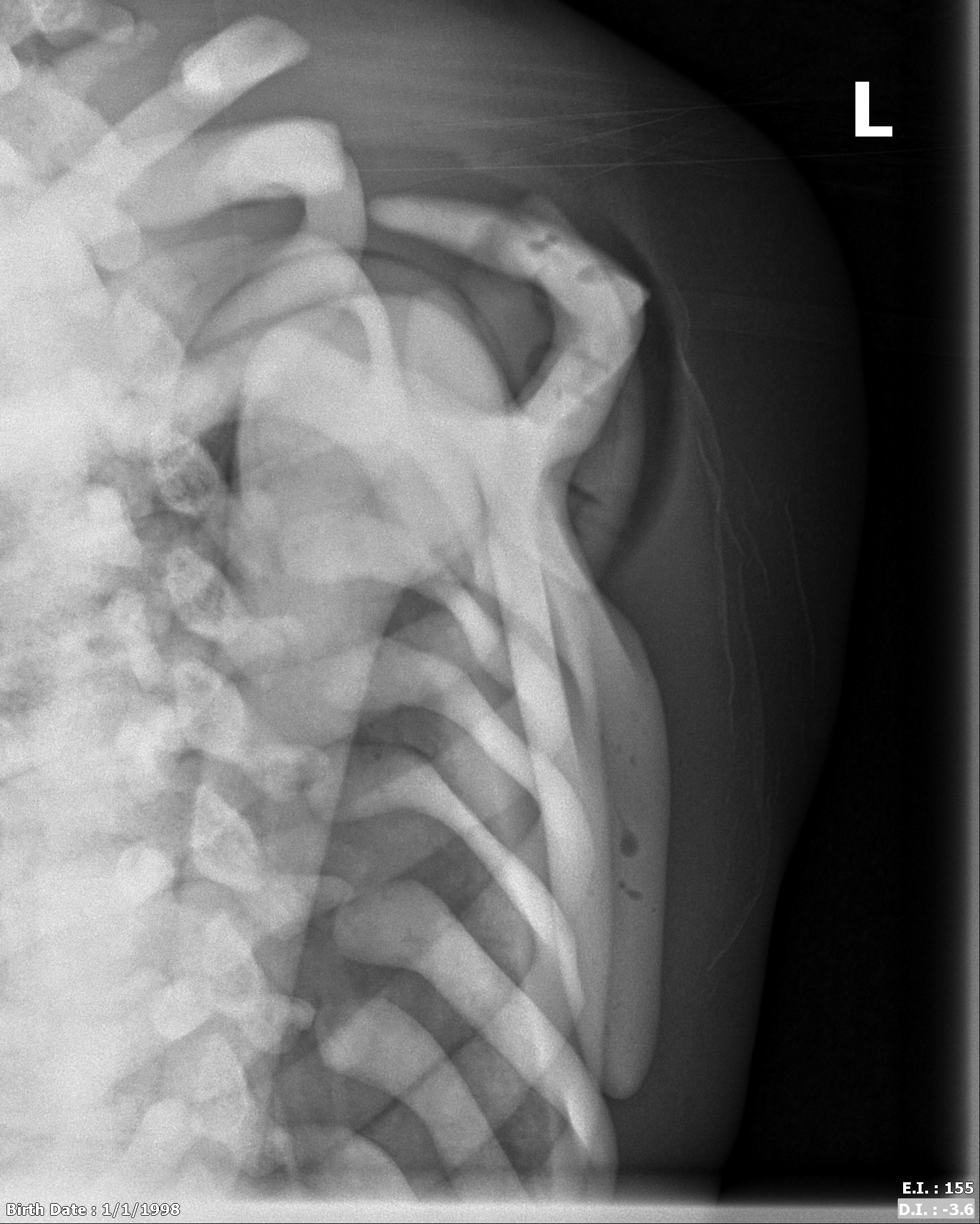

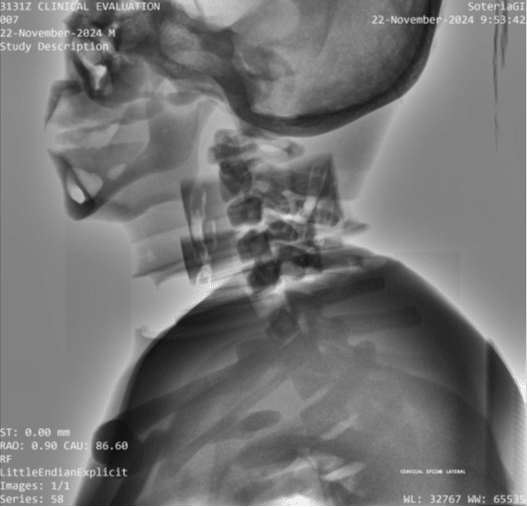

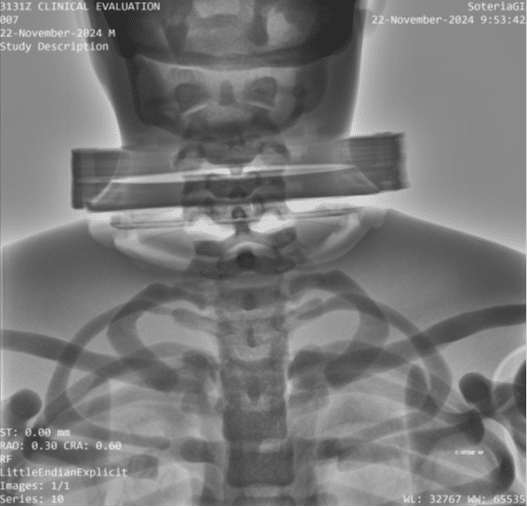

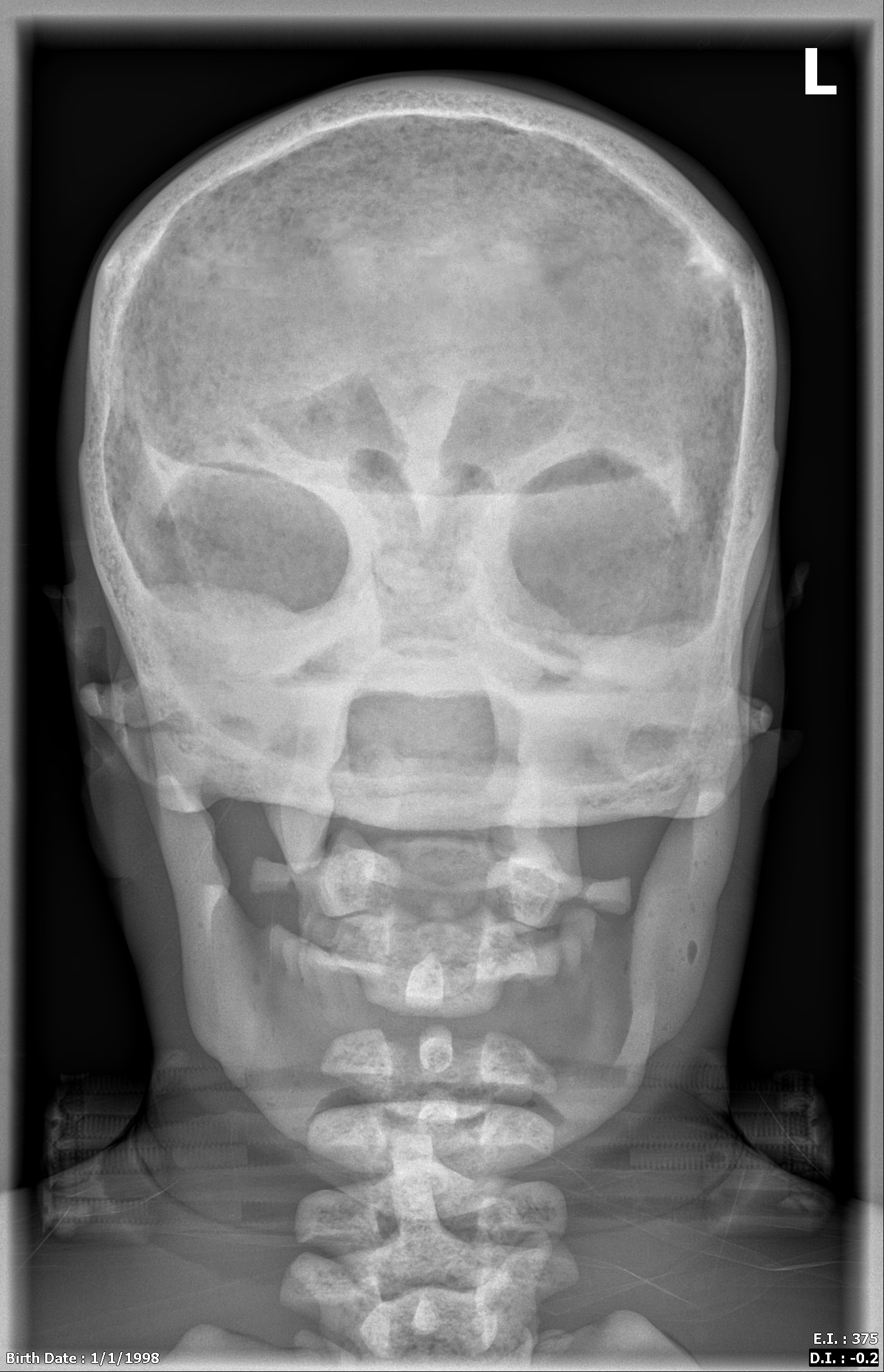

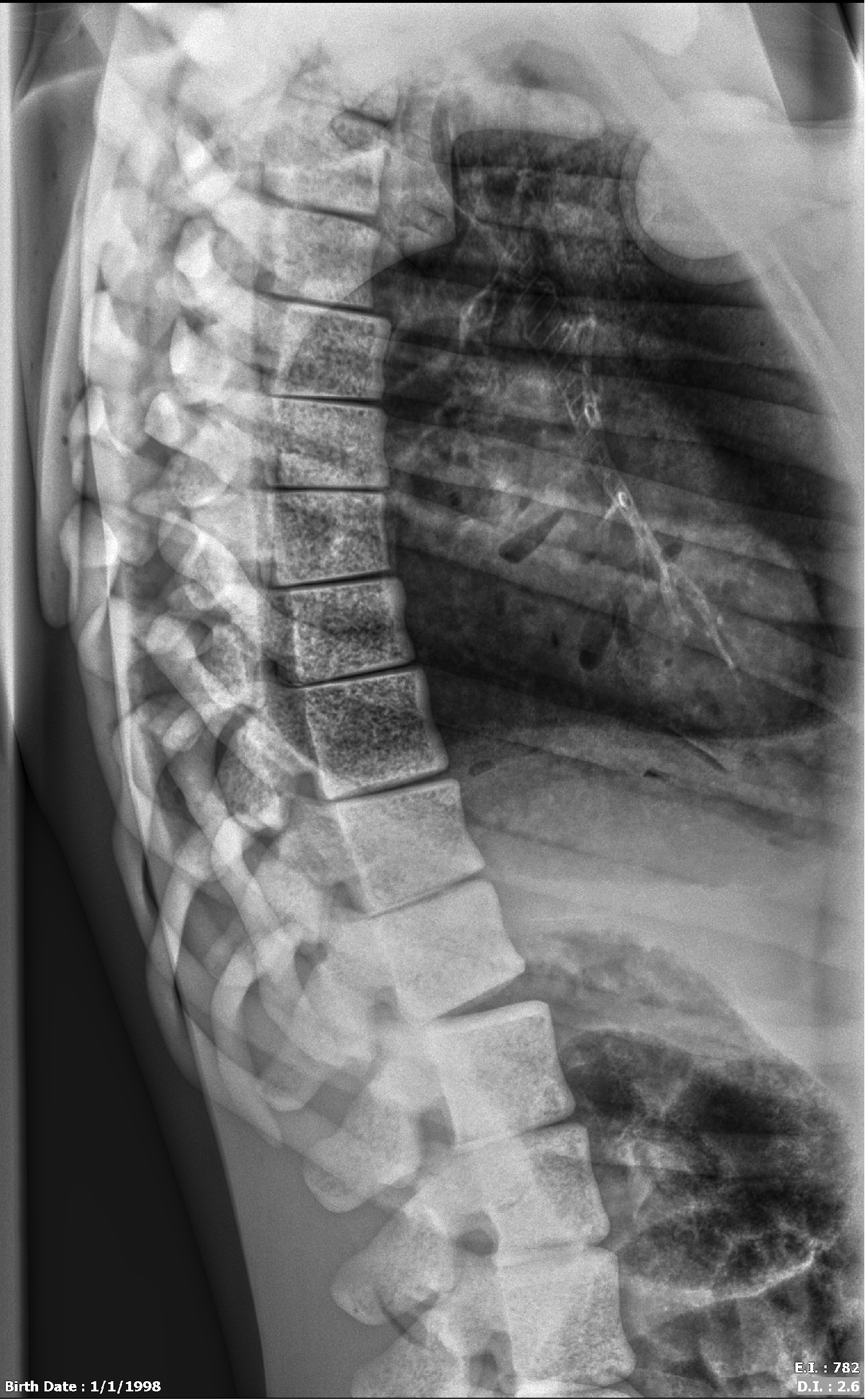

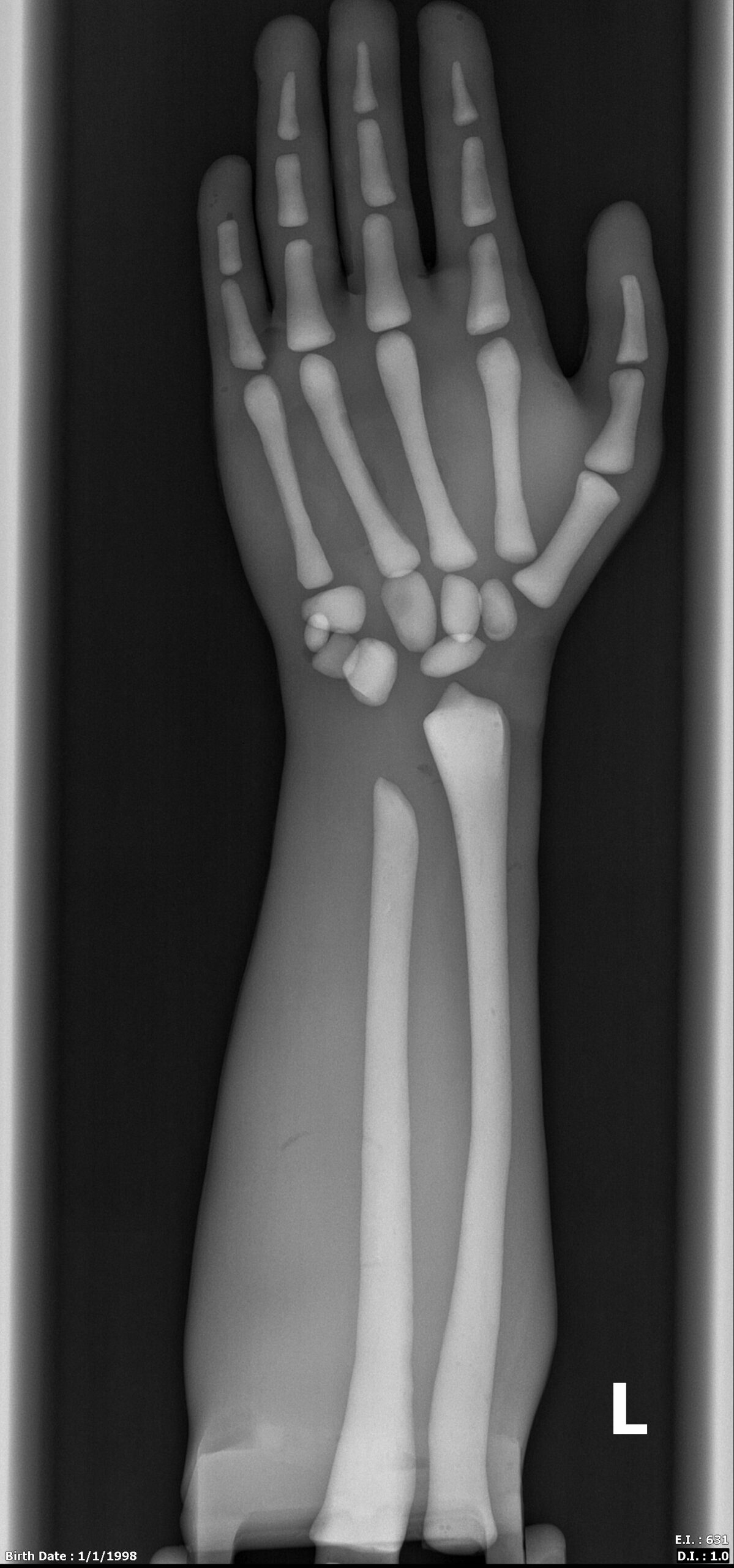

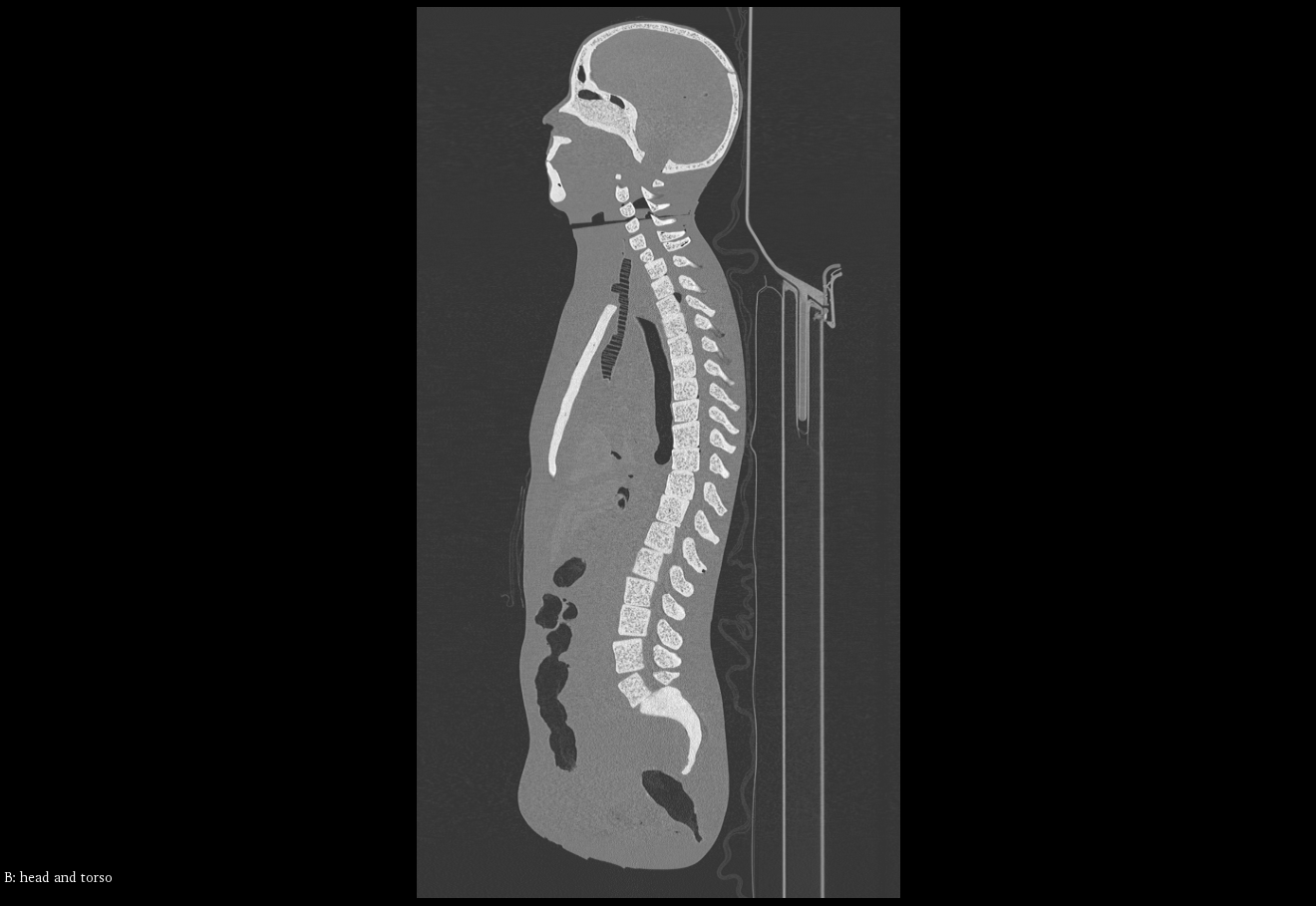

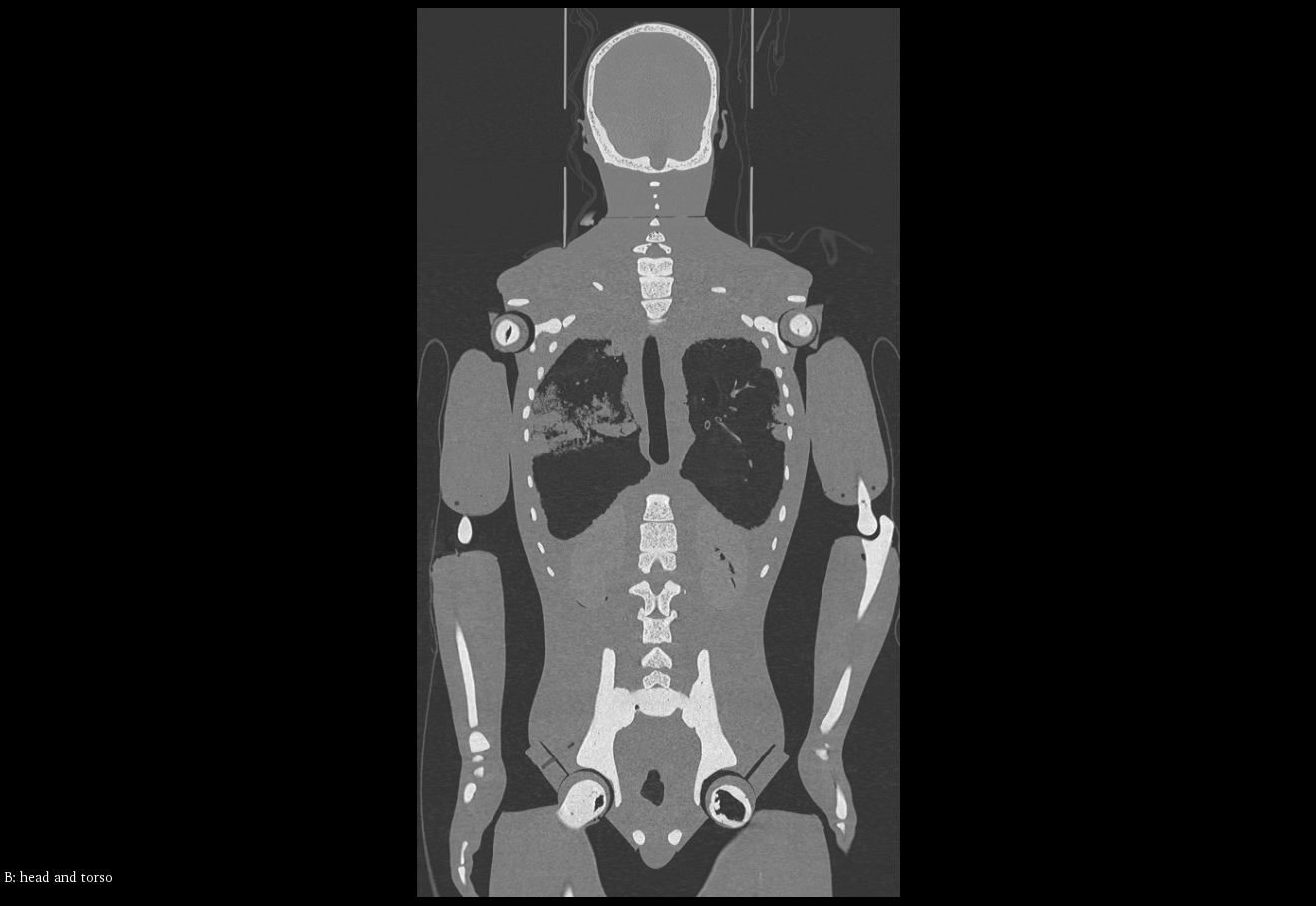

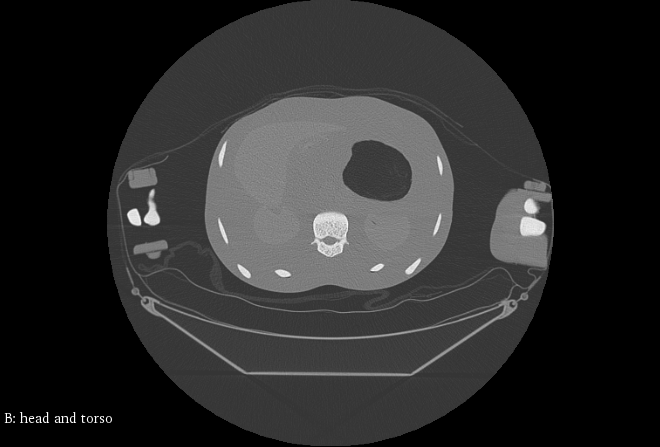

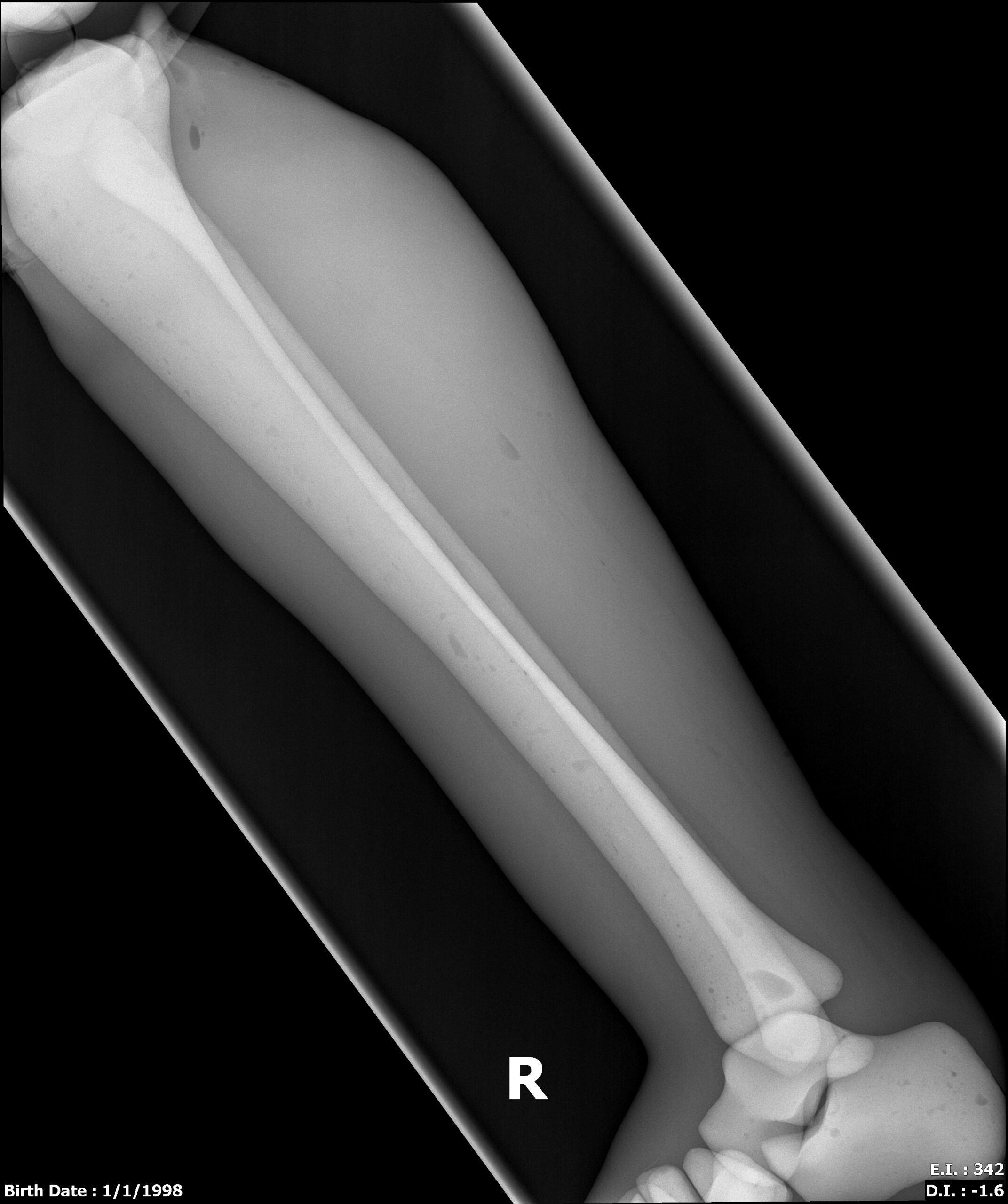

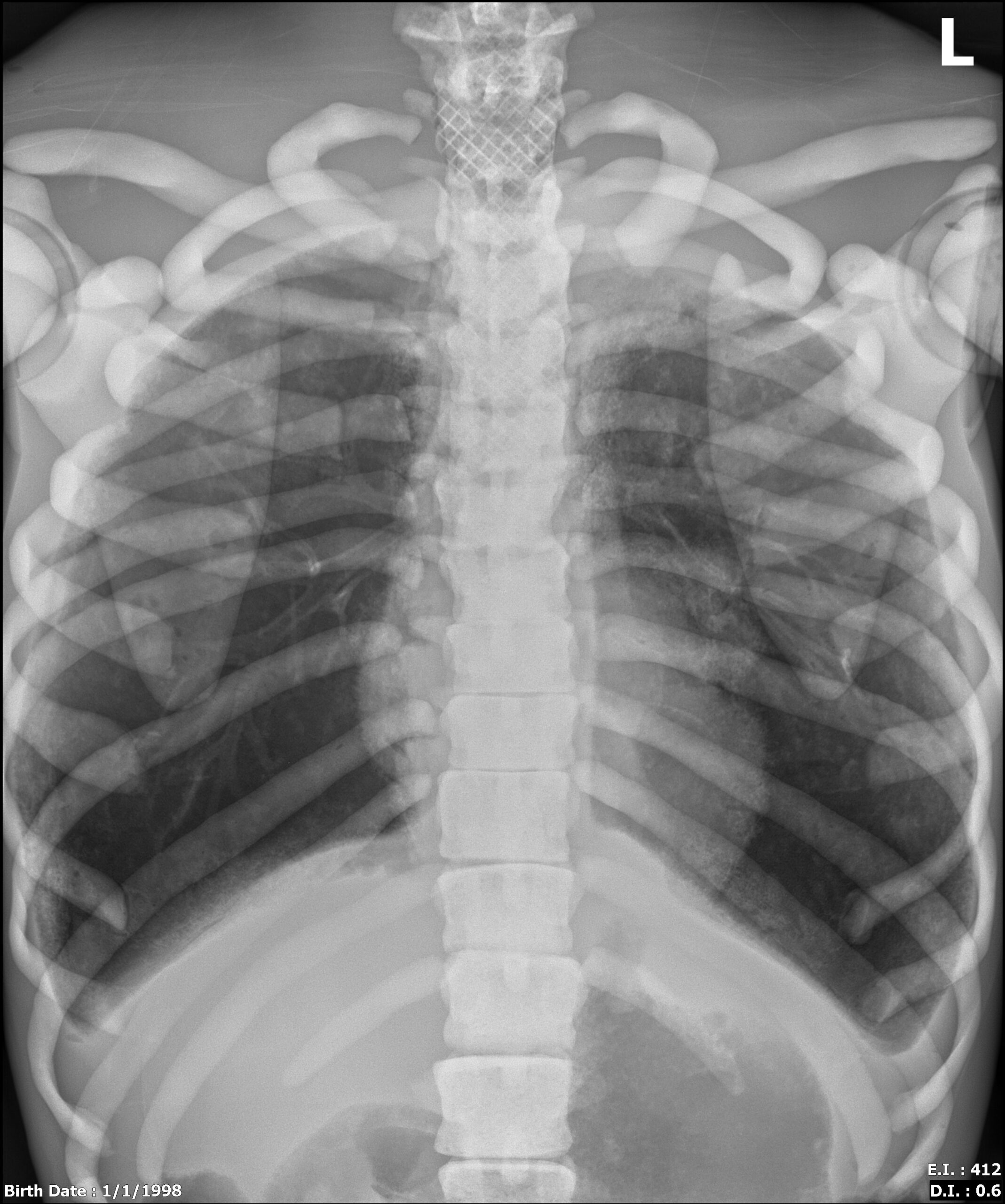

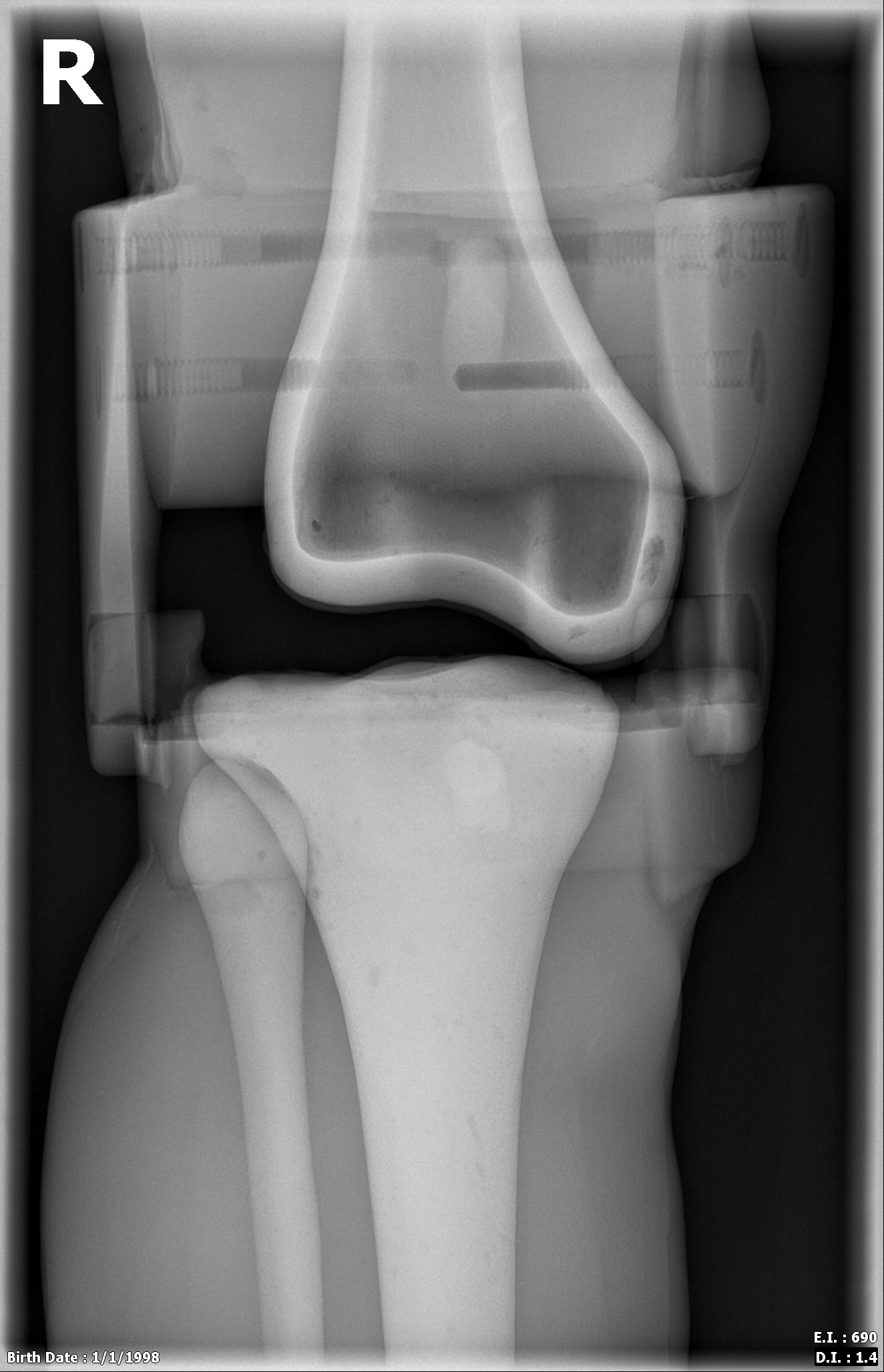

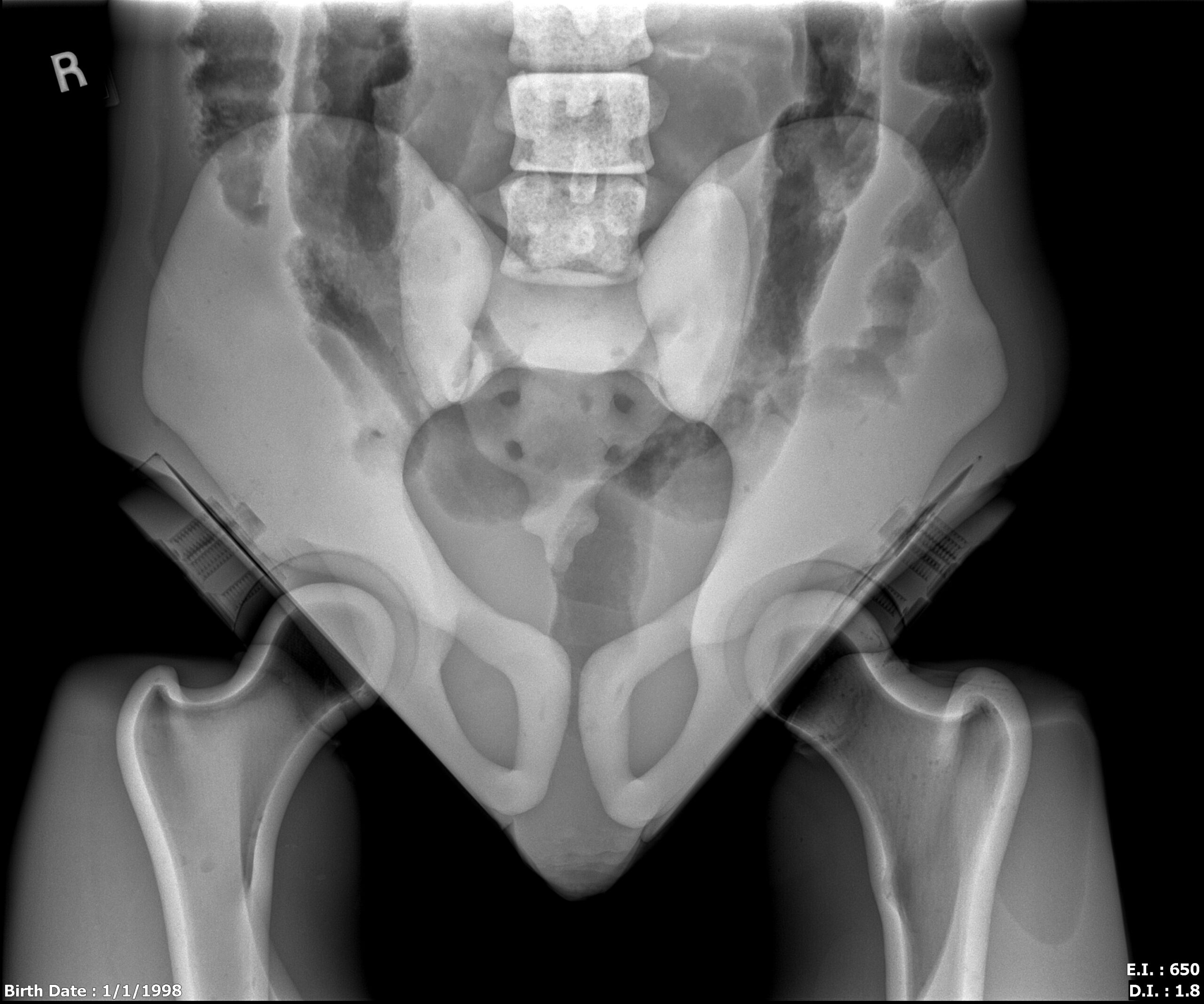

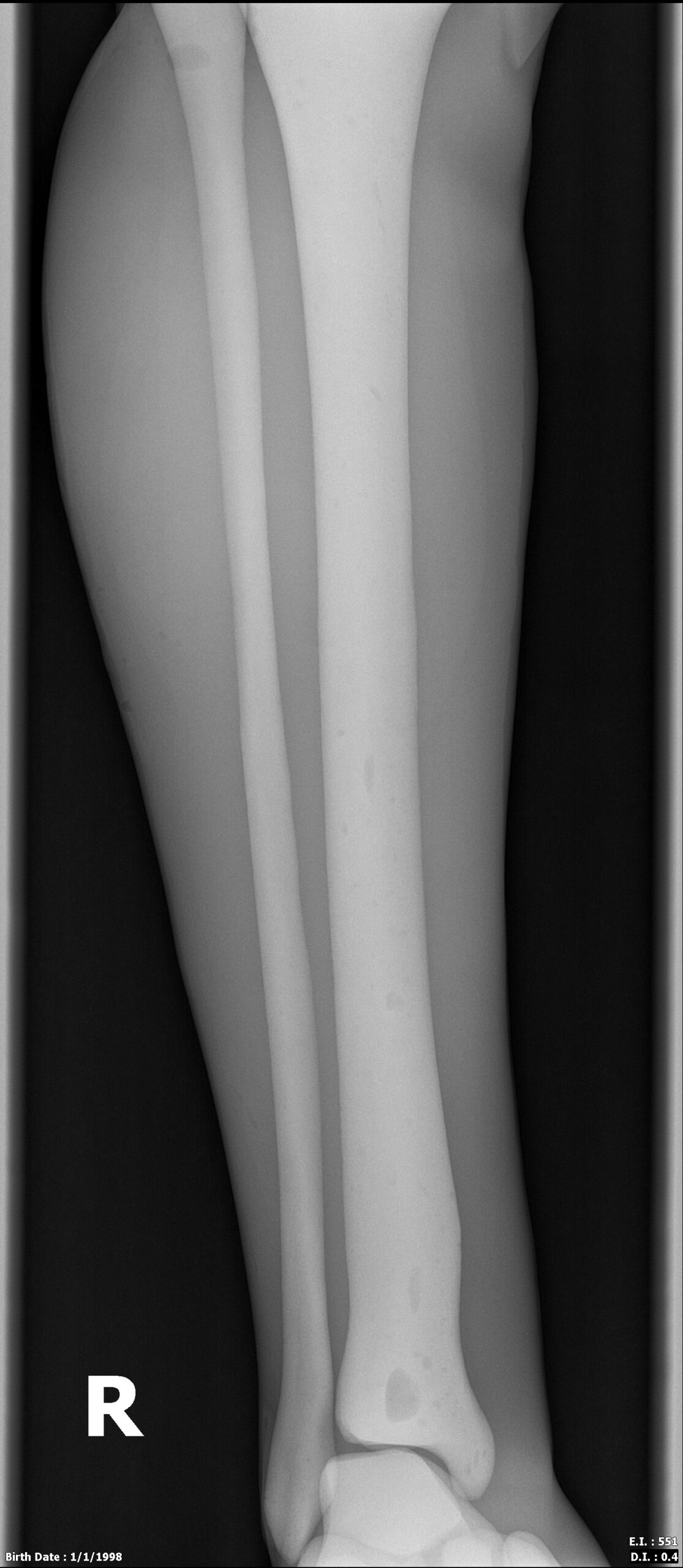

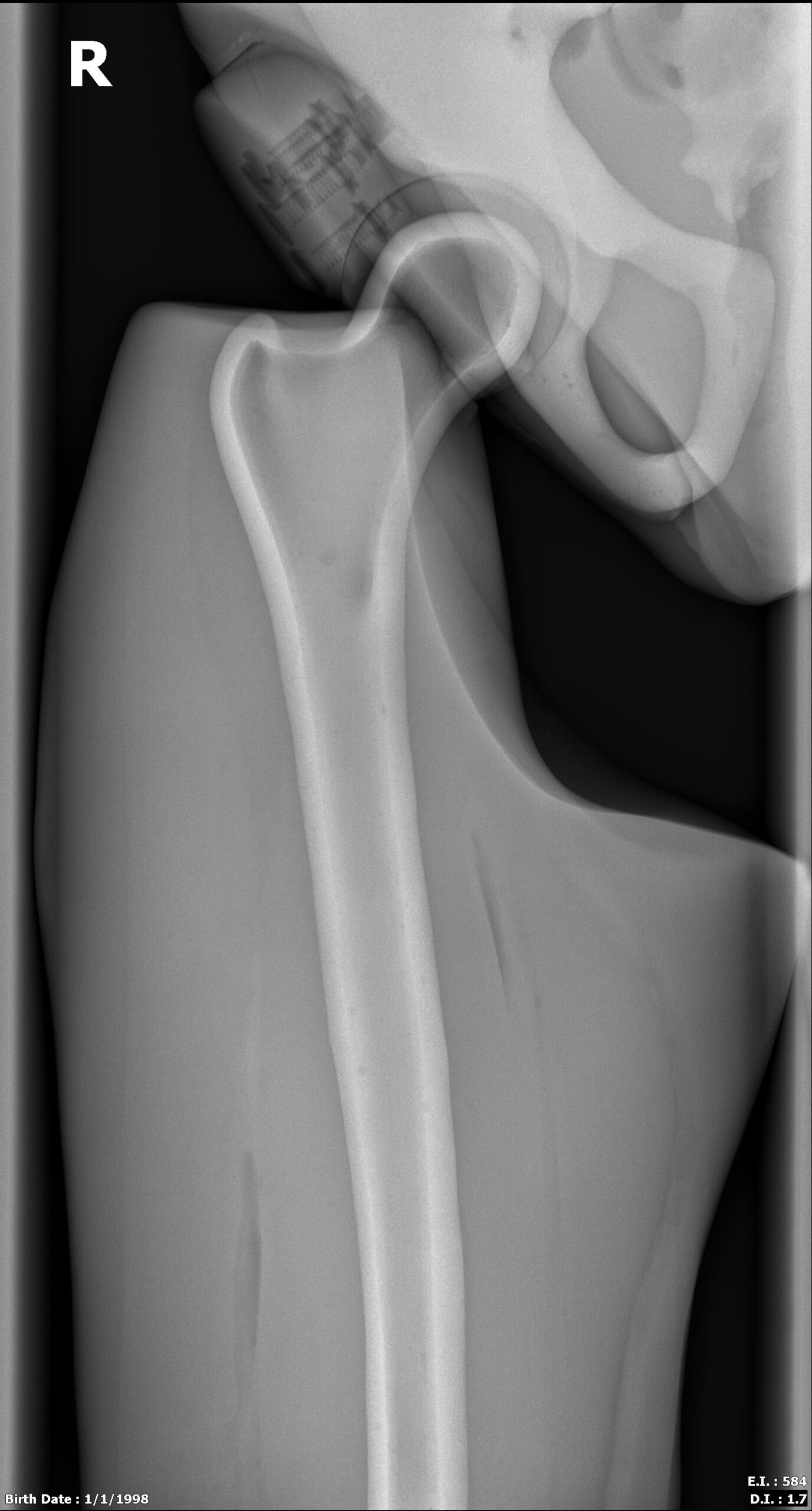

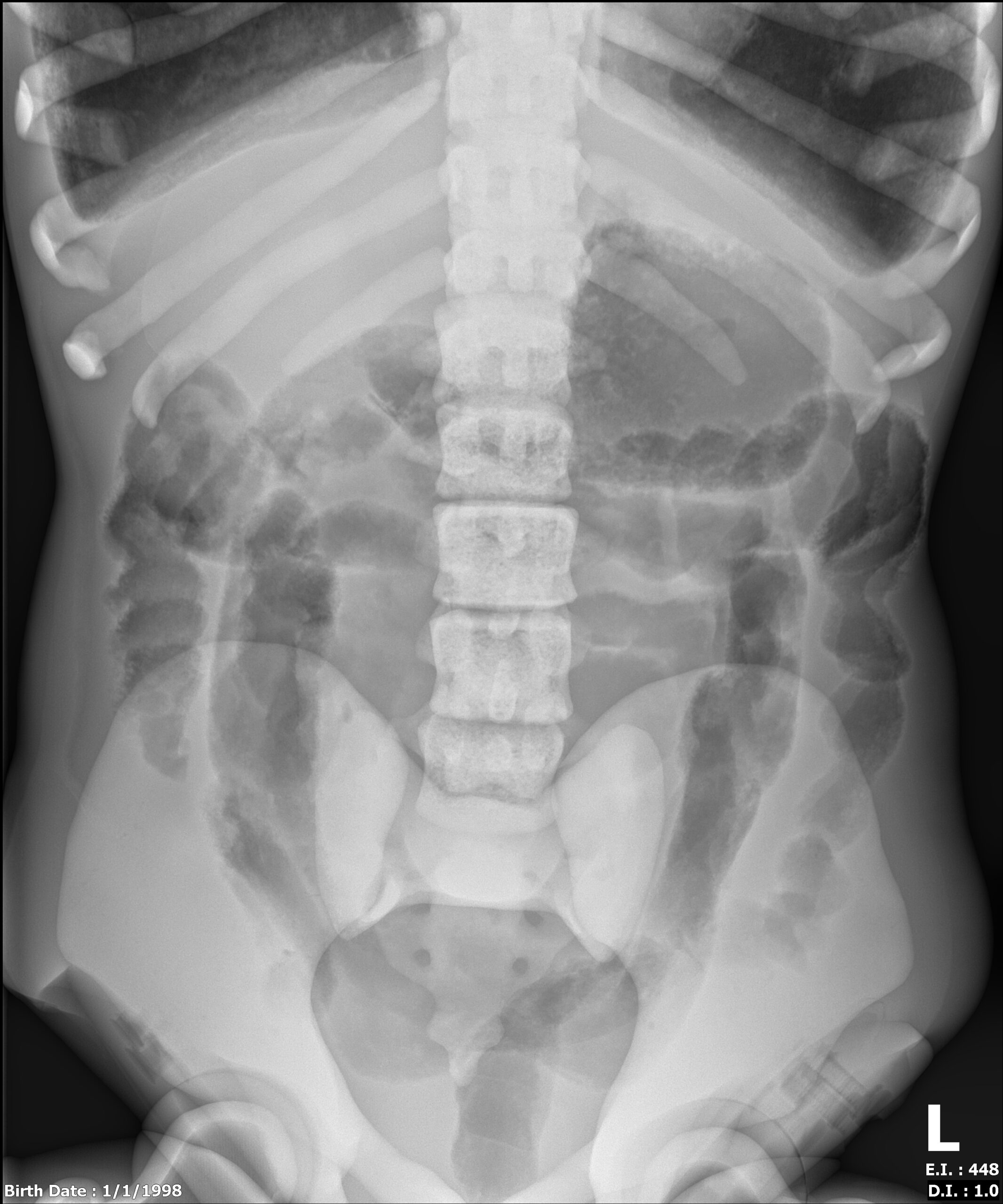

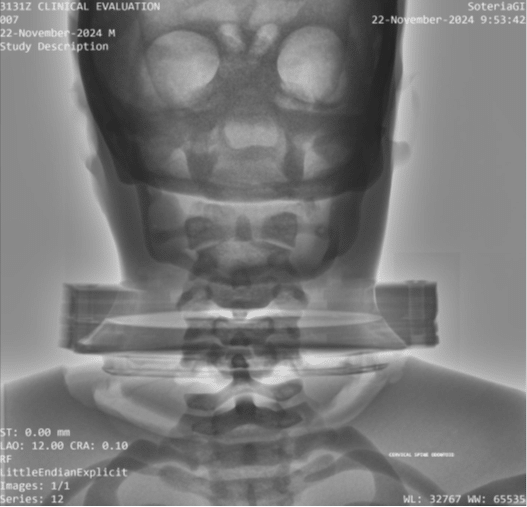

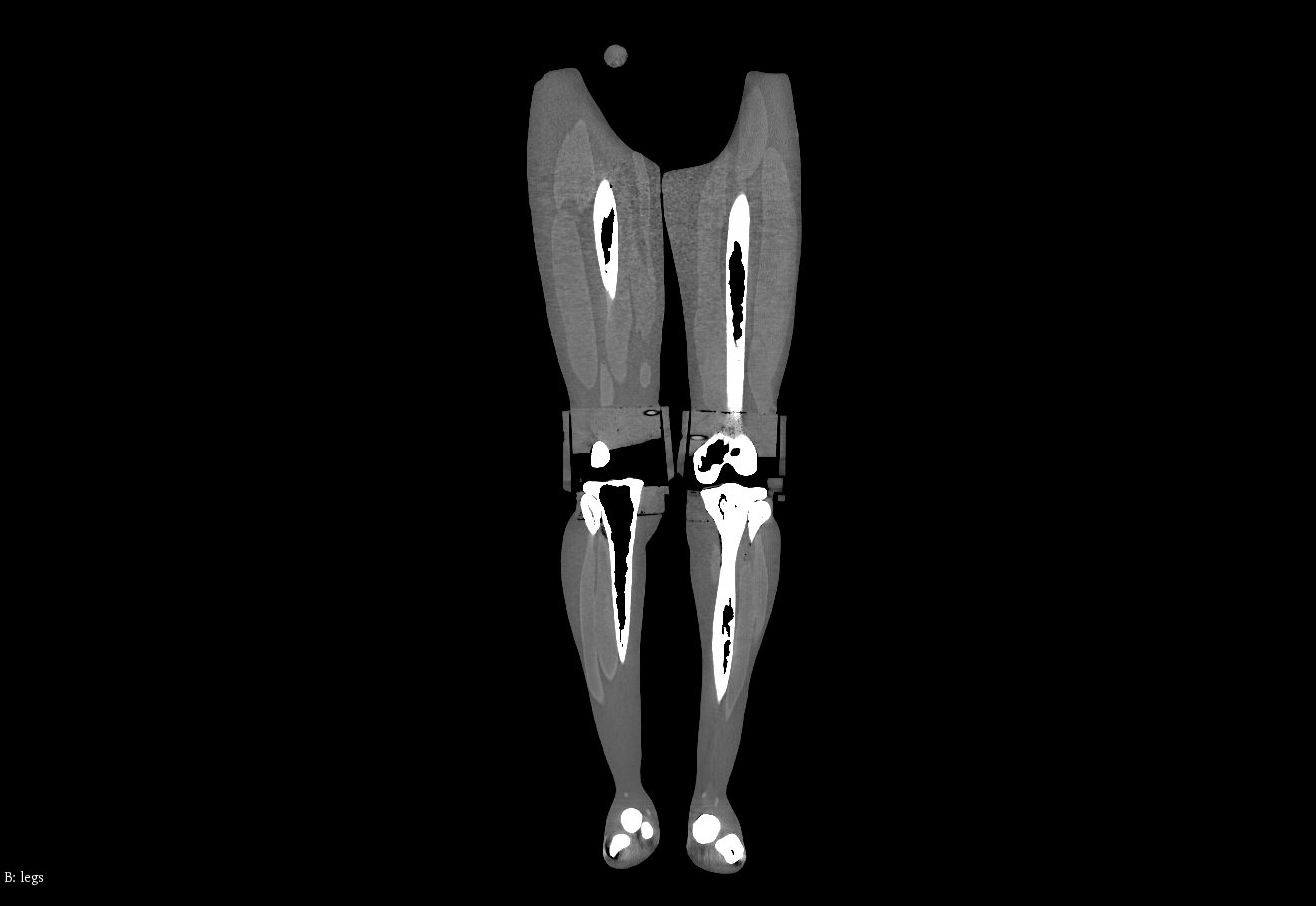

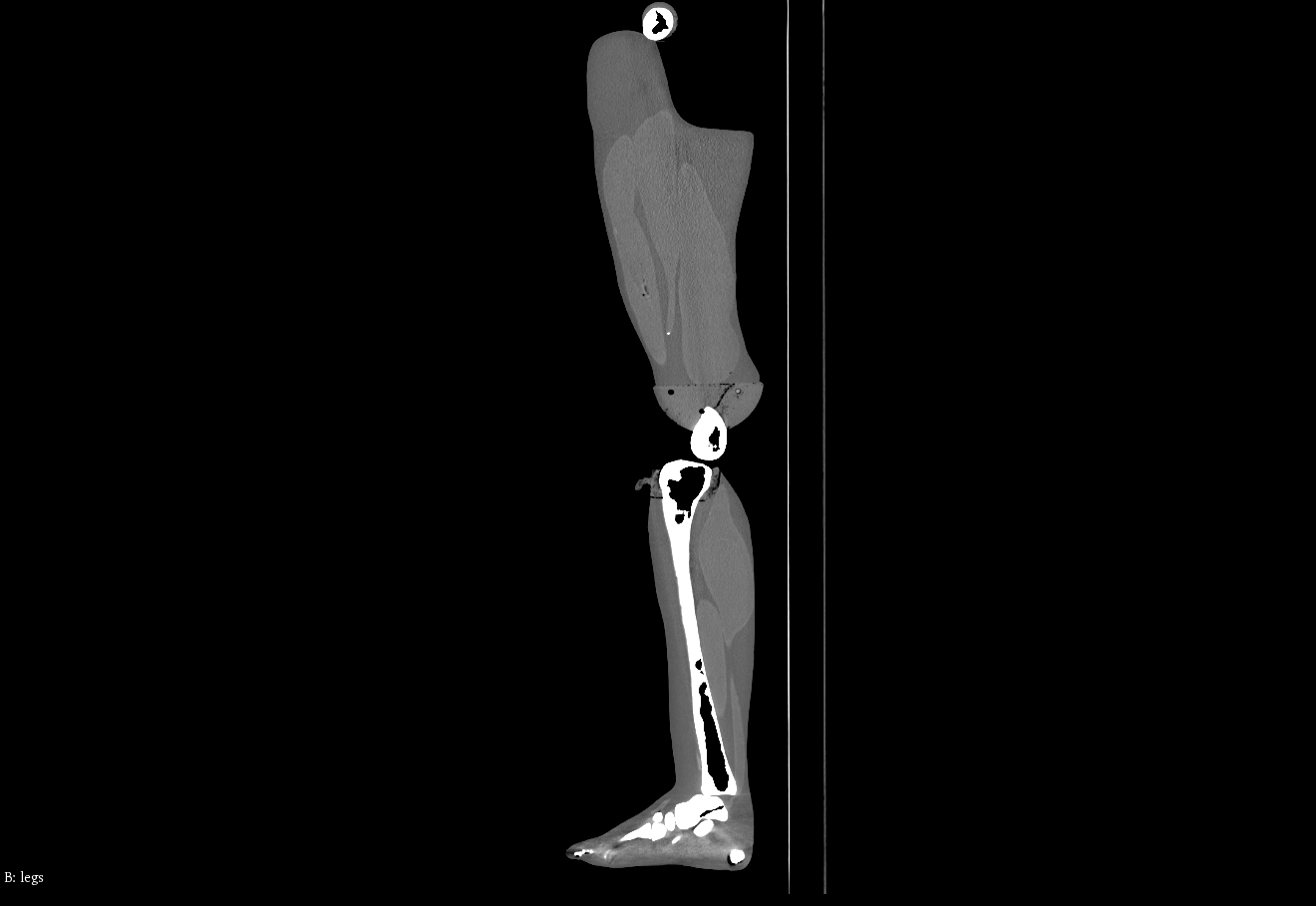

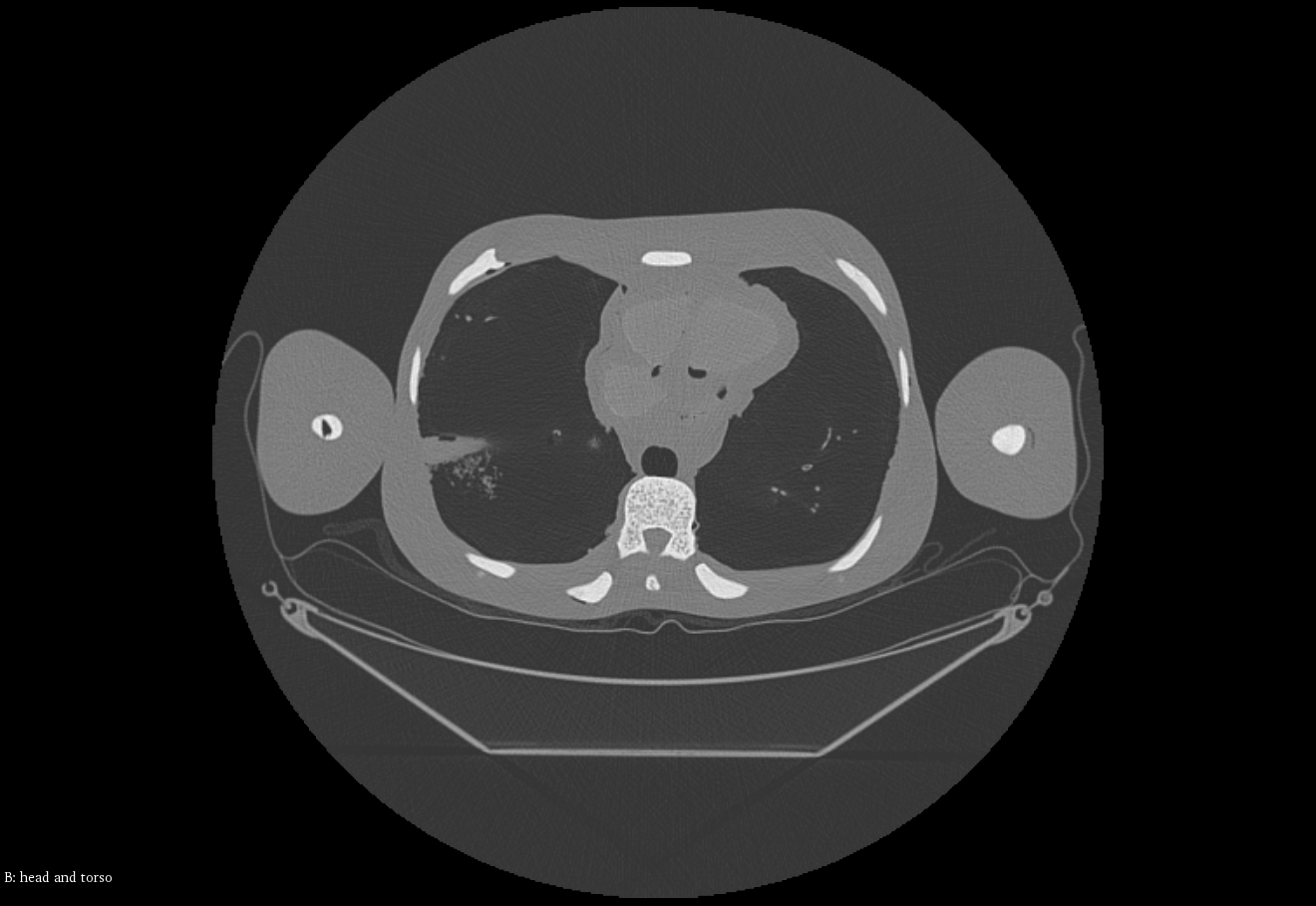

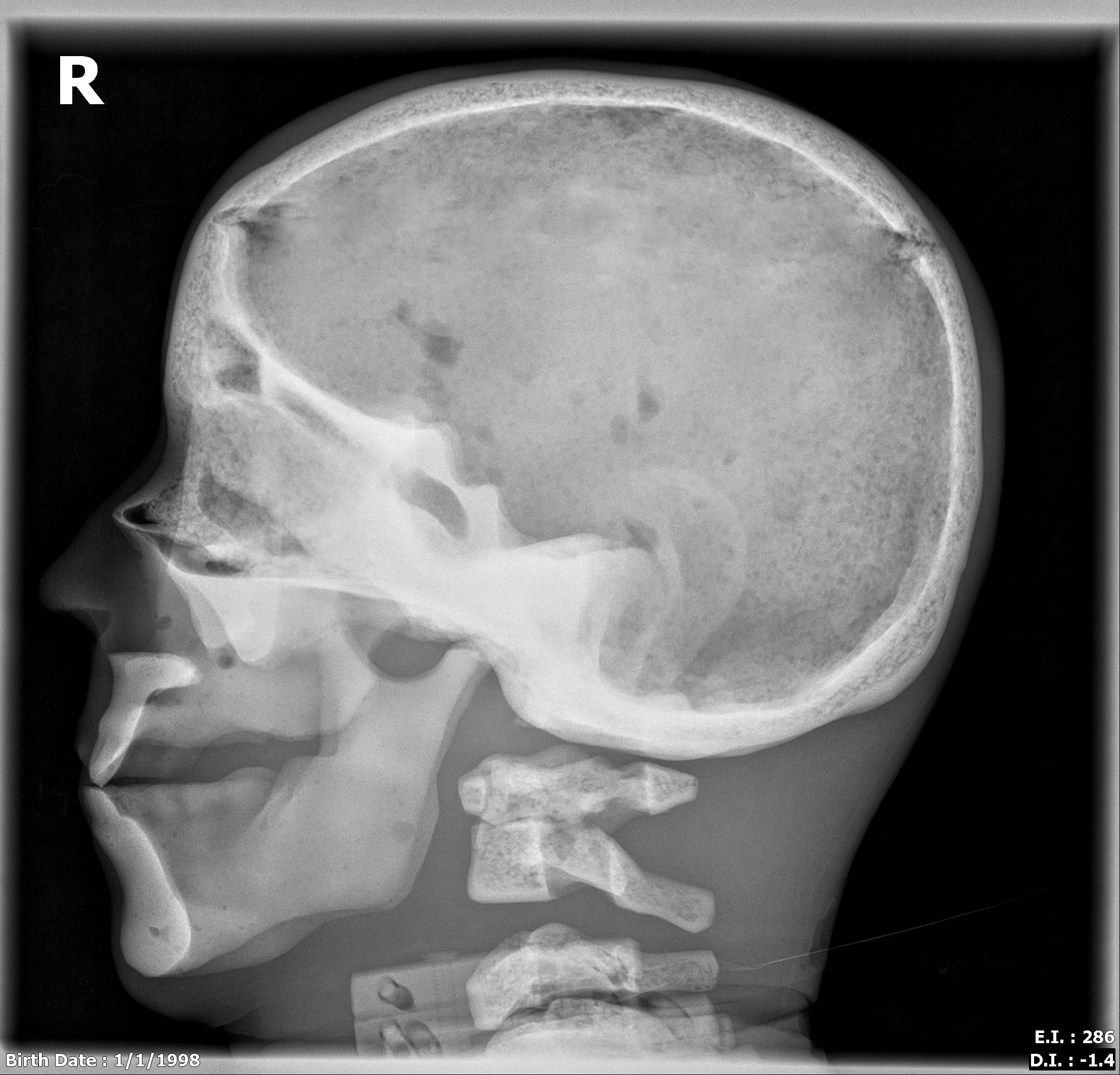

Sample scans of this phantom. Full scan galleries available on request.
