Adult Pelvis for X-Ray CT, US, MRI
$6,990
The Adult Pelvis Phantom is a realistic training tool and research device for medical imaging. Made of patented bone material, it is suitable for X-Ray/CT, US, and MRI imaging. Customizable in size and shape, it offers a three-layered structure with adjustable porosity for specific project needs.
Pelvis Model: Without Organs
This product can be customized based on your requirements — contact us.

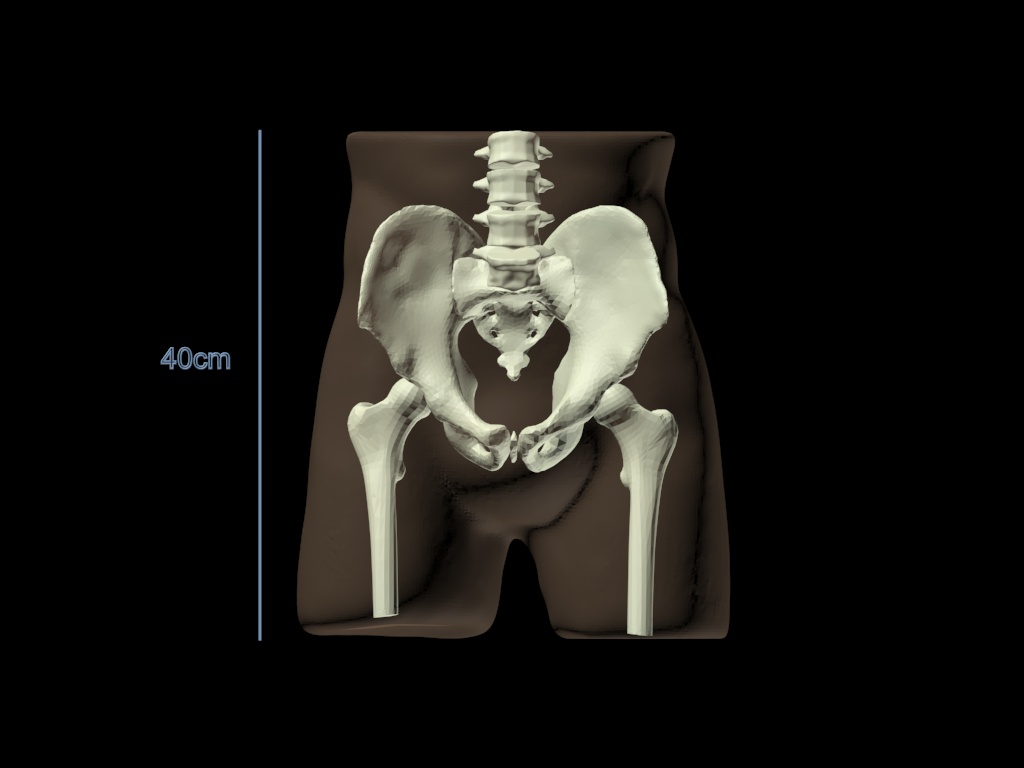

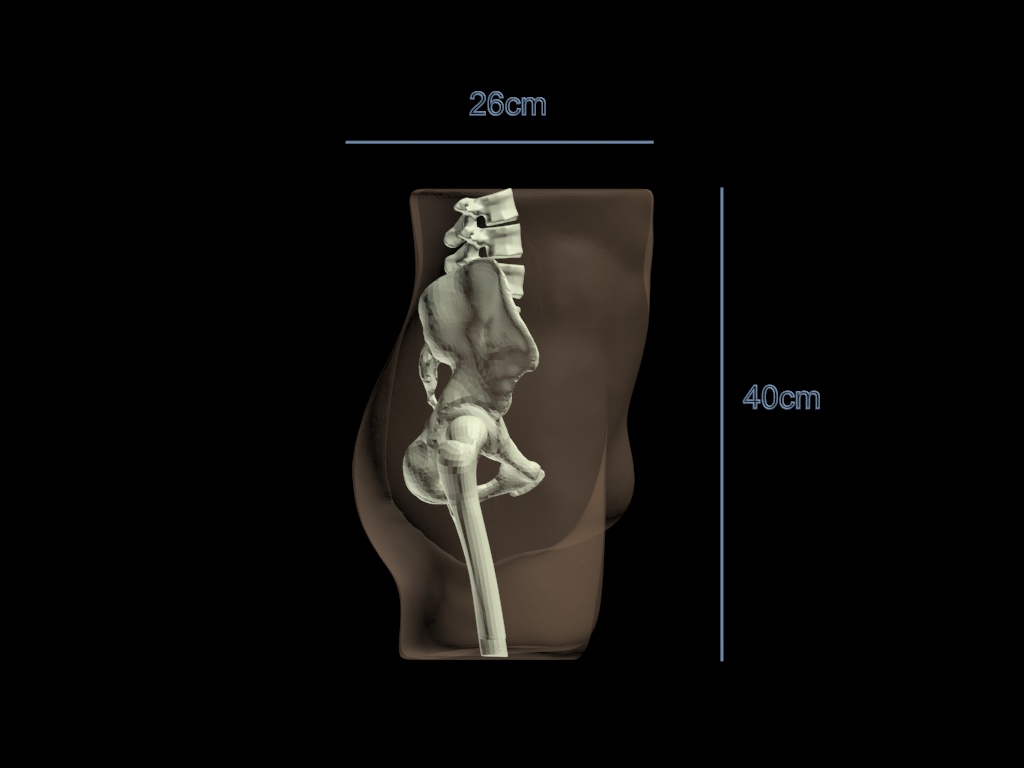

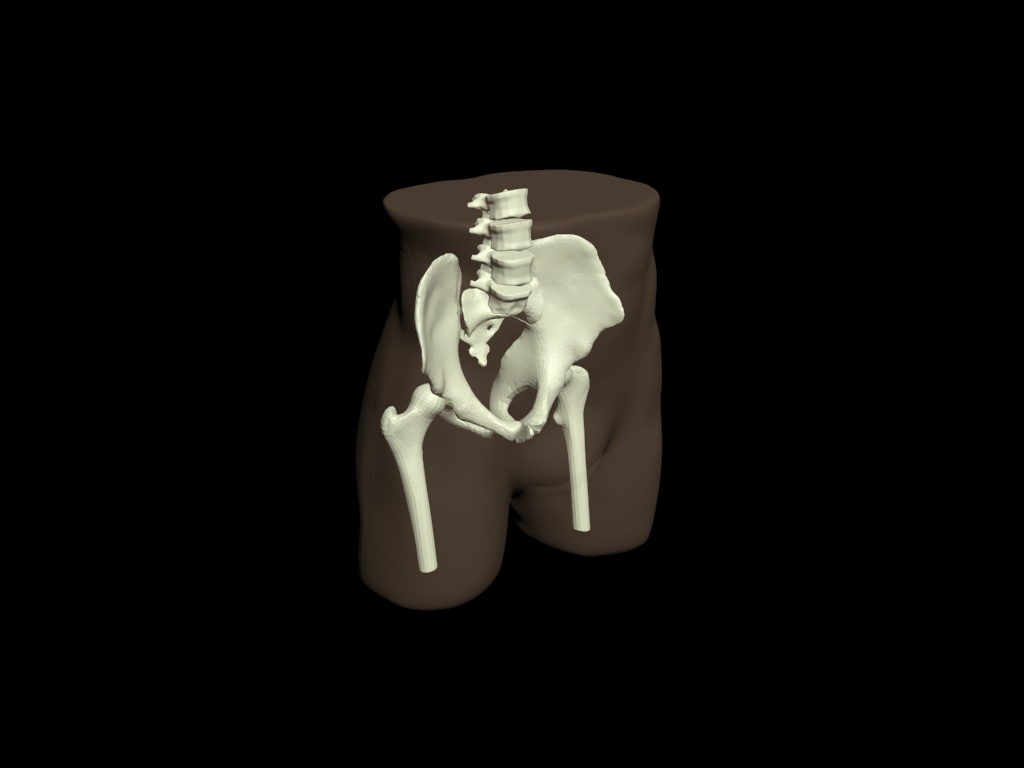

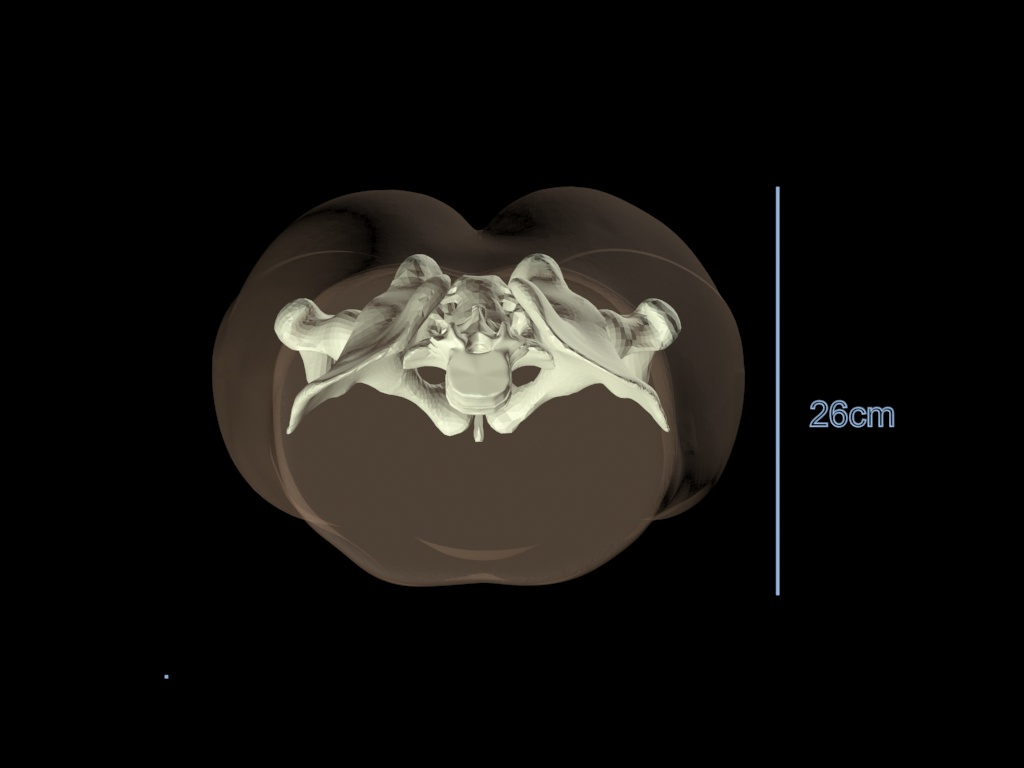

The Adult Pelvis Phantom’s structure and geometry is designed based on an average adult human (male). It is made out of realistic patented bone material that is suitable for X-Ray/CT and MRI imaging applications. It can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration-related purposes. This product can be further customized to match our client’s specific requirements.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.
The bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of wide variety of projects. The phantom can also be customized in size and shape (i.e. based on any individual’s CT scan).

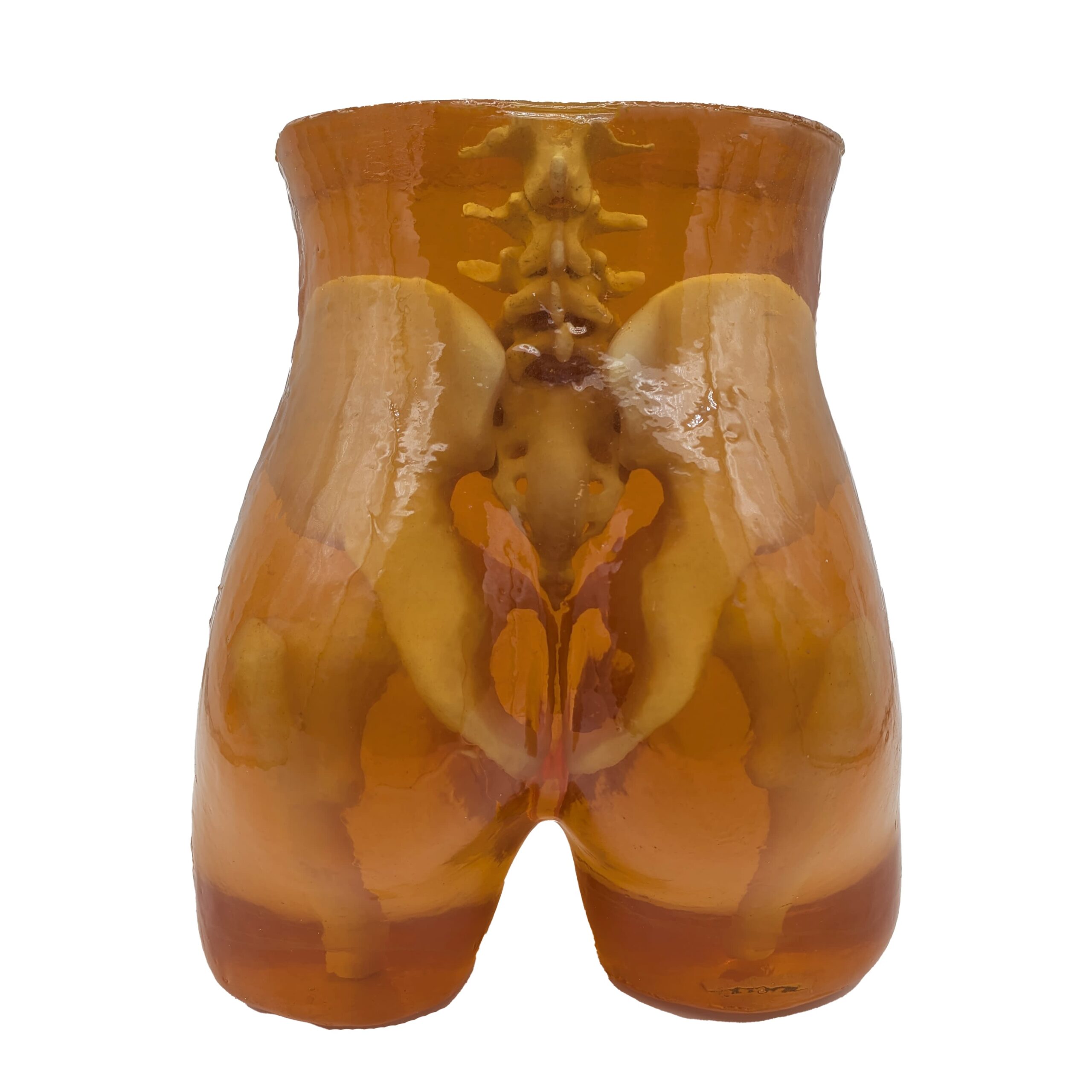

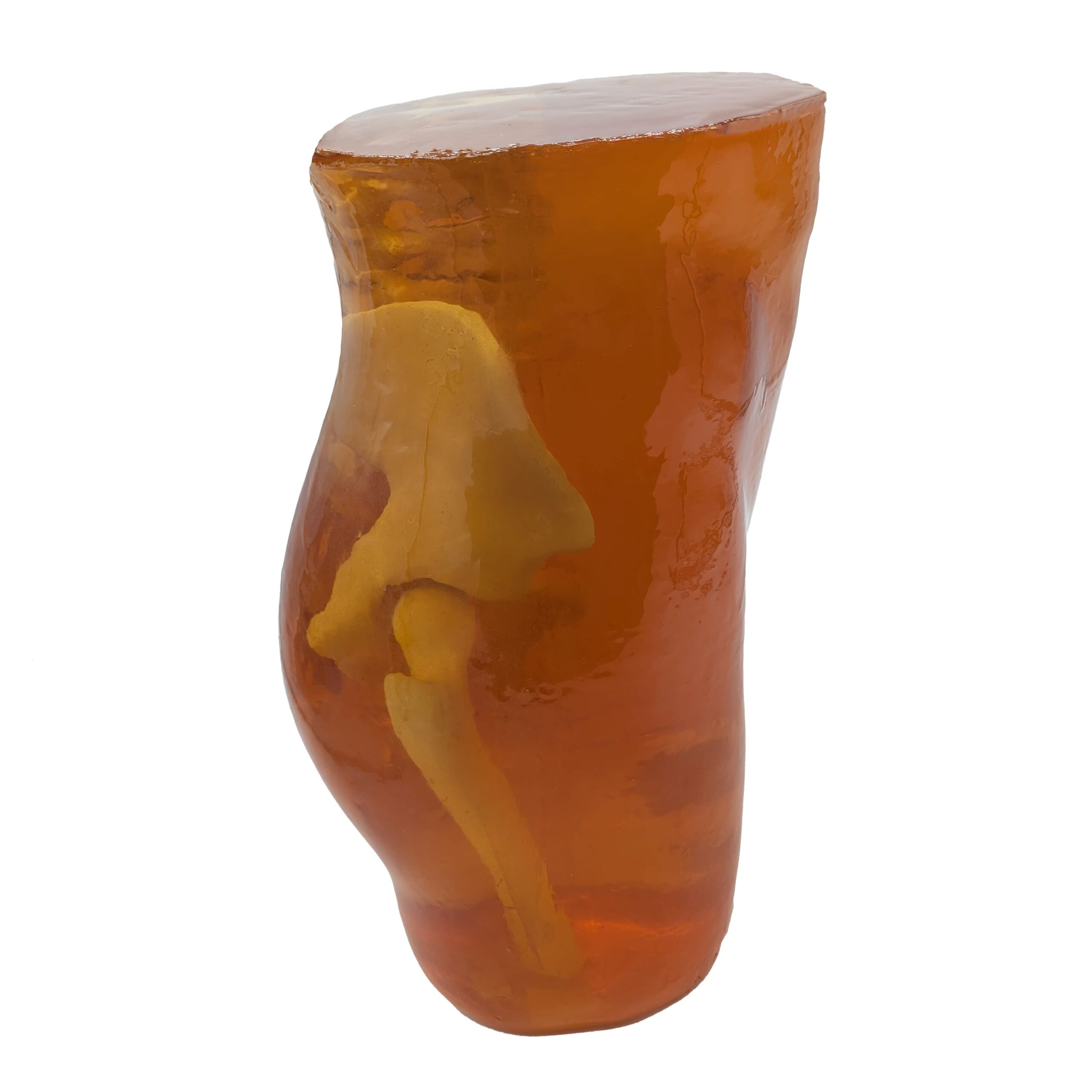

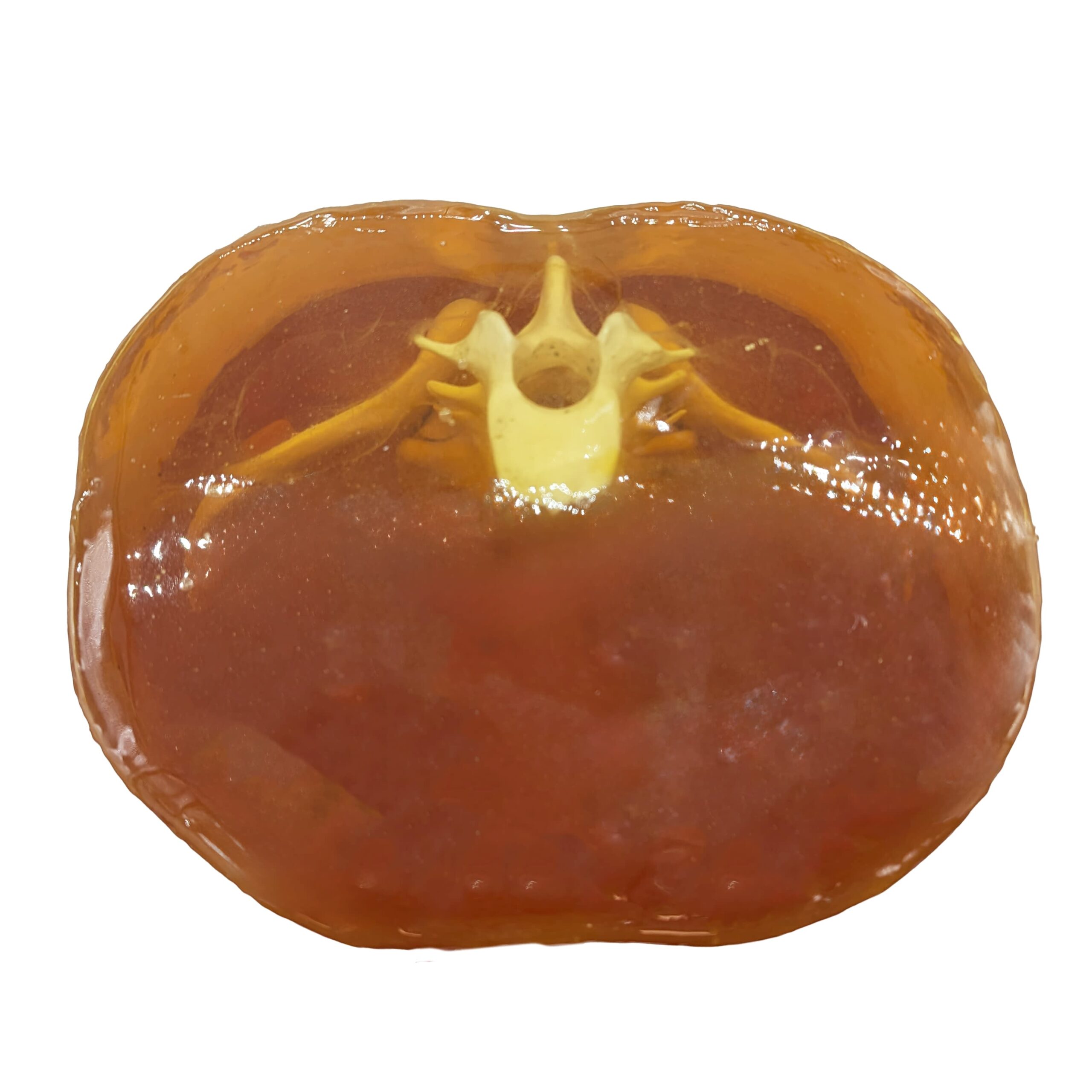

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Soft Tissue | 1410 ± 10 | 1.02 | 60 | 50 ms | 25 | 1.7 ± 0.2 |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking-Materials | ||
| S.No. | Tissue Type | HU Value (Average) |
| 1 | Soft Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Bladder | 35 |
| 5 | Rectum Wall | 100 |
| 6 | Sigmoid Colon Wall | 100 |
| Pelvis Model | Without Organs, With Organs |

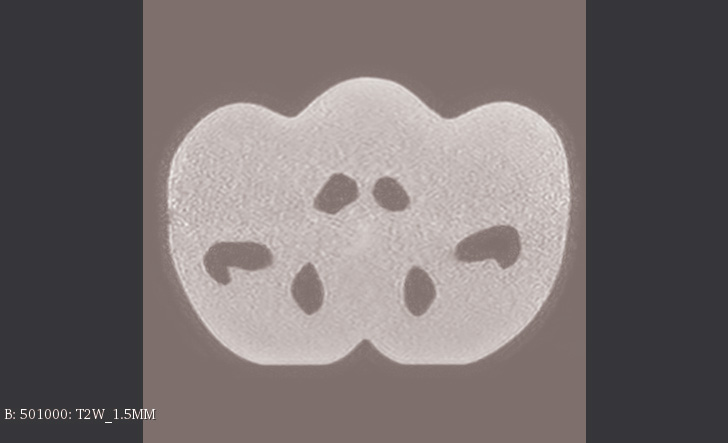

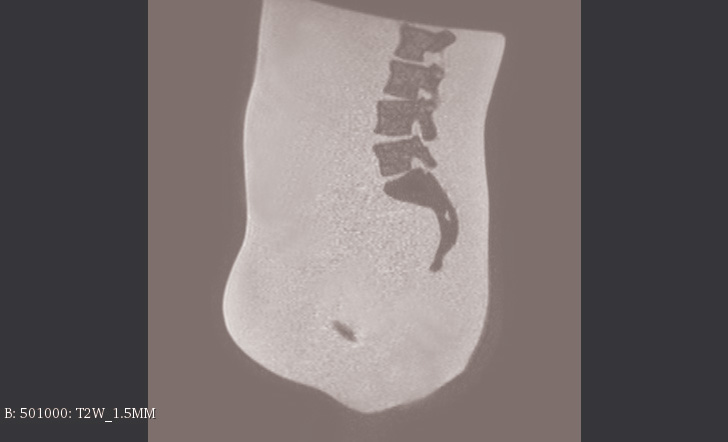

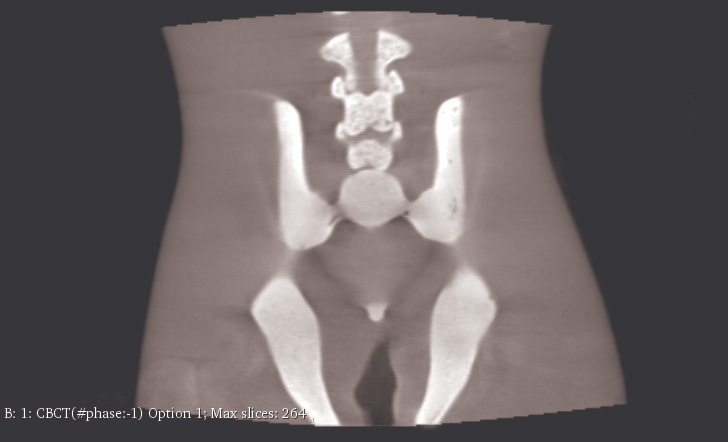

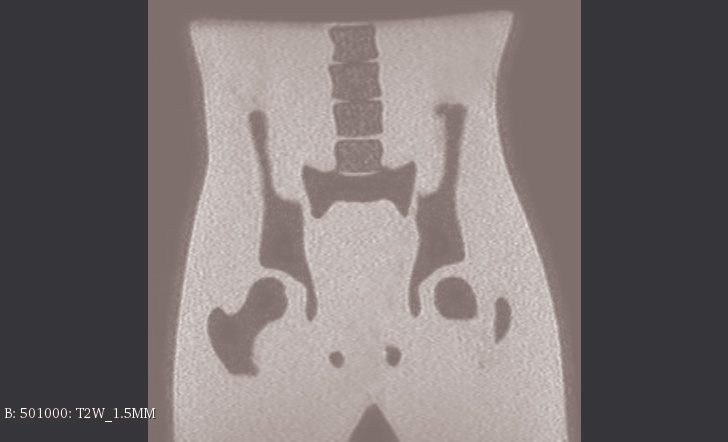

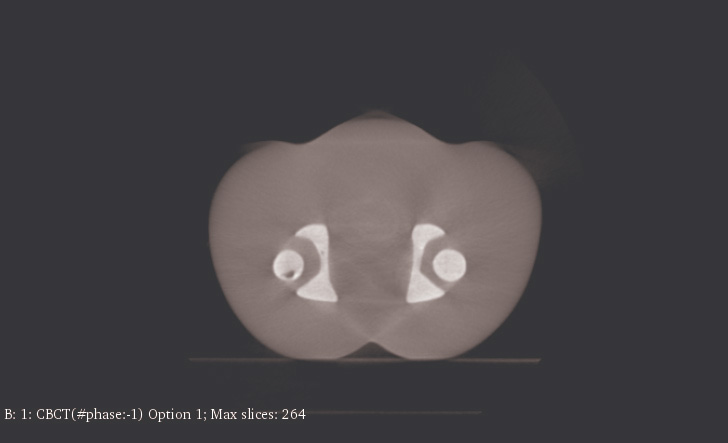

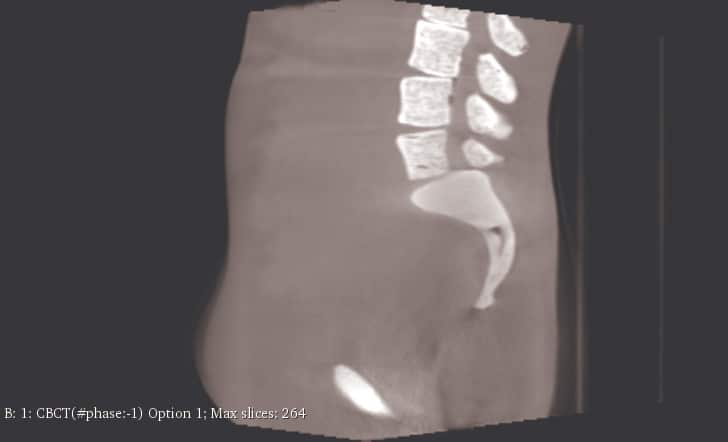

Sample scans of this phantom. Full scan galleries available on request.
