Adult Male Torso for X-Ray CT, US
$18,900

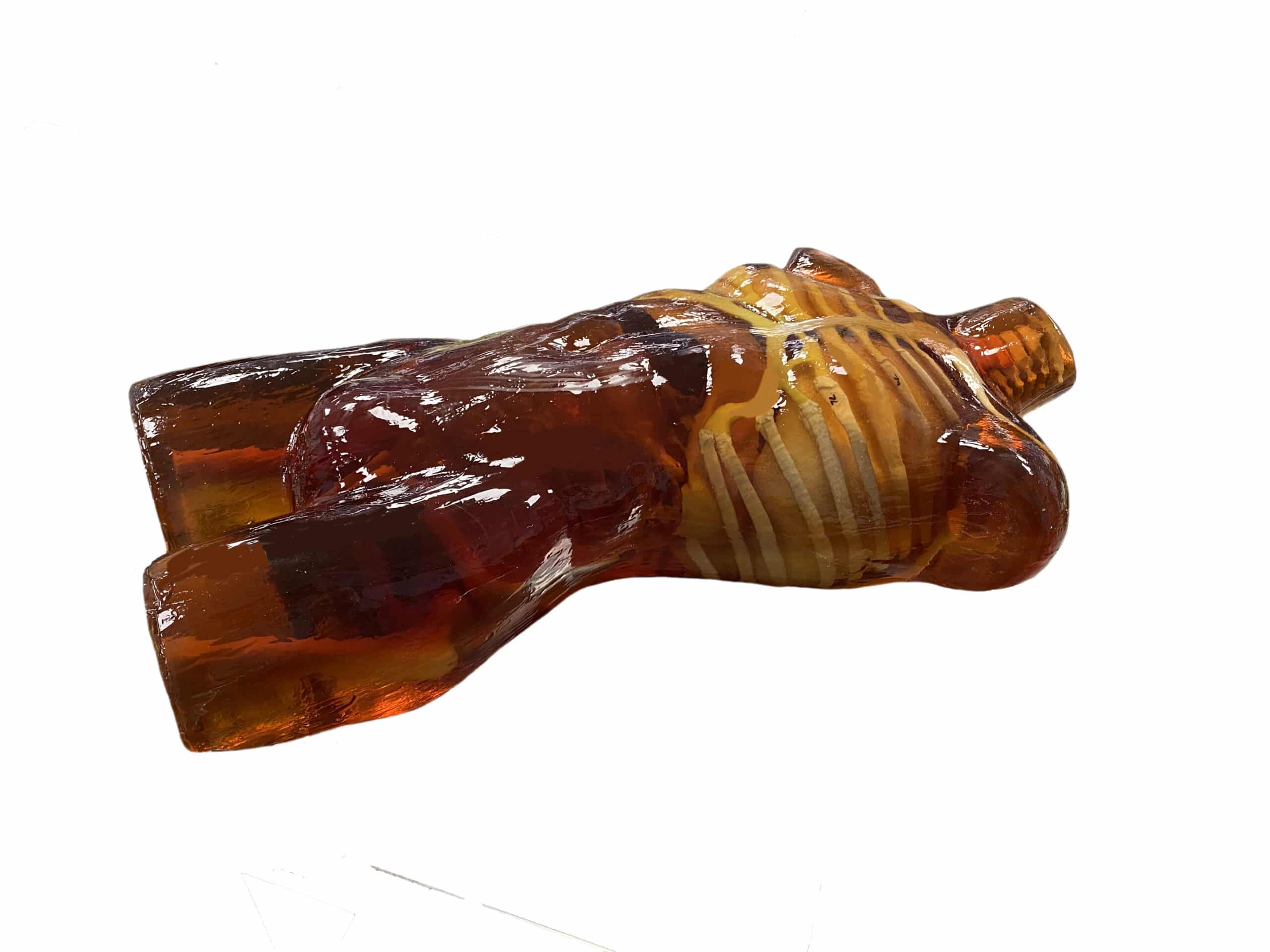

The Adult Male Torso Phantom for X-Ray CT, US is a realistic tool designed for X-Ray/CT and Ultrasound training. Its design is based on the anatomy of an adult male, featuring a realistic skeleton and customizable pathologies. It is an ideal tool for ultrasound technicians and medical students. This is the transparent version.
Torso Model: Male (Dynamic)
Model: X-Ray CT
This product can be customized based on your requirements — contact us.

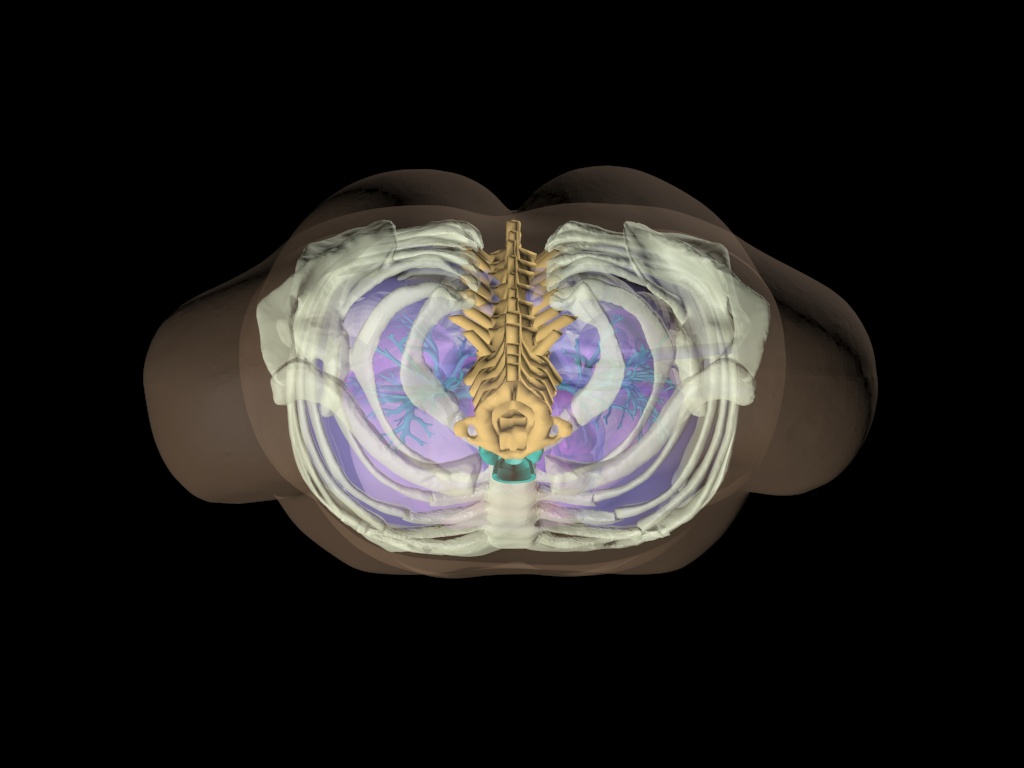

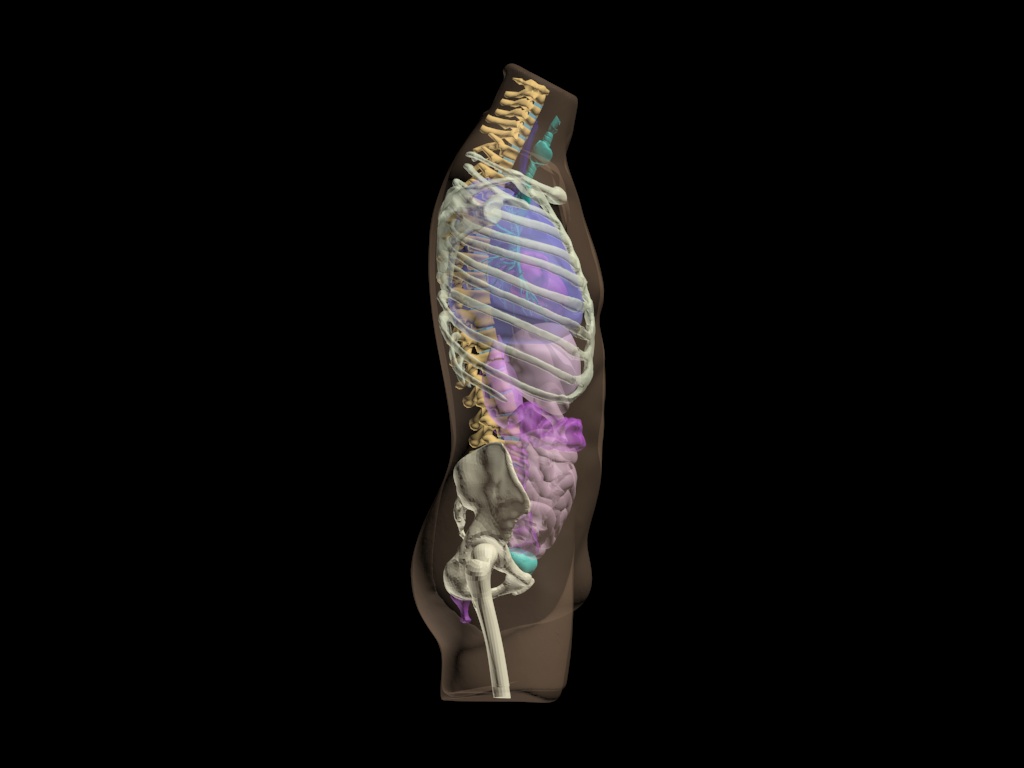

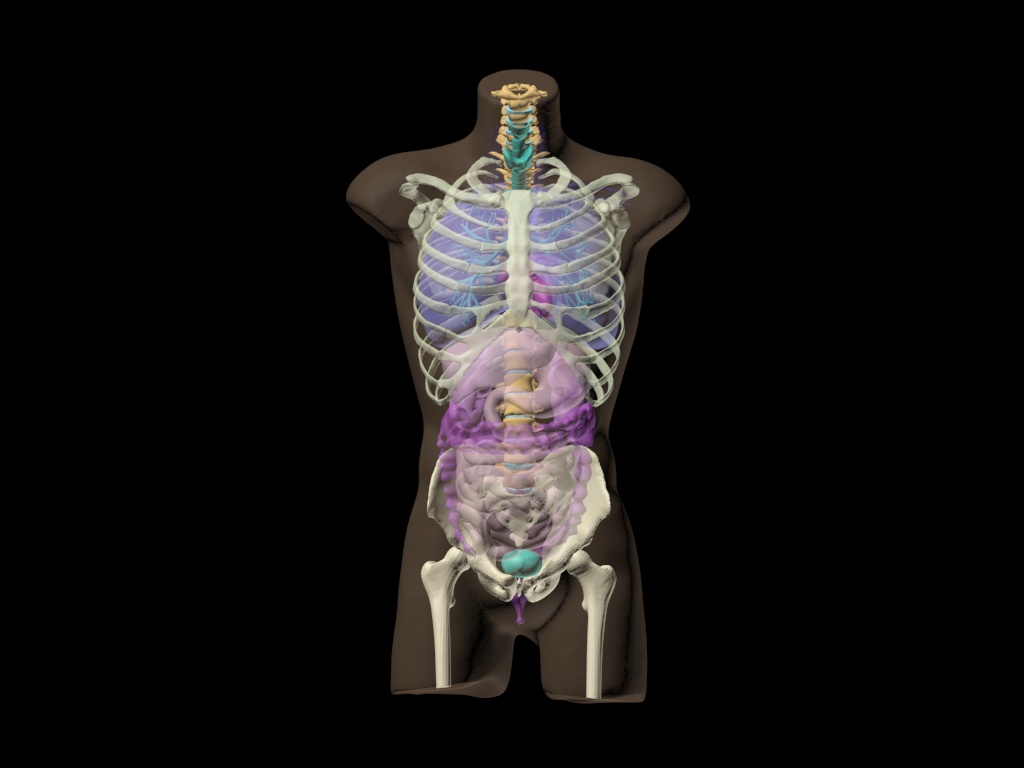

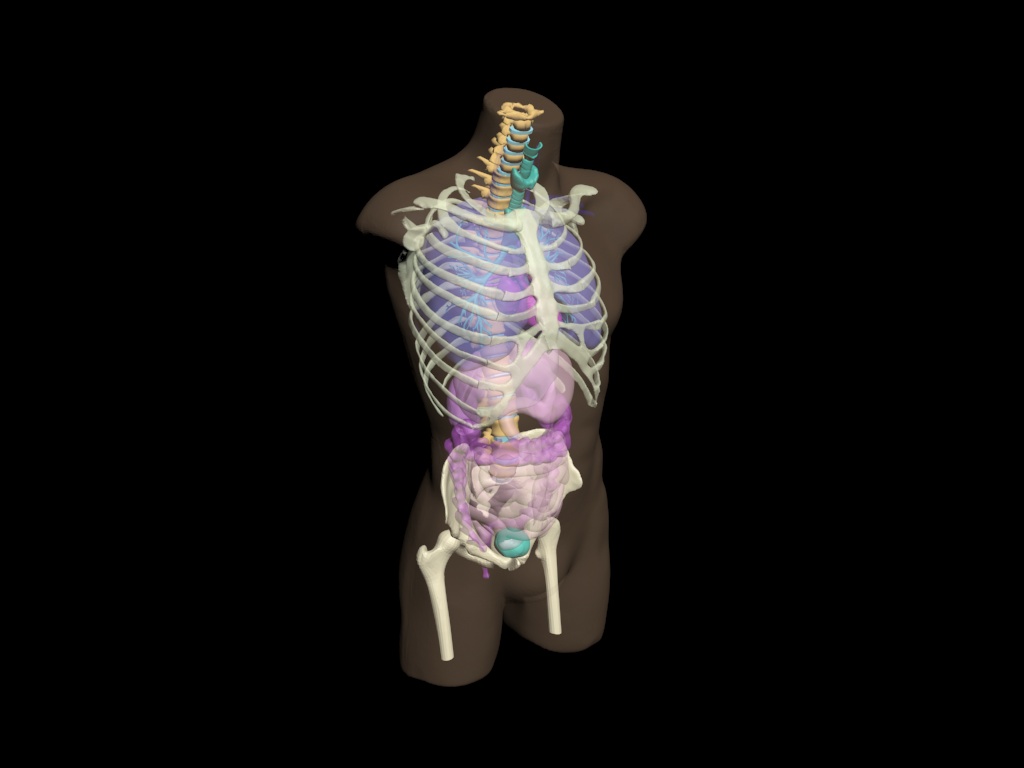

Adult Male Torso for X-Ray CT, US is designed based on an average anatomy of an adult healthy human male. It is compatible with X-Ray/CT and Ultrasound. The skeleton is made from individually cast bones from a realistic patented epoxy-based composite material with vertebrae that have a realistic three-layered structure with inner porosity.
The phantom can be customized with any pathologies for learning the techniques of FAST (focused assessment with sonography for trauma), FAMUS (Focused Acute Medicine Ultrasound), and any other procedural training (Pericardial effusion, etc.).

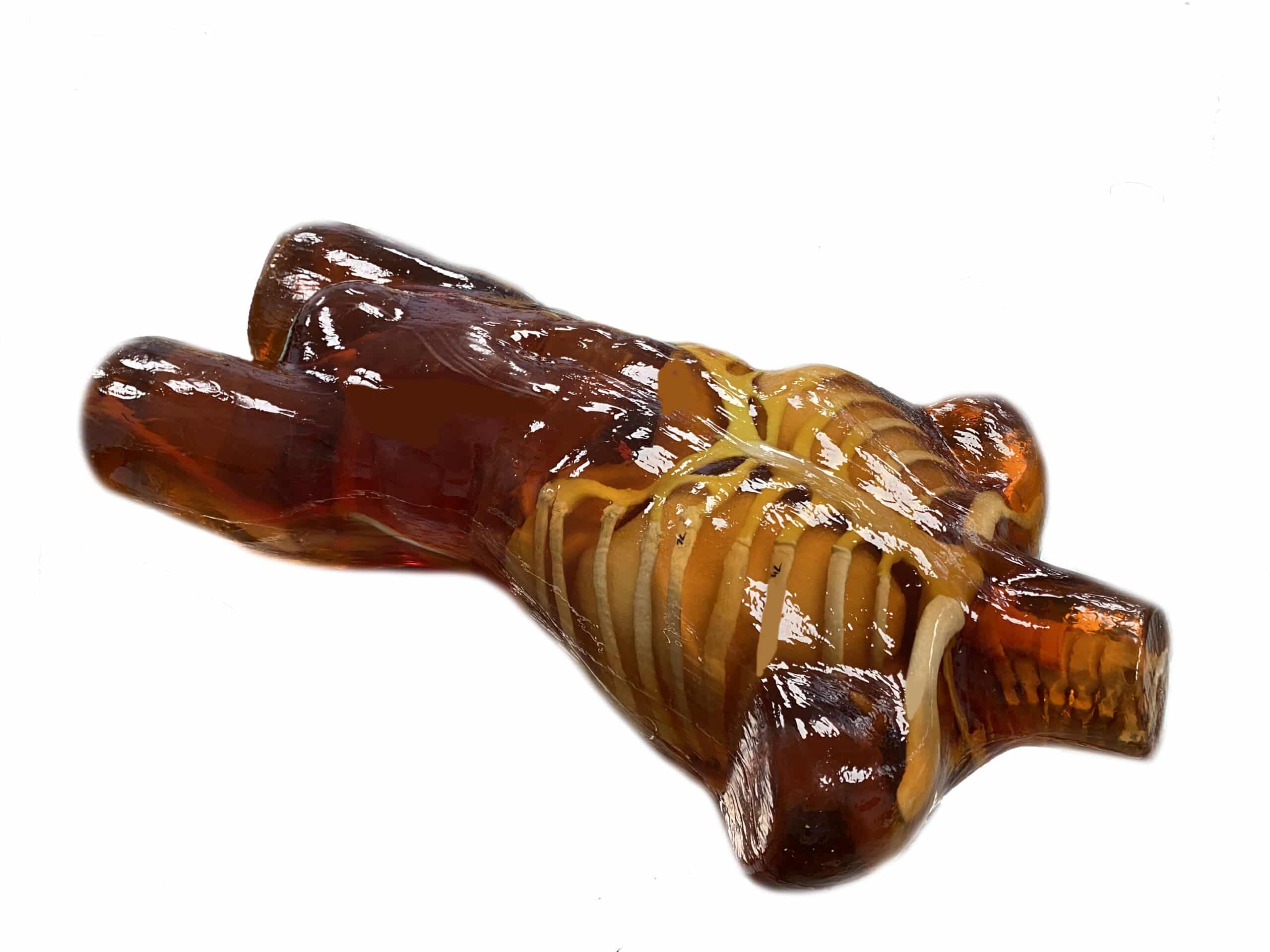

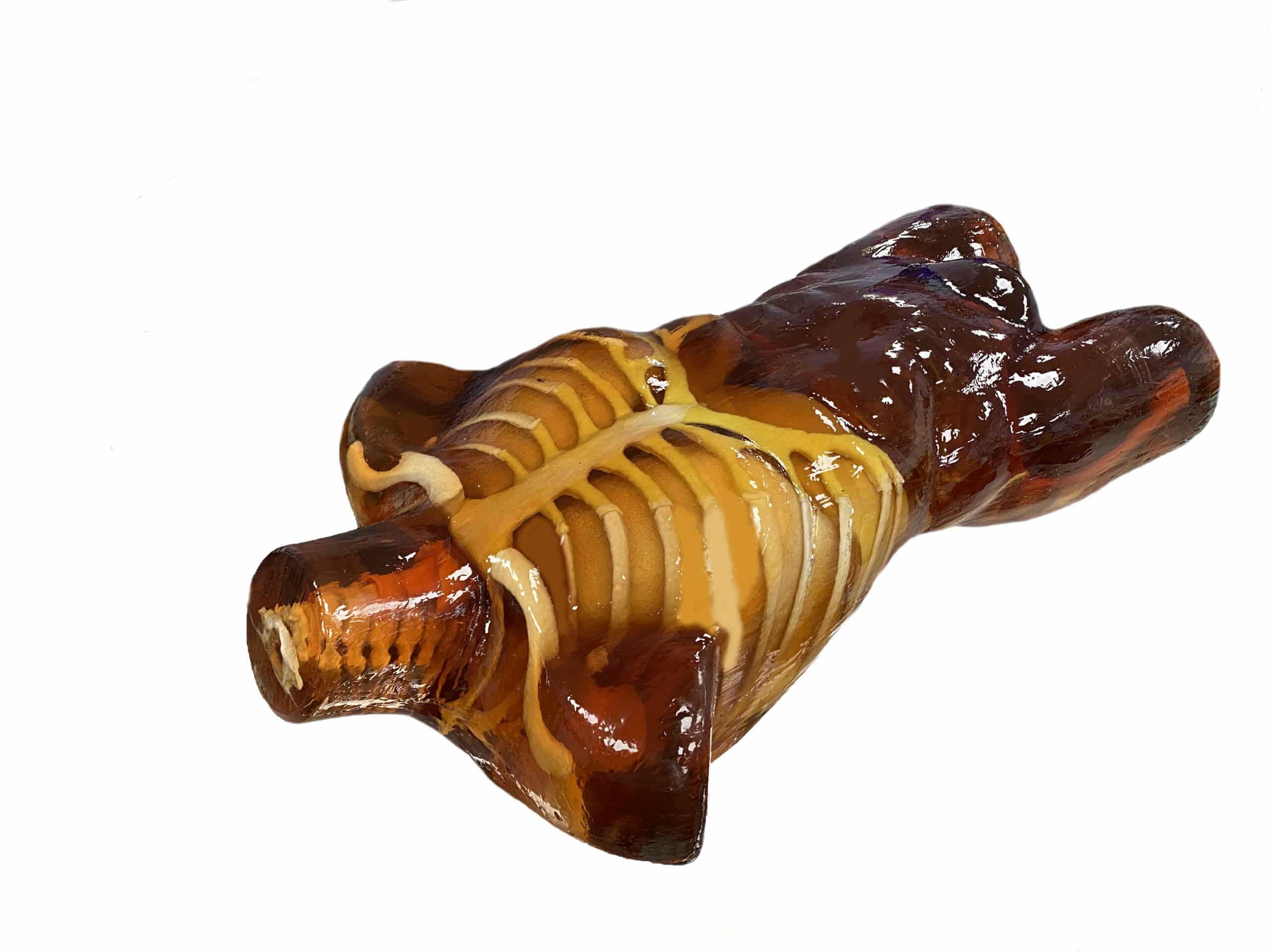

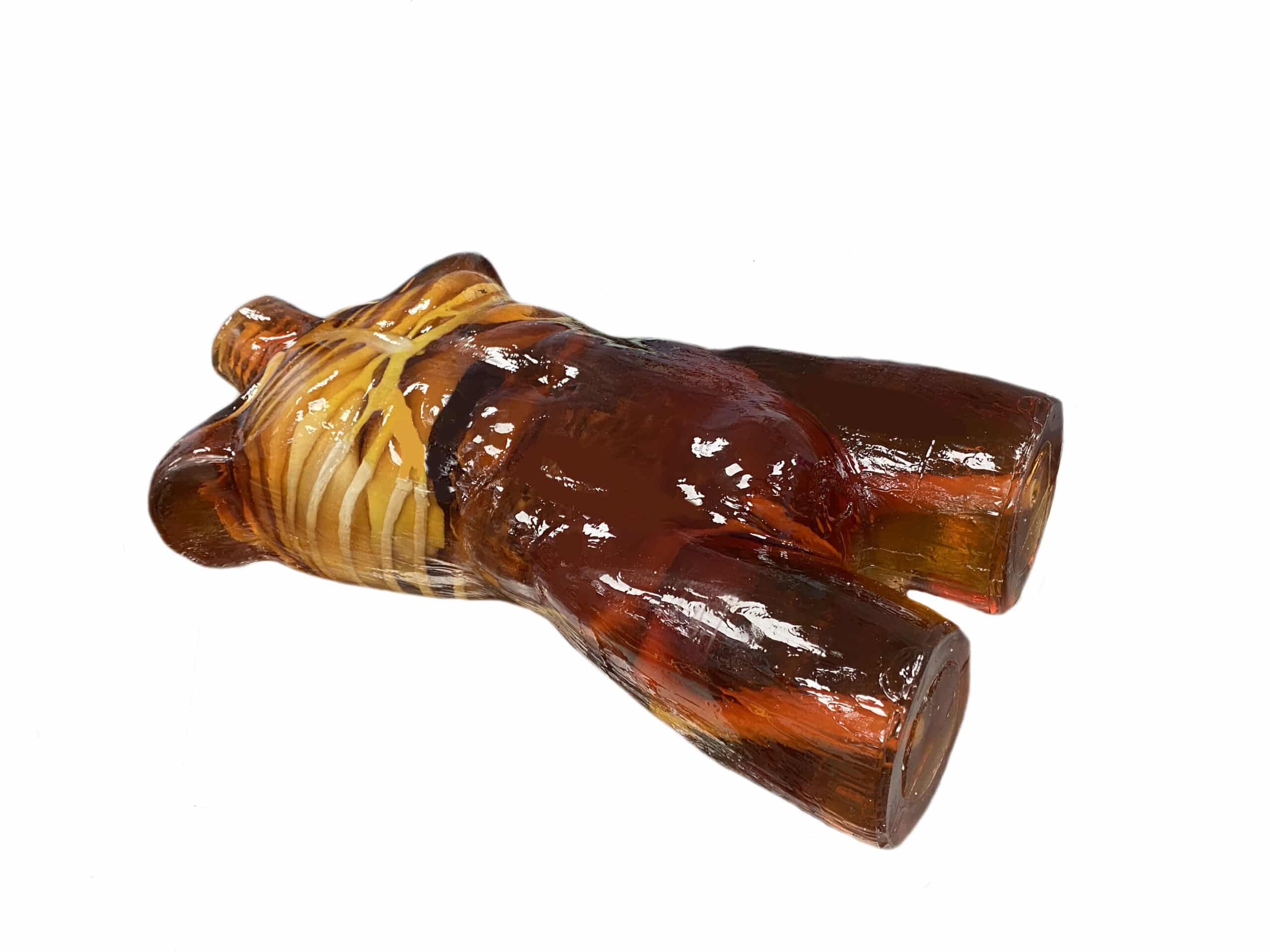

This product is available in translucent amber or skin (opaque) appearance.
A clinical study involving the use of proton therapy was done using a customized version of our torso phantom, which included additional tumors and a hollow fillable rectum. You can find that study here: Wang, S., Gonzalez, G., Sun, L. et al. Real-time tracking of the Bragg peak during proton therapy via 3D protoacoustic Imaging in a clinical scenario. npj Imaging 2, 34 (2024). https://doi.org/10.1038/s44303-024-00039-x .
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking-Materials |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Pancreas | 110 |
| Spleen | 110 |
| Stomach | -850 |
| Tissue Type | HU Value (Average) |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Diaphragm | 80 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Torso Model | Male (Dynamic), Male (Standard), Male (Cardiac), Male (Cardiac/Fast), Male (Skin), Male (FAST) |
| Model | X-Ray CT, US, X-Ray CT, MRI, Ultrasound |

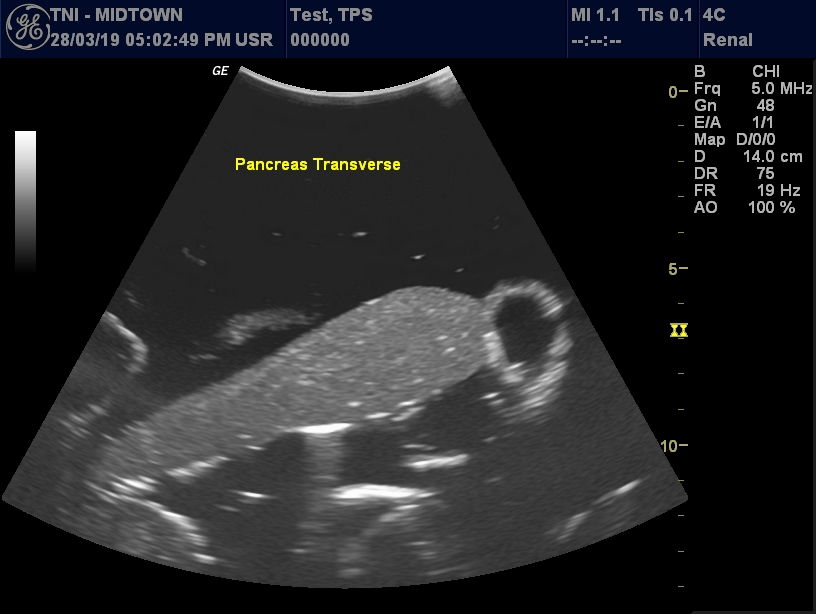

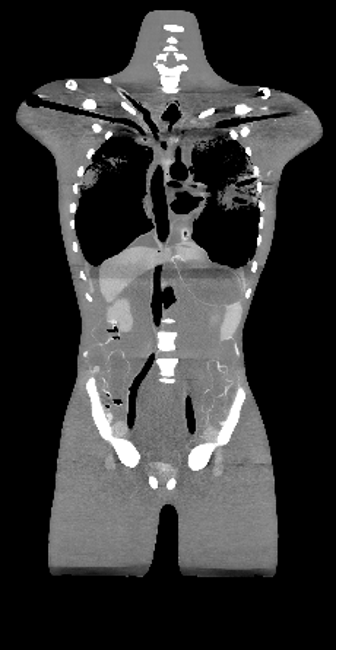

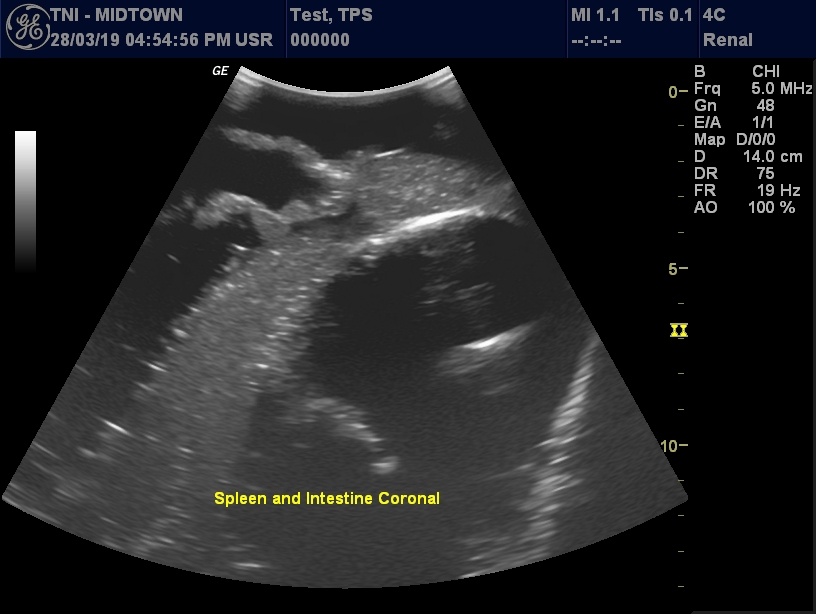

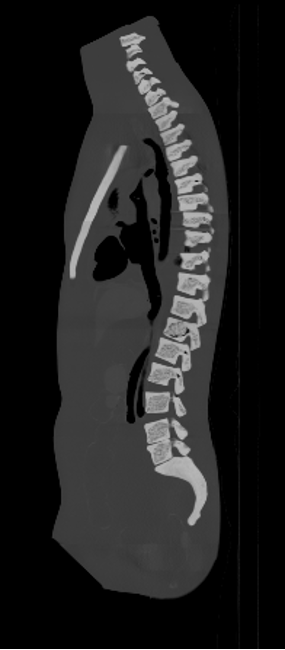

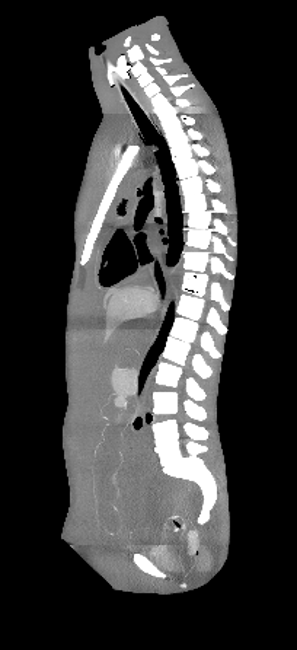

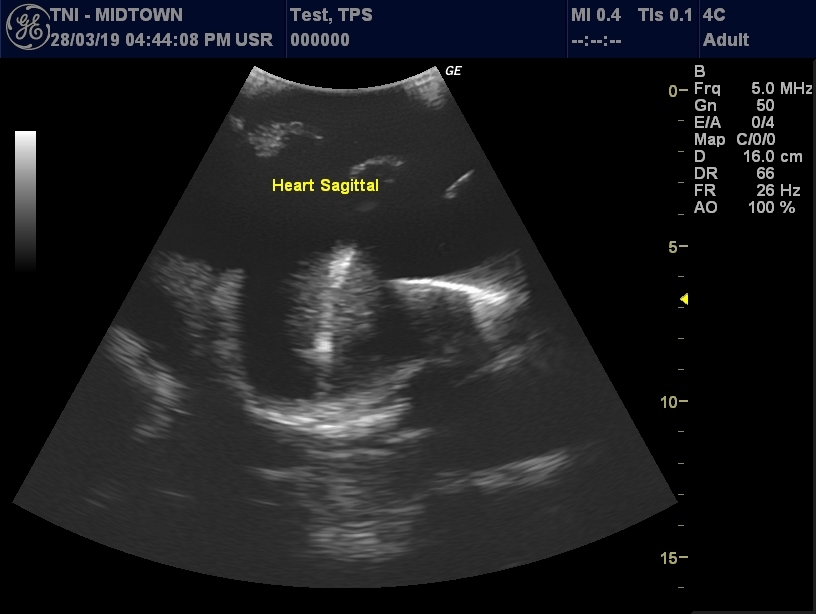

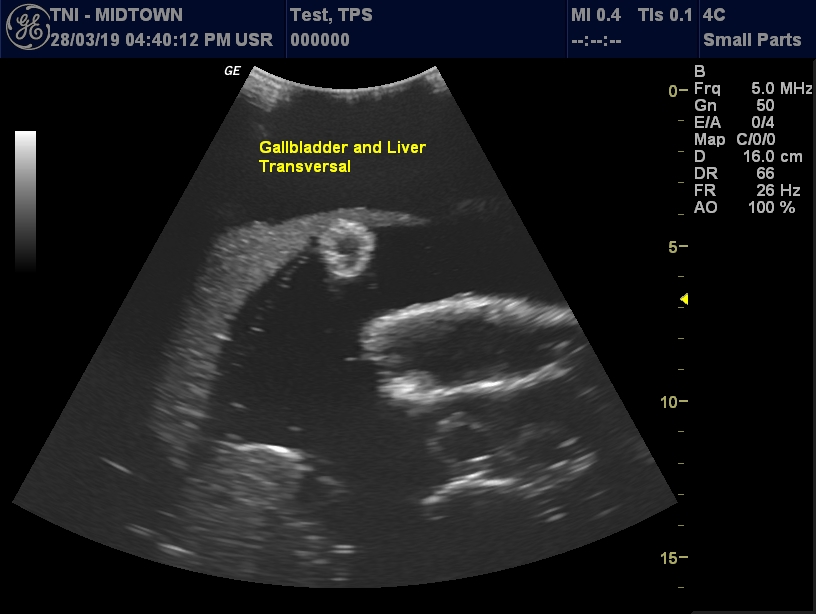

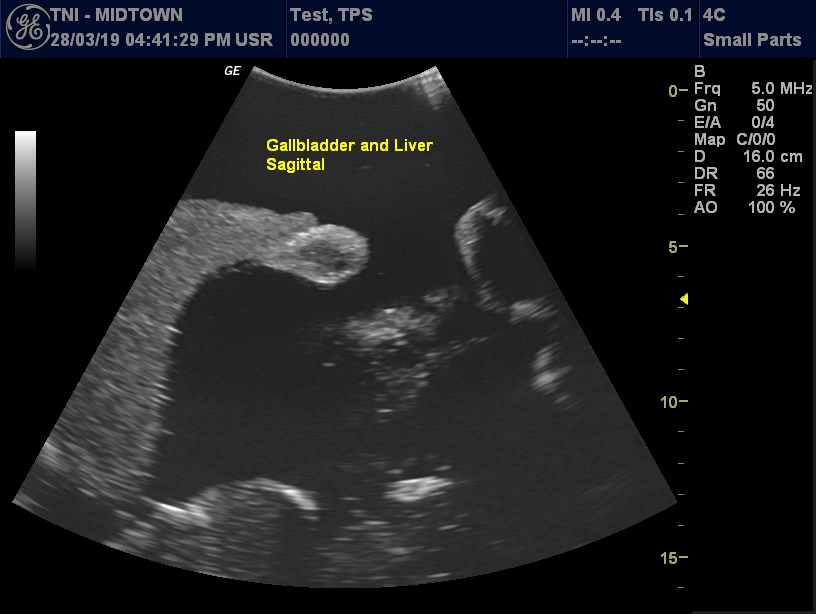

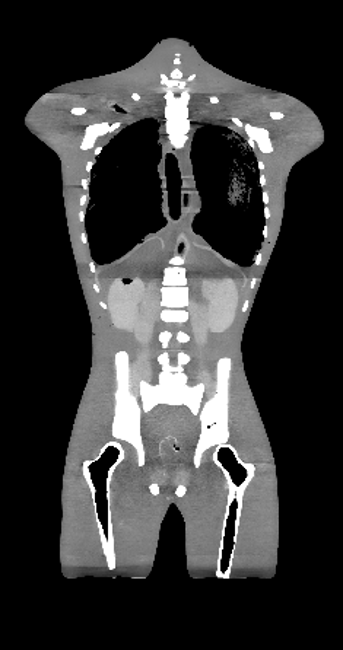

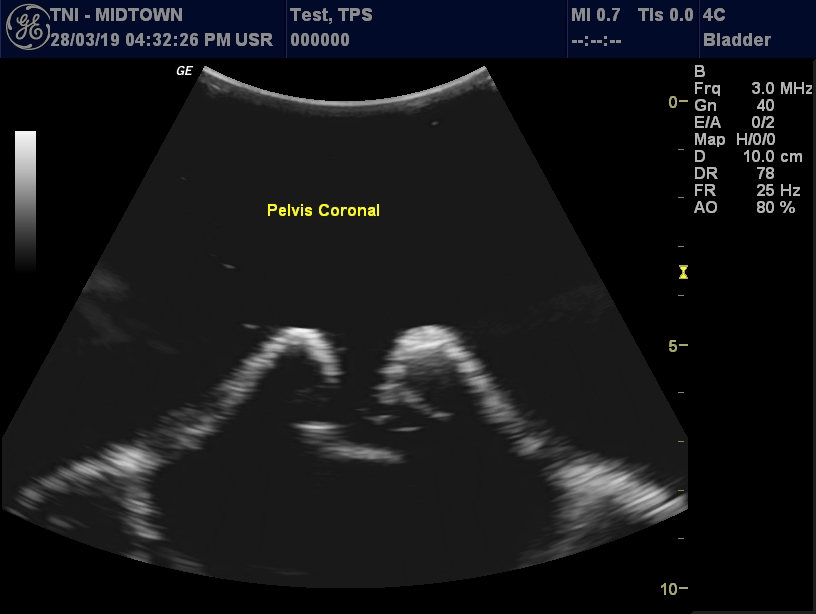

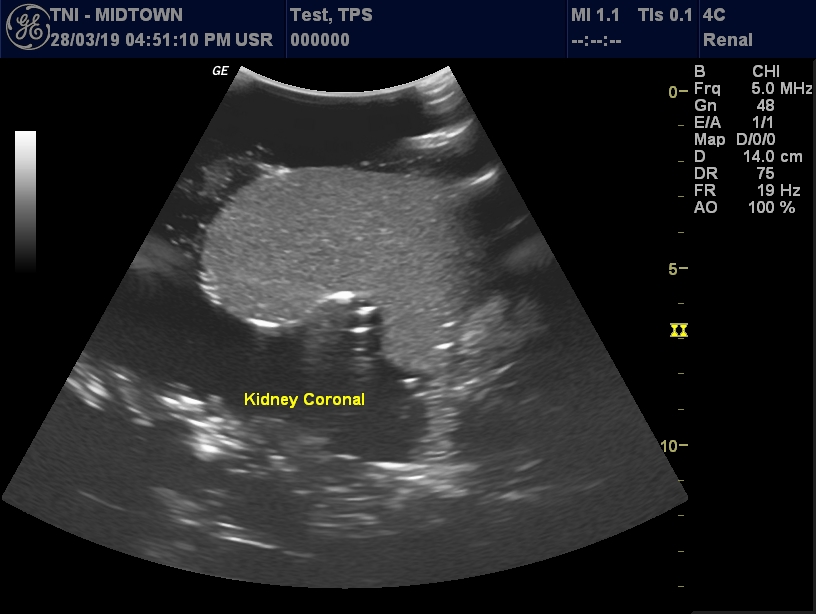

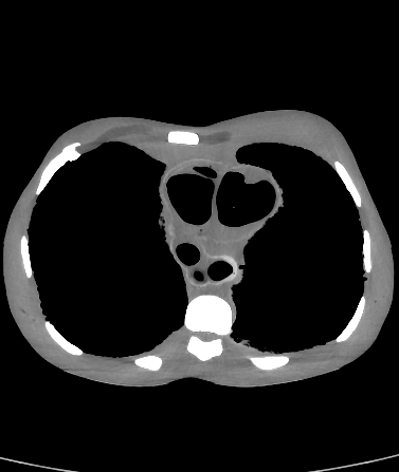

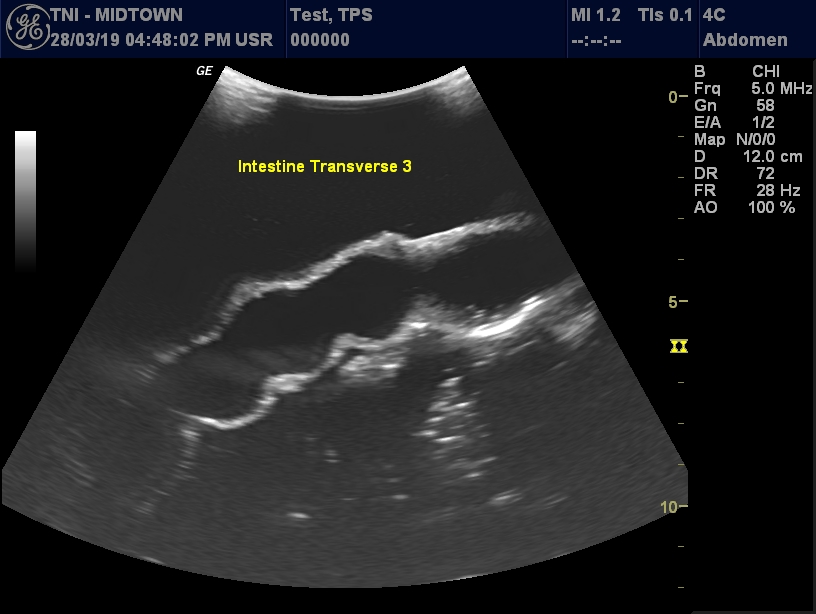

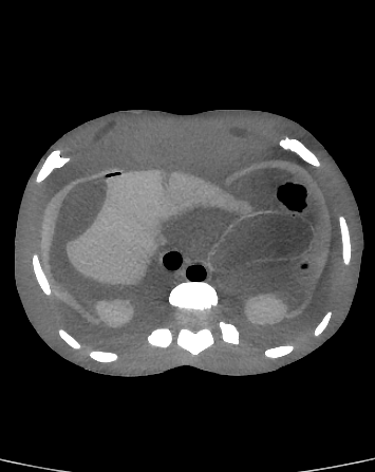

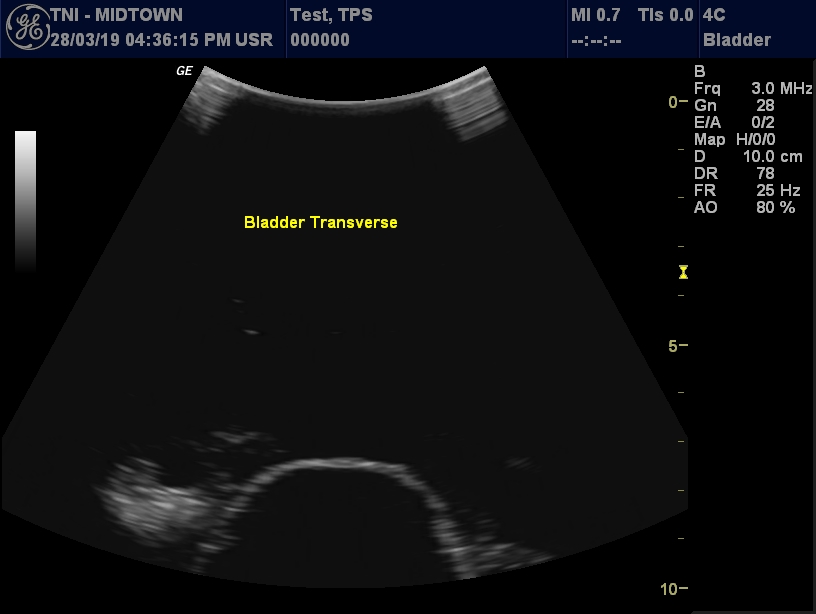

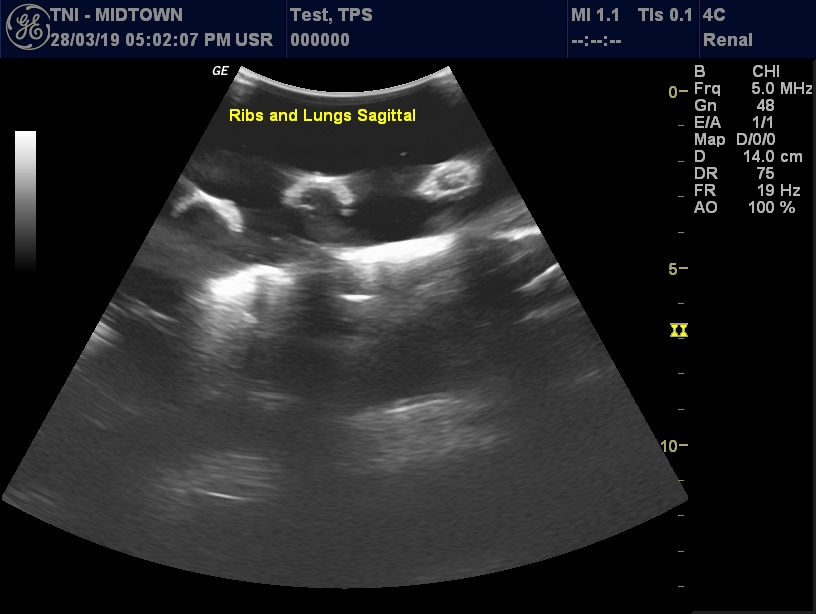

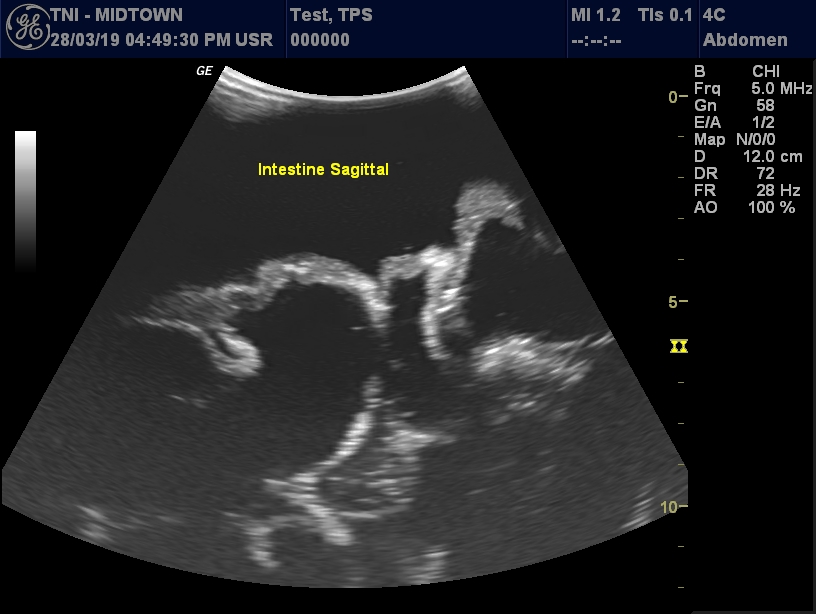

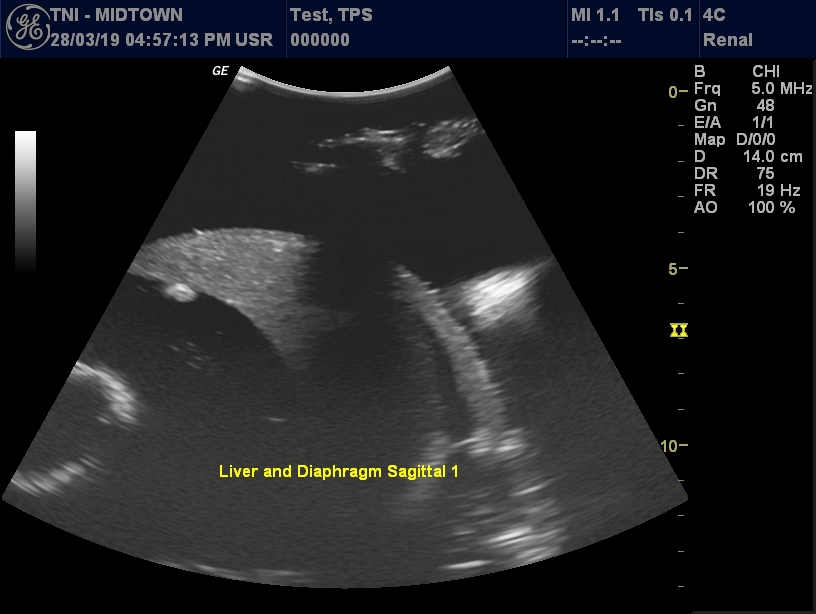

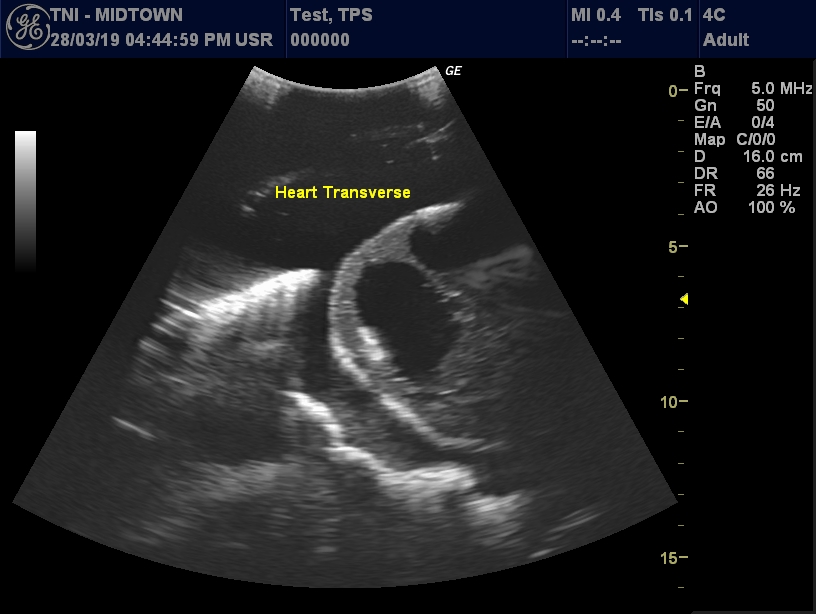

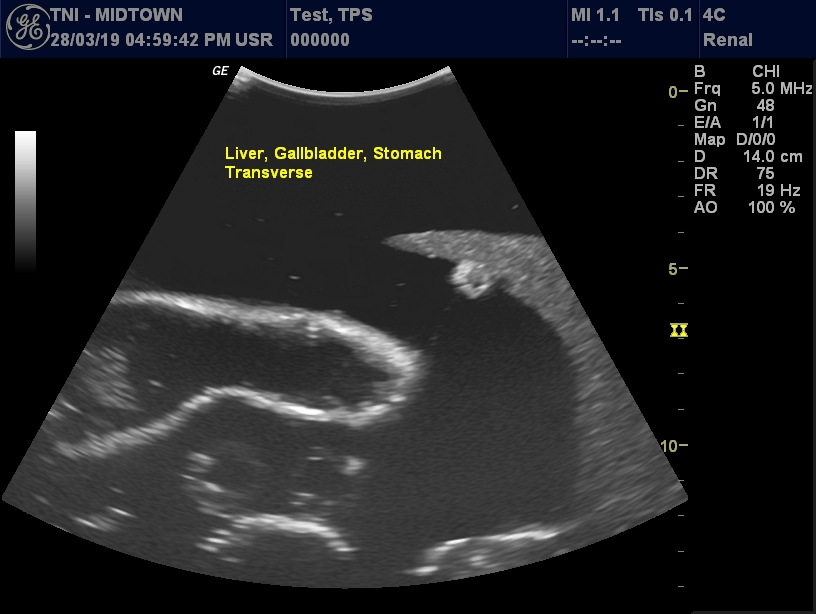

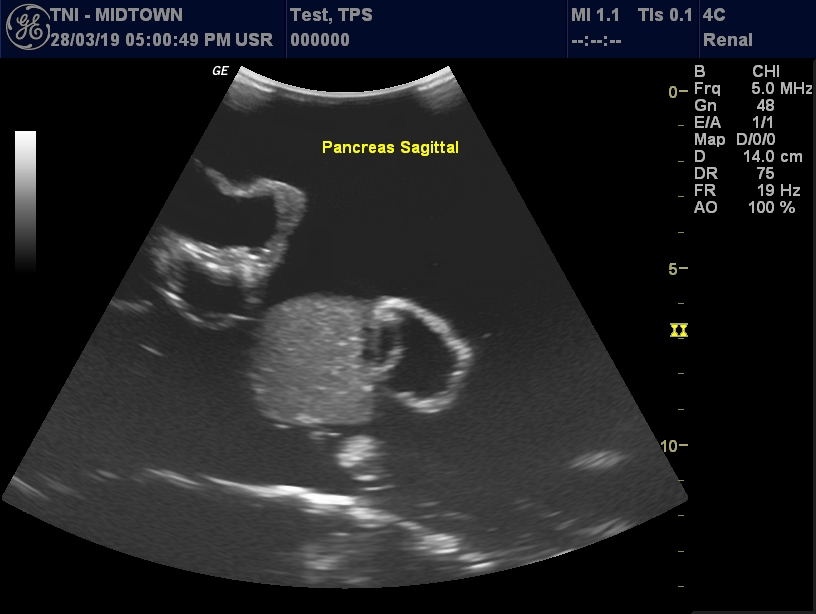

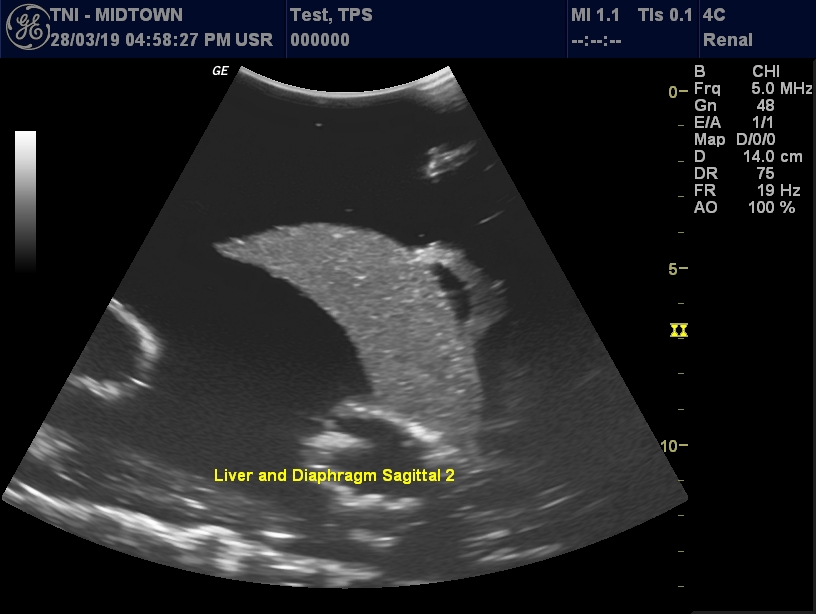

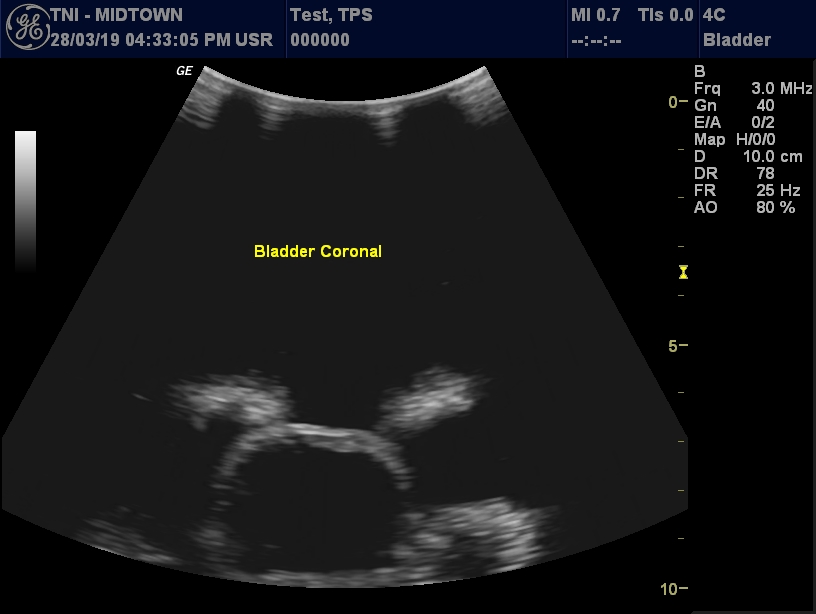

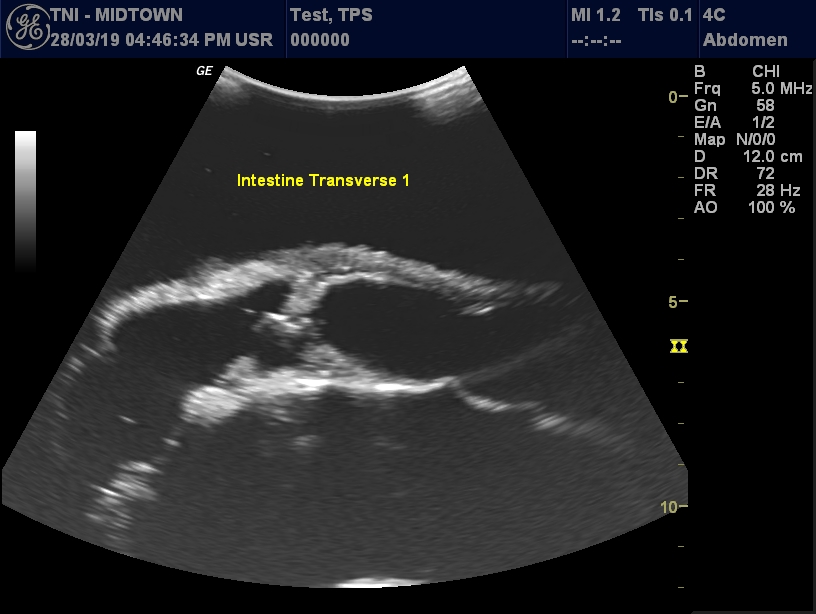

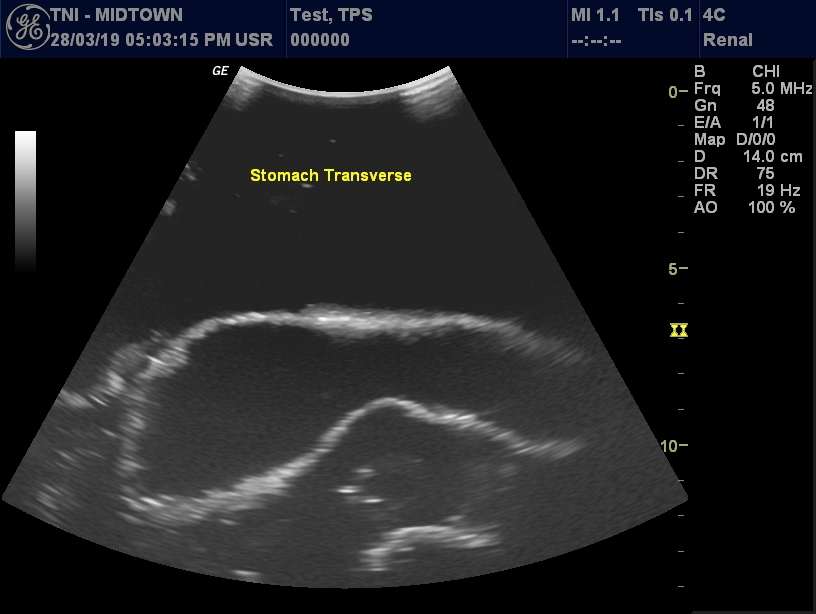

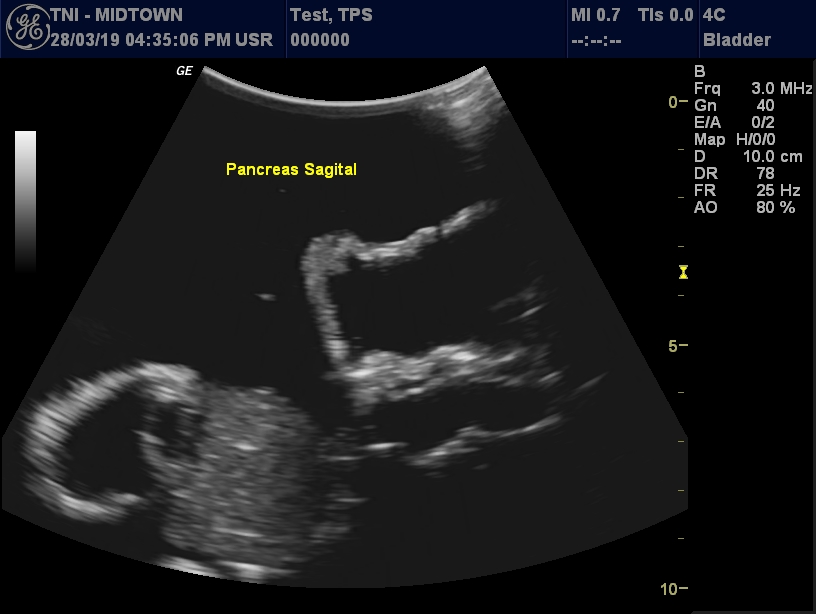

Sample scans of this phantom. Full scan galleries available on request.
