X-Ray, CT, US, MRI Phantoms
Newborn Skull for X-Ray CT, US, MRI
$2,900
The Newborn Skull Phantom serves for medical imaging research and treatment planning of non-invasive HIFU brain surgeries. It replicates an average newborn skull using a realistic patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT.
This product can be customized based on your requirements — contact us.
The Newborn Skull is a multipurpose phantom medical imaging research & treatment planning of non–invasive HIFU brain surgeries. True Phantom Solutions are pioneers in developing these phantoms and hold strength in customizing them to suit the needs of researchers and medical practitioners.

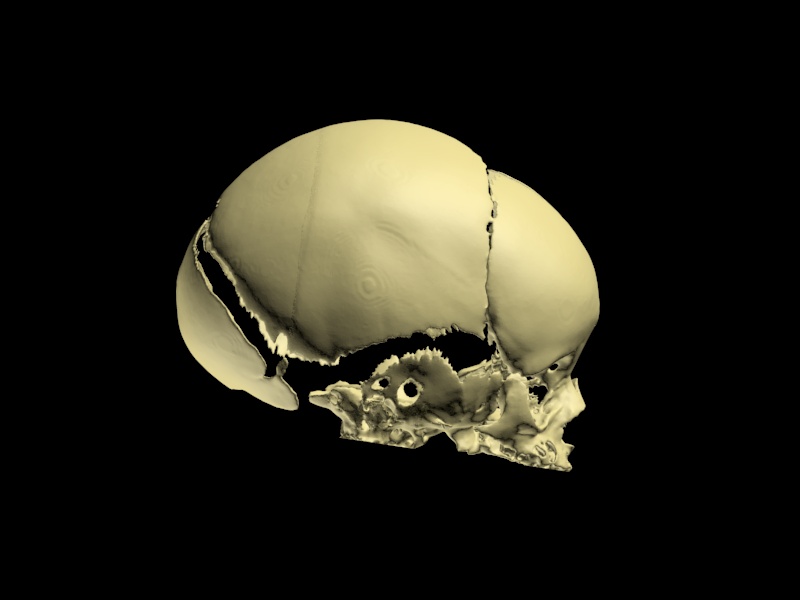

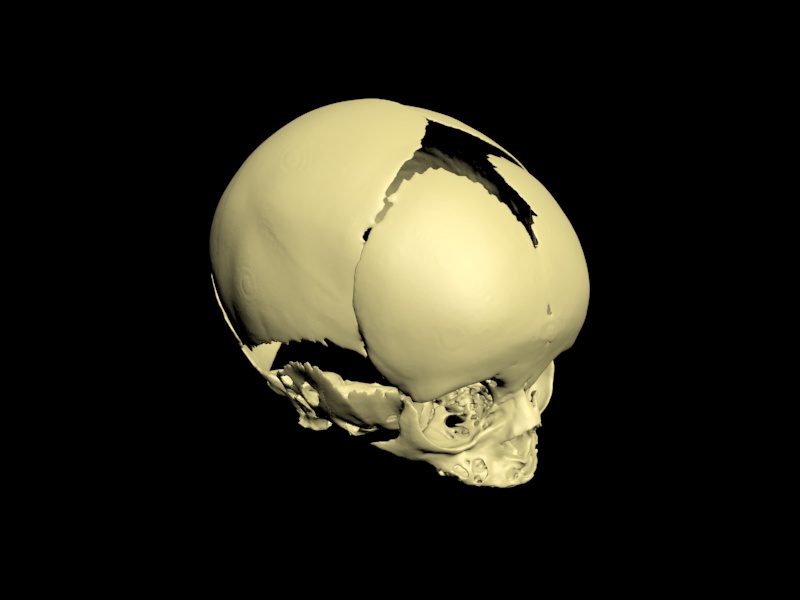

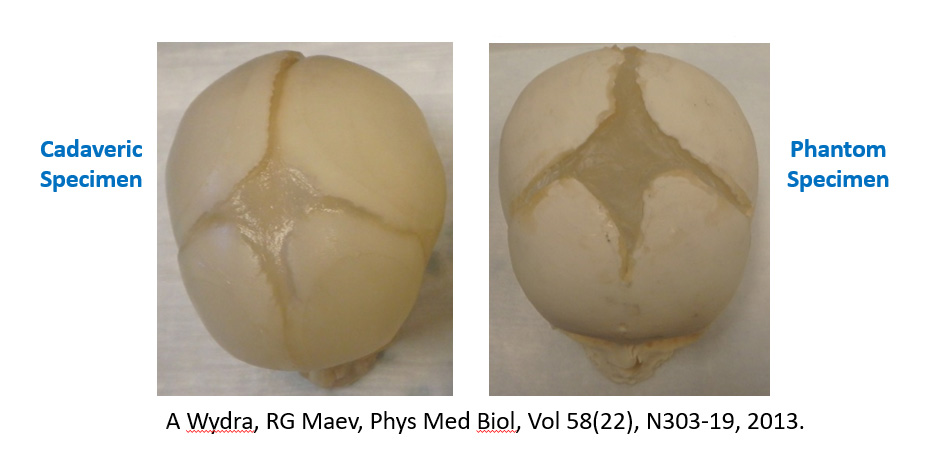

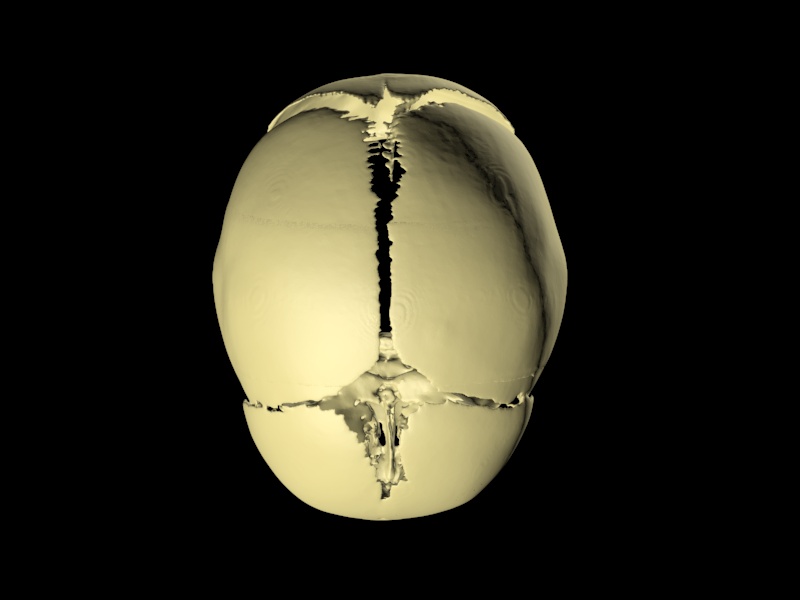

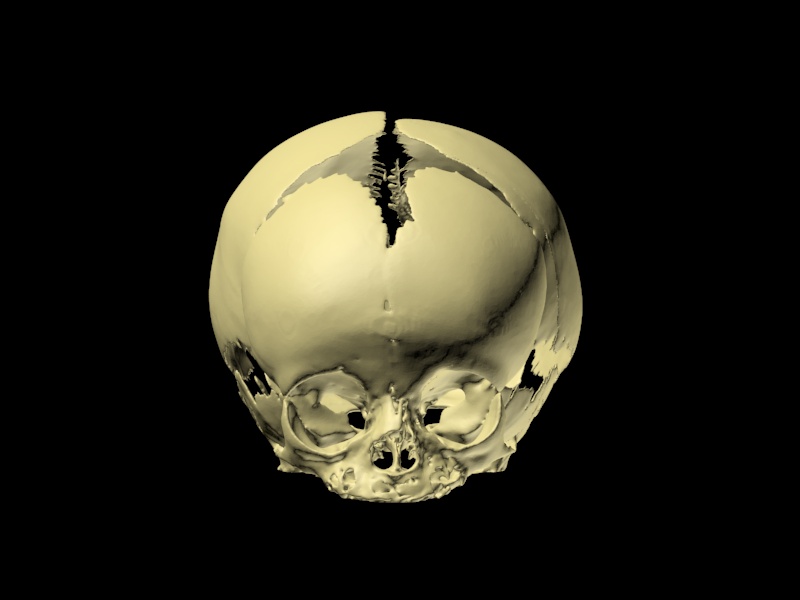

The design of this phantom is based on an average newborn skull, and it is made out of realistic patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT applications (any other part of the skull can be fabricated based on the customer order).
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Cortical Bone | 1300 |

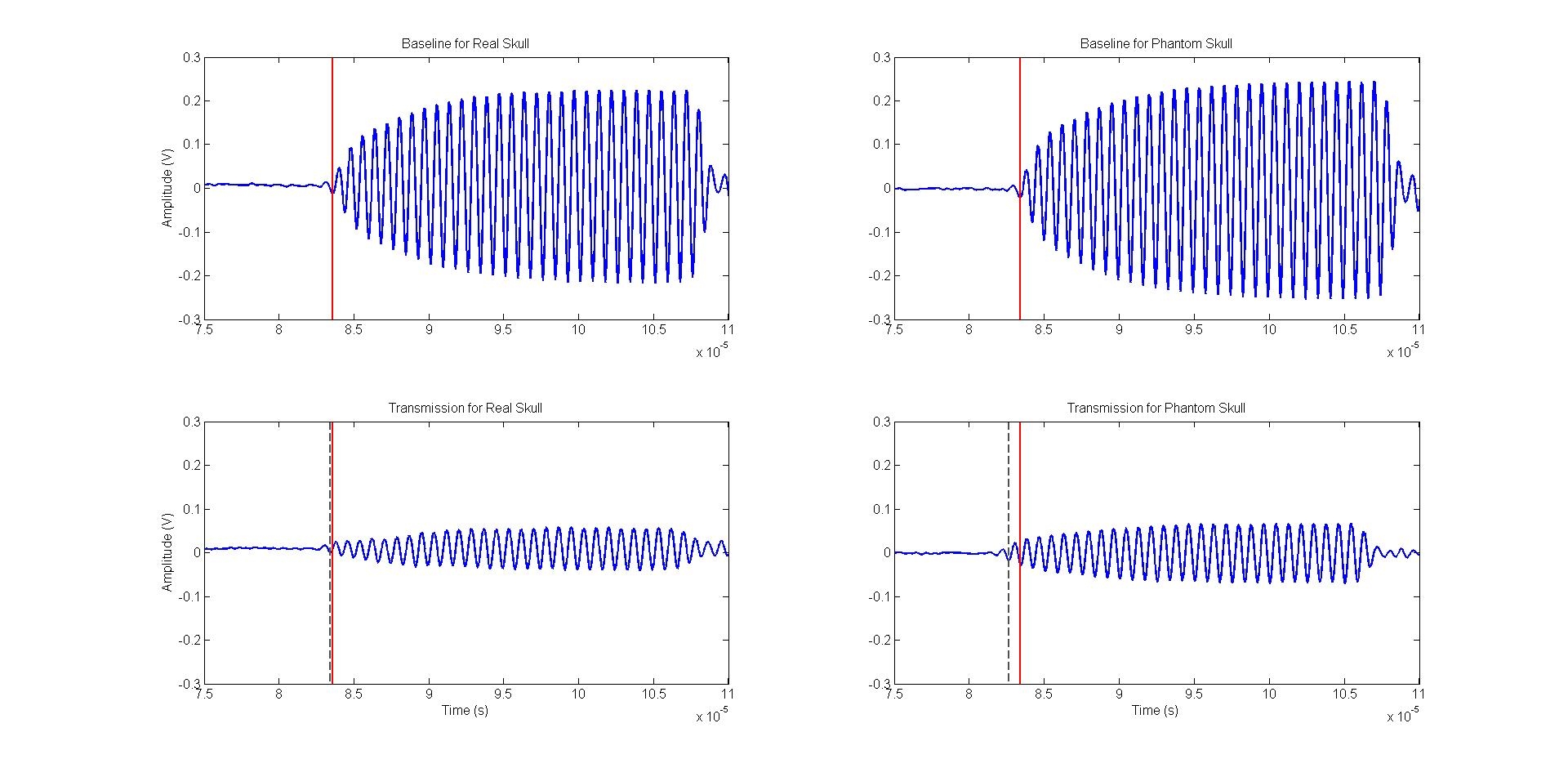

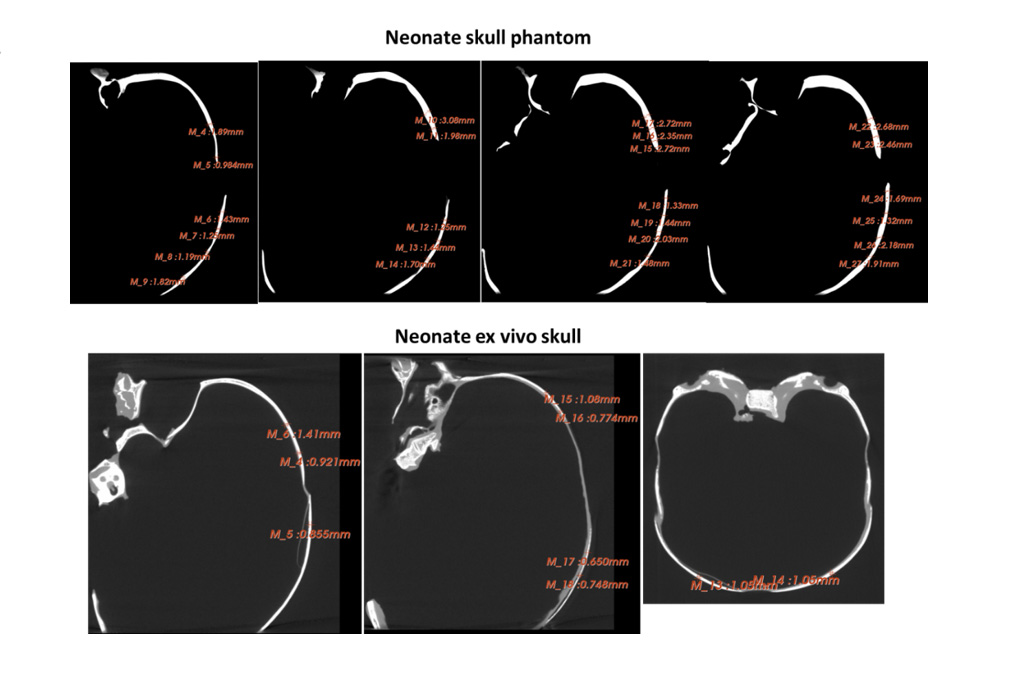

Sample scans of this phantom. Full scan galleries available on request.
