Newborn Torso (Transparent) for X-Ray CT, US
$4,400
The Newborn Torso (Transparent) phantom was developed in collaboration with the Sonographic Clinical Assessment of the Newborn Training Program at the University of Calgary. This phantom is an deal tool for Ultrasound-guided procedures, such as catheter insertion through the umbilical cord and bladder catheterization. It is constructed with realistic tissue-mimicking materials suitable for Ultrasound and X-Ray/CT imaging.
This product can be customized based on your requirements — contact us.

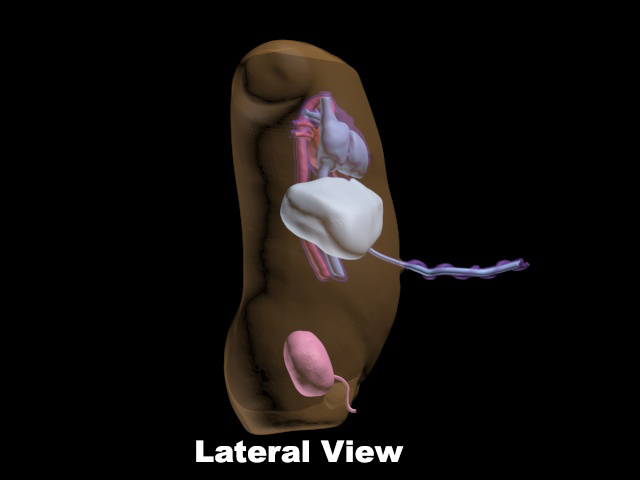

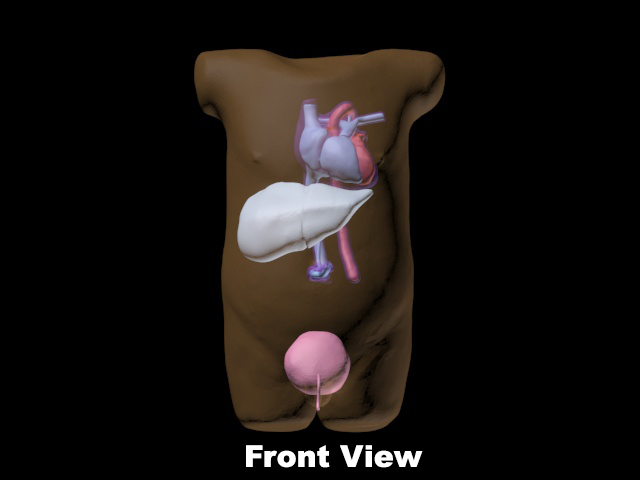

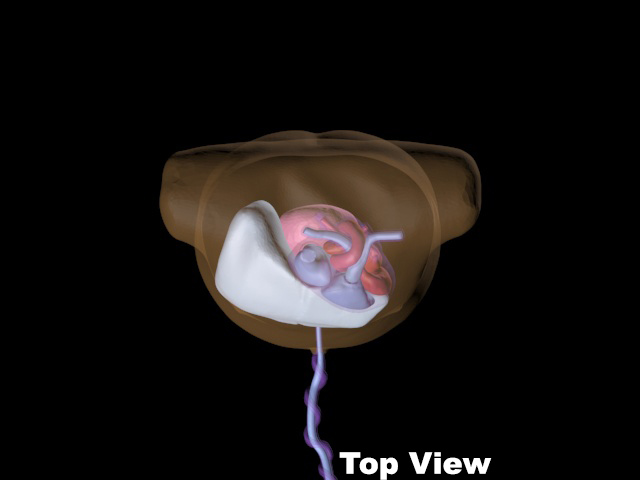

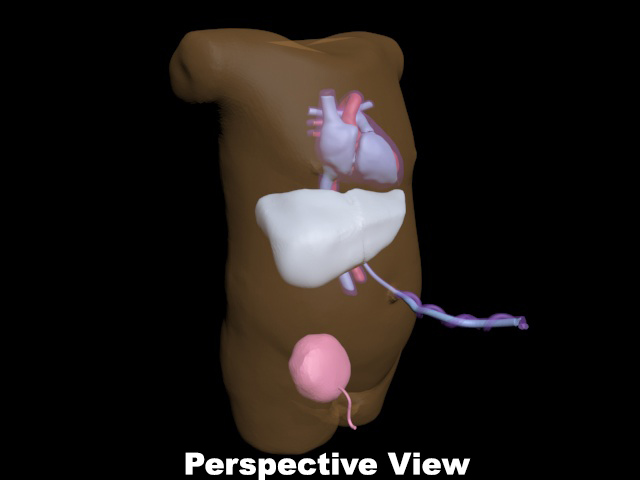

The design of this Newborn Torso phantom is based on an average newborn torso. It is made from realistic tissue–mimicking materials suitable for Ultrasound and X-Ray/CT imaging. The phantom has a water-fillable umbilical cord and bladder, which can be both used for catheterization training under ultrasound guidance.
The phantom was developed in collaboration with a group of physician experts from the Sonographic Clinical Assessment of the Newborn (SCAN) Training Program program at the University of Calgary (Department of Pediatrics).

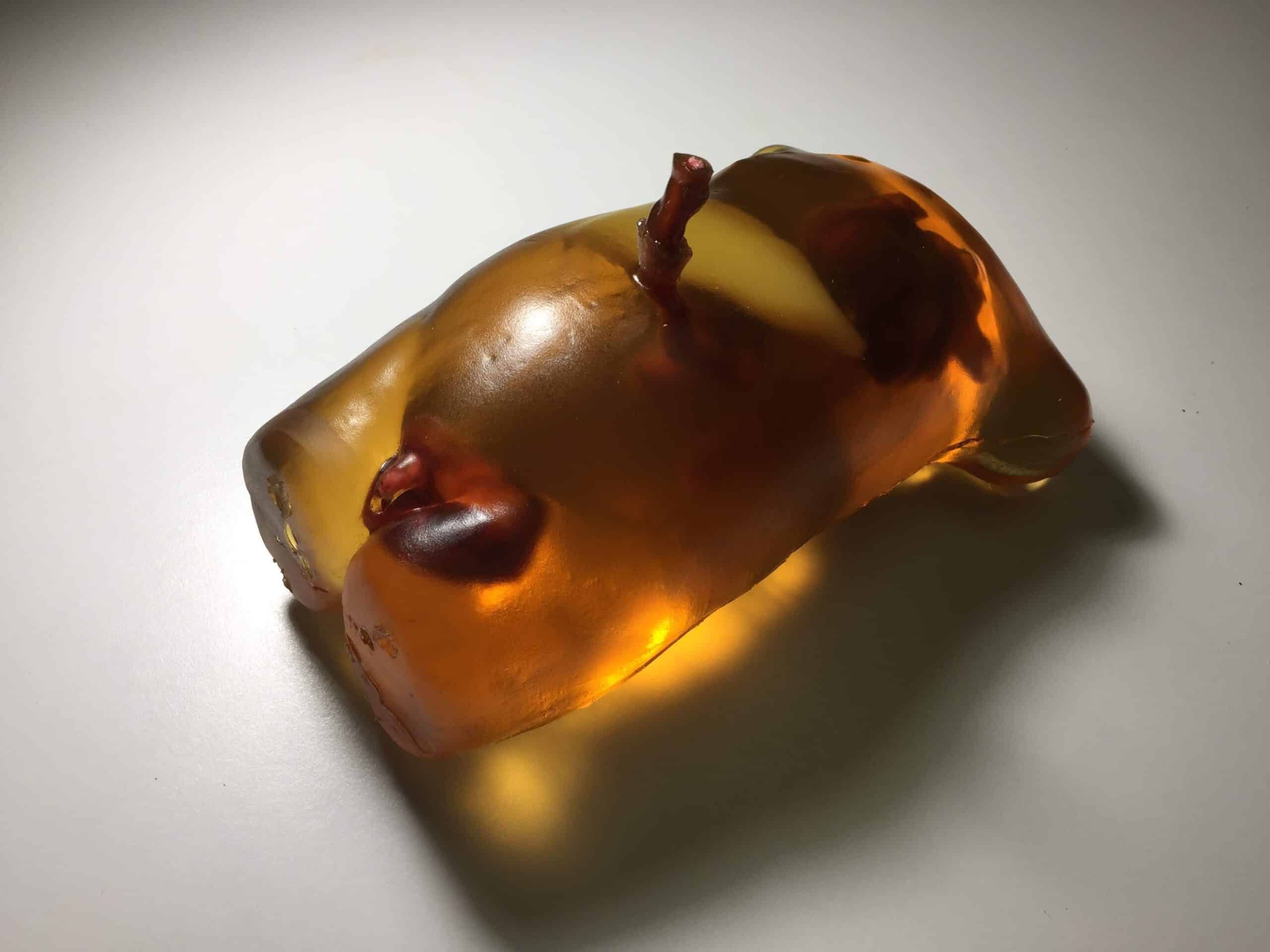

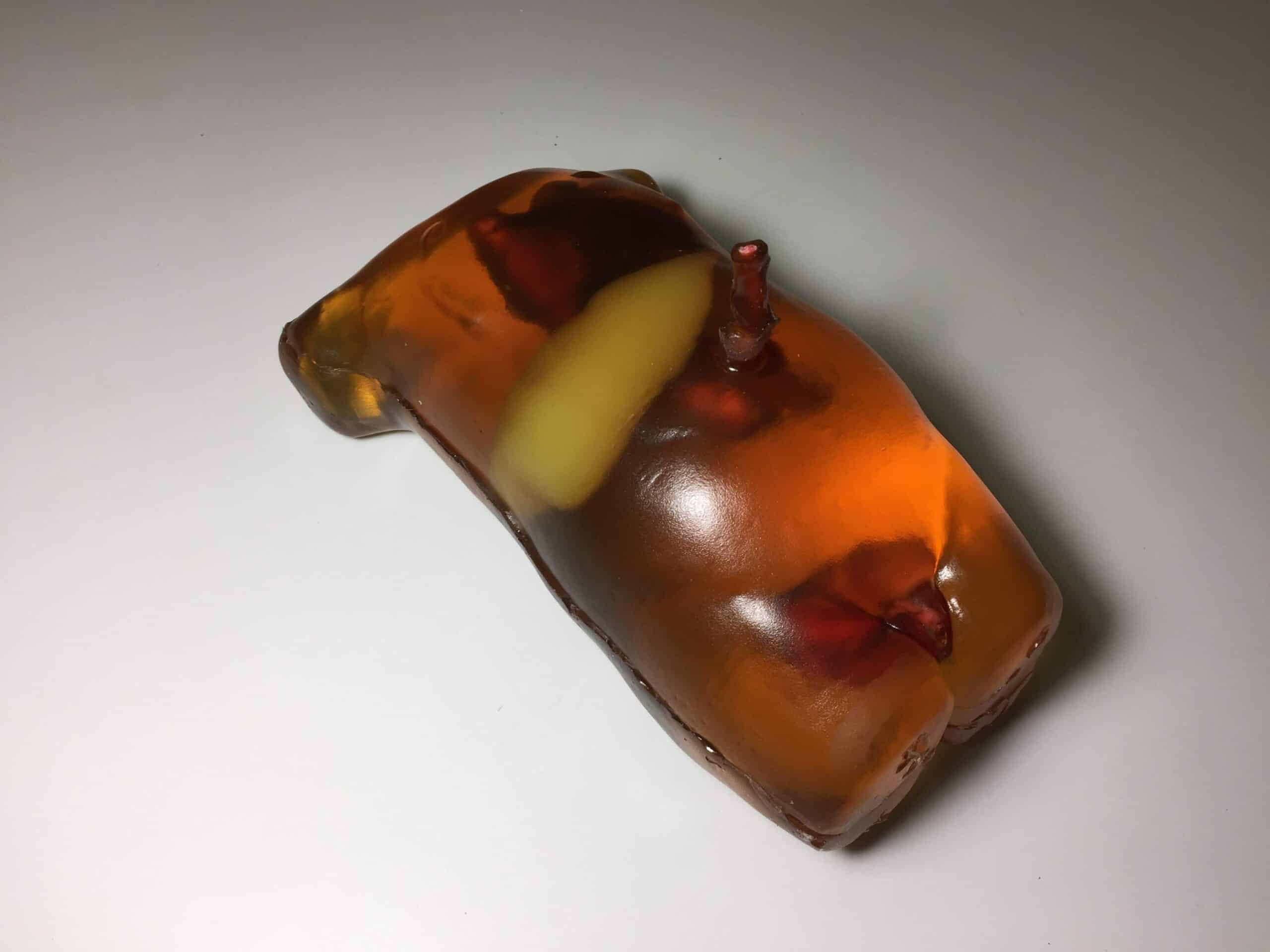

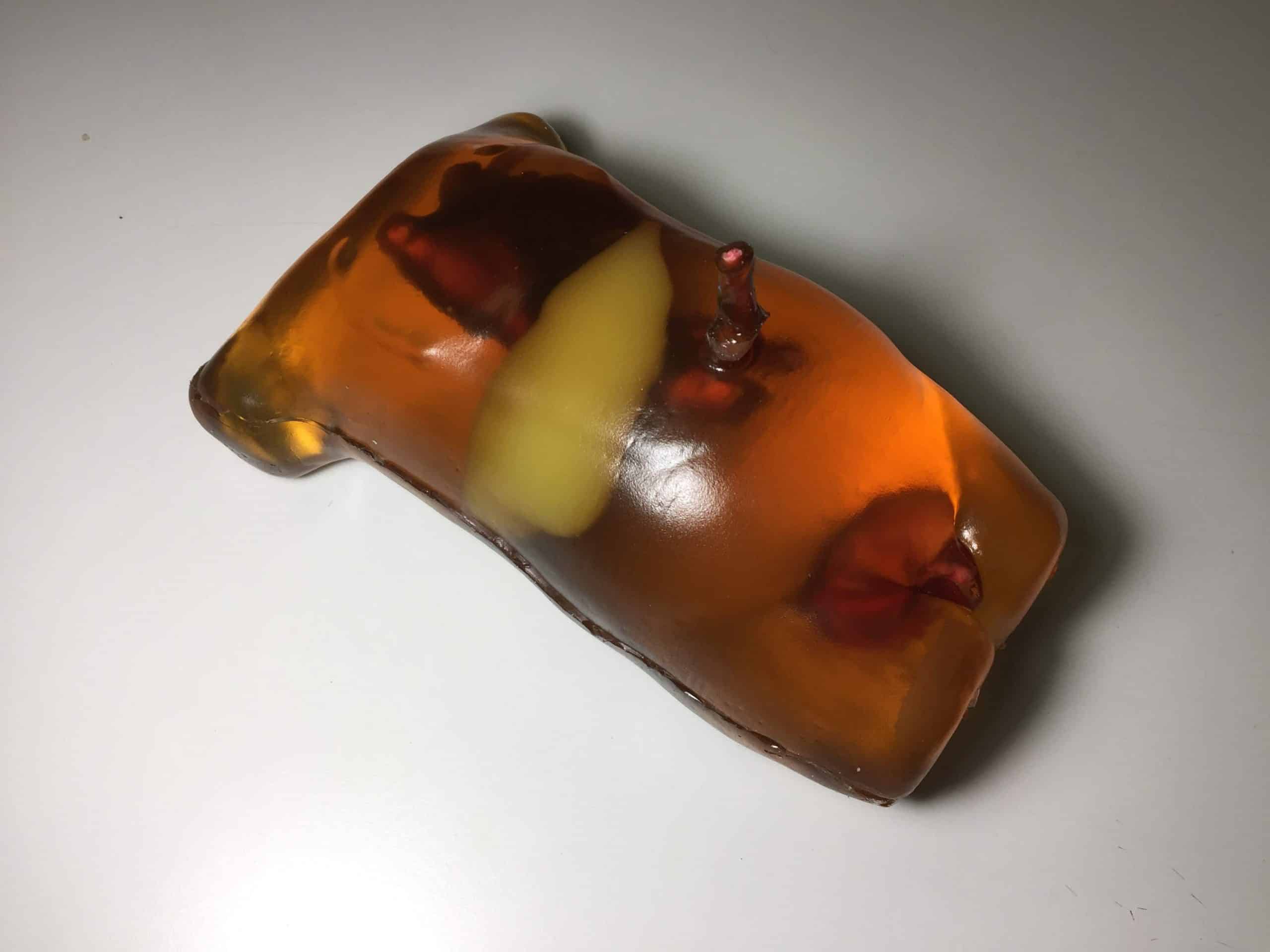

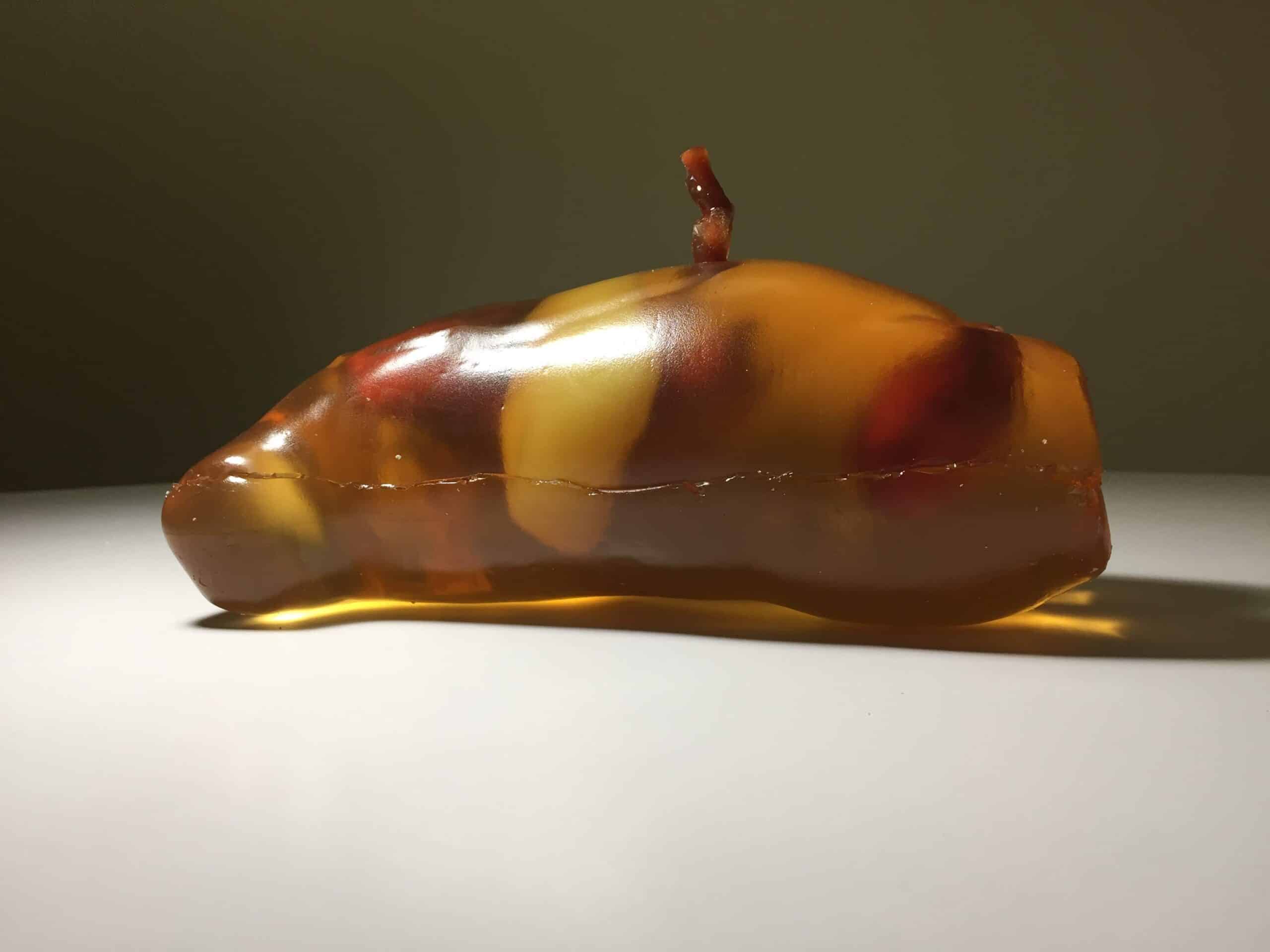

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 20 | 70 | NO | 1.0 ± 0.2 |
| Body Tissue | 1410 ± 10 | 1.00 | 30 | 65 | NO/LOW | 1.2 ± 0.2 |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
| 2 | Aorta | 40 |
| 3 | Inferior Vena Cava | 40 |
| 4 | Bladder | 35 |
| 5 | Heart | 40 |
| 6 | Liver | 110 |

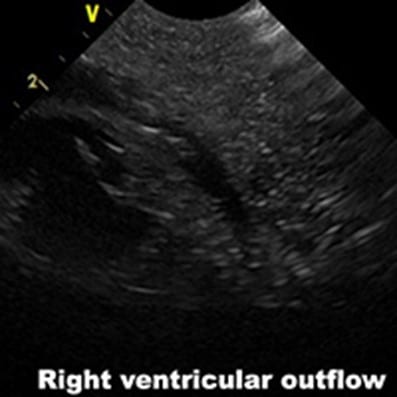

Sample scans of this phantom. Full scan galleries available on request.
