Adult Head (Standard) for X-Ray CT, US, MRI
X-Ray, CT, US, MRI Phantoms

Adult Head (Standard) for X-Ray CT, US, MRI

Model HD-A03
X-RayCTUltrasoundMRI
$9,429

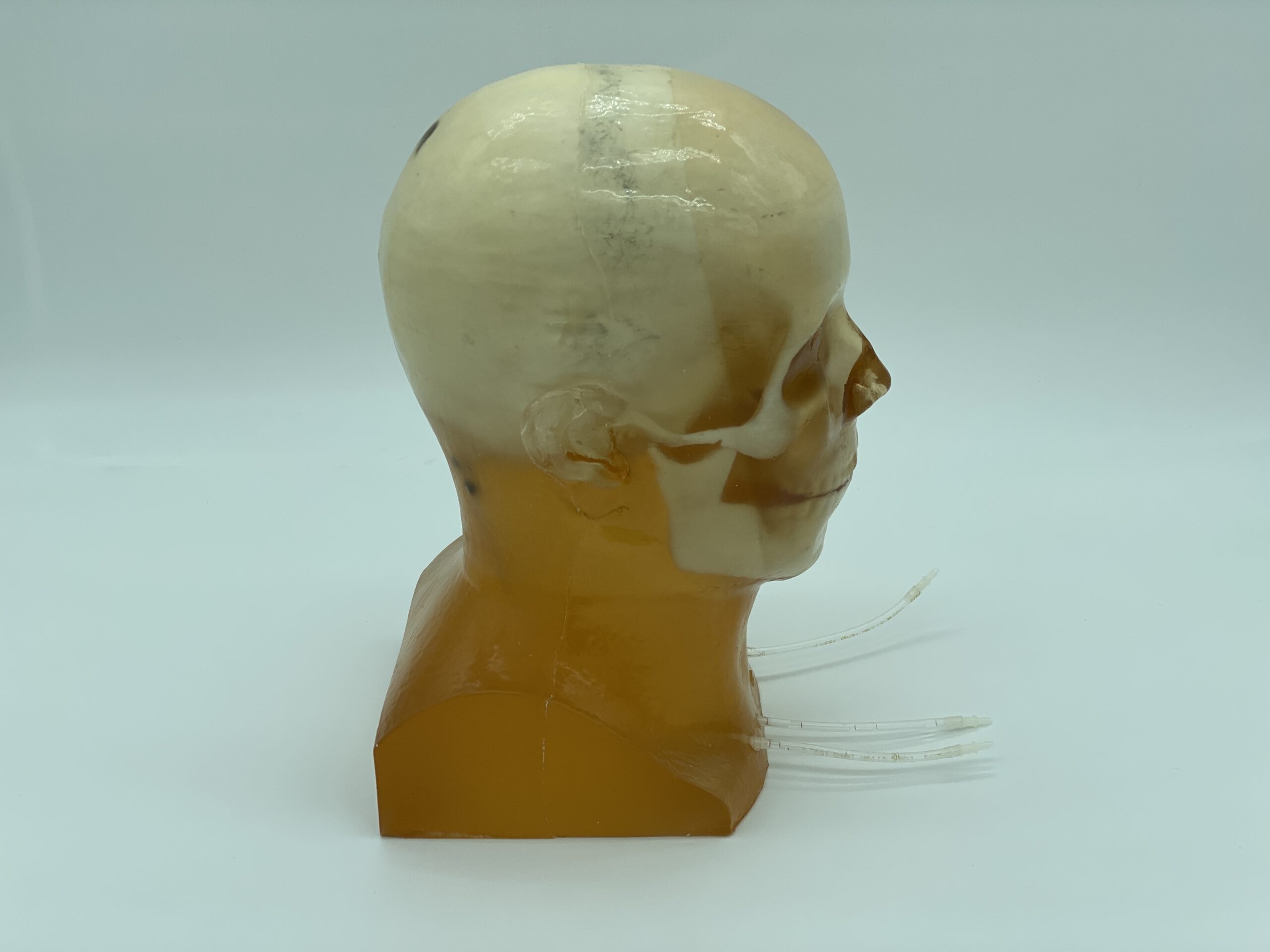

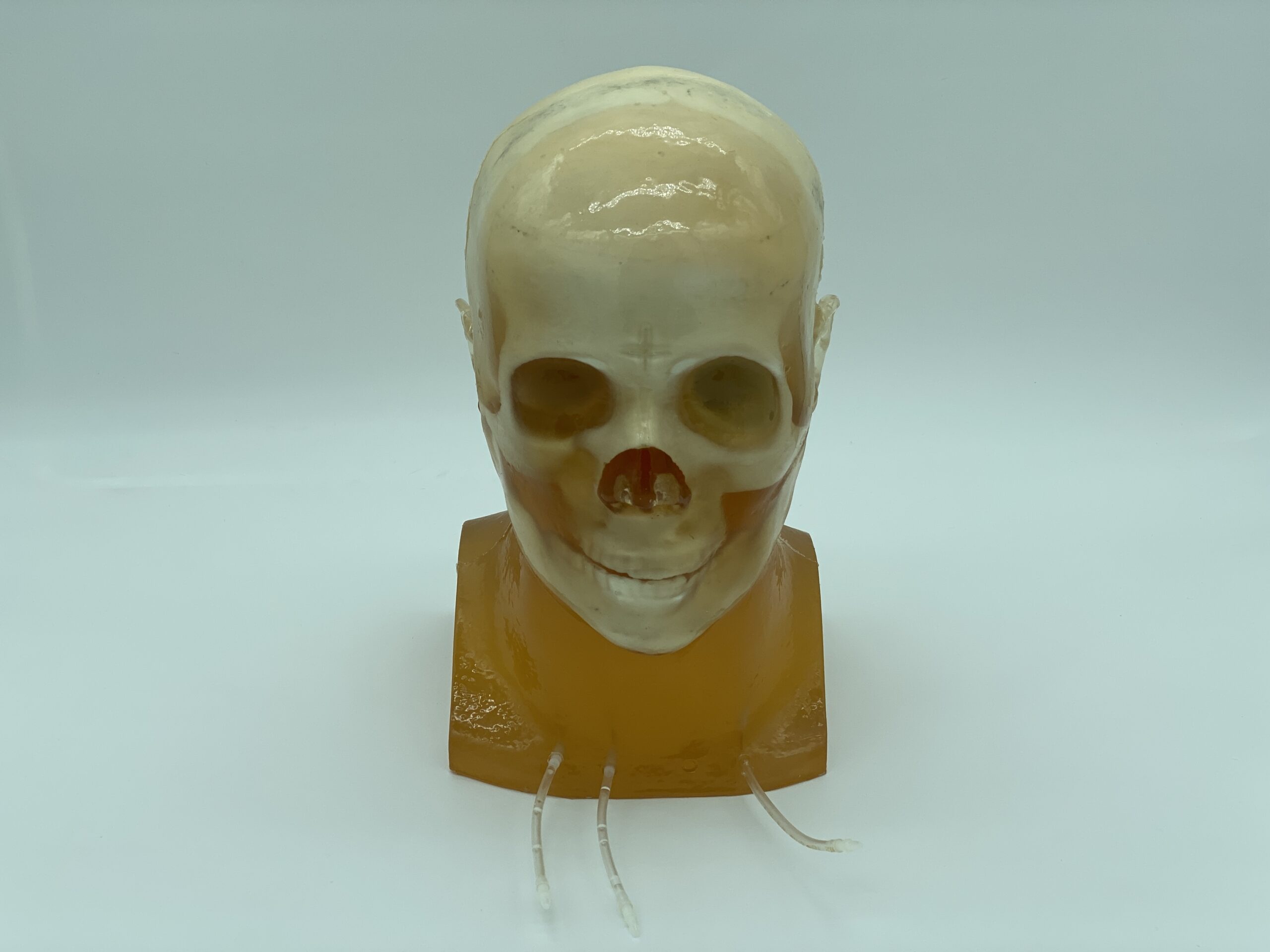

The Adult Head (Standard) phantom is designed to resemble an average human male head and is suitable for Ultrasound, MRI, and X-Ray/CT applications. It features realistic tissue-mimicking materials, including an ultra-soft polyurethane-based material for the brain parenchyma. The phantom’s skull bone has a three-layered structure. The phantom includes inflatable ventricles that mimic cerebral anatomy and can be filled with liquid.

Head Models: Dynamic
Appearance: Amber Translucent
This product can be customized based on your requirements — contact us.
SKU: HD-A03
Category: X-Ray, CT, US, MRI Phantoms

Adult Head (Standard) phantom is designed based on an average human male head and is made of realistic tissue mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT. This head phantom can also be used for angiography purposes. The brain parenchyma inside of the skull phantom is made of an ultra-soft polyurethane-based material that mimics soft tissue, and its anatomical shape was created based on the optical scan of an average human brain model used in the anatomy class for medical students. The materials used to build the phantom are stable over time, and they do not dry out. The skull bone has a realistic three-layered structure with an inner diploe layer. This phantom can be used with Barium-sulfate, Iodine-based, Gadolinium-based, Microbubble, and Iron Oxide-based contrast mediums.

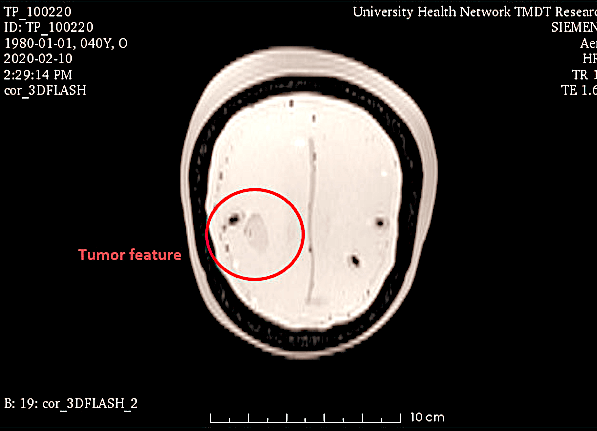

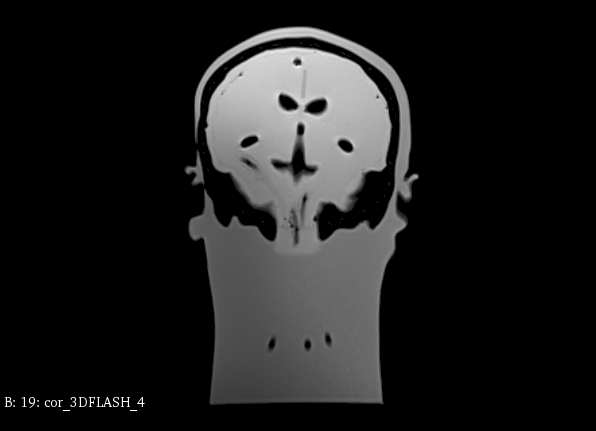

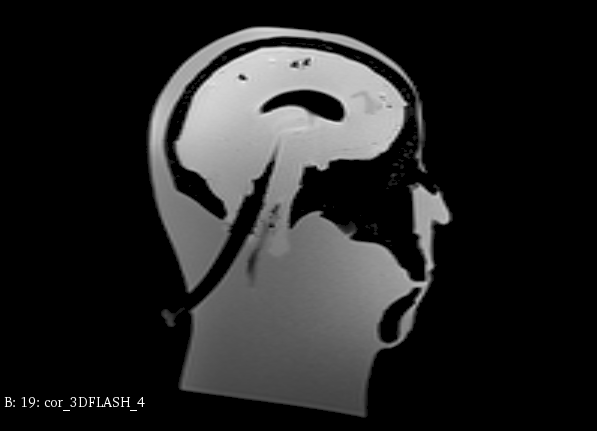

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

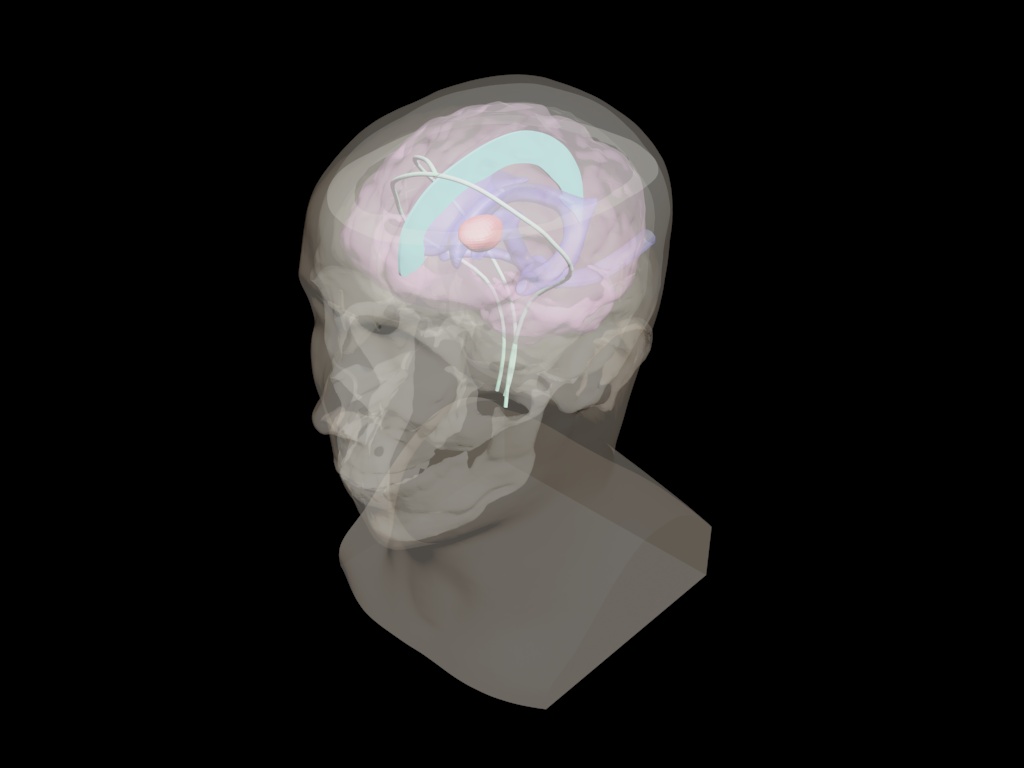

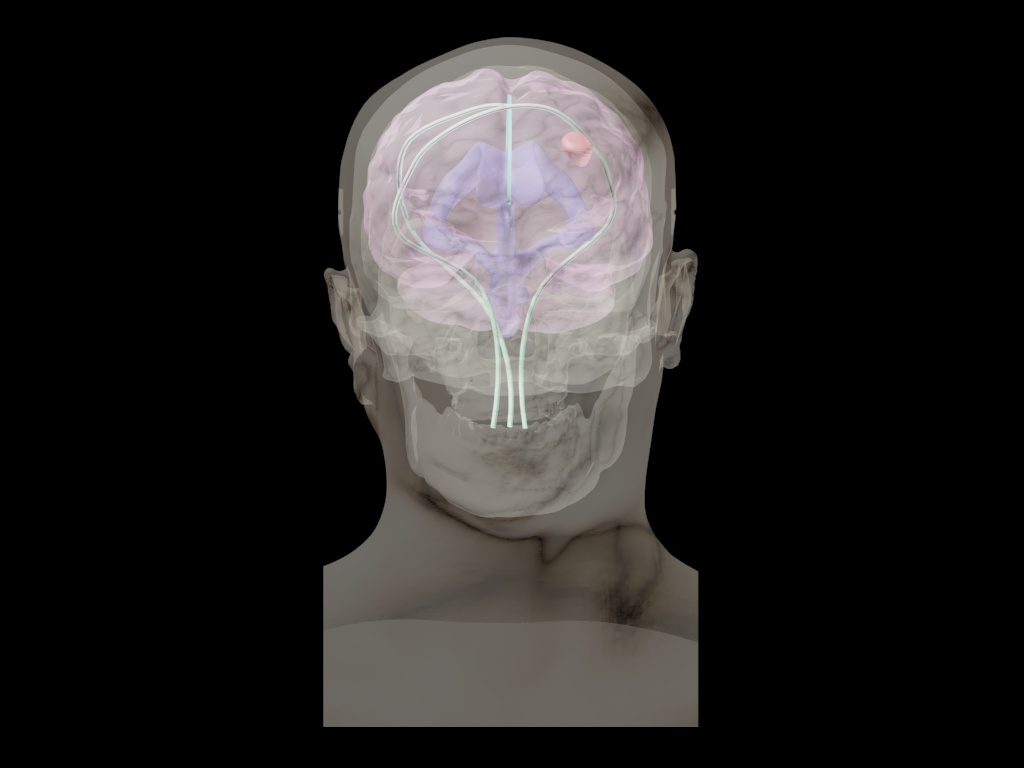

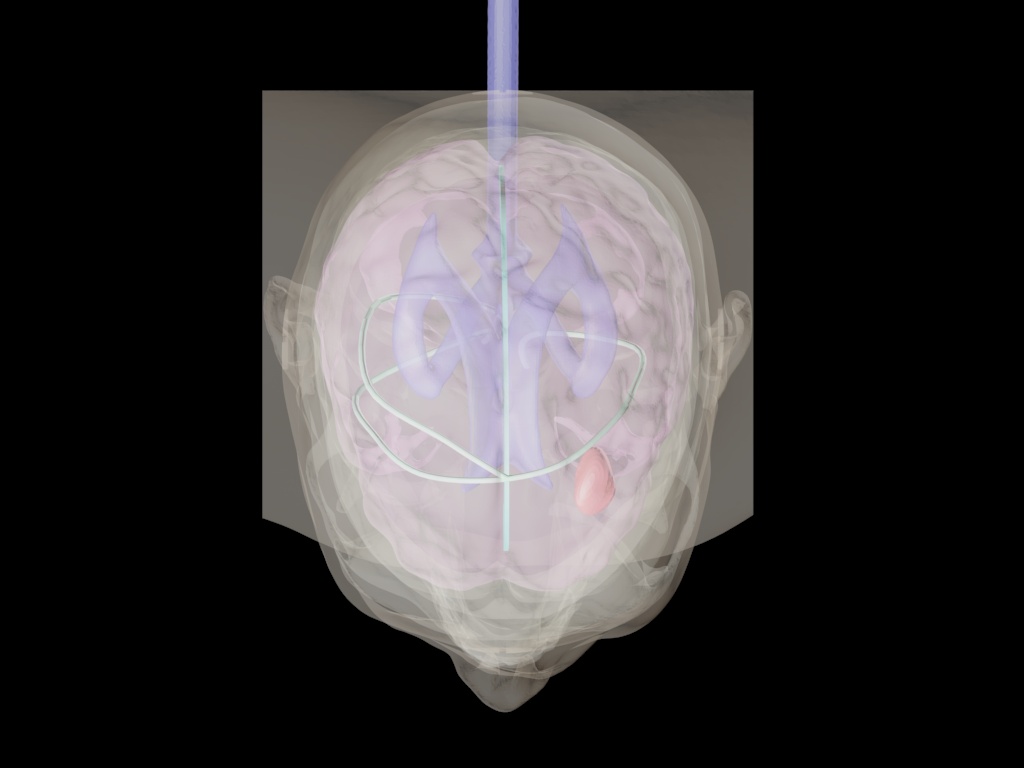

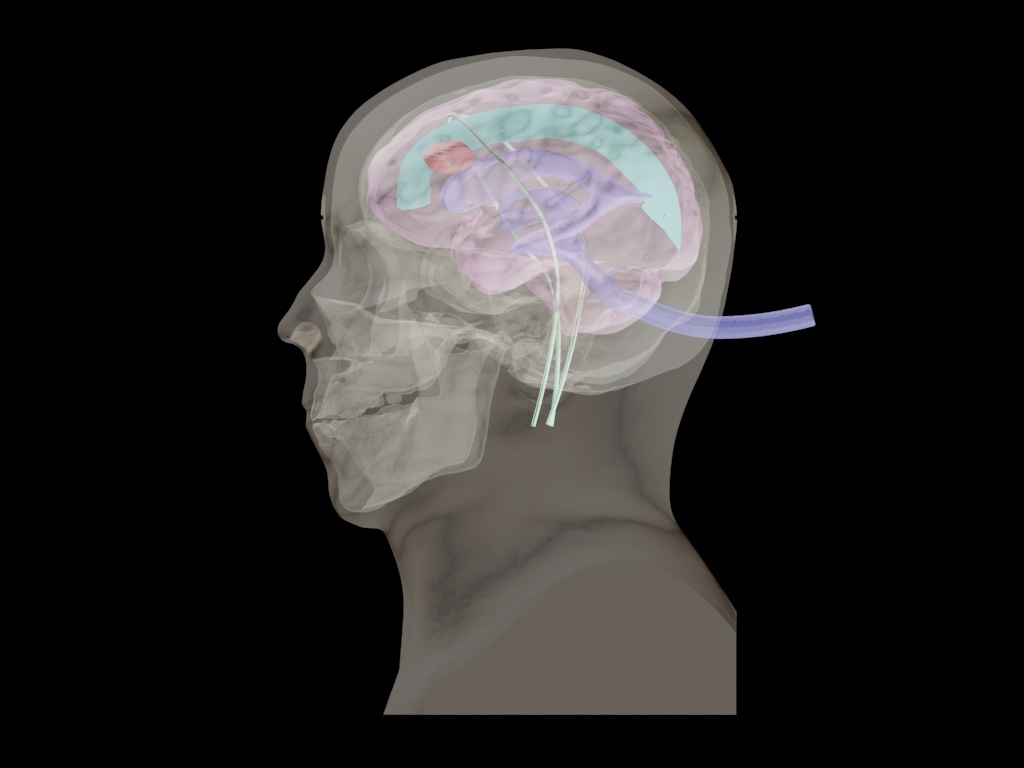

The phantom comprises the entire ventricular system (lateral, third, and fourth ventricles), which can be used to generate pressure inside the brain and more closely approximate real cerebral anatomy. The ventricles are inflatable and can be filled with any liquid.

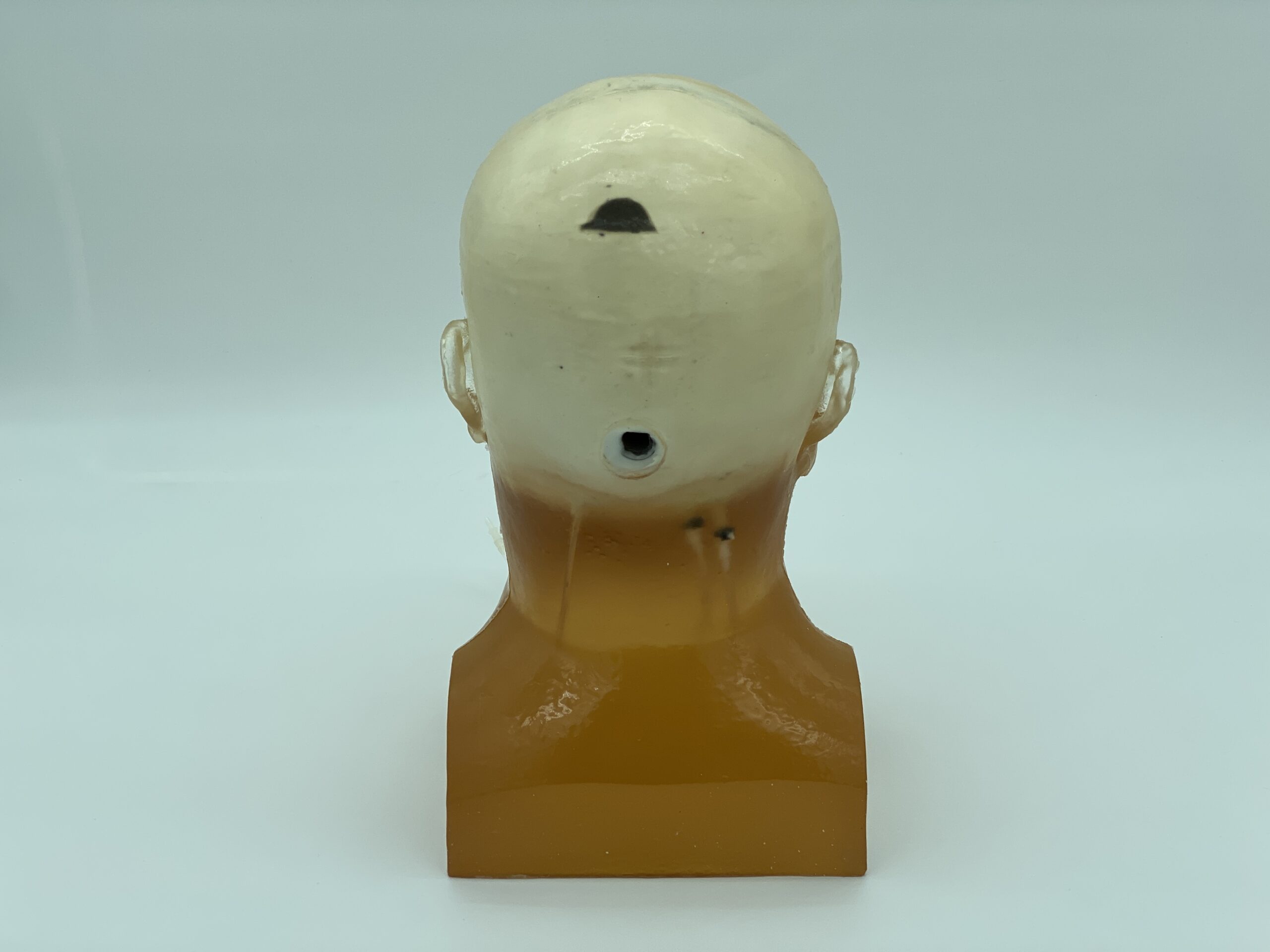

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.

Features Dynamic, Adv. Head Static Head Dynamic Head Standard     Head Training, V1 Head Hematoma Head Openable Head
Skull ✓ ✓ ✓ ✓ ✓ ✓ ✓
Openable and Removable Calvaria ✓ ✖ ✖ ✖ ✖ ✖ ✓
Cervical Spine ✖ ✓ ✖ ✖ ✓  ✓ ✖
Skin Mimicking Material ✓ ✓ ✓ ✓ ✓ ✓ ✓
Brain (Gray Matter) ✓ ✓ ✓ ✓ ✓ ✓ ✖
Brain Ventricles ✓ ✖ ✖ ✓ ✖ ✓ ✖
Brain Tumor ✖ ✖ ✖ ✓ ✖ ✖ ✖
Falx Cerebri ✖ ✖ ✖ ✓ ✓ ✓ ✖
White Matter ✖ ✖ ✖ ✖ ✓ ✖ ✖
Brain Vessels ✓ ( {2mm, 3mm, 4mm} incorporated Circle of Willis ) ✖ ✓ ( {2mm, 3mm, 4mm} incorporated Circle of Willis ) ✓ ✖ ✖ ✖
One Bifurcation ✓ ✖ ✓ ✓ ✖ ✖ ✖
One Stenosis ✓ ✖ ✓ ✖ ✖ ✖ ✖
Two Aneurysms ✓ ✖ ✓ ✖ ✖ ✖ ✖
Vessels Connected with the Neck ✓ ✖ ✓ ✓ ✖ ✖ ✖
Plastic Connectors ✓ ✖ ✓ ✖ ✖ ✖ ✖
Small Static Objects ✖ ✓ ( {0.5mm, 1mm, 2mm, 3mm Diameters} ) ✖ ✖ ✖ ✖ ✖
Realistic Air Cavities ✖ ✖ ✖ ✖ ✓ ✖ ✖
Alignment Markings ✓ ✓ ✓ ✓ ✓ ✓ ✓
Frontal Sinus with Air Gaps ✖ ✖ ✖ ✖ ✓ ✖ ✖
Hematoma ✖ ✖ ✖ ✖ ✖ ✓ ✖
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
Features<\/th>\nDynamic,\nAdv. Head<\/th>\nStatic\nHead<\/th>\nDynamic\nHead<\/th>\nStandard\u00a0 \u00a0 \u00a0Head<\/th>\nTraining,\nV1 Head<\/th>\nHematoma Head<\/th>\nOpenable Head<\/th>\n<\/tr>\n<\/thead>\n
Skull<\/td>\n\u2713<\/strong><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n<\/tr>\n
Openable and Removable Calvaria<\/td>\n\u2713<\/strong><\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2713<\/span><\/td>\n<\/tr>\n
Cervical Spine<\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u00a0\u2713<\/strong><\/td>\n\u2716<\/span><\/td>\n<\/tr>\n
Skin Mimicking Material<\/td>\n\u2713<\/strong><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n<\/tr>\n
Brain\n(Gray Matter)<\/td>\n\u2713<\/strong><\/td>\n\u2713<\/span><\/td>\n\u2713<\/strong><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n<\/tr>\n
Brain Ventricles<\/td>\n\u2713<\/strong><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/td>\n<\/tr>\n
Brain Tumor<\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n<\/tr>\n
Falx Cerebri<\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n<\/tr>\n
White Matter<\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/td>\n<\/tr>\n
Brain Vessels<\/td>\n\u2713 (\u00a0<\/strong>{2mm, 3mm, 4mm} incorporated Circle of Willis\u00a0<\/span>)<\/strong>\n<\/strong><\/td>\n\u2716<\/span><\/td>\n\u2713\u00a0<\/strong>(\u00a0<\/span>{<\/span>2mm, 3mm, 4mm} incorporated Circle of Willis\u00a0<\/span>)<\/span>\n<\/strong><\/td>\n\u2713<\/strong><\/td>\n\u2716<\/span><\/td>\n\u2716<\/td>\n\u2716<\/td>\n<\/tr>\n
One Bifurcation<\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/strong><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/td>\n<\/tr>\n
One Stenosis<\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/td>\n<\/tr>\n
Two Aneurysms<\/td>\n\u2713<\/strong><\/td>\n\u2716<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n<\/tr>\n
Vessels Connected with the Neck<\/td>\n\u2713<\/span><\/td>\n\u2716<\/strong><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2716<\/span><\/td>\n\u2716<\/td>\n\u2716<\/td>\n<\/tr>\n
Plastic Connectors<\/td>\n\u2713<\/span><\/td>\n\u2716<\/td>\n\u2713<\/span><\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n<\/tr>\n
Small Static Objects<\/td>\n\u2716<\/td>\n \u2713 <\/span>(<\/strong> {0.5mm, 1mm, 2mm, 3mm Diameters} )<\/b><\/span><\/td>\n\u2716<\/td>\n\u2716<\/span><\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n<\/tr>\n
Realistic Air Cavities<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2713<\/strong><\/td>\n\u2716<\/td>\n\u2716<\/td>\n<\/tr>\n
Alignment Markings<\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n\u2713<\/strong><\/td>\n\u2713<\/span><\/td>\n\u2713<\/span><\/td>\n<\/tr>\n
Frontal Sinus with Air Gaps<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2713<\/strong><\/td>\n\u2716<\/td>\n\u2716<\/td>\n<\/tr>\n
Hematoma<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2716<\/td>\n\u2713<\/strong><\/td>\n\u2716<\/td>\n<\/tr>\n<\/tbody>\n<\/table>\n<\/div>"}}]}

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.

Inner Diameter of Ventricles: 9.5 mm | Outer Diameter of Ventricles: 15.1 mm – The tube attached to the ventricles is ~50mm long.

*/ Small variations in appearance may be present due to material characteristics and routine production tolerances. /*

*/ These X-Ray scans were obtained from a CUSTOM order of our Adult Human Head Phantom (Dynamic). However, the skull used in this phantom is our standard adult skull– SKU:SL-A01. If you have any questions related to these, please write us at [email protected] /*

For more imaging quality reference, please see our Radiographs page.

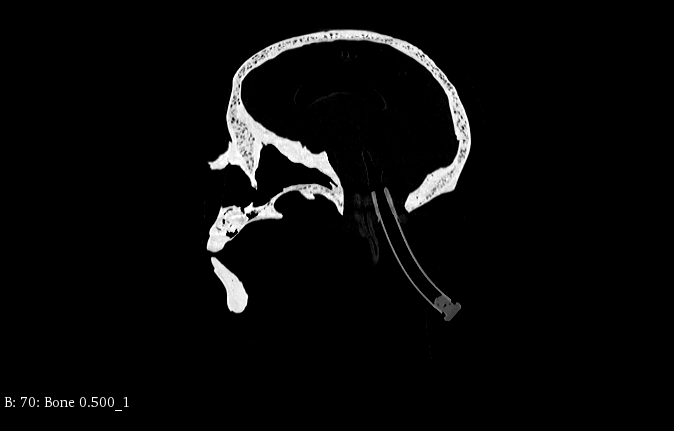

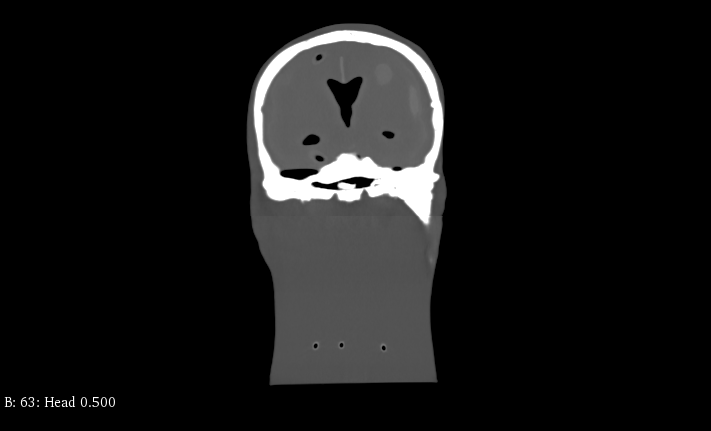

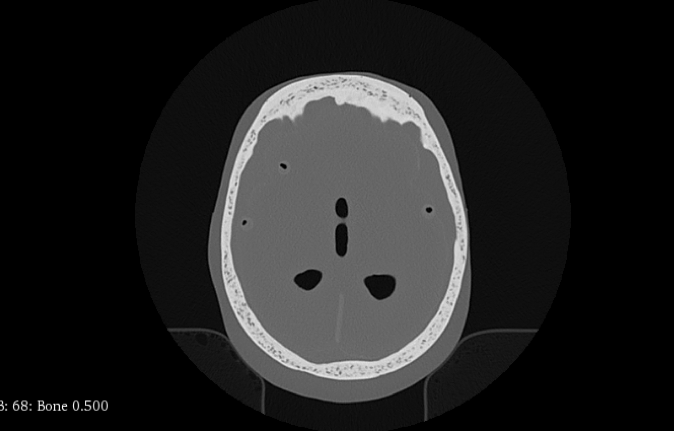

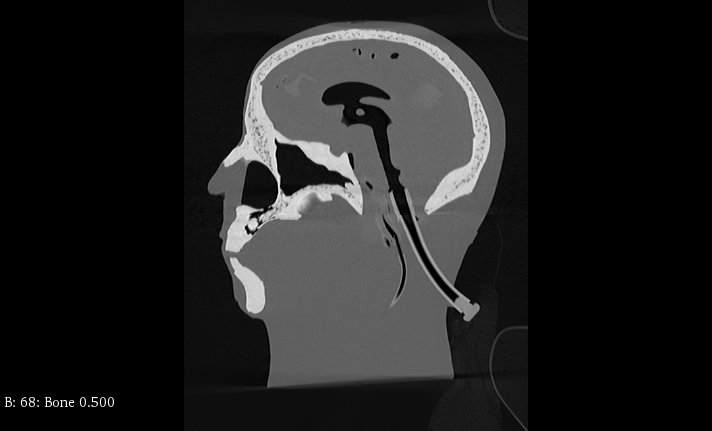

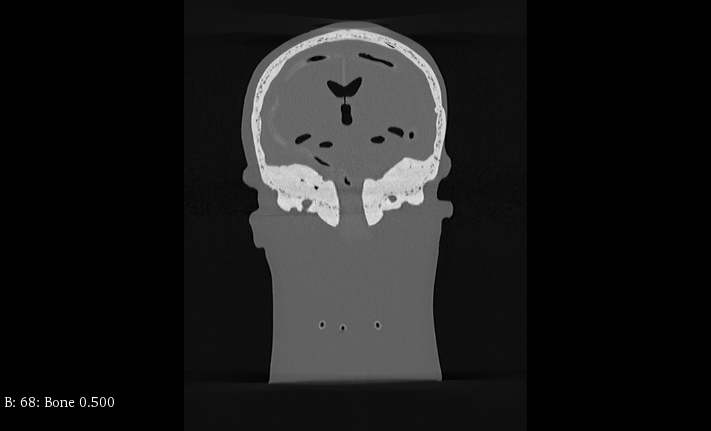

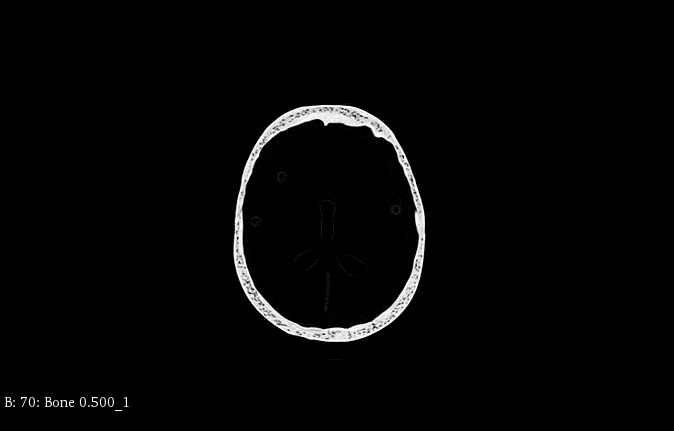

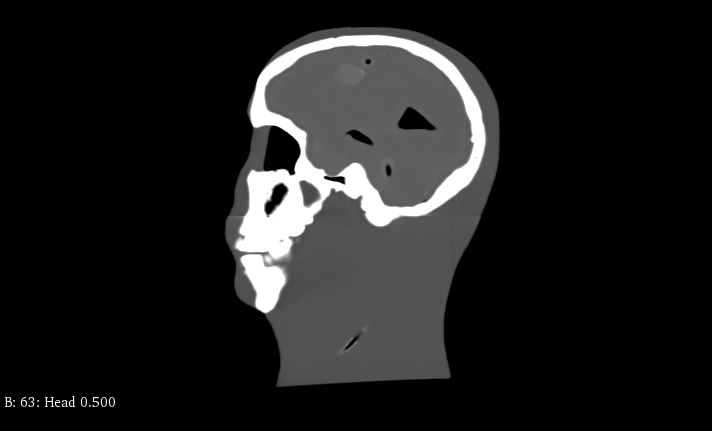

These scans were taken using a Canon CT scanner Aquilion ONE (Model TSX-305A). The DICOM files are available upon request, please contact us at [email protected] for more information.

The DICOM files are available upon request, please contact us at [email protected] for more information.

Technical Properties:

Type of TissueSound Velocity [m/s]Density
[g/cm³]		Hardness
[Shore 00]		T2
[ms]		SpecklesAttenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone3000 ± 302.31N/AN/AN/A6.4 ± 0.3
Trabecular Bone2800 ± 502.03N/AN/AN/A21 ± 2
Brain Matter 1400 ± 100.992070YES1.0 ± 0.2
Tumor1400 ± 101.013065YES1.2 ± 0.2
Skin/Body Tissue1400 ± 101.026050NO1.7 ± 0.2
Thermal Properties of Bone-Mimicking Tissue
Thermal ConductivityVolumetric Specific Heat CapacityThermal DiffusivityThermal ResistivitySpecific HeatSpeed of Sound
0.776 W/ m K1.040 MJ/ m^3 K0.746 mm^2/ s1.289 m K/ W0.978 J/ g Deg Celsius3070 m/s
HU Values of the Tissue Mimicking Materials
S.No.Tissue TypeHU Value (average)
1Brain Tissue-25
2Trabecular Bone800
3Cortical Bone1300
4Skin Tissue-25
Options
Head ModelsDynamic, Advanced, Static, Dynamic, Standard, Training, V1, Hematoma, QC1, Openable
AppearanceAmber Translucent, Skin

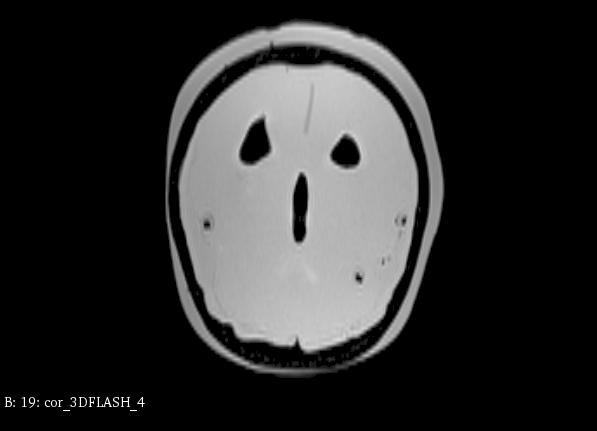

Sample scans of this phantom. Full scan galleries available on request.

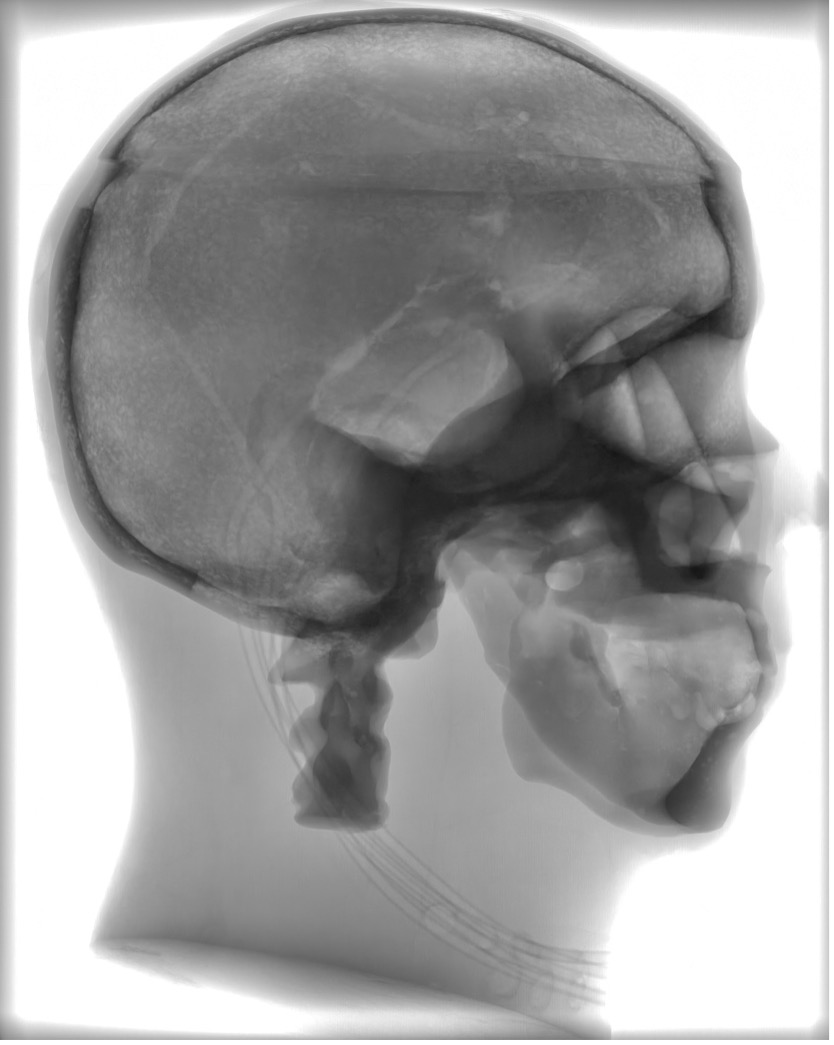

Sample scan 1
Sample scan 1

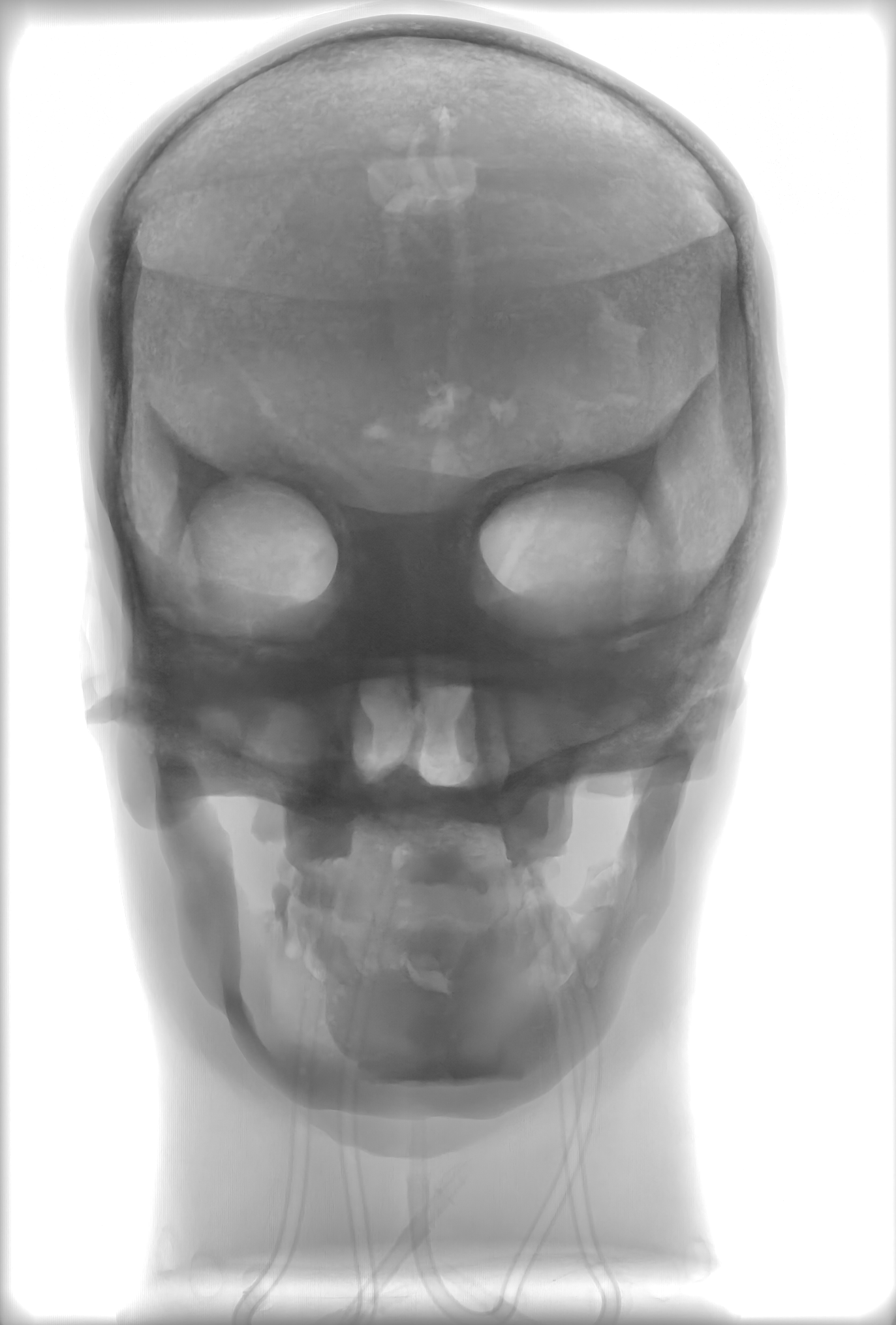

Sample scan 2
Sample scan 2

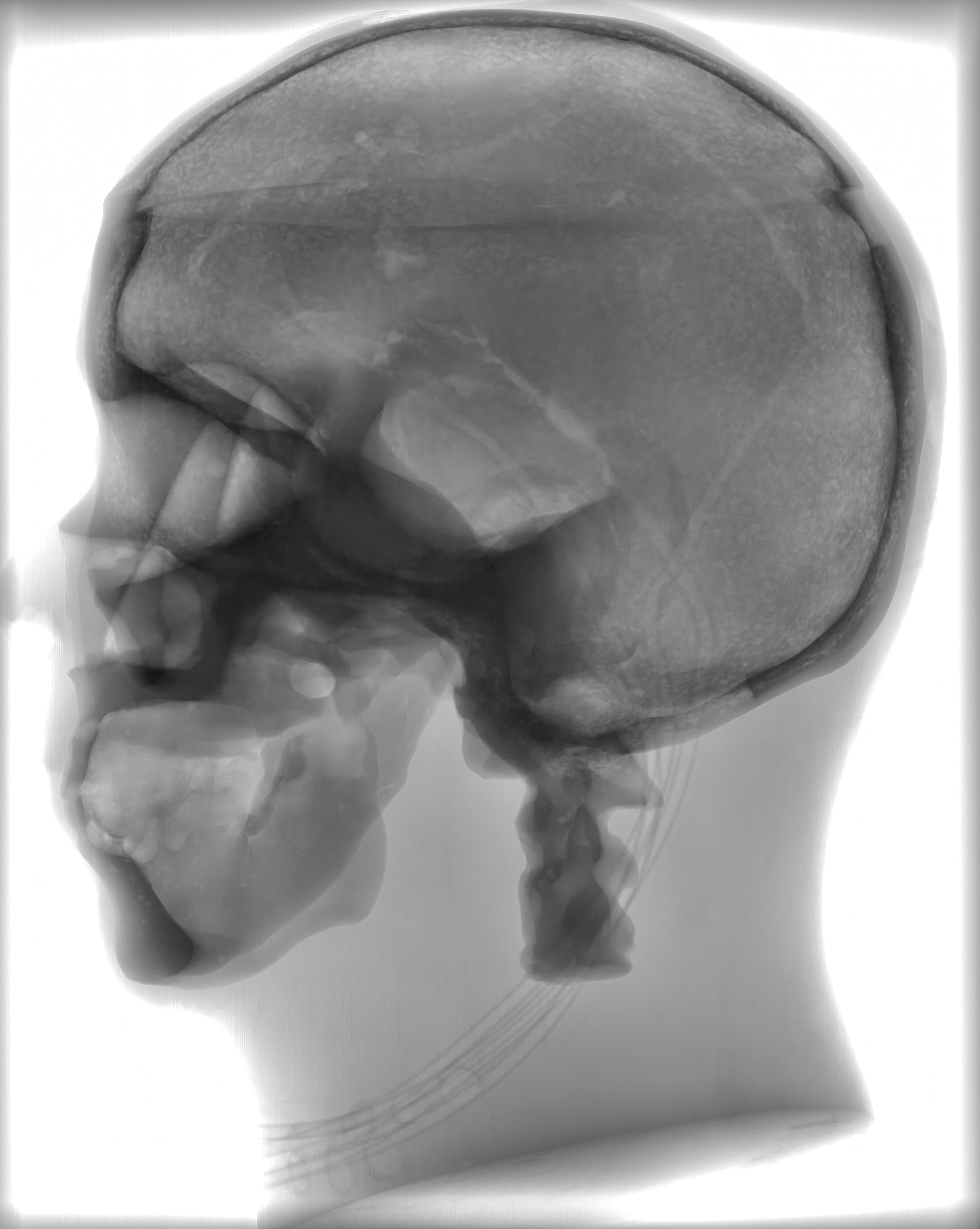

Sample scan 3
Sample scan 3
