Standard Calvaria for X-Ray CT, US, MRI
$1,860

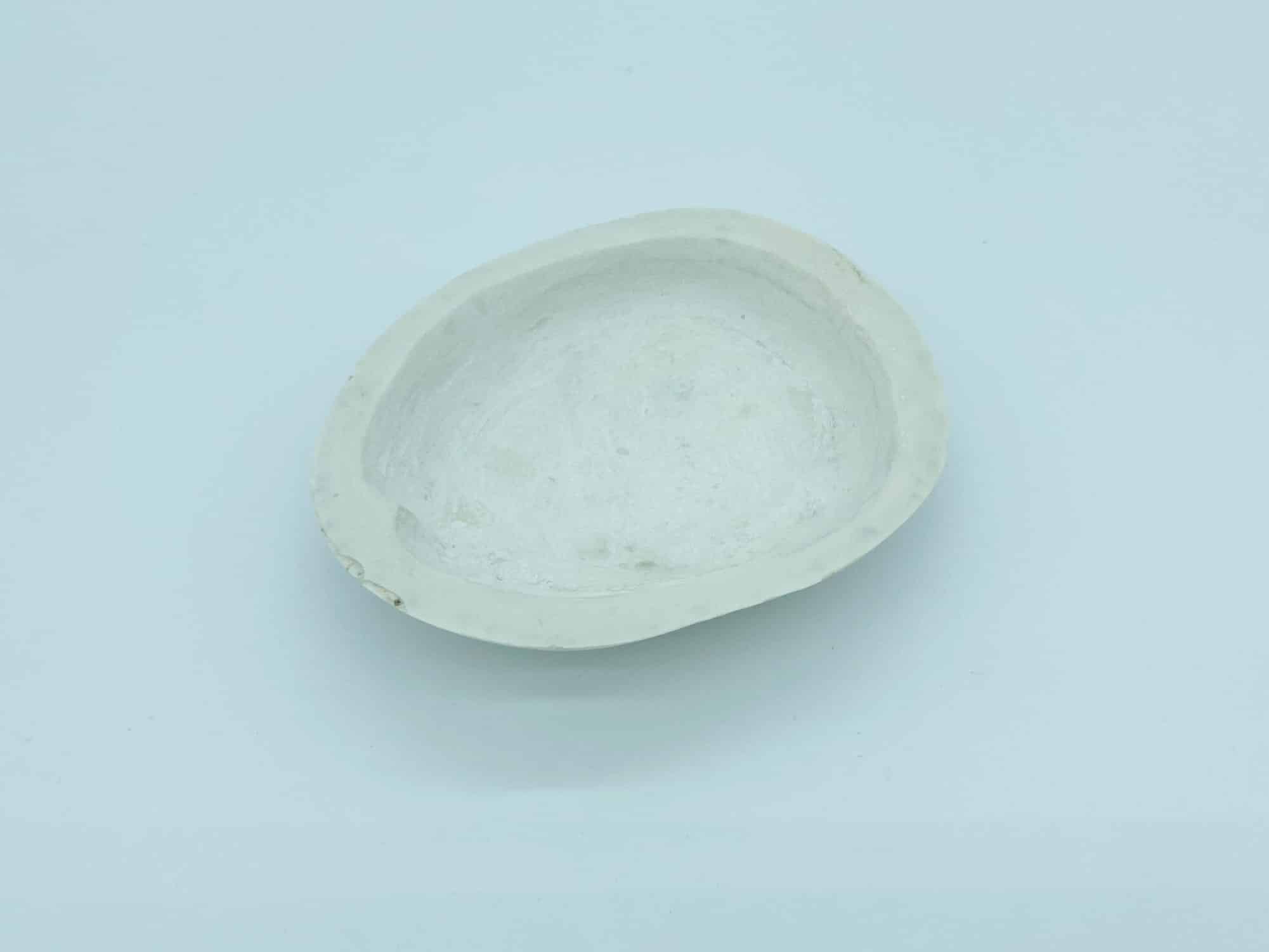

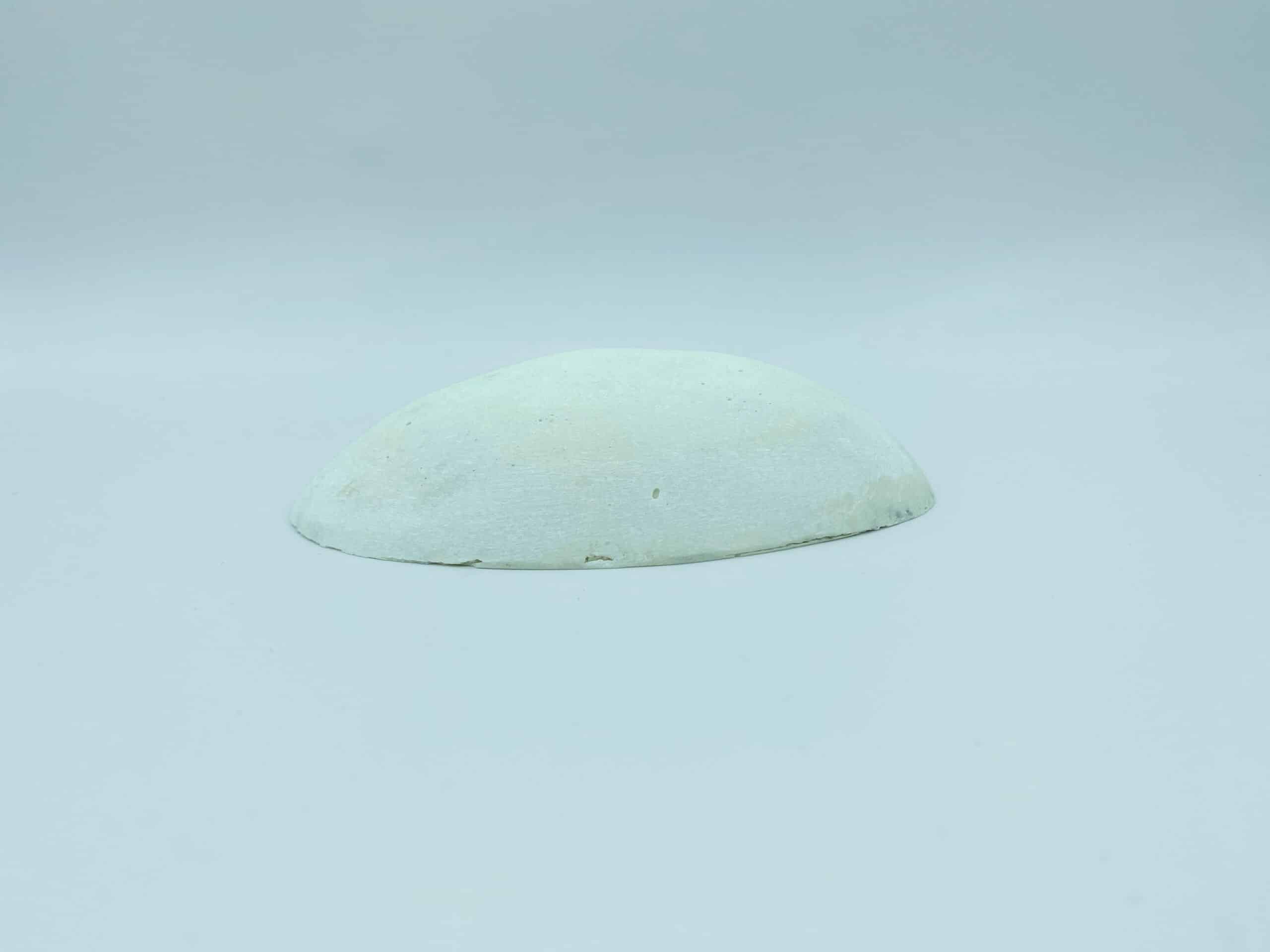

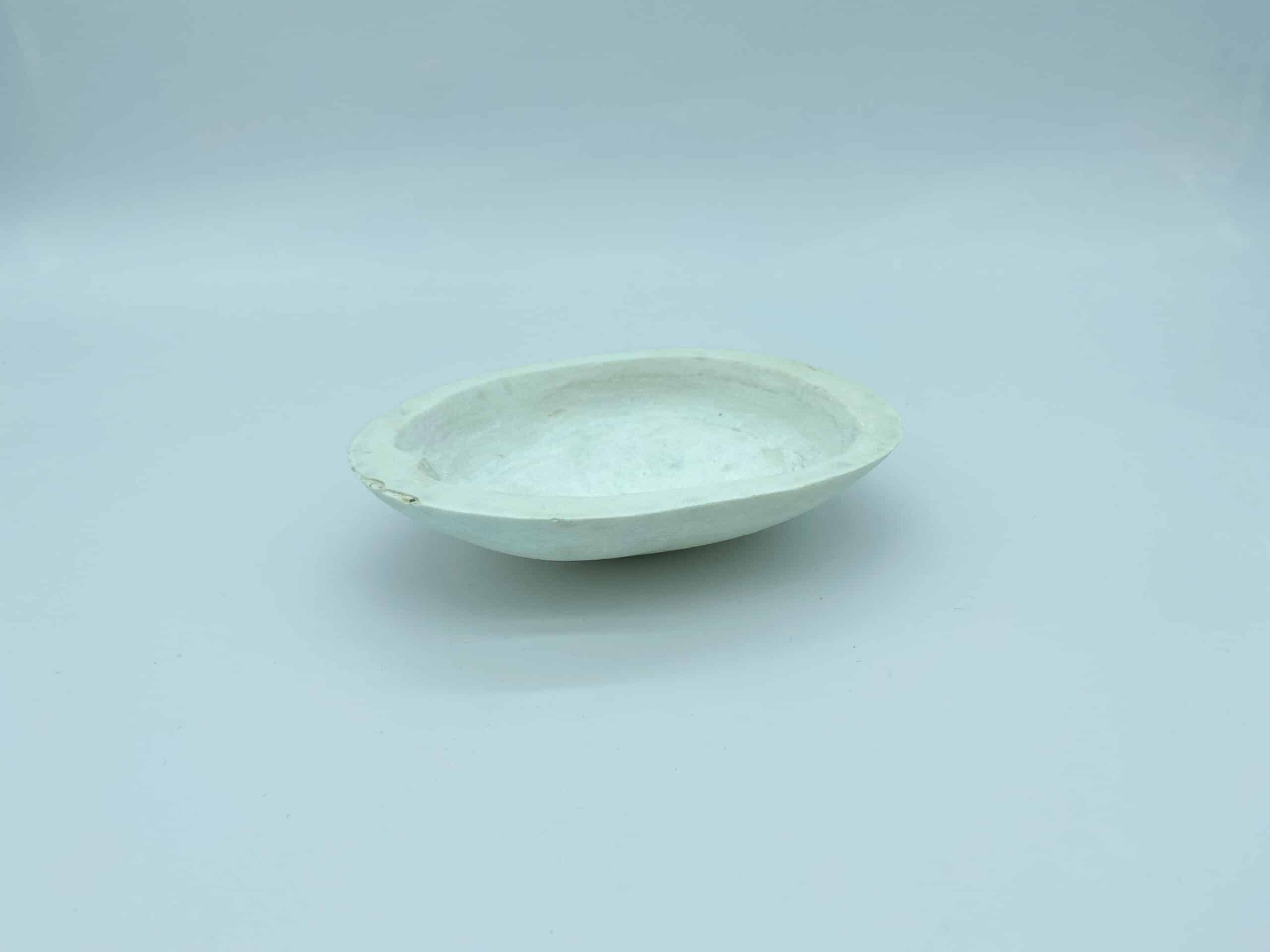

The Standard Calvaria phantom is an excellent tool for medical imaging research. The skull bones are made from a realistic patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT applications.

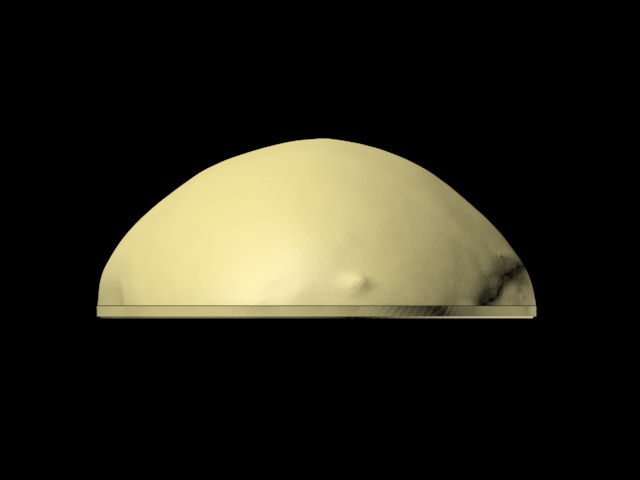

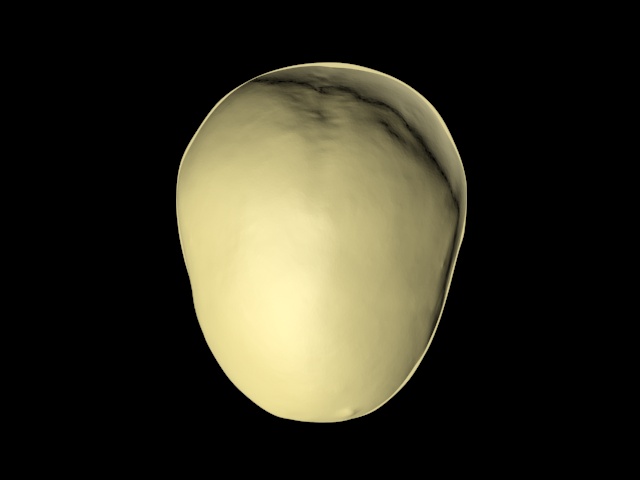

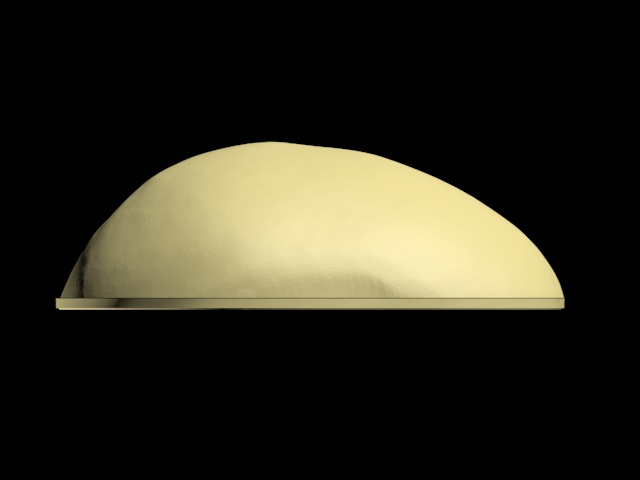

The design of the standard calvaria phantom is based on an average human male skull, and It is developed using our patented ceramic-reinforced epoxy-based composite material suitable for Ultrasound, MRI, and CT applications (any other part of the skull can be fabricated based on the customer order).

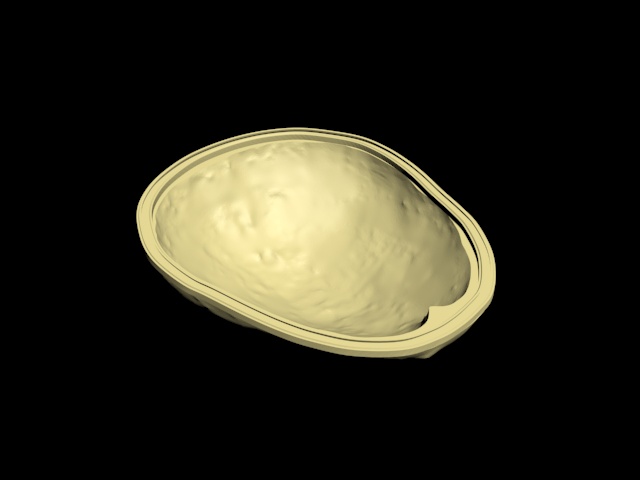

The phantom has a realistic three-layered structure, and the inner porosity can be adjusted according to the project’s requirements.
There are several applications of this phantom. It is primarily used for medical imaging & diagnostic research, and treatment planning of non-invasive HIFU brain surgeries.
| Type of Tissues | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
