Adult Dental Skull for X-Ray CT
Quote-based pricing

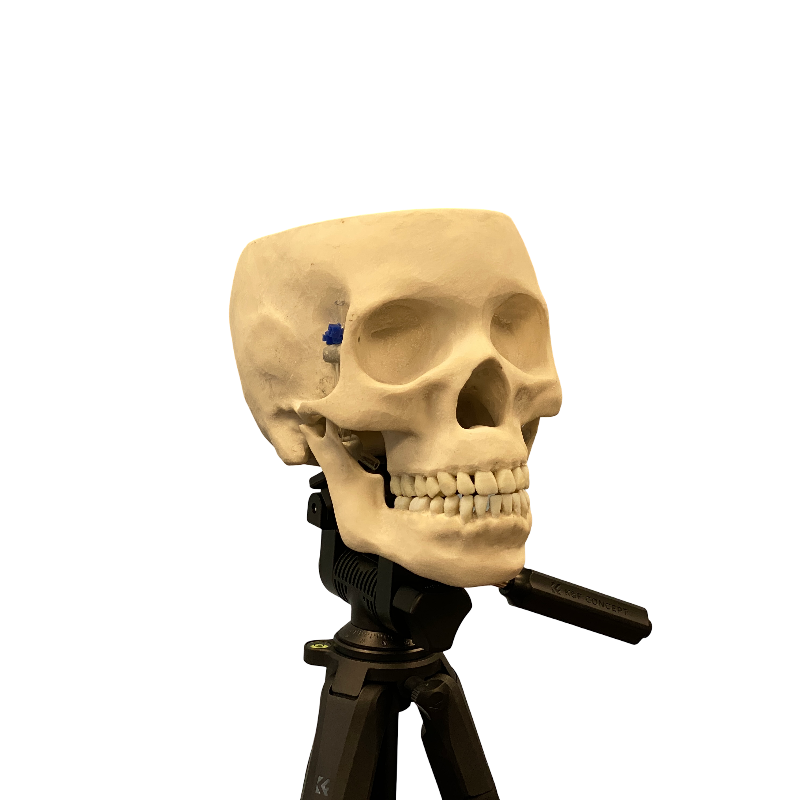

The Adult Dental Skull Phantom is a representational training tool for dental X-ray imaging, developed by True Phantom Solutions, in partnership with Navadha Enterprises. The phantom is suitable for a range of dental imaging exercises, including orthopantomogram (OPG) and periapical radiographic views and is supplied with a sturdy tripod stand for secure, repeatable positioning.
This product can be customized based on your requirements — contact us.
The Adult Dental Skull Phantom is a representational training tool for dental X-ray imaging, developed by True Phantom Solutions, in partnership with Navadha Enterprises.

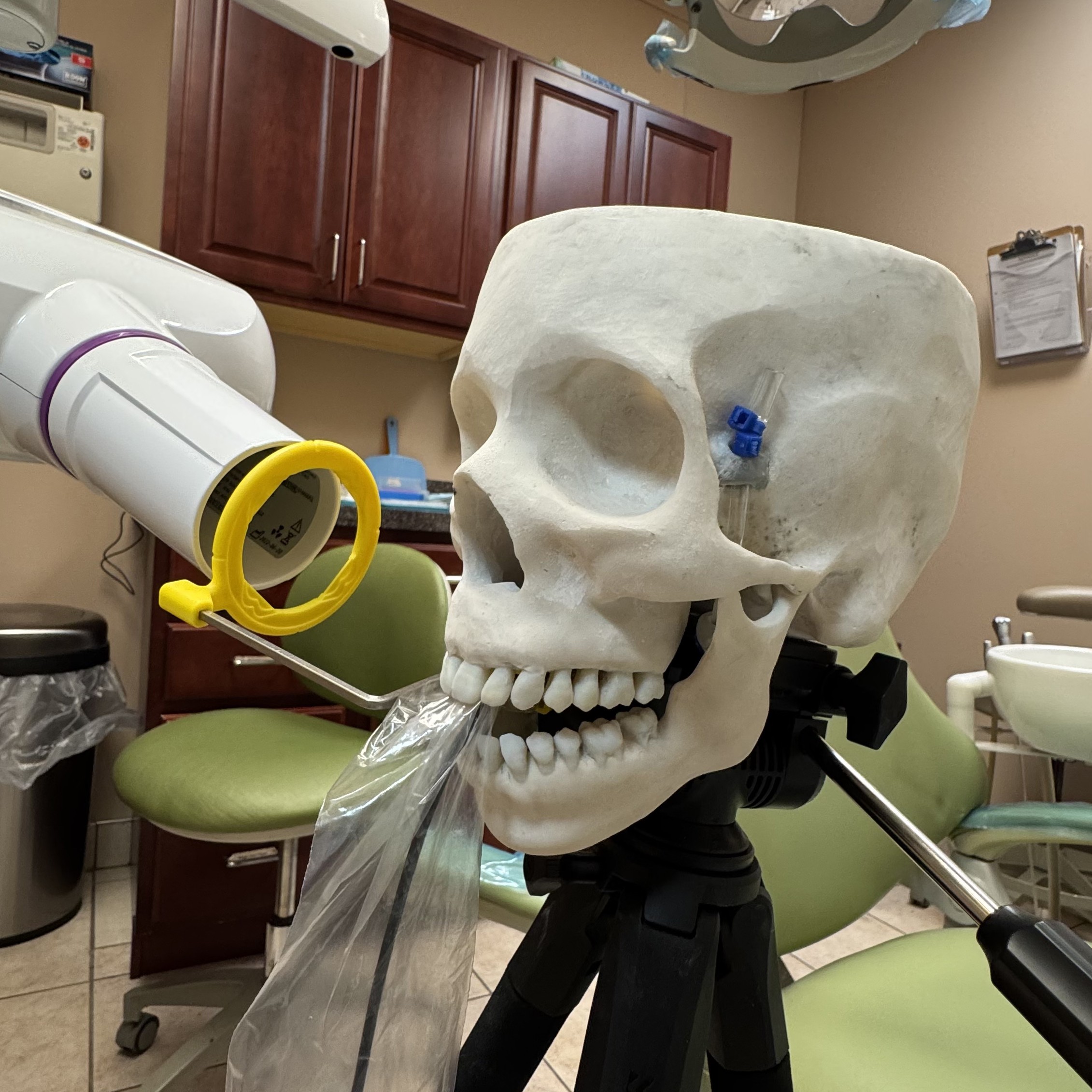

The phantom includes 32 sets of teeth featuring distinct enamel and dentine layers with variable radiographic opacity, and an openable jaw to facilitate intraoral and extraoral X‑ray procedures. Anatomical accuracy is enhanced by purposeful pathology: one molar exhibits a fracture, and one incisor contains a cavity, while all teeth incorporate realistic dentin structure.

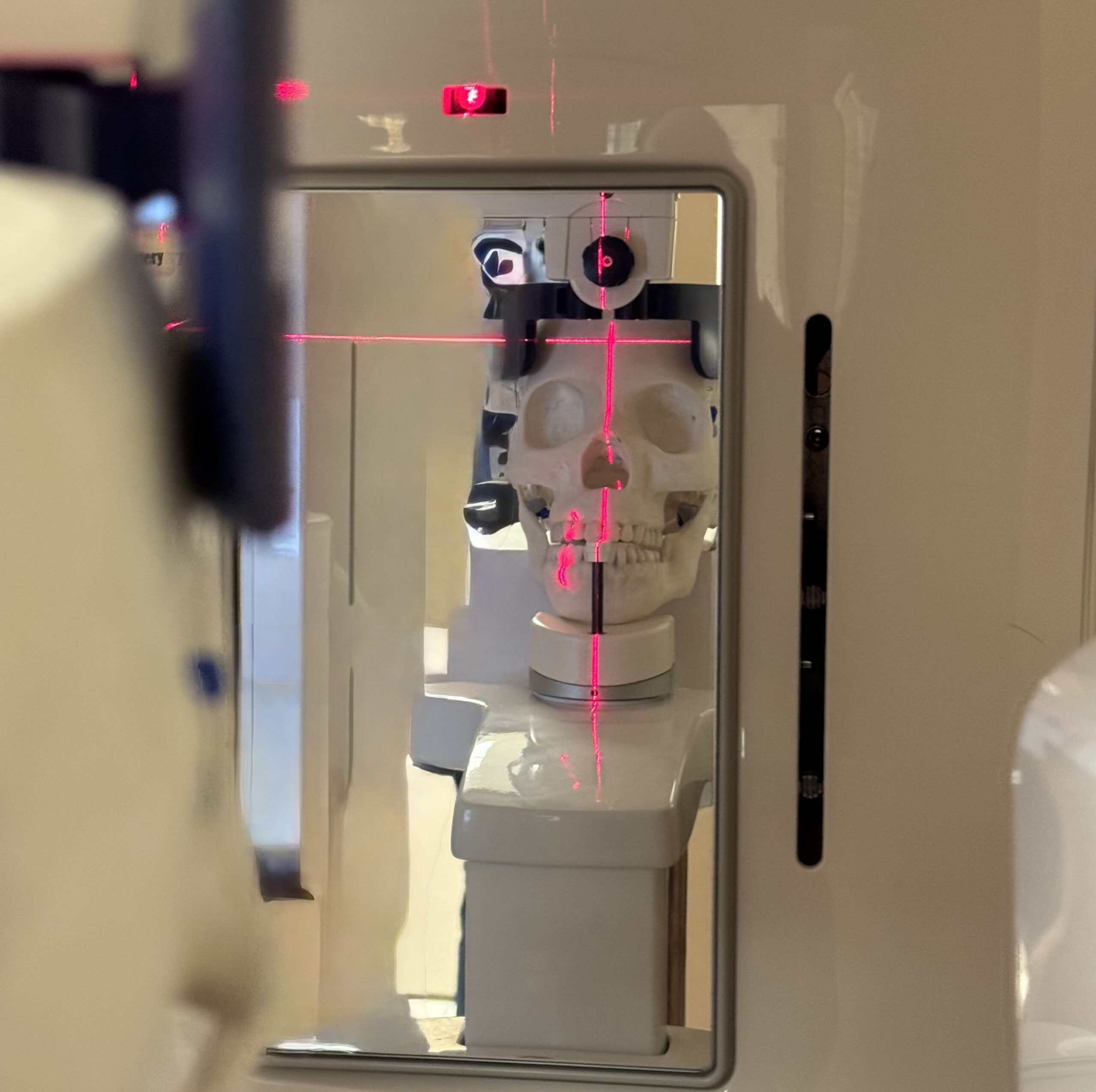

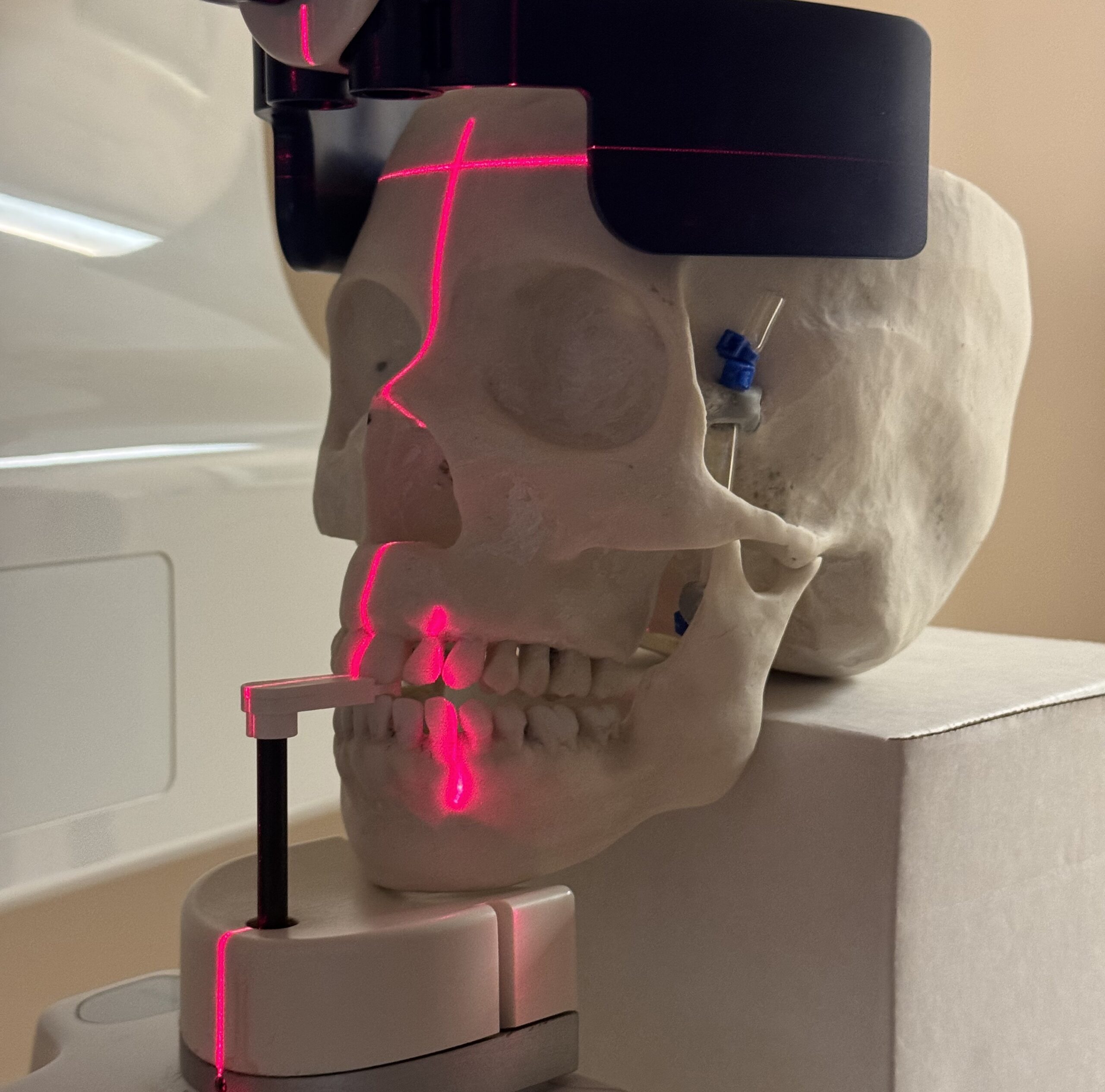

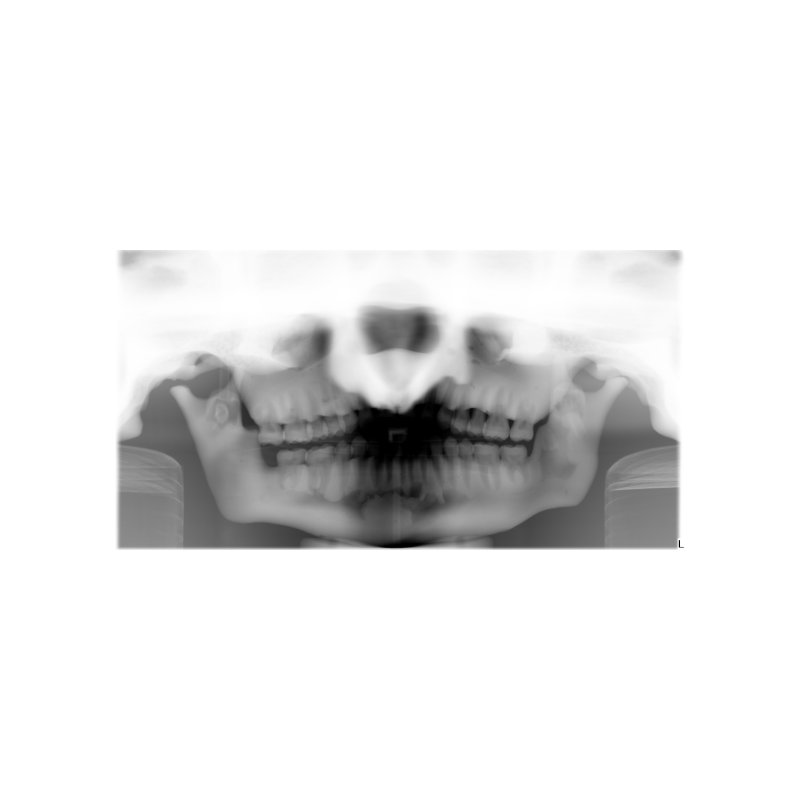

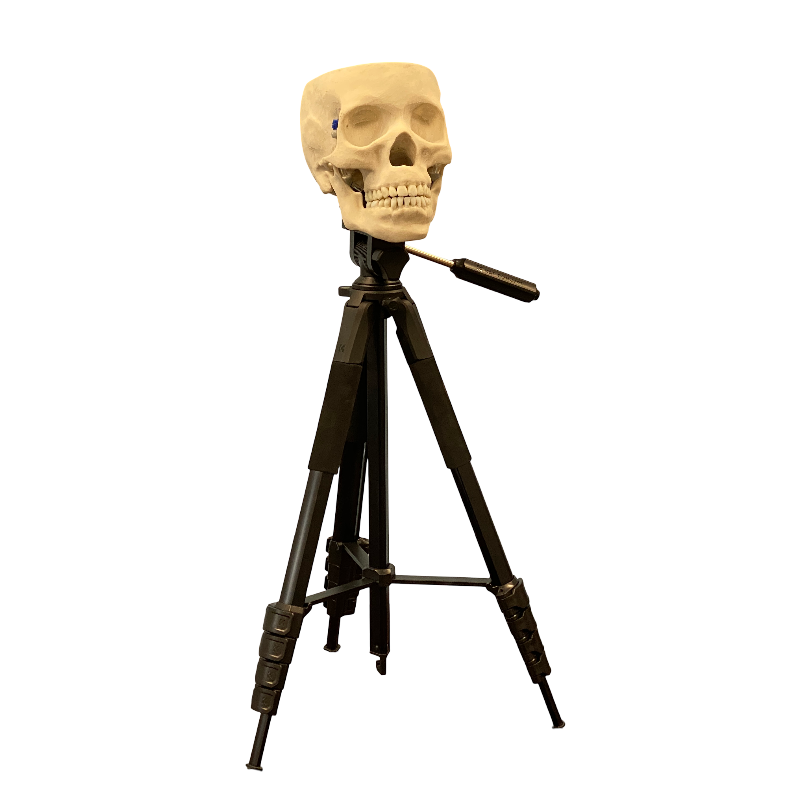

The phantom is suitable for a range of dental imaging exercises, including orthopantomogram (OPG) and periapical radiographic views, and is supplied with a sturdy tripod stand for secure, repeatable positioning.
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
