X-Ray, CT, US, MRI Phantoms
Adult Male Torso (Cardiac/FAST) for X-Ray CT, US
$39,500
The Adult Male Torso (Cardiac/FAST) phantom is a lifelike simulator compatible with Ultrasound and X-Ray/CT. The skeleton features a realistic three-layered structure and inner porosity. The phantom includes a realistic heart with major vessels, chambers, and a TPS heart pump for lifelike heartbeat and motion.
Torso Model: Male (Dynamic)
Model: X-Ray CT
This product can be customized based on your requirements — contact us.

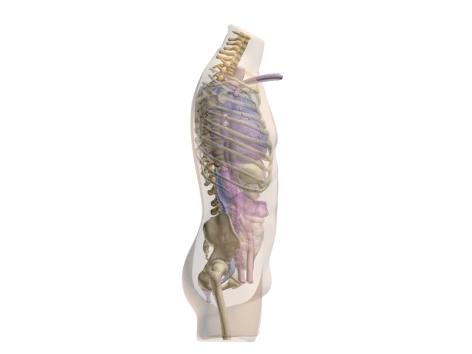

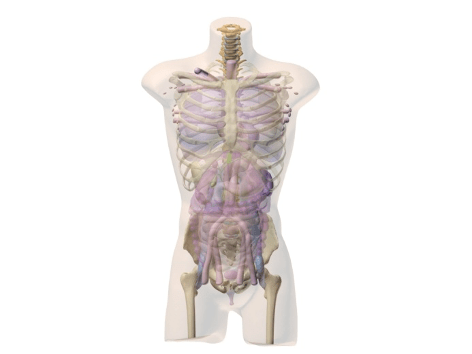

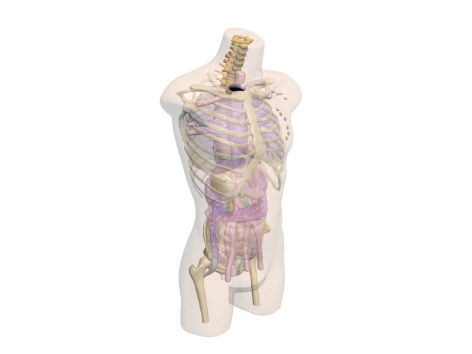

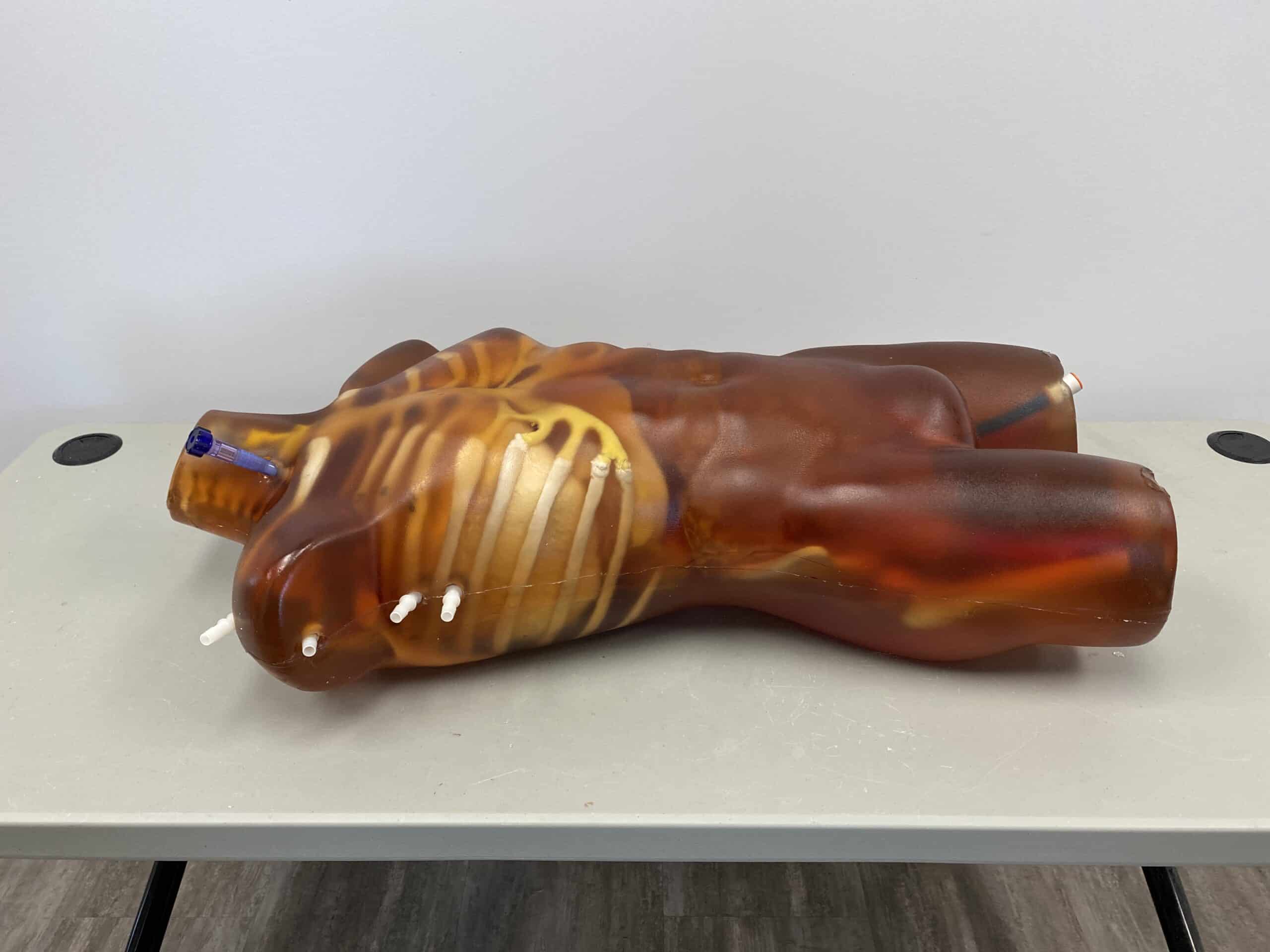

Adult Male Torso (Cardiac/FAST) with a beating heart is a lifelike, anatomically realistic, from neck to pelvic area phantom/simulator with all the essential organs present inside. This phantom is compatible with Ultrasound and X-Ray/CT, and it is an ideal tool for applications such as angiography. The organs are made from realistic urethane-based tissue-mimicking materials, and the bones are made from a patented ceramic-reinforced epoxy-based composite material. The skeleton is assembled from individually cast bones with vertebrae that have a realistic three-layered structure and inner porosity. This phantom can be used with Iodine-based, and Microbubble contrast mediums.

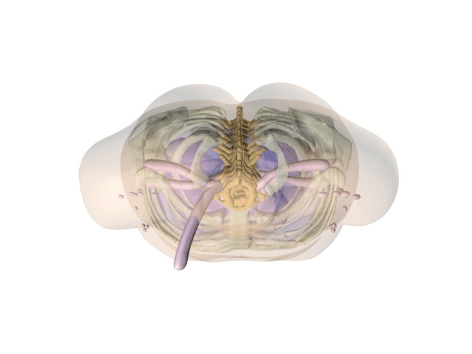

The design of this phantom includes a realistic heart with all major heart vessels and internal heart chambers. The TPS heart pump is included with this phantom, and it enables the realistic heartbeat and motion of heart walls.

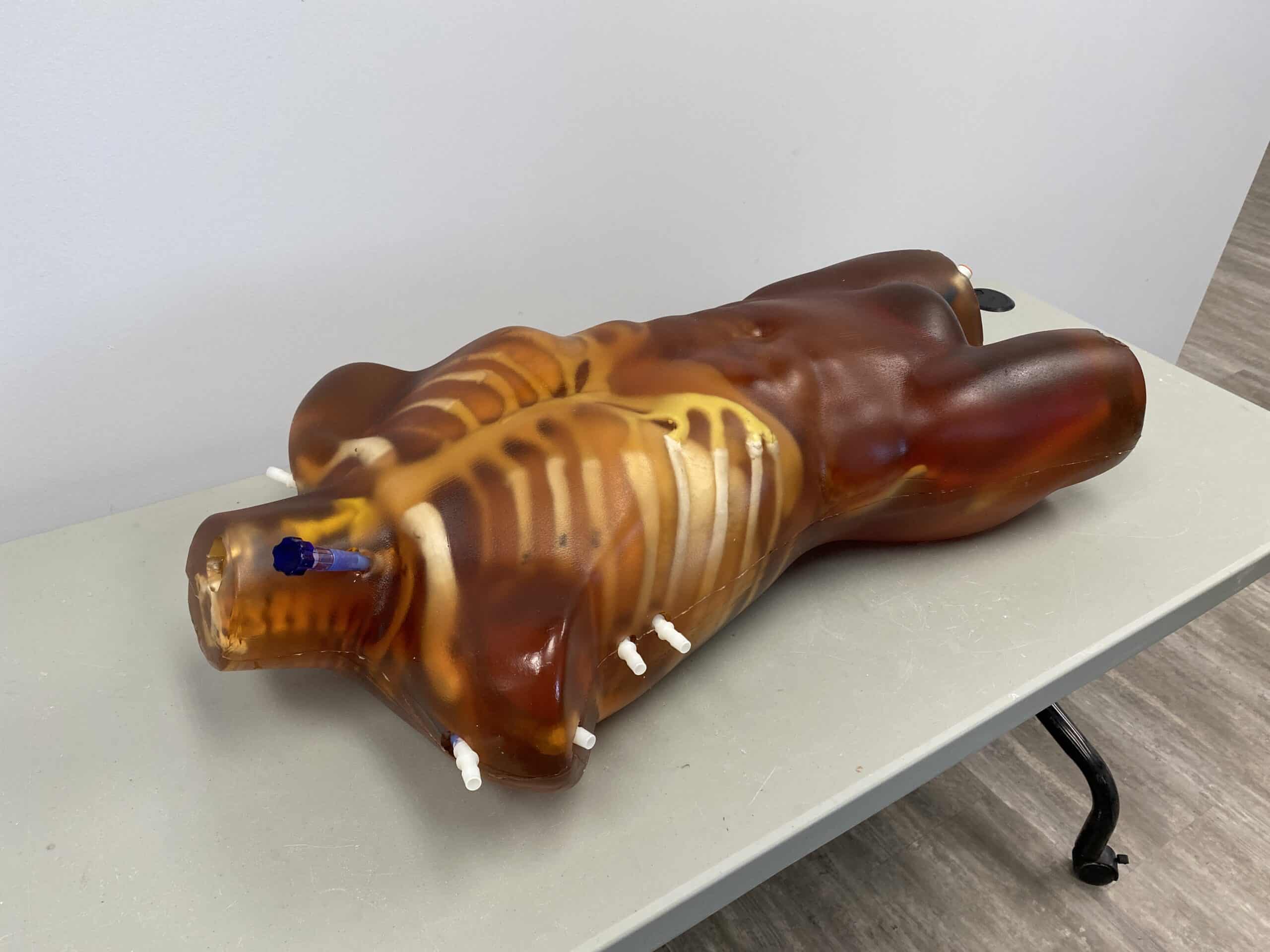

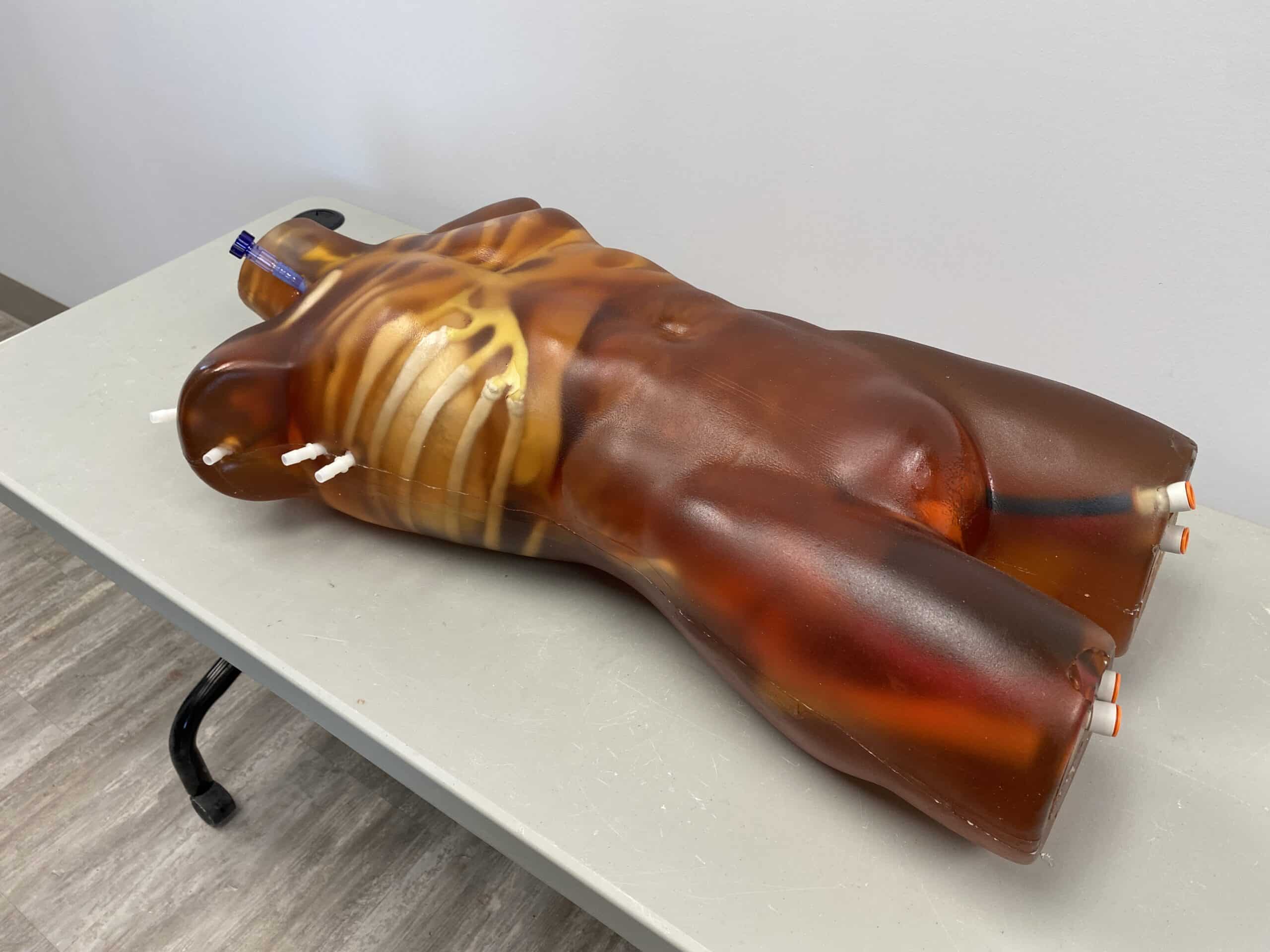

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Diaphragm | 80 |
| Pancreas | 110 |
| Spleen | 110 |
| Tissue Type | HU Value (Average) | Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Torso Model | Male (Dynamic), Male (Standard), Male (Cardiac), Male (Cardiac/Fast), Male (Skin), Male (FAST) |
| Model | X-Ray CT, US, X-Ray CT, MRI, Ultrasound |

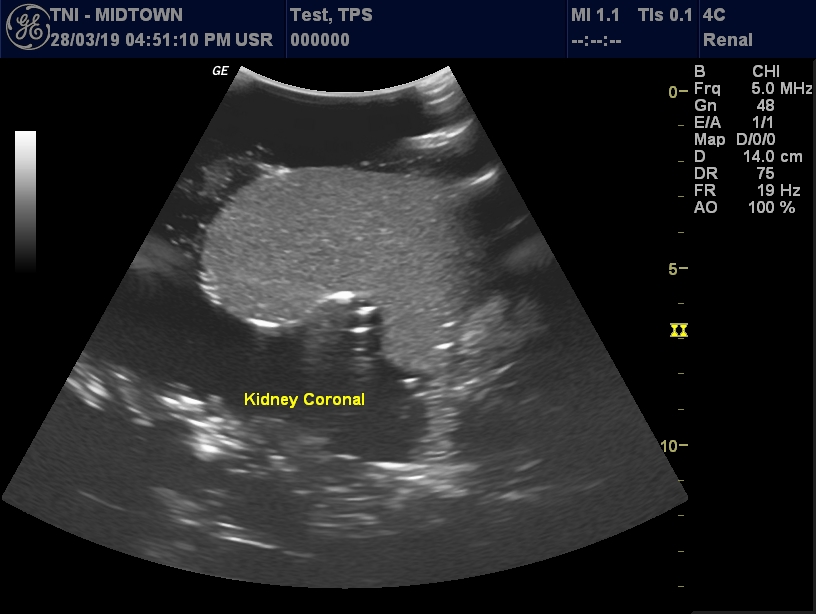

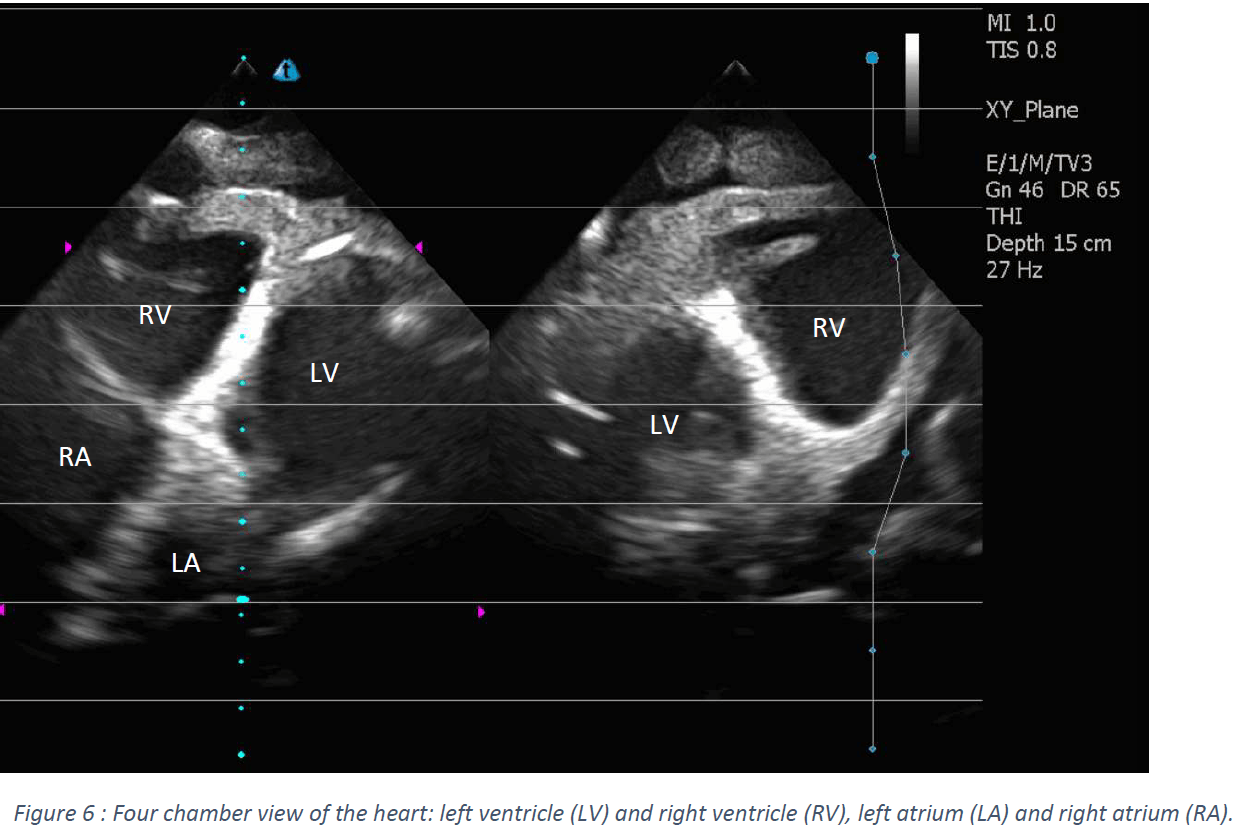

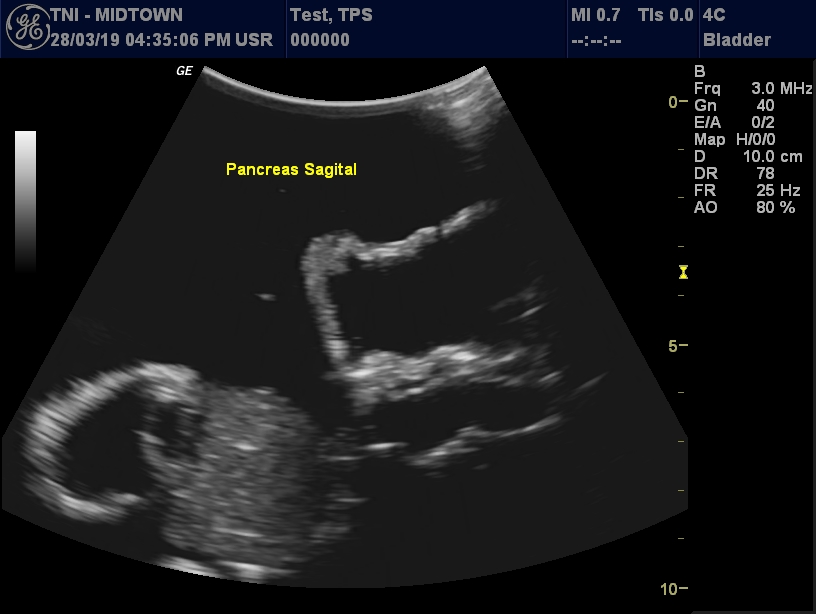

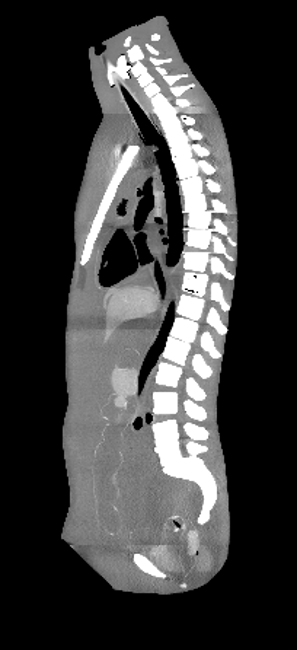

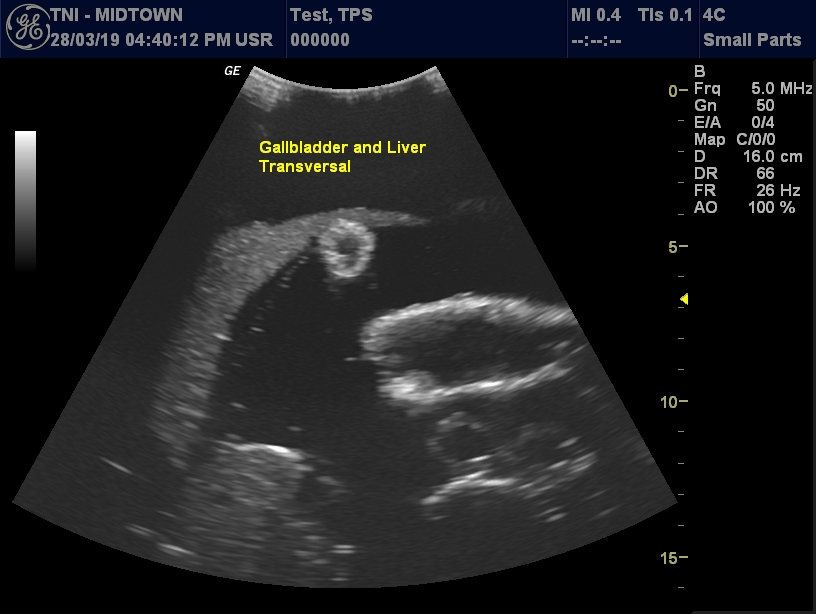

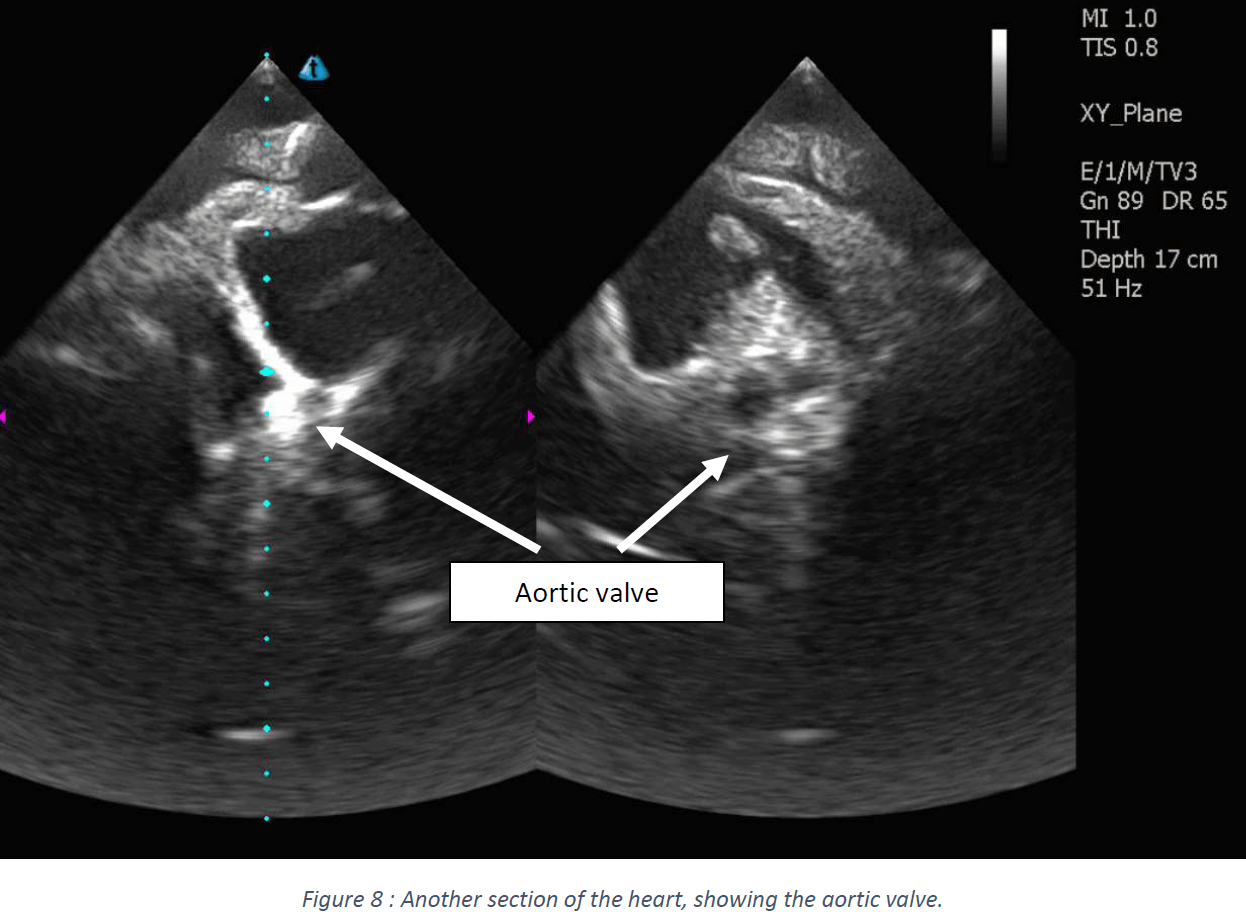

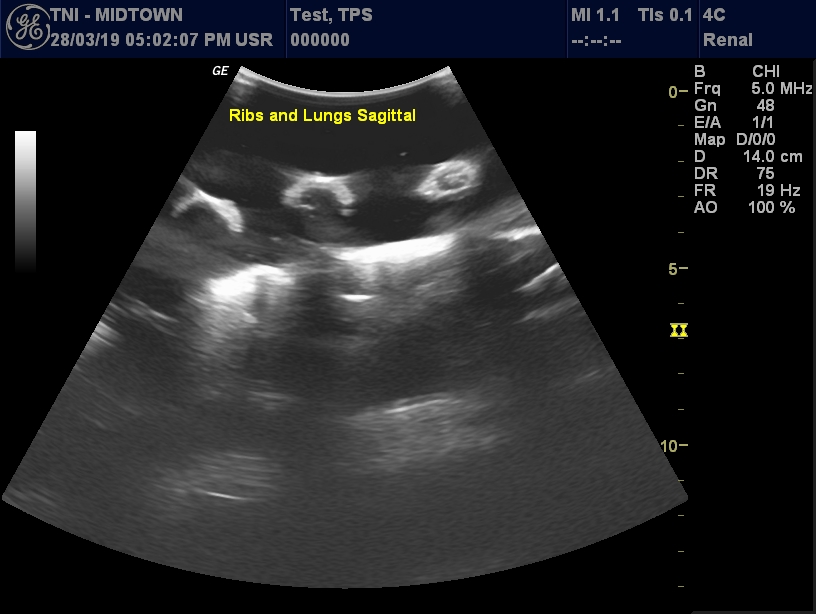

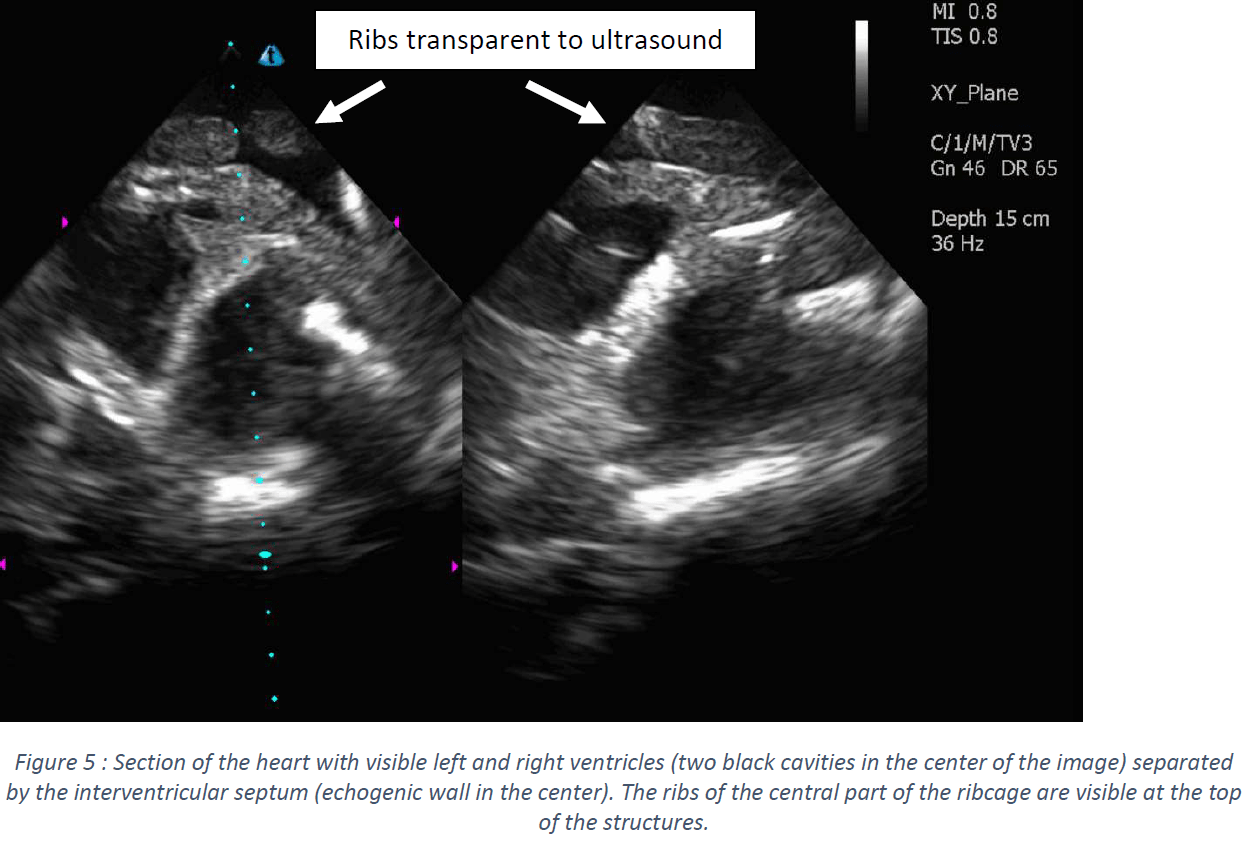

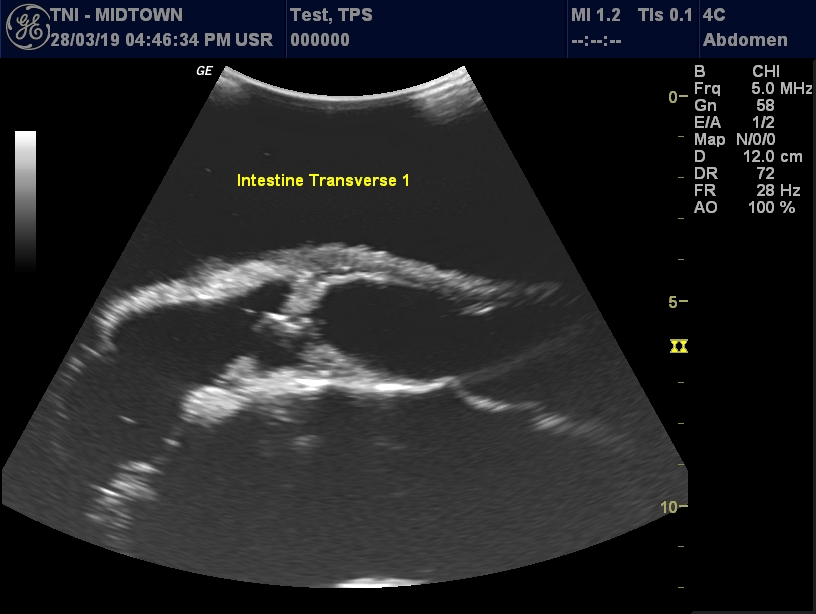

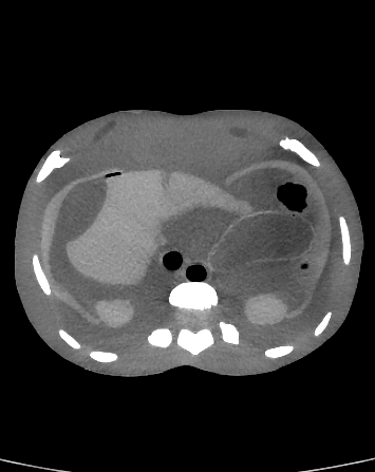

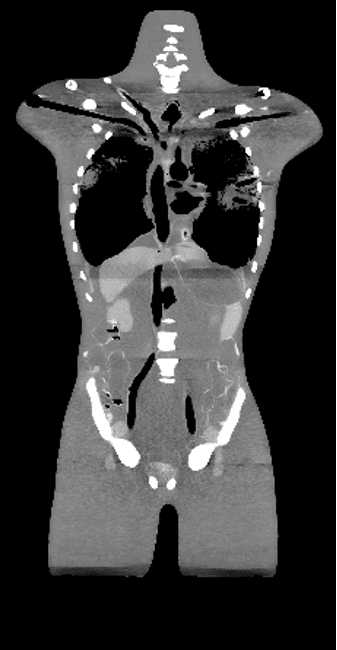

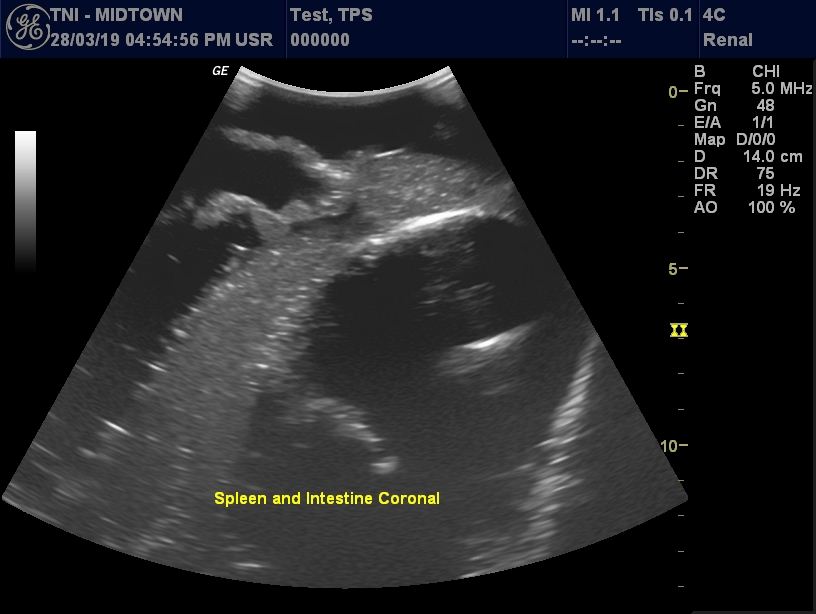

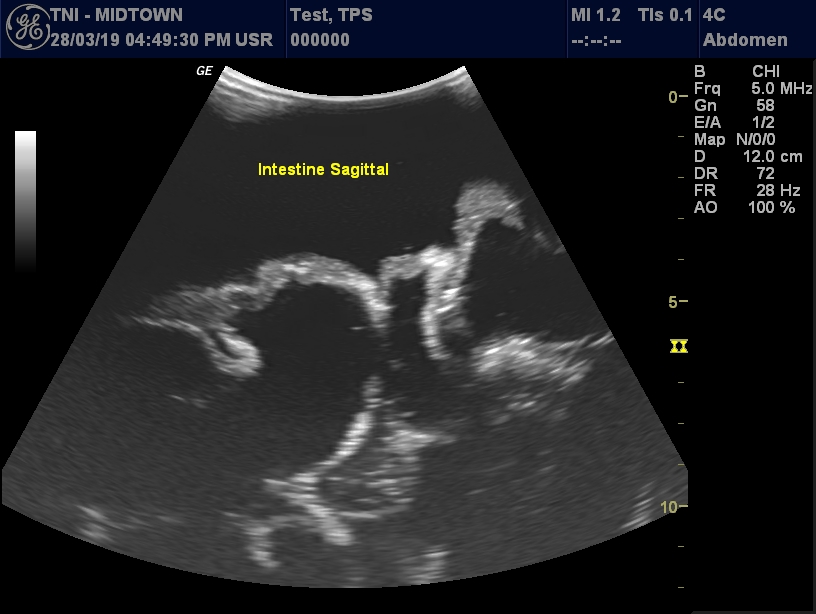

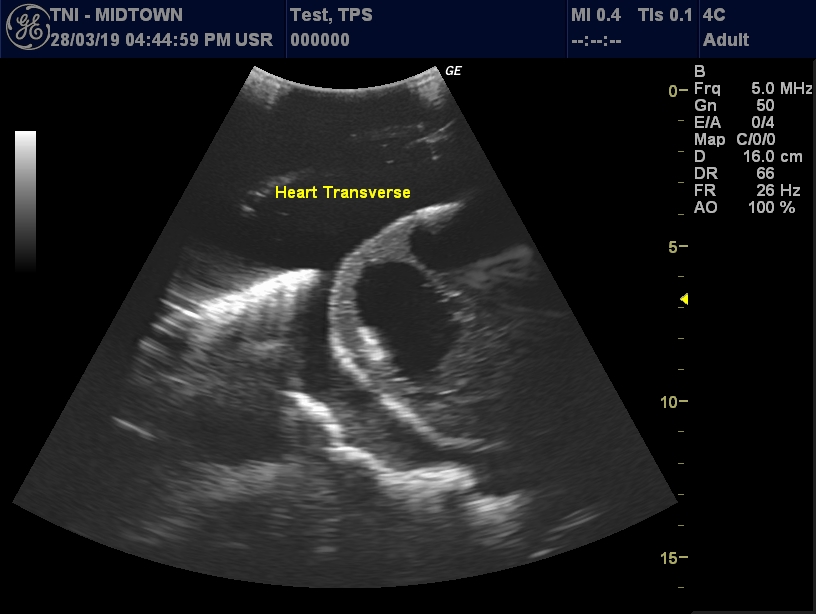

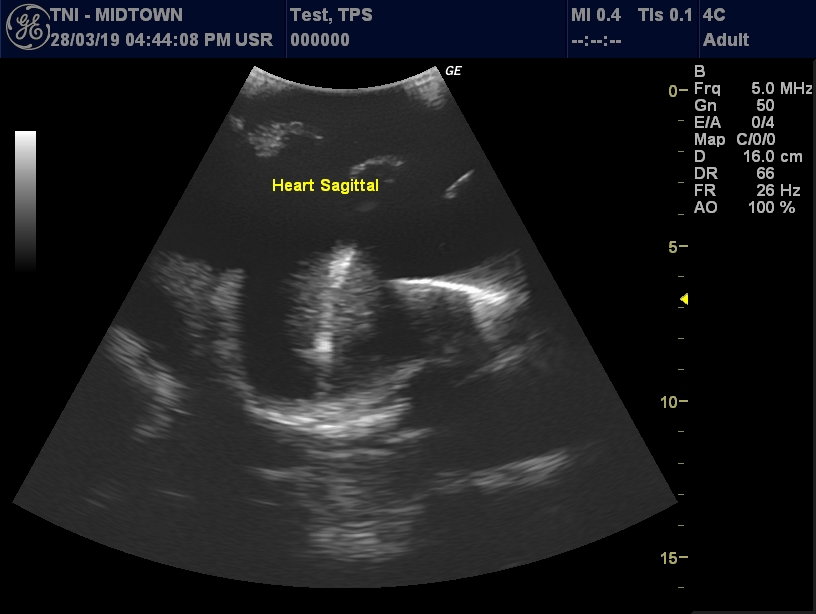

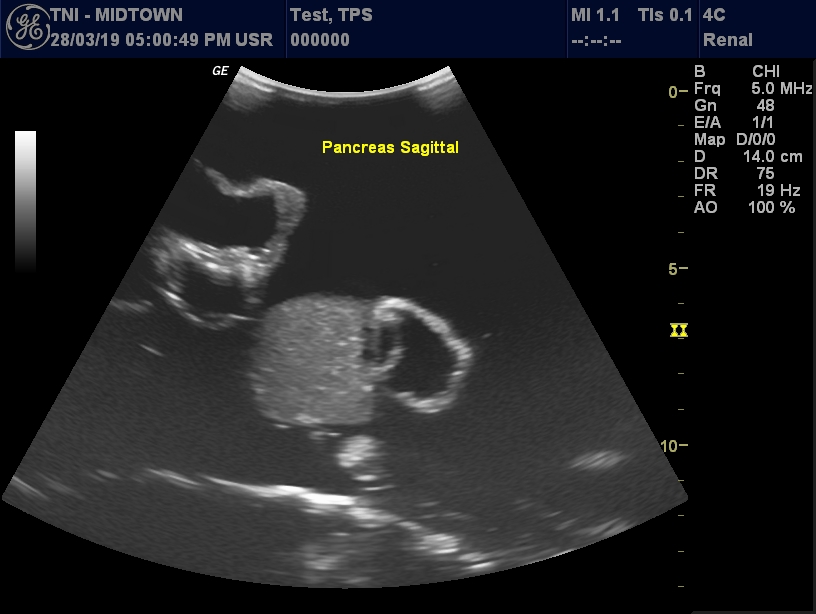

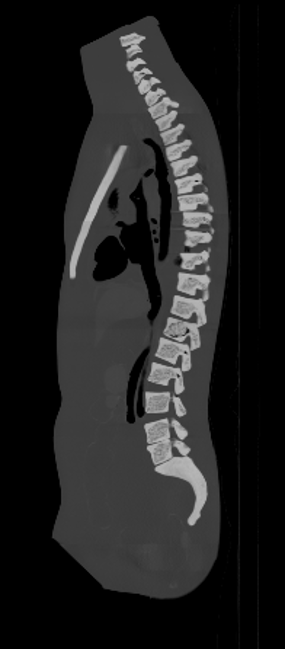

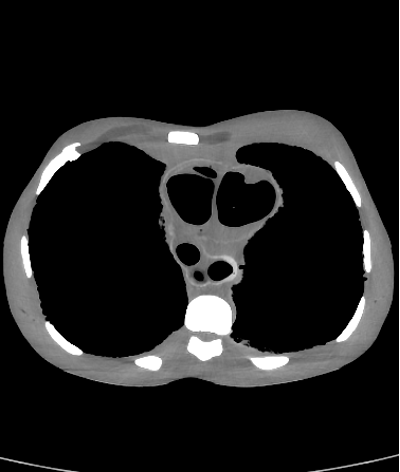

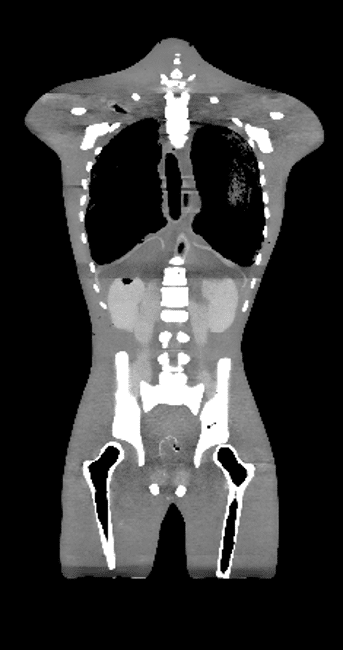

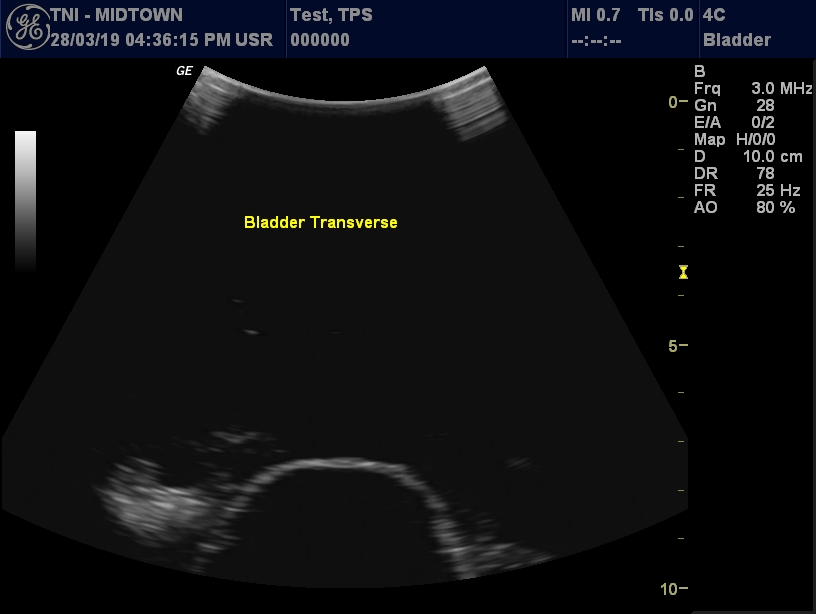

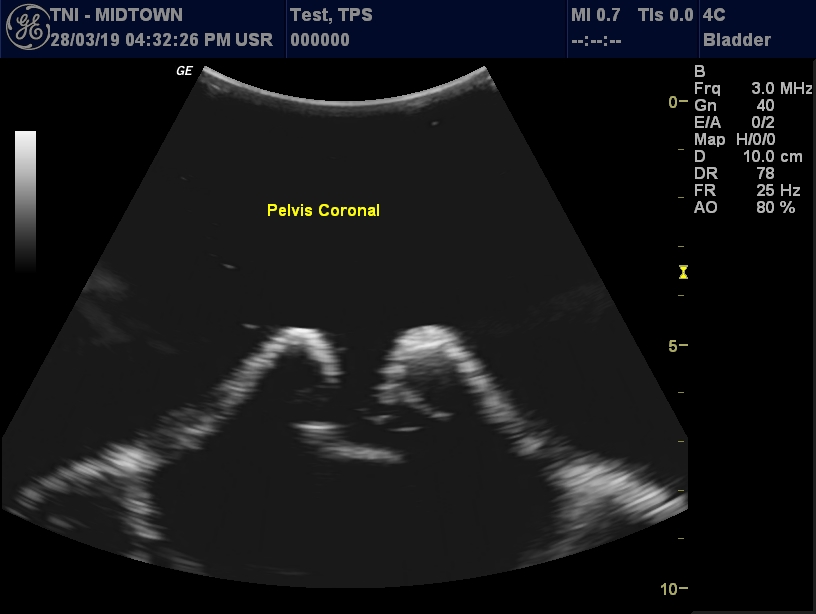

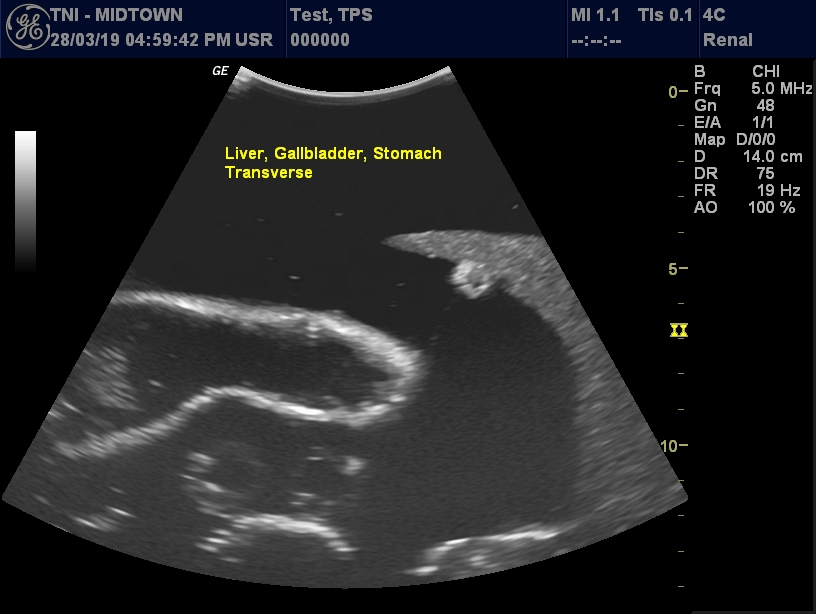

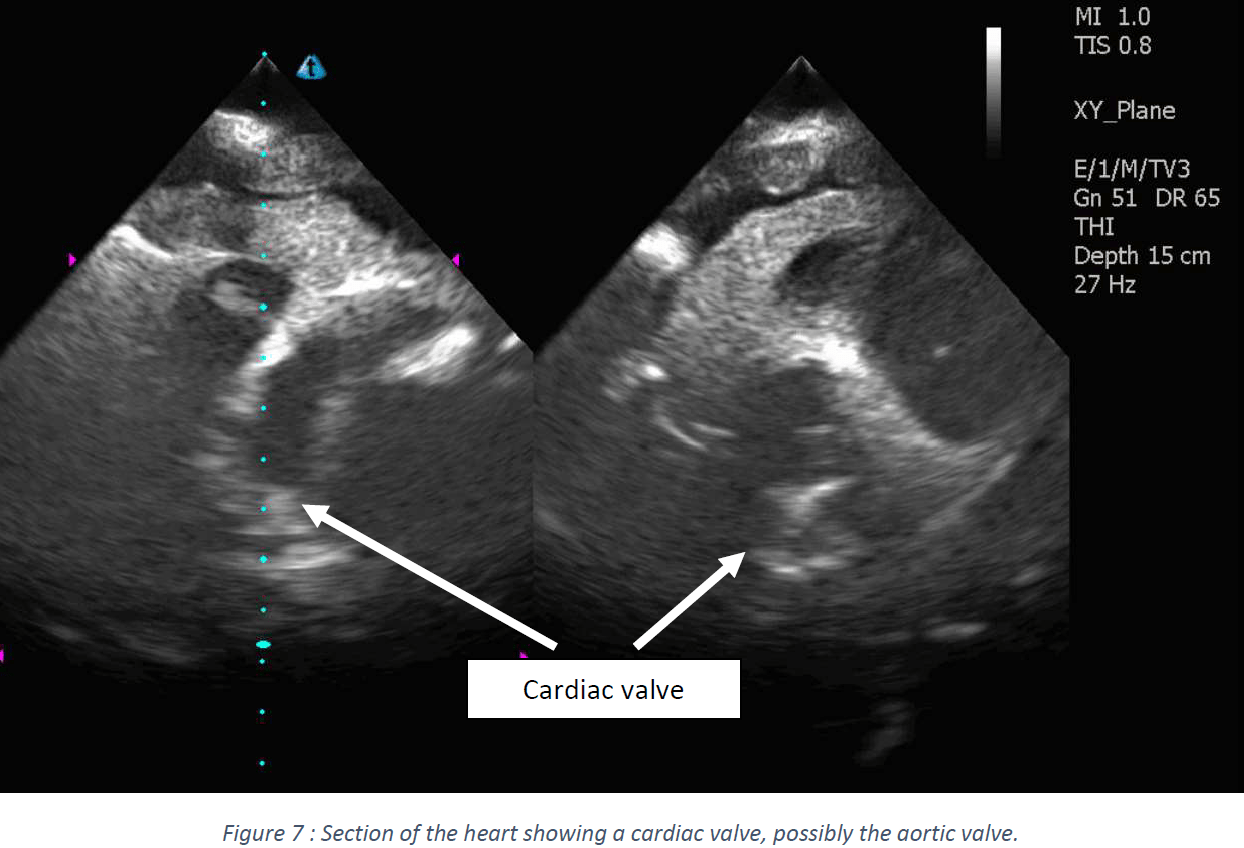

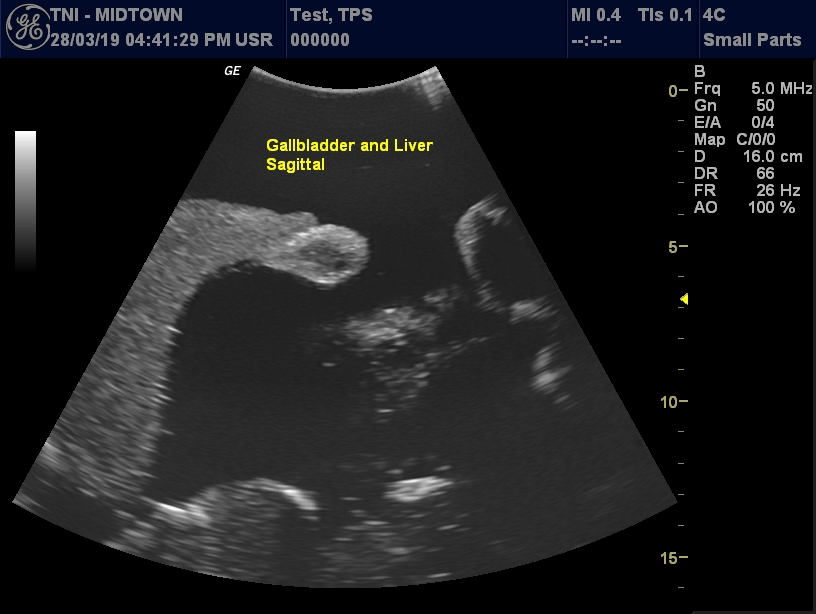

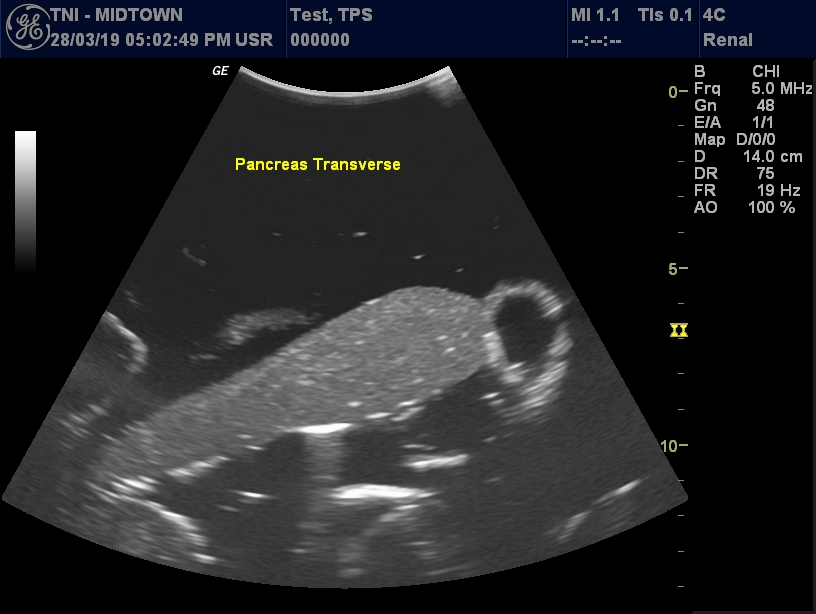

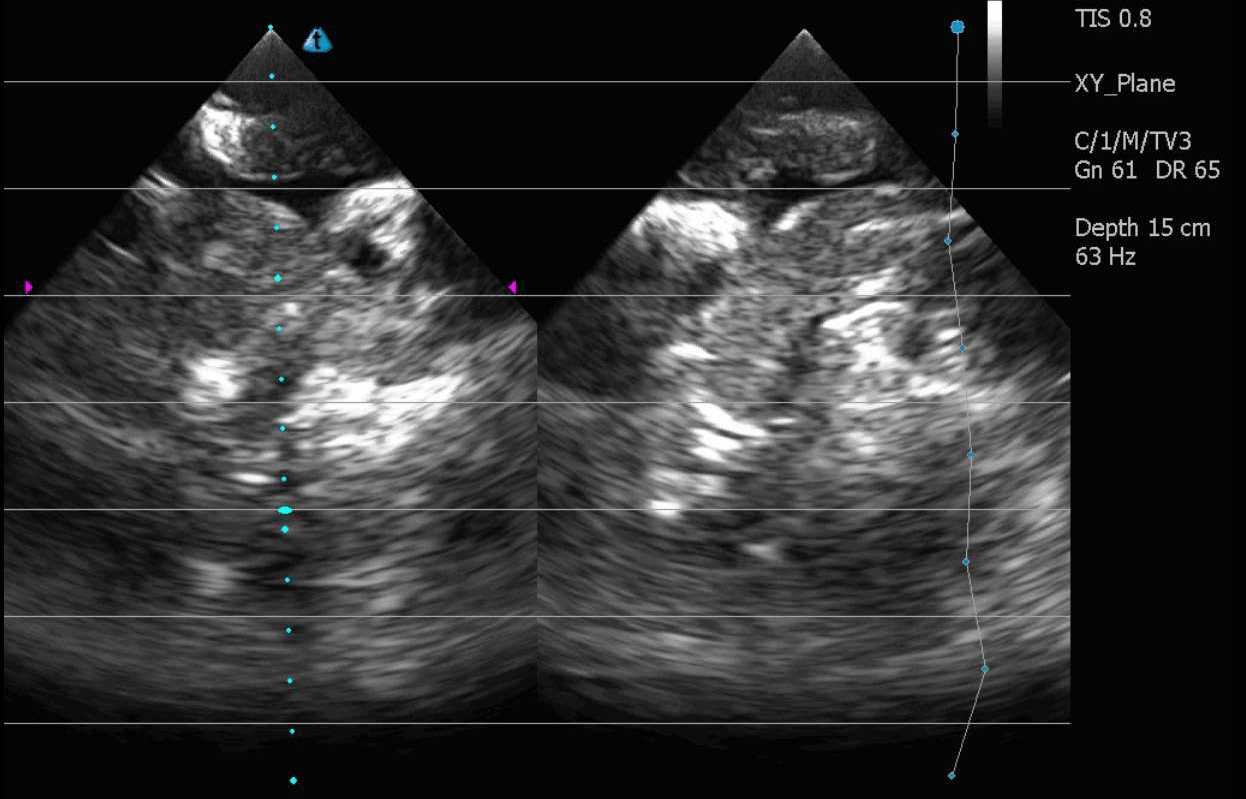

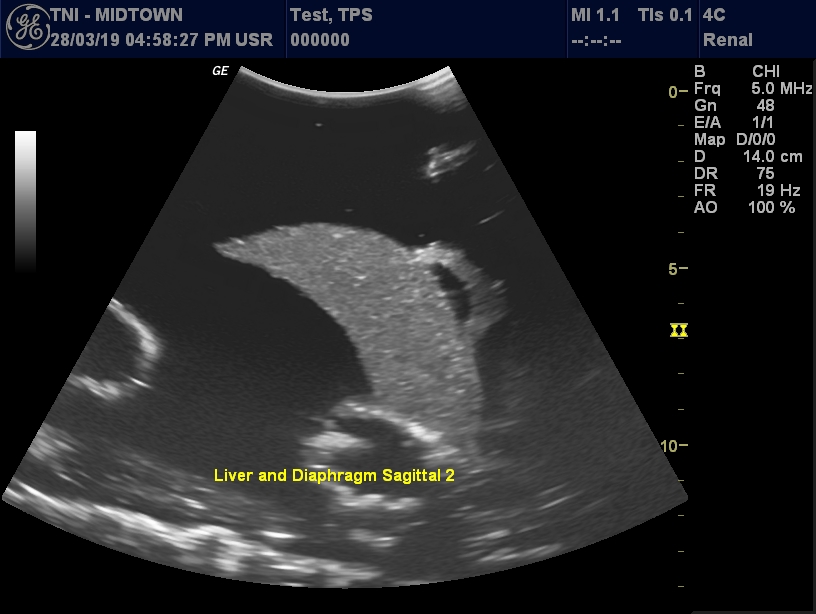

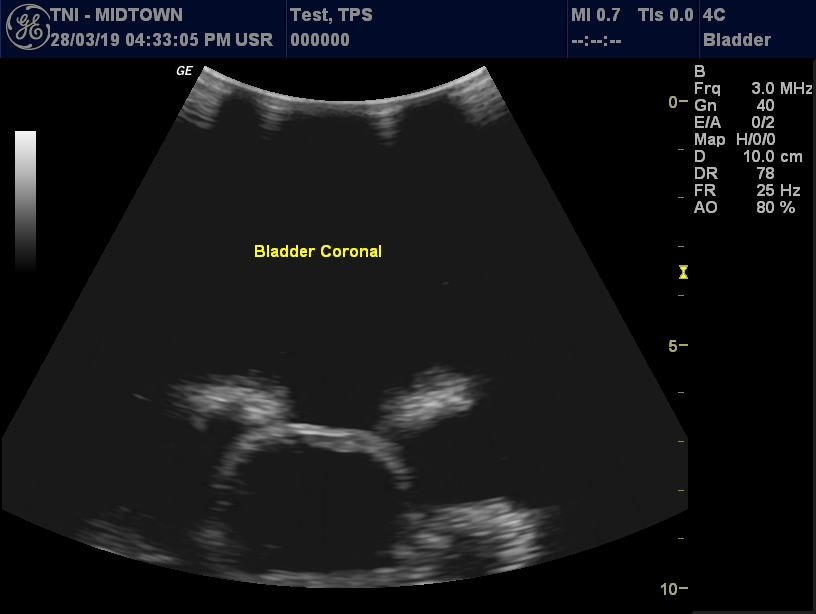

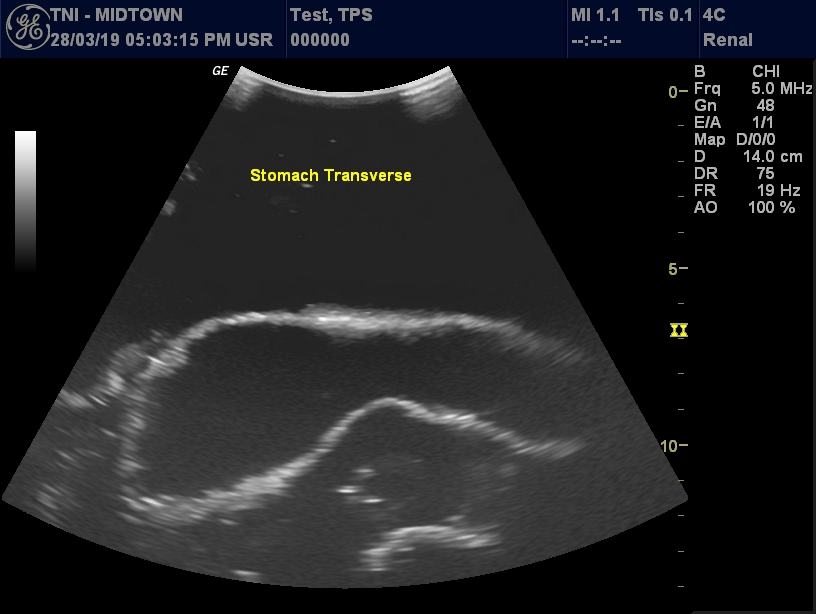

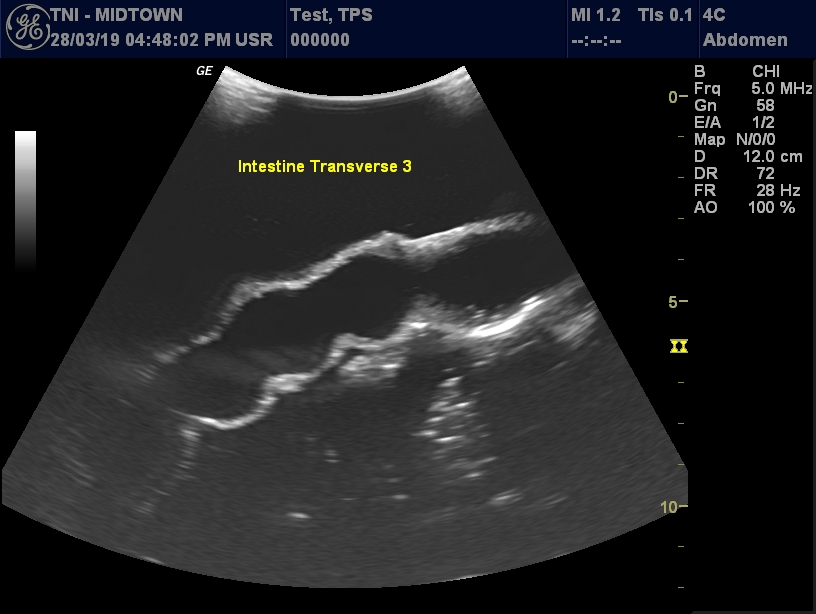

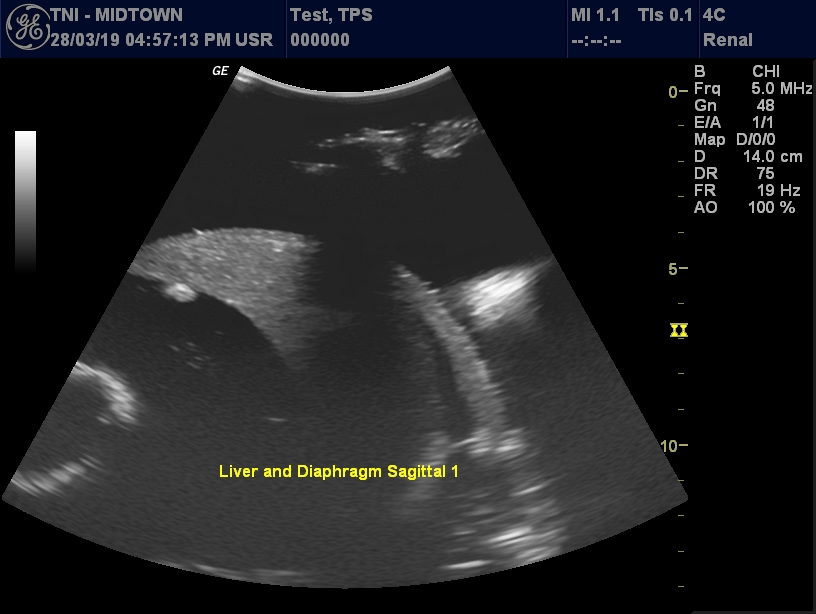

Sample scans of this phantom. Full scan galleries available on request.
