Adult Male Torso (Dynamic) for X-Ray CT, US
$46,000
The Adult Male Torso (Dynamic) phantom is a lifelike simulator compatible with Ultrasound and X-Ray/CT. The skeleton features a realistic three-layered structure and inner porosity. The phantom includes a realistic beating heart and breathable lungs. It can be connected with our Heart and Lung pump to simulate the respiratory motions.
Torso Model: Male (Dynamic)
Model: X-Ray CT
This product can be customized based on your requirements — contact us.

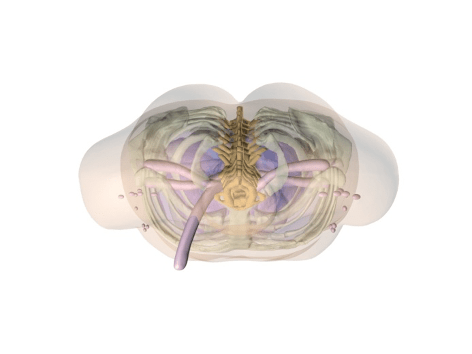

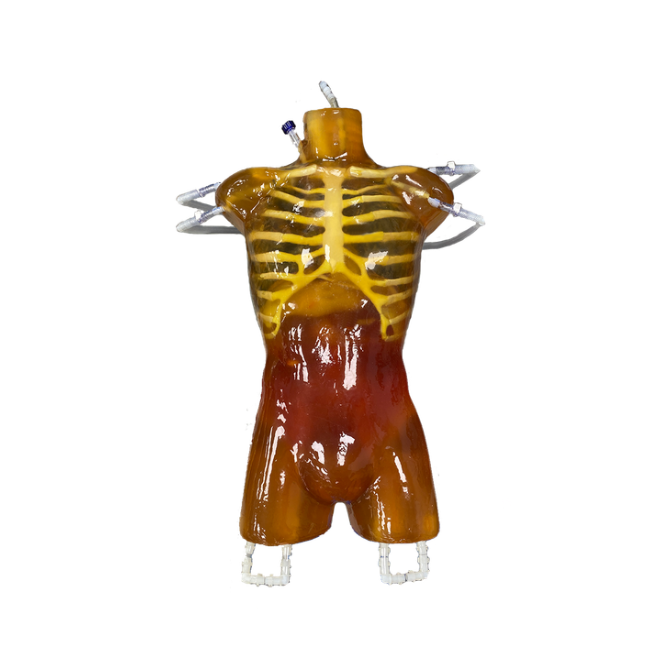

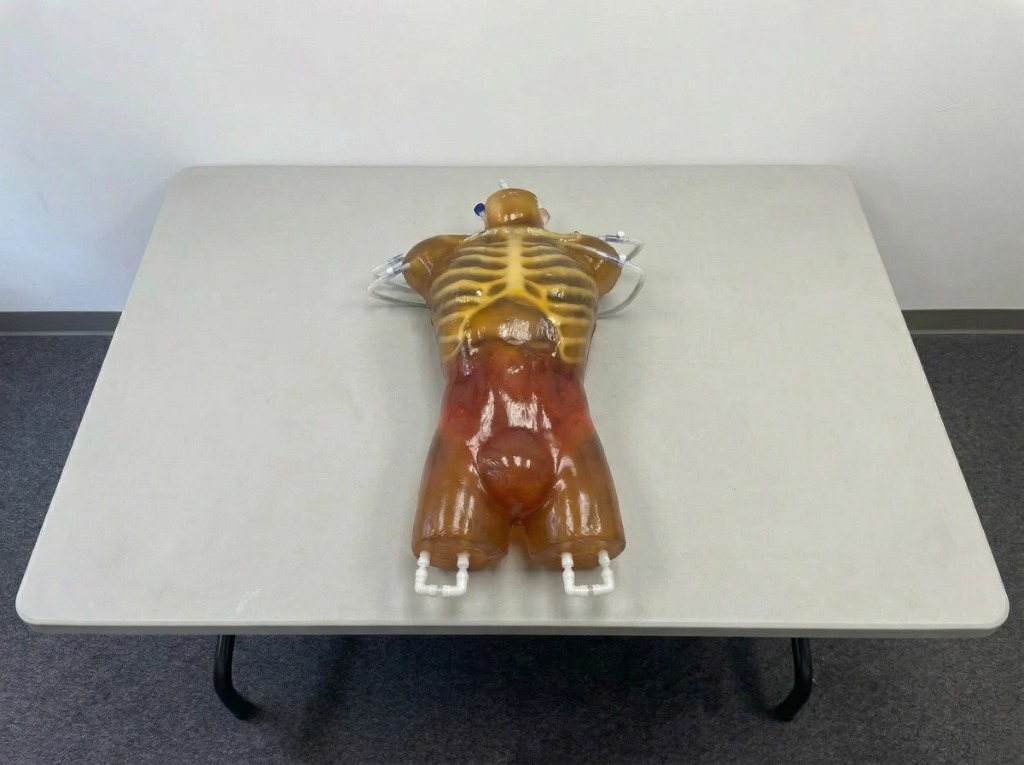

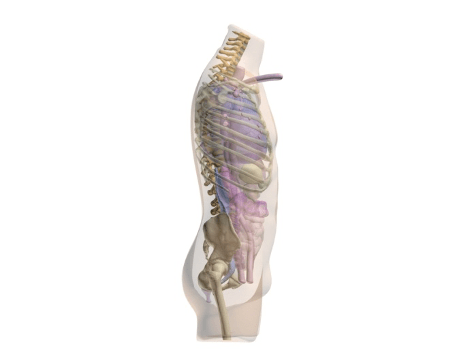

Adult Male Torso (Dynamic) with a beating heart and breathable lungs is a lifelike, anatomically realistic, from neck to pelvic area phantom/simulator with all the essential organs present inside. This phantom is compatible with Ultrasound and X-Ray/CT, and it is an ideal tool for applications such as angiography. The organs are made from realistic urethane-based tissue-mimicking materials, and the bones are made from a patented ceramic-reinforced epoxy-based composite material. The skeleton is assembled from individually cast bones with vertebrae that have a realistic three-layered structure and inner porosity. This phantom can be used with Iodine-based and Microbubble contrast mediums.

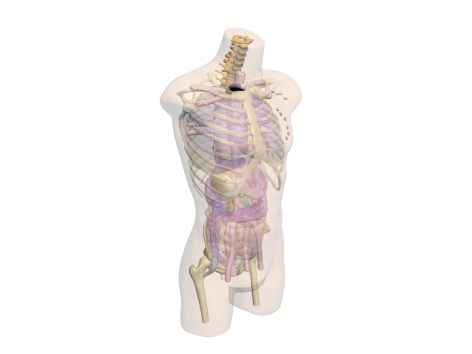

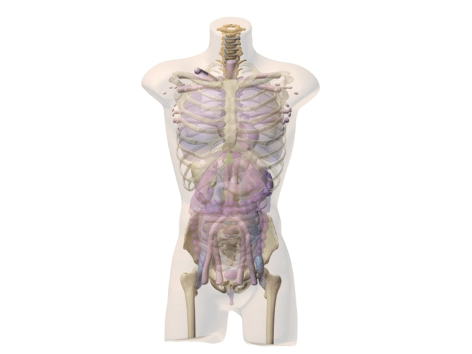

The design of this phantom includes a realistic heart with all major heart vessels and internal heart chambers. A heart pump can be included with this phantom, to enable the realistic heartbeat and motion of heart walls. A lung pump can also included to provide lifelike breathing motion in the torso.
Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Diaphragm | 80 |
| Pancreas | 110 |
| Spleen | 110 |
| Tissue Type | HU Value (Average) | Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Torso Model | Male (Dynamic), Male (Standard), Male (Cardiac), Male (Cardiac/Fast), Male (Skin), Male (FAST) |
| Model | X-Ray CT, US, X-Ray CT, MRI, Ultrasound |

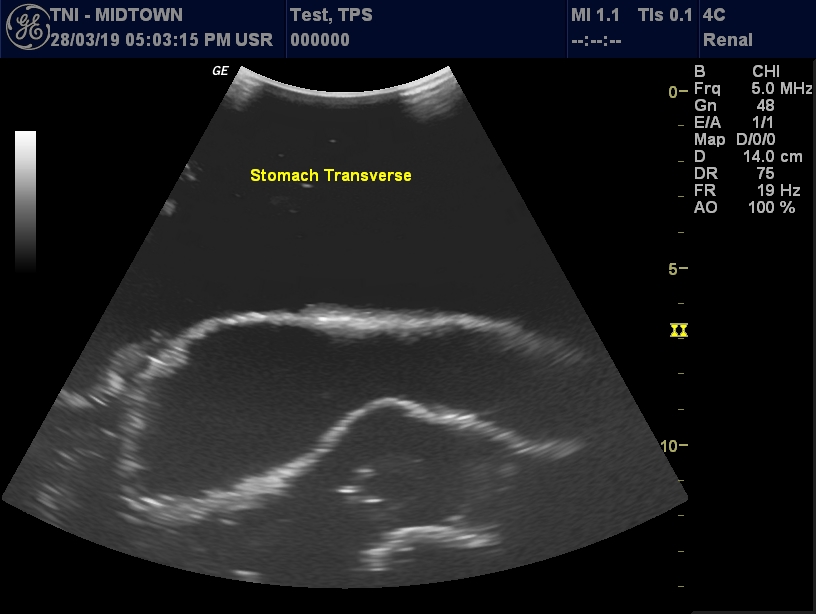

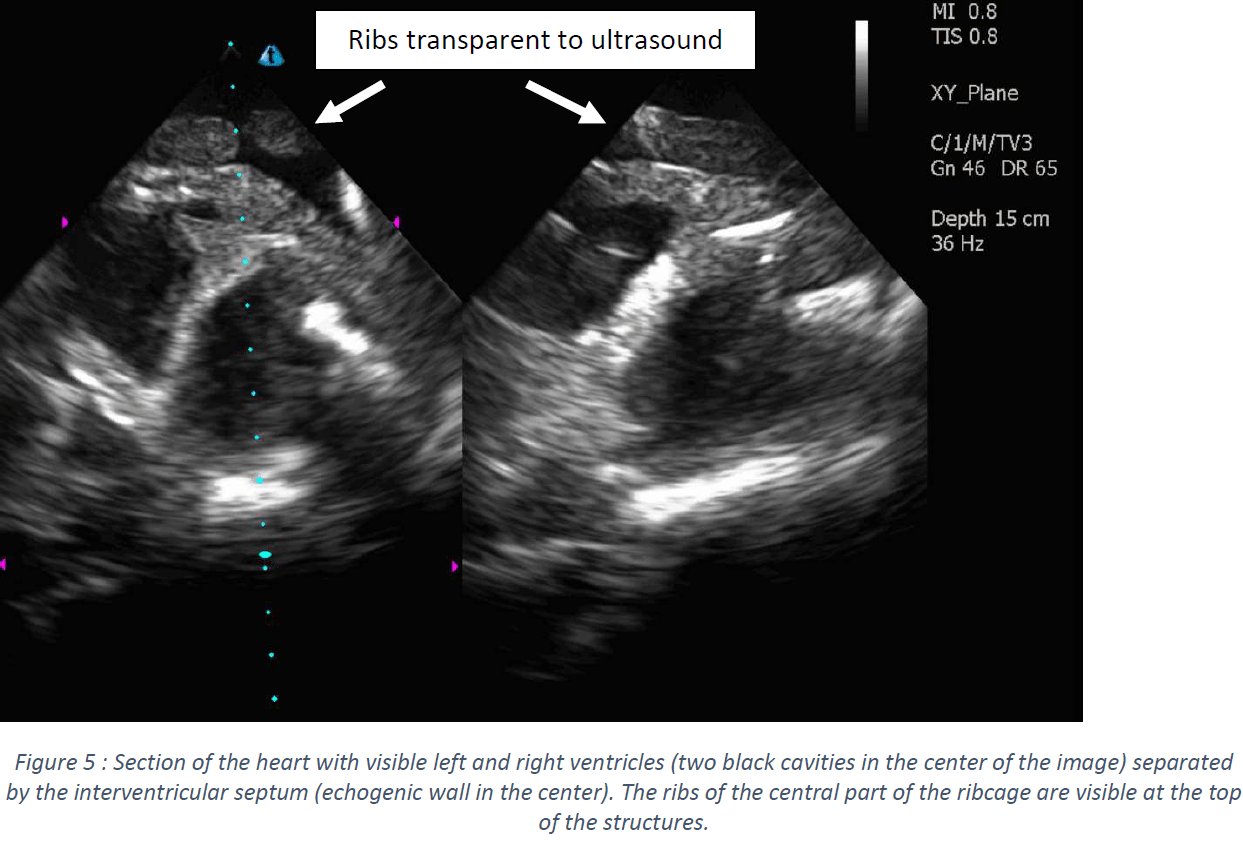

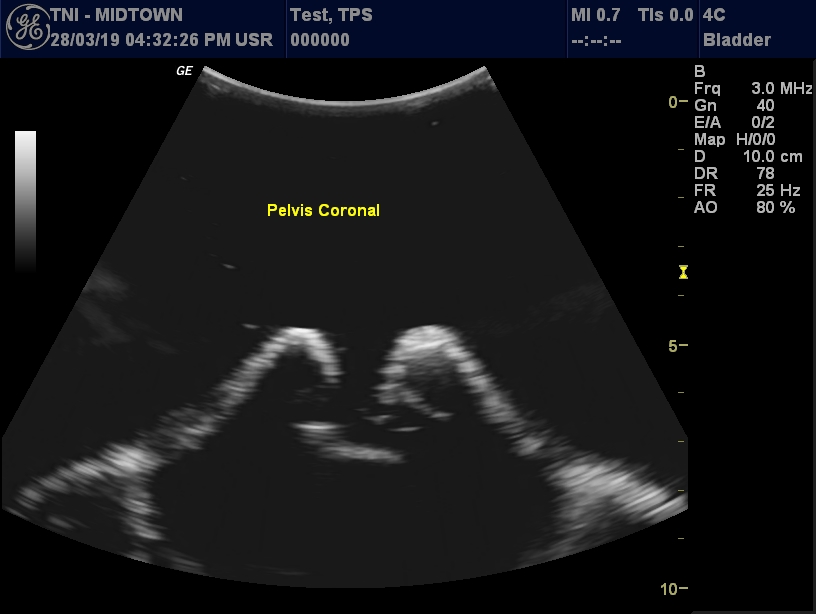

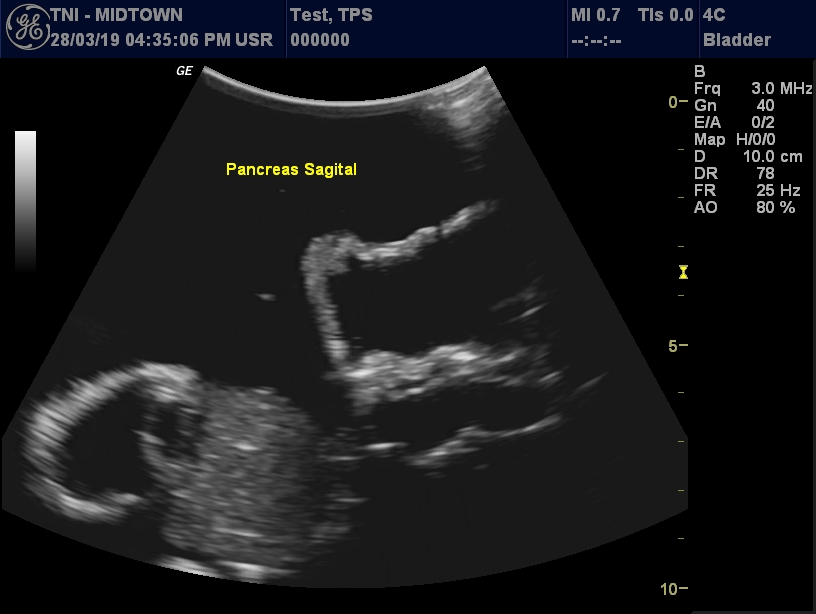

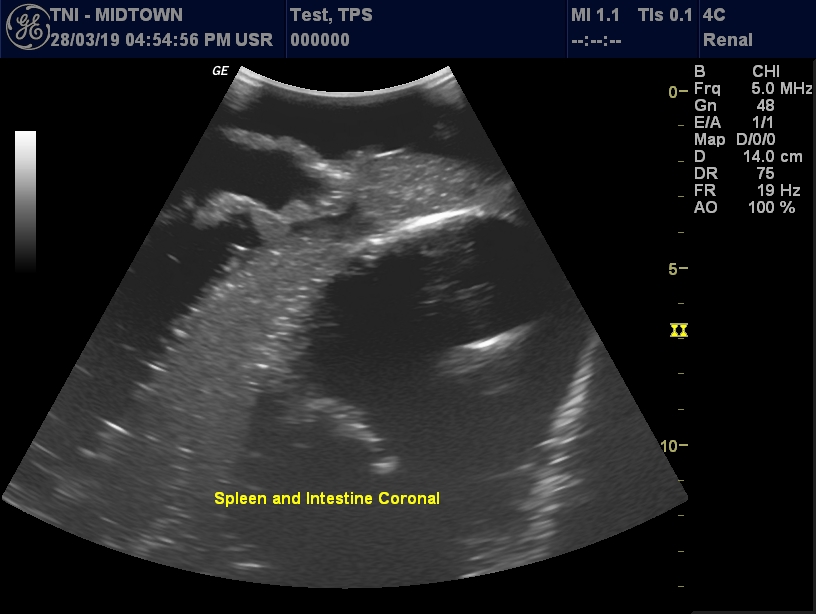

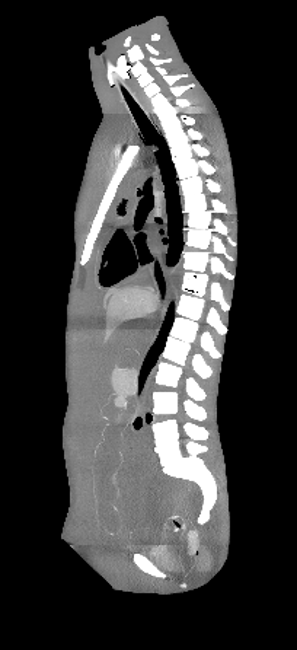

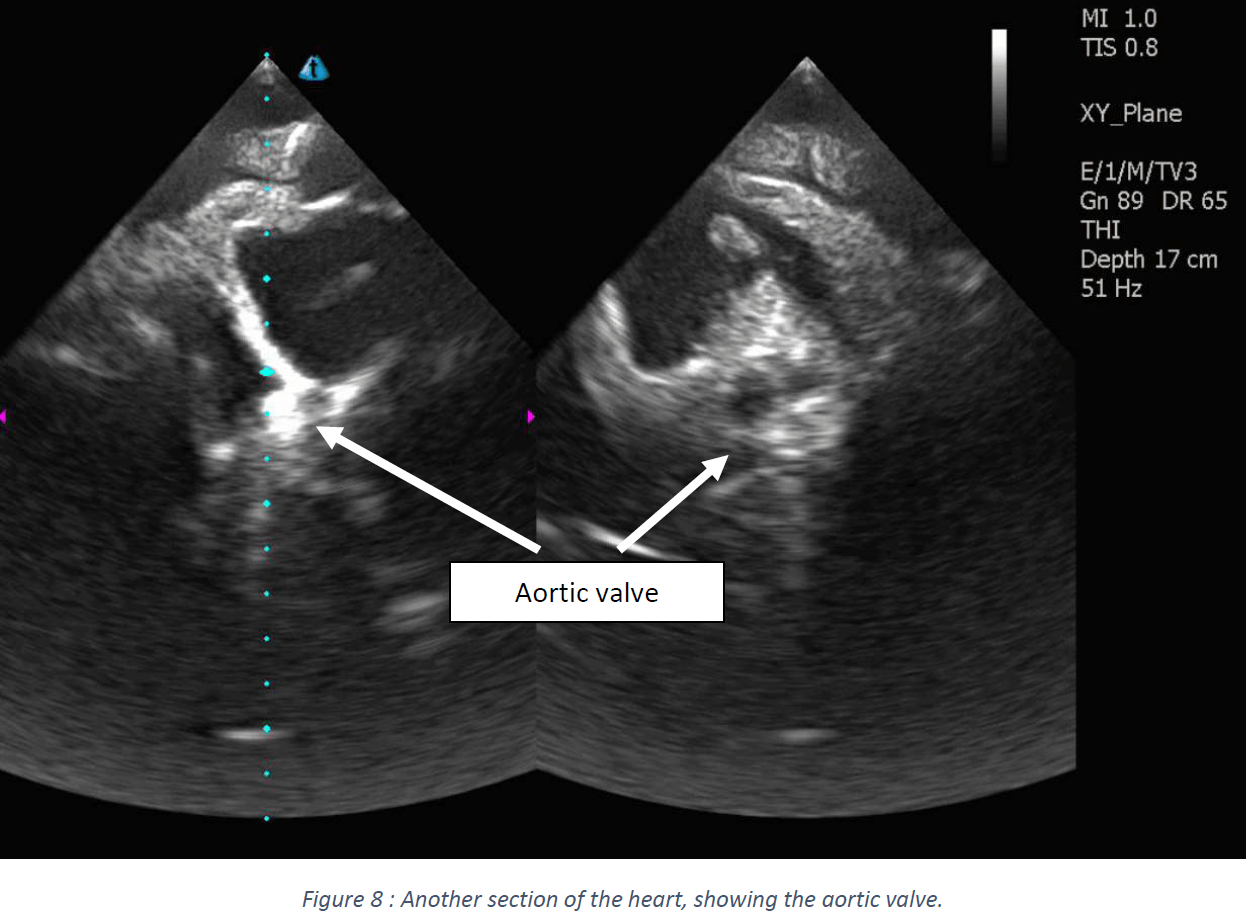

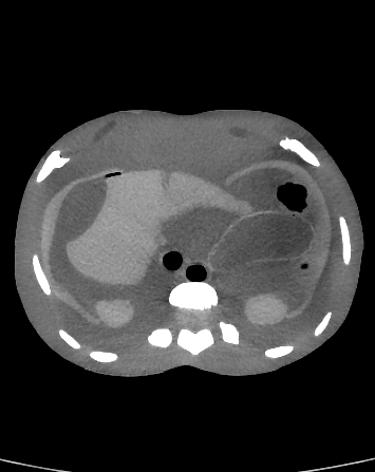

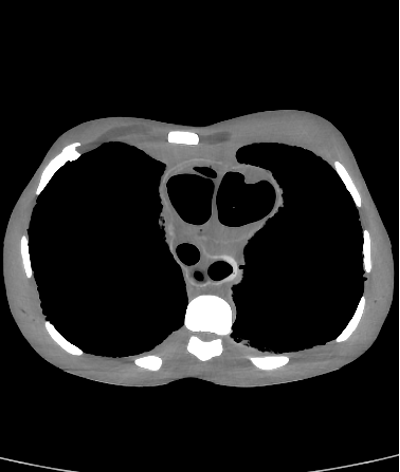

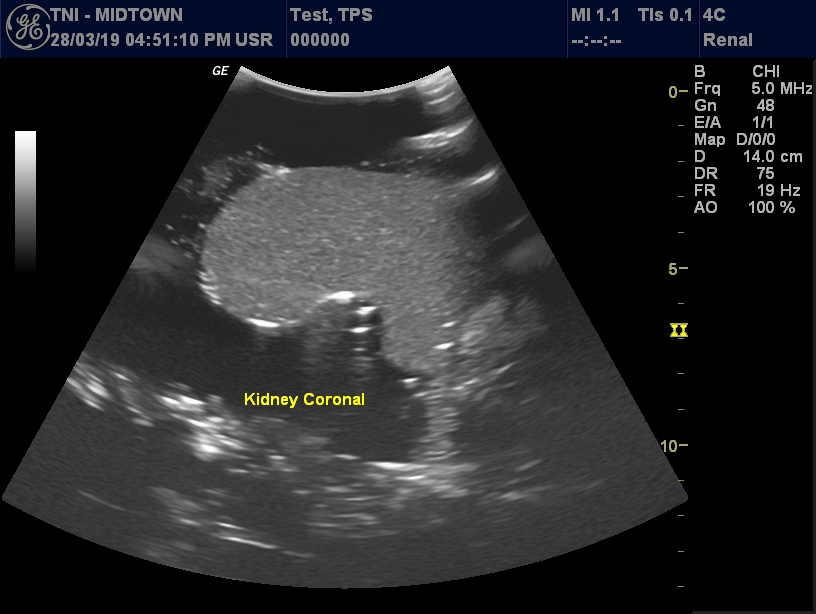

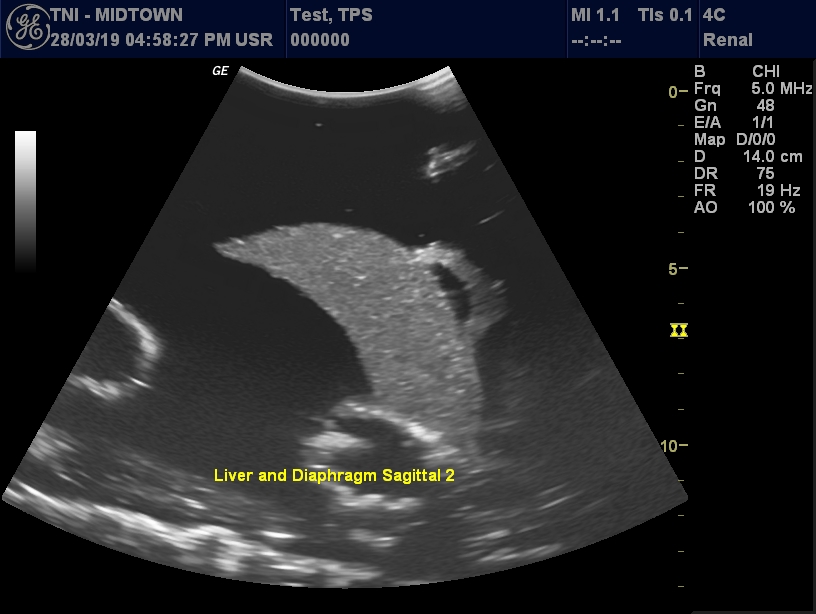

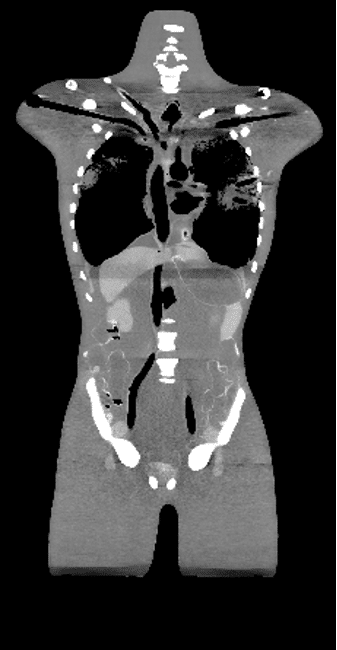

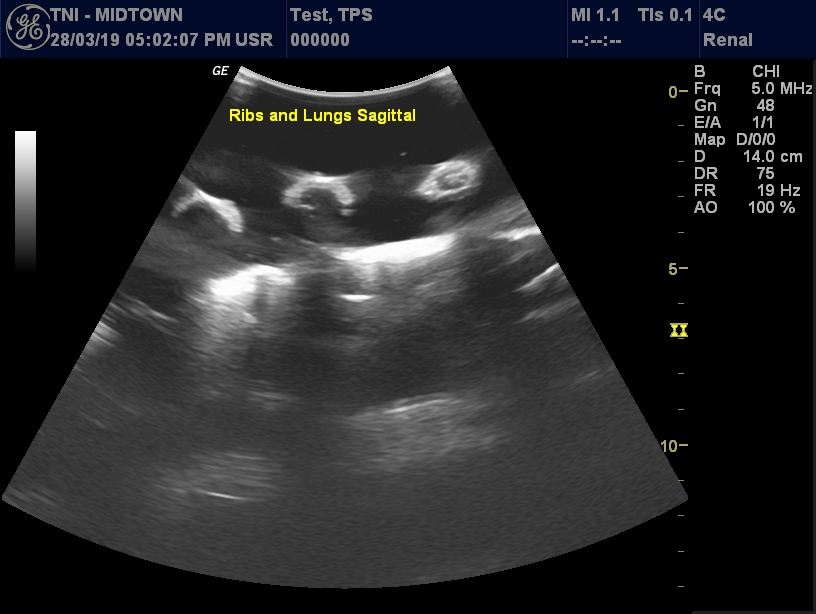

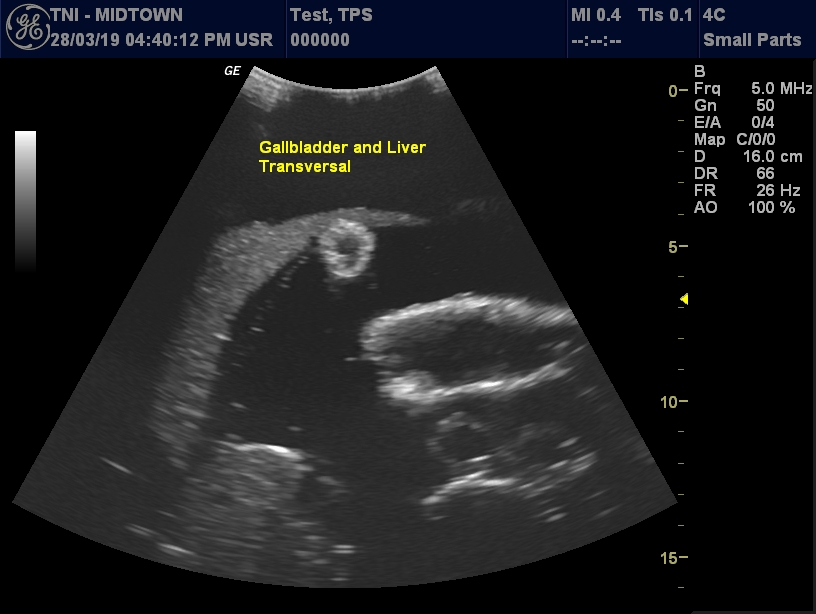

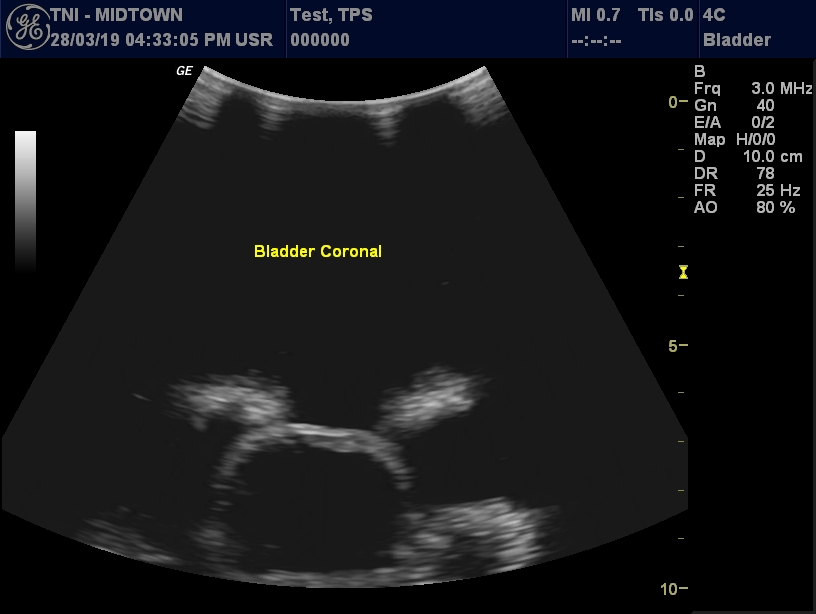

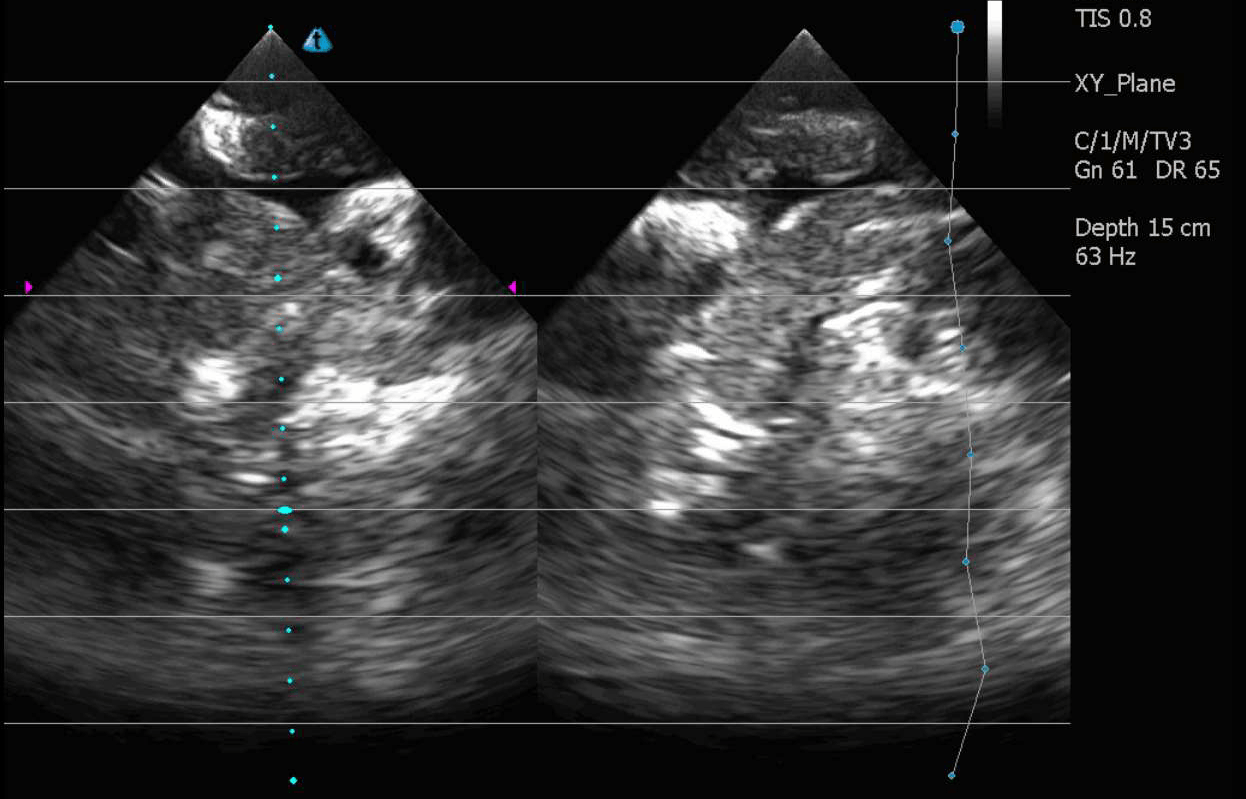

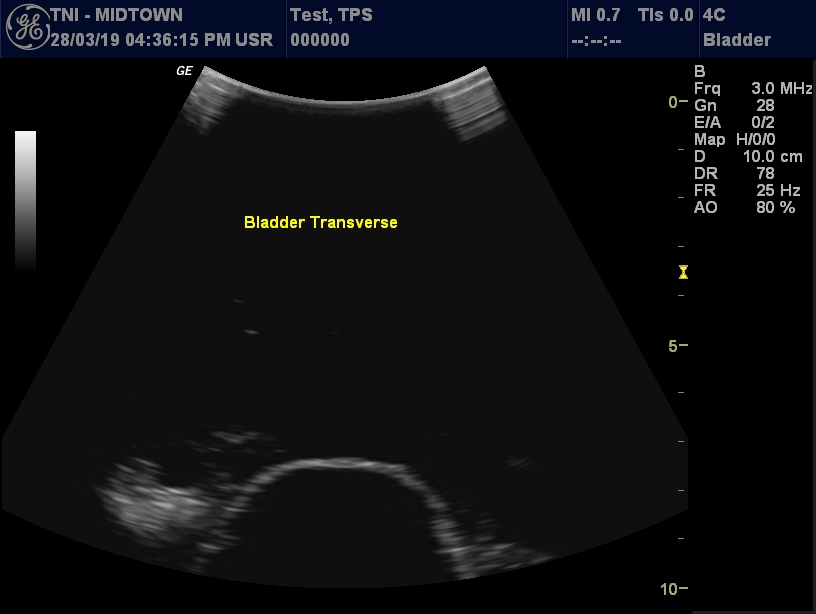

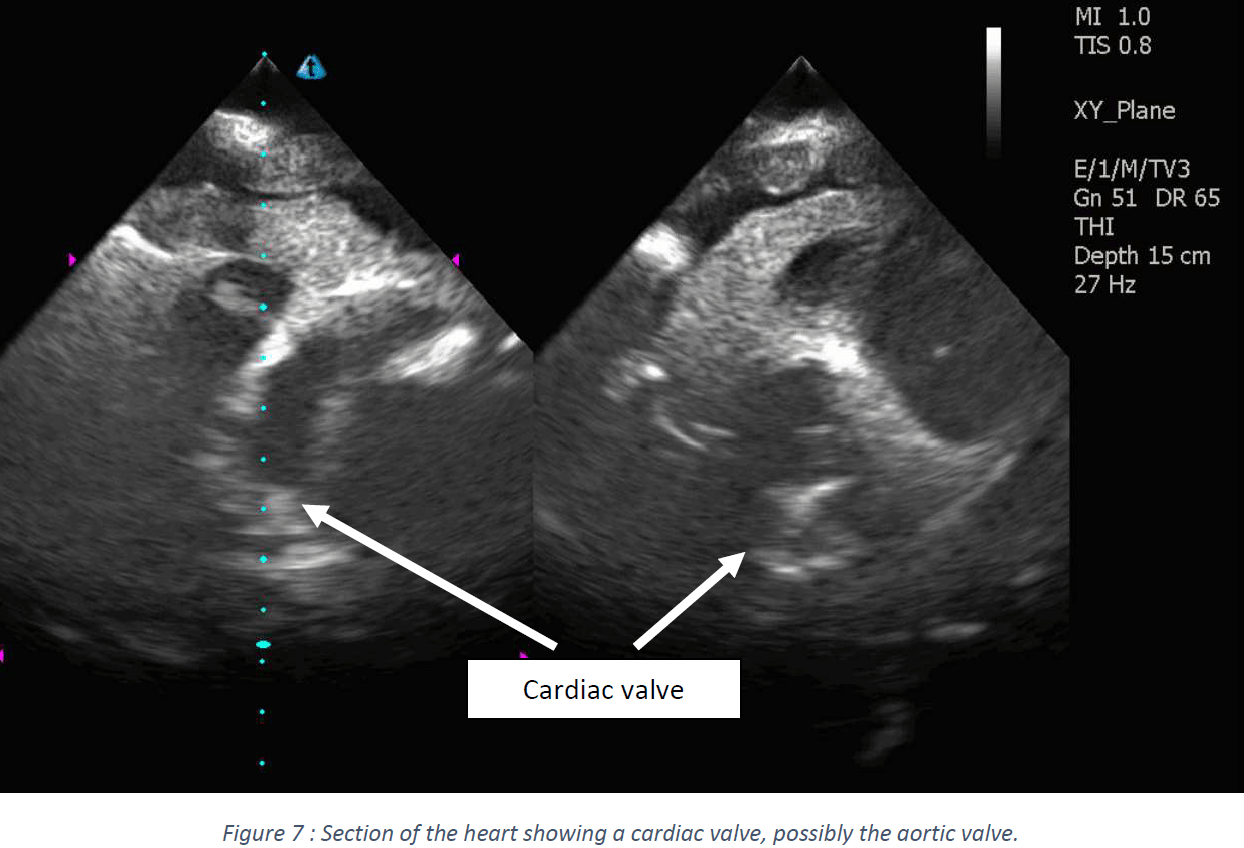

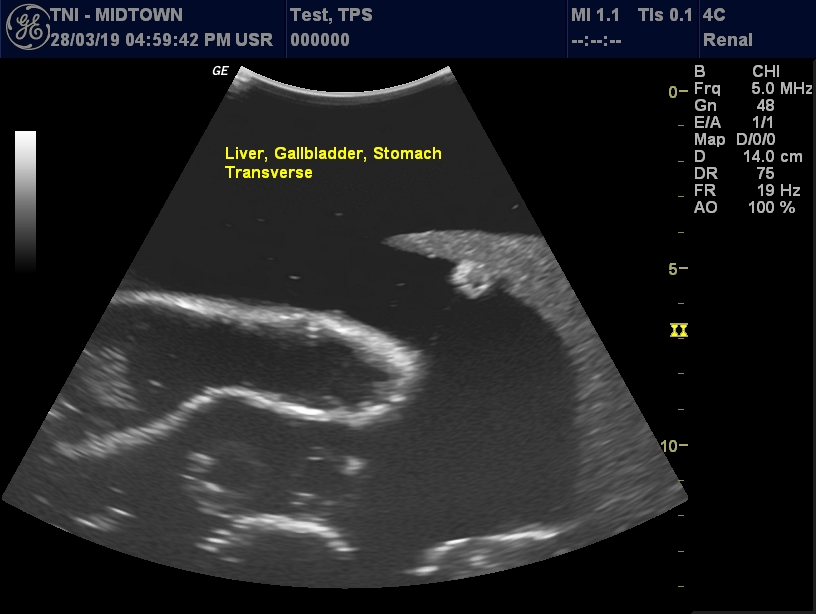

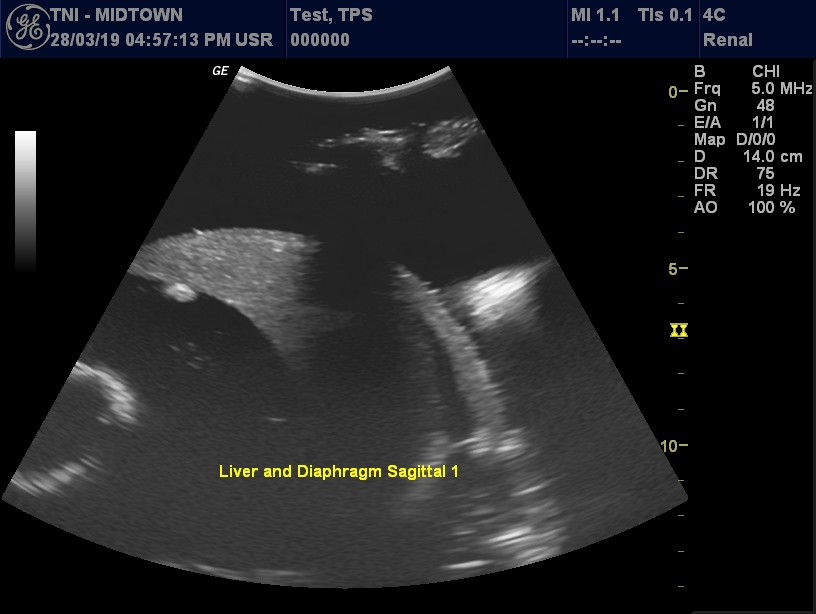

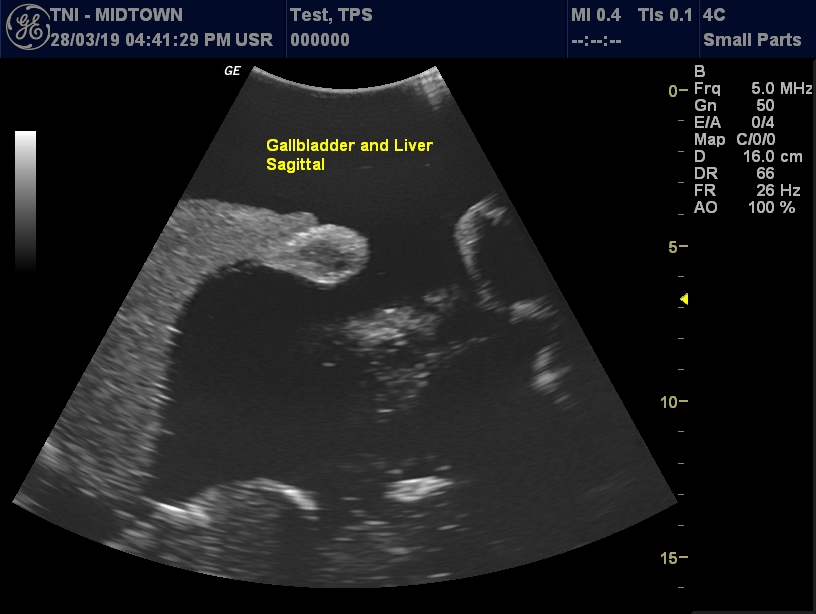

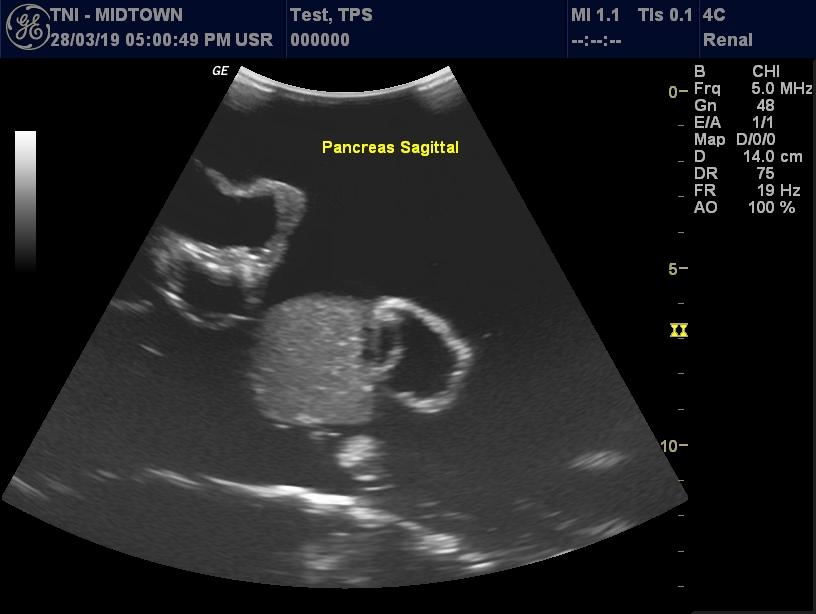

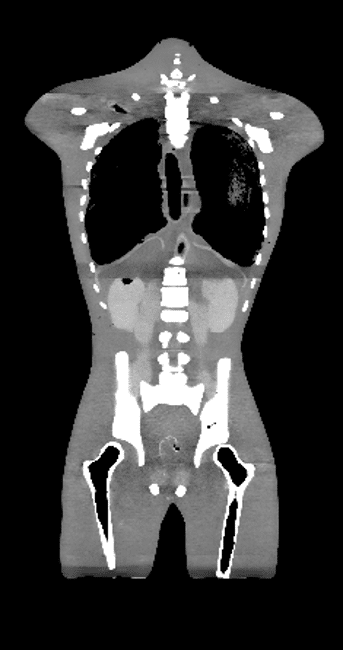

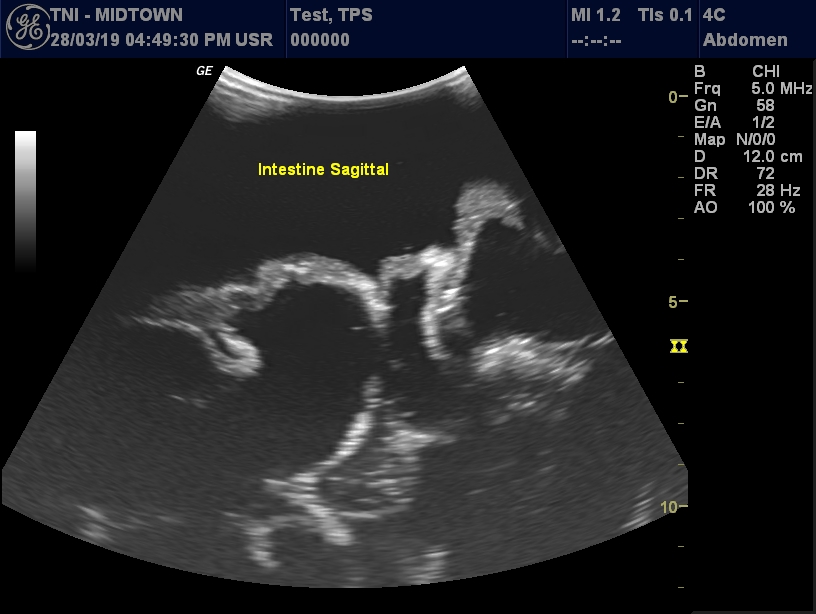

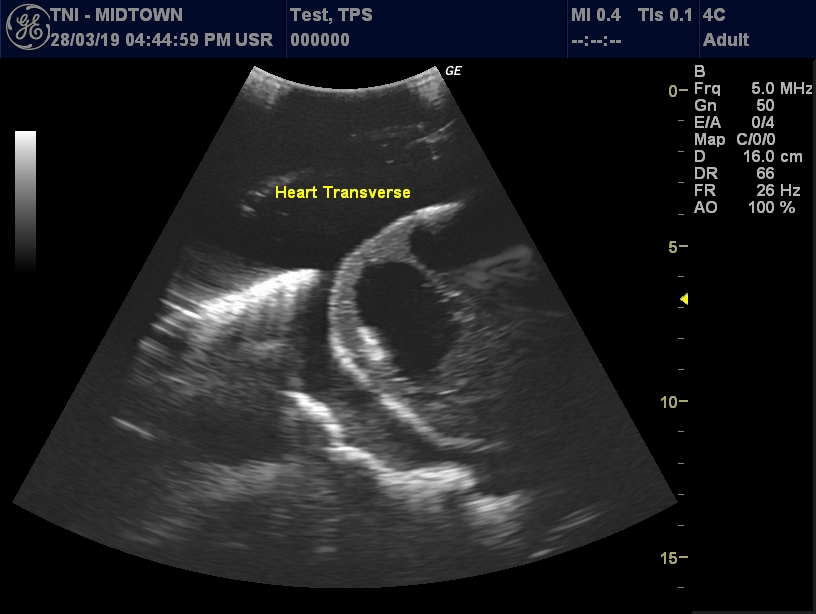

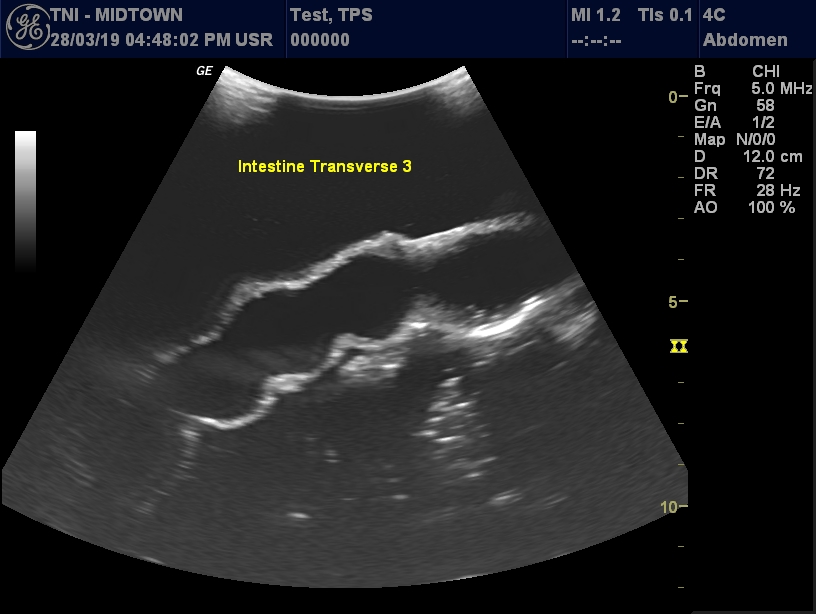

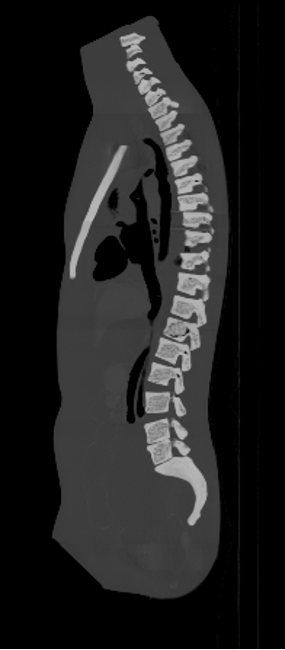

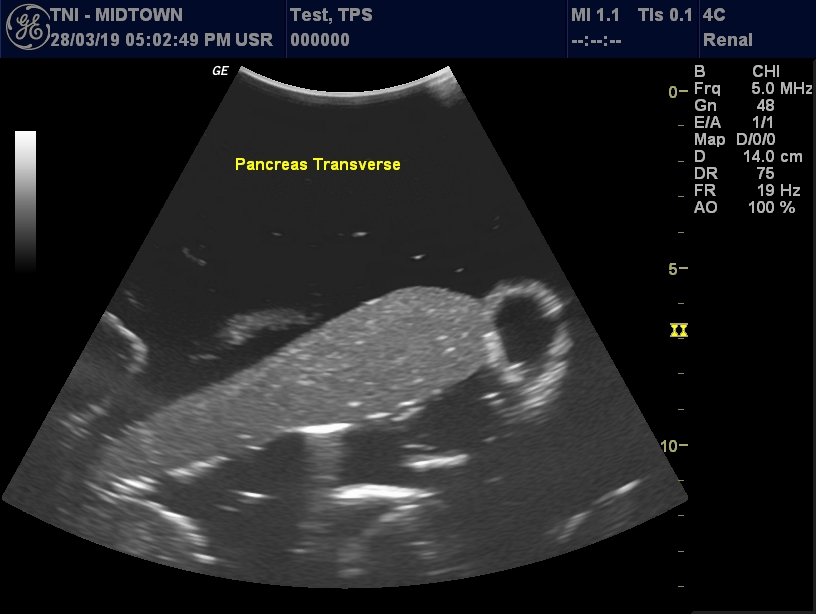

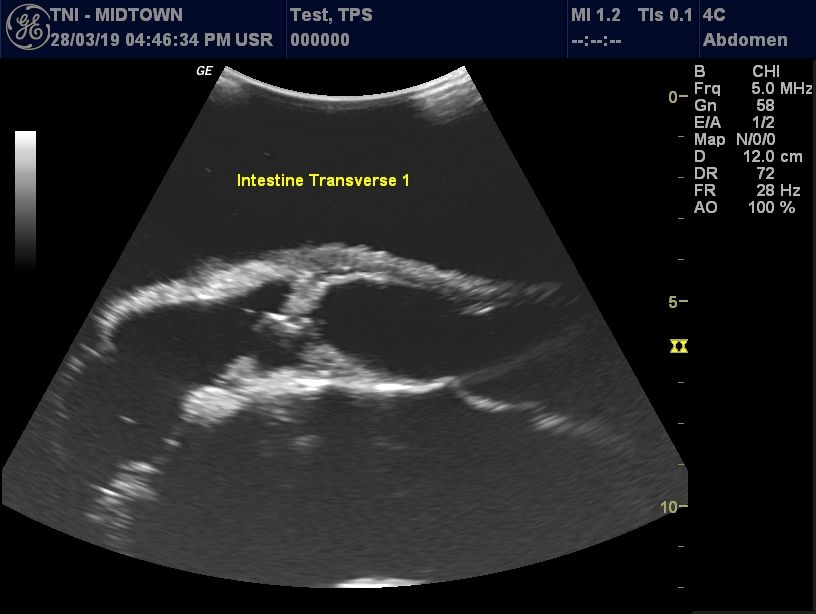

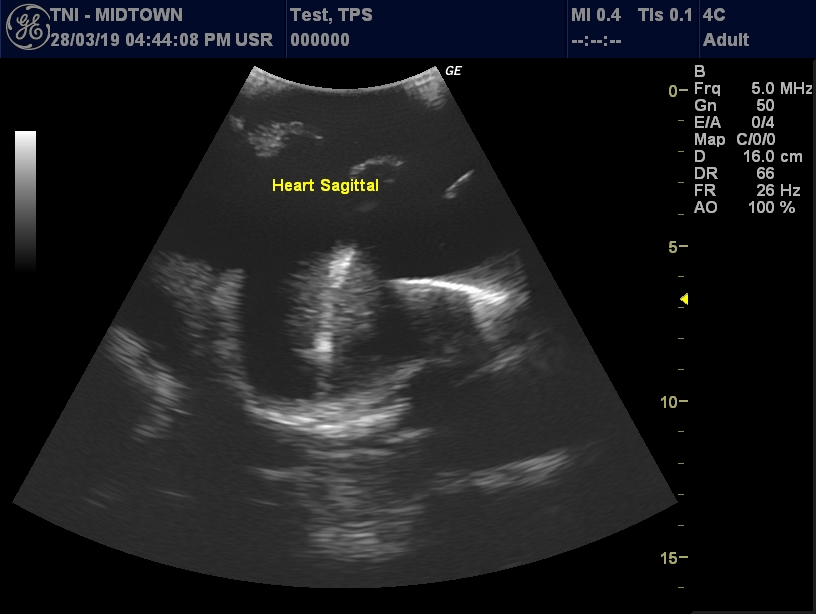

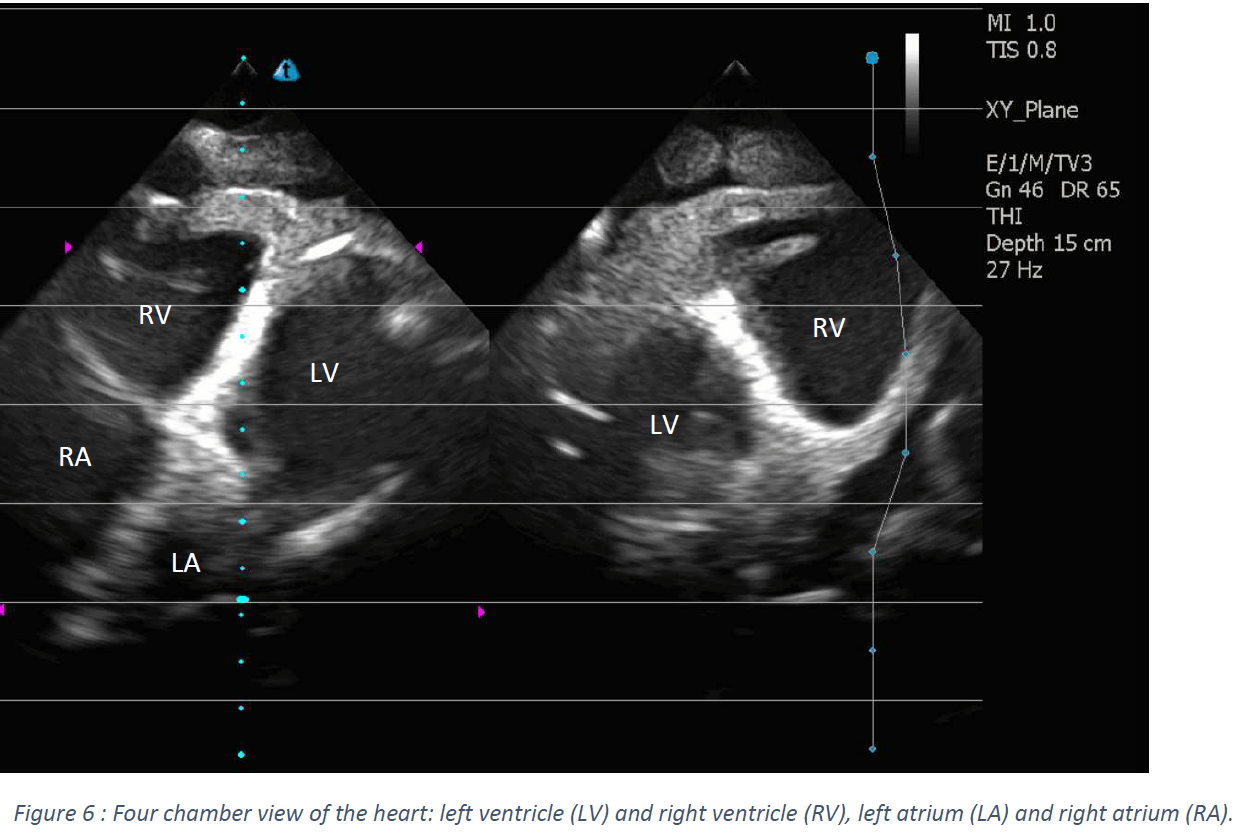

Sample scans of this phantom. Full scan galleries available on request.
