X-Ray, CT, US, MRI Phantoms
Adult Full Body (with Muscles) for X-Ray CT, US
$39,400

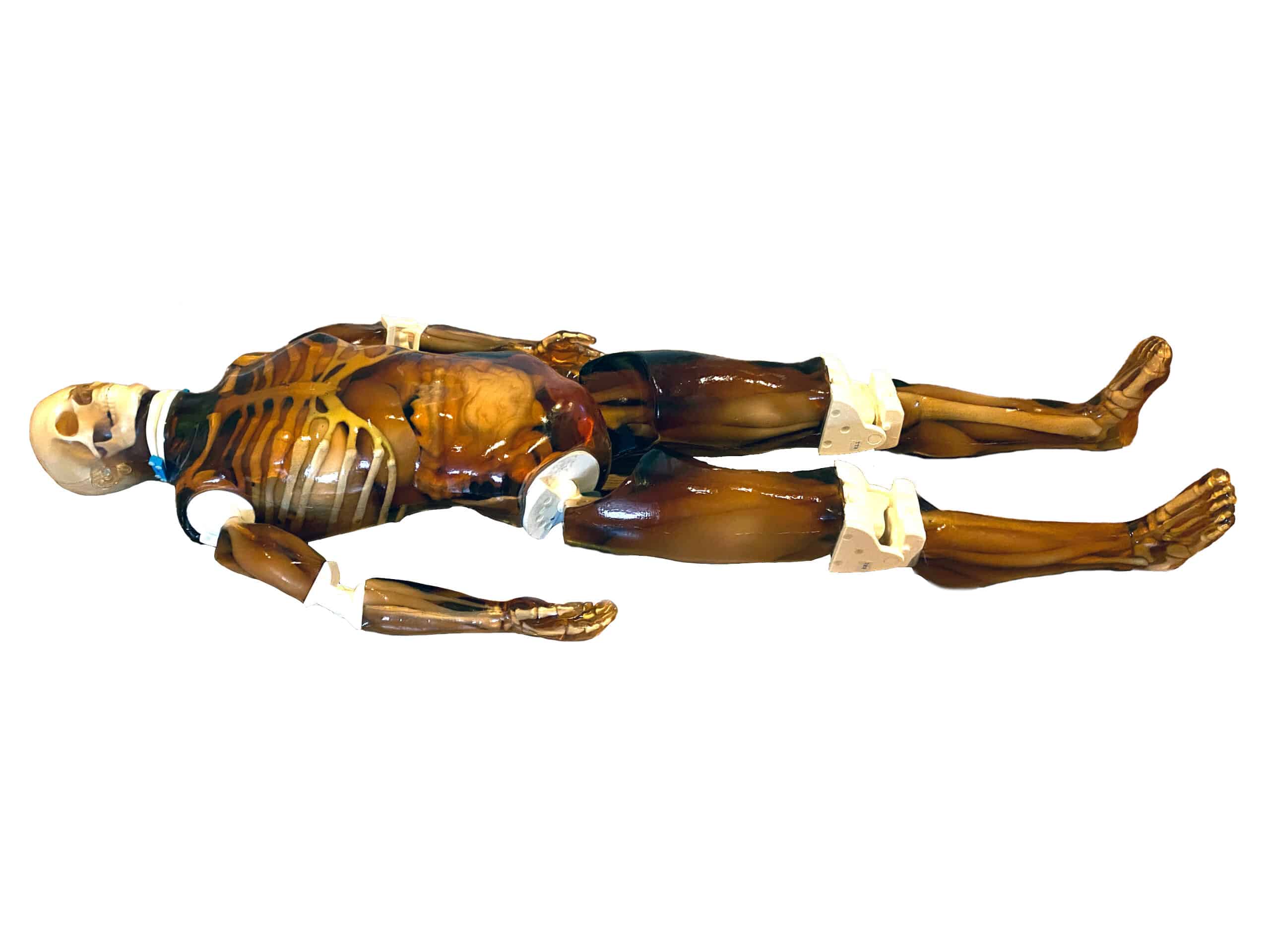

The Adult Full Body Phantom with Muscles is a versatile training product compatible with X-Ray/CT and Ultrasound. It is designed to mimic the major muscle structures in the arms and legs. The phantom is primarily used for providing hands-on experience with diagnostic imaging. The skeleton is made of individually cast bones with adjustable properties, and the phantom can be customized with various pathologies. It is available in transparent or skin-colored versions.
This product can be customized based on your requirements — contact us.

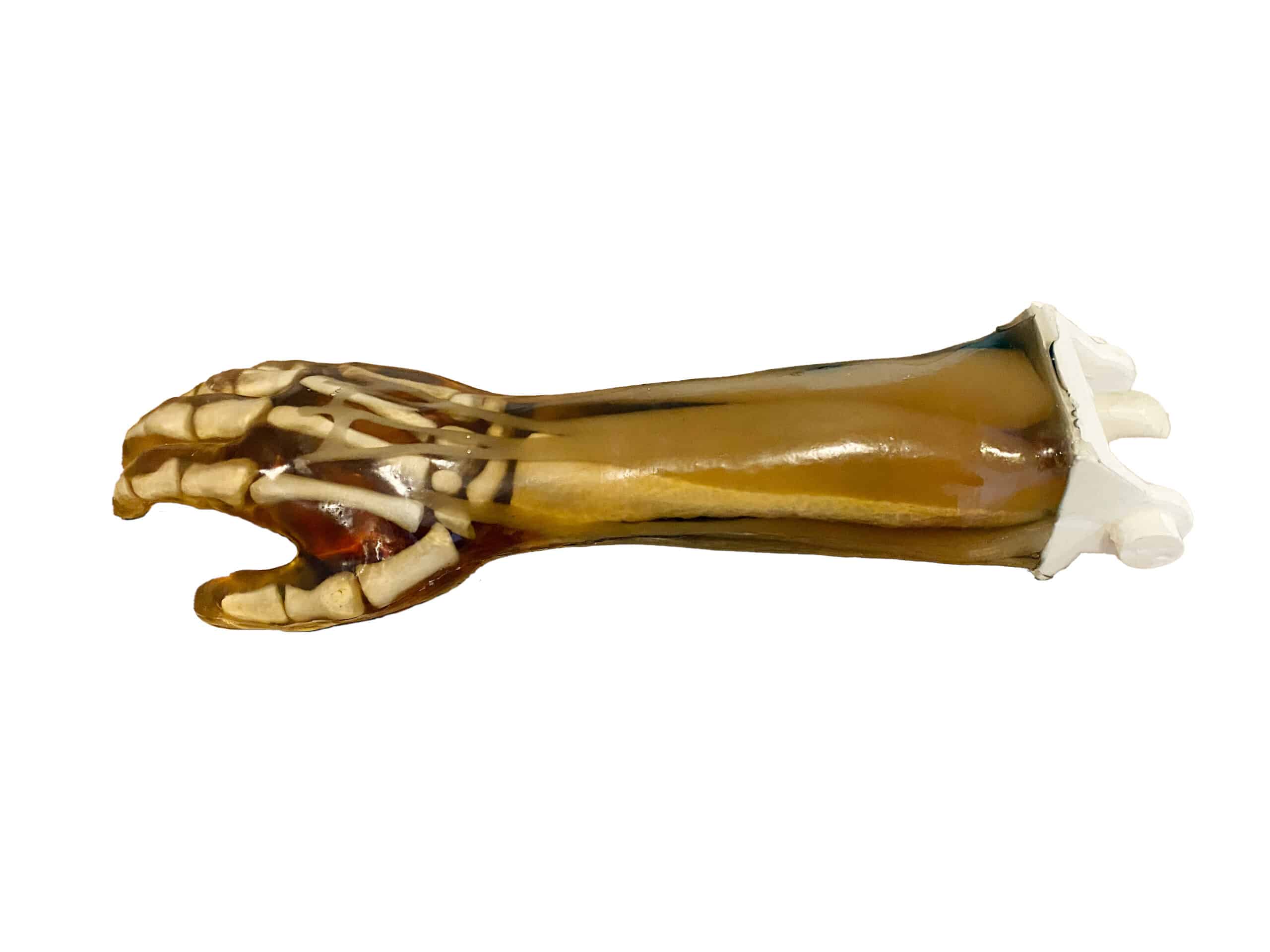

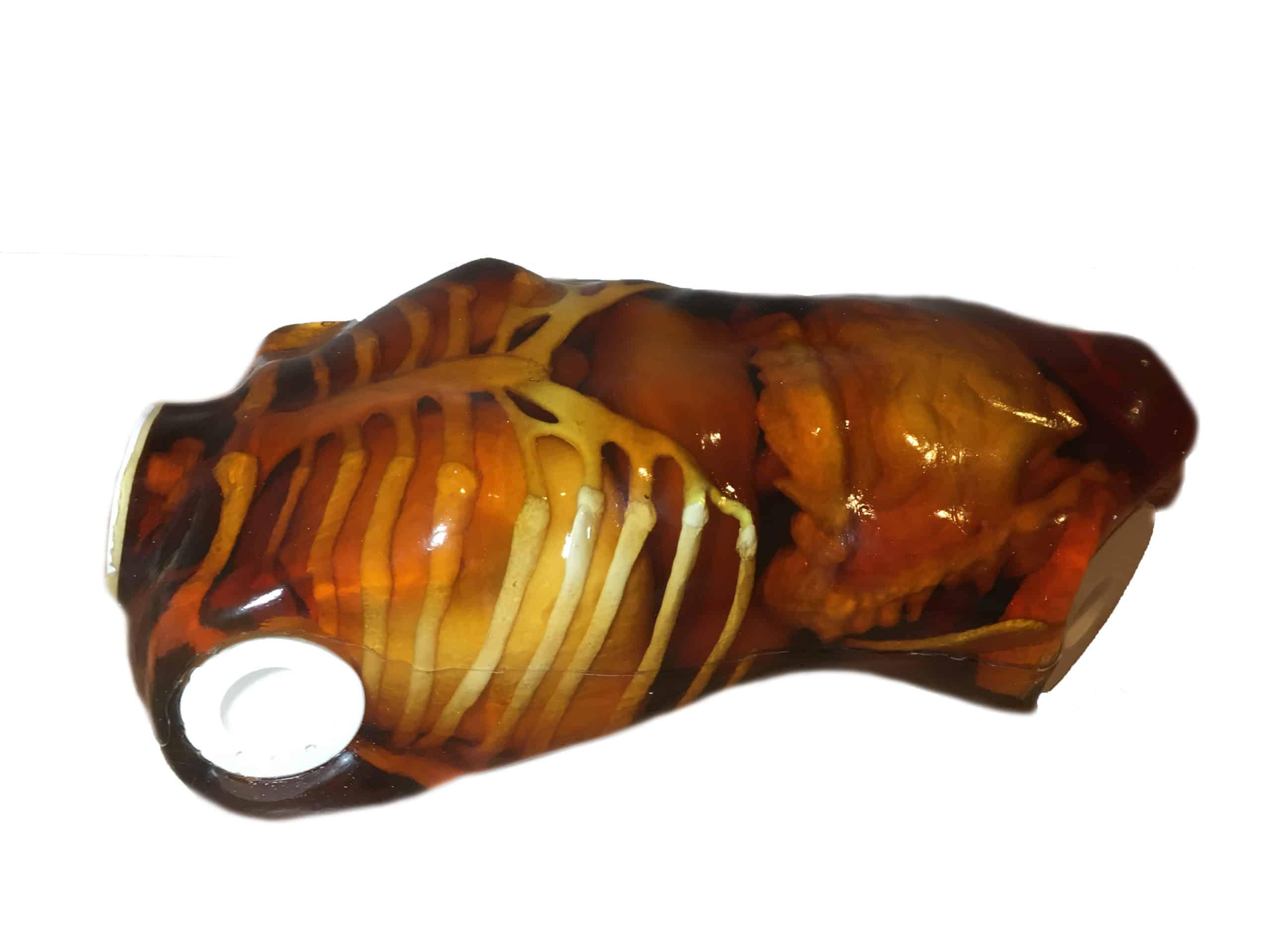

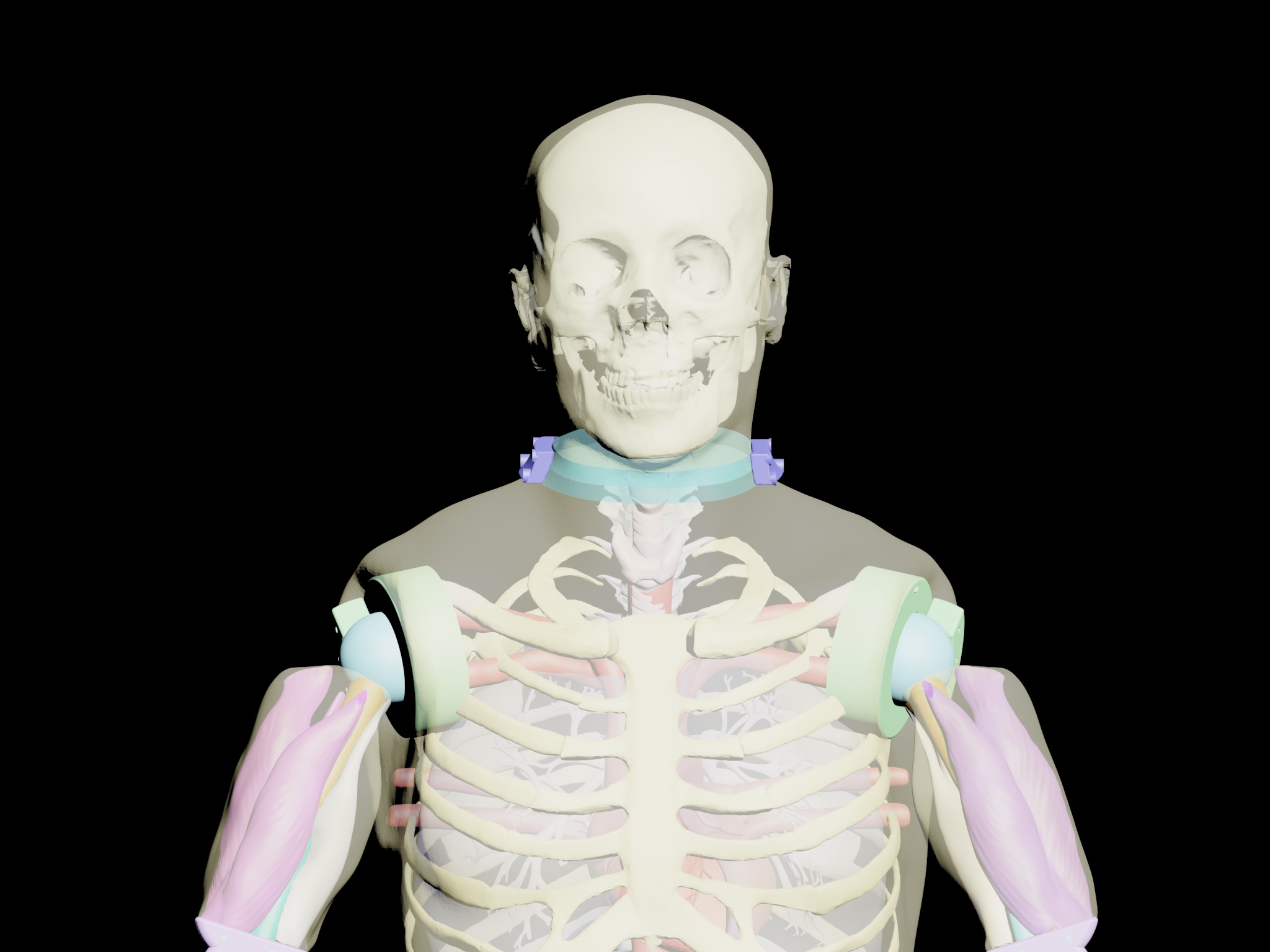

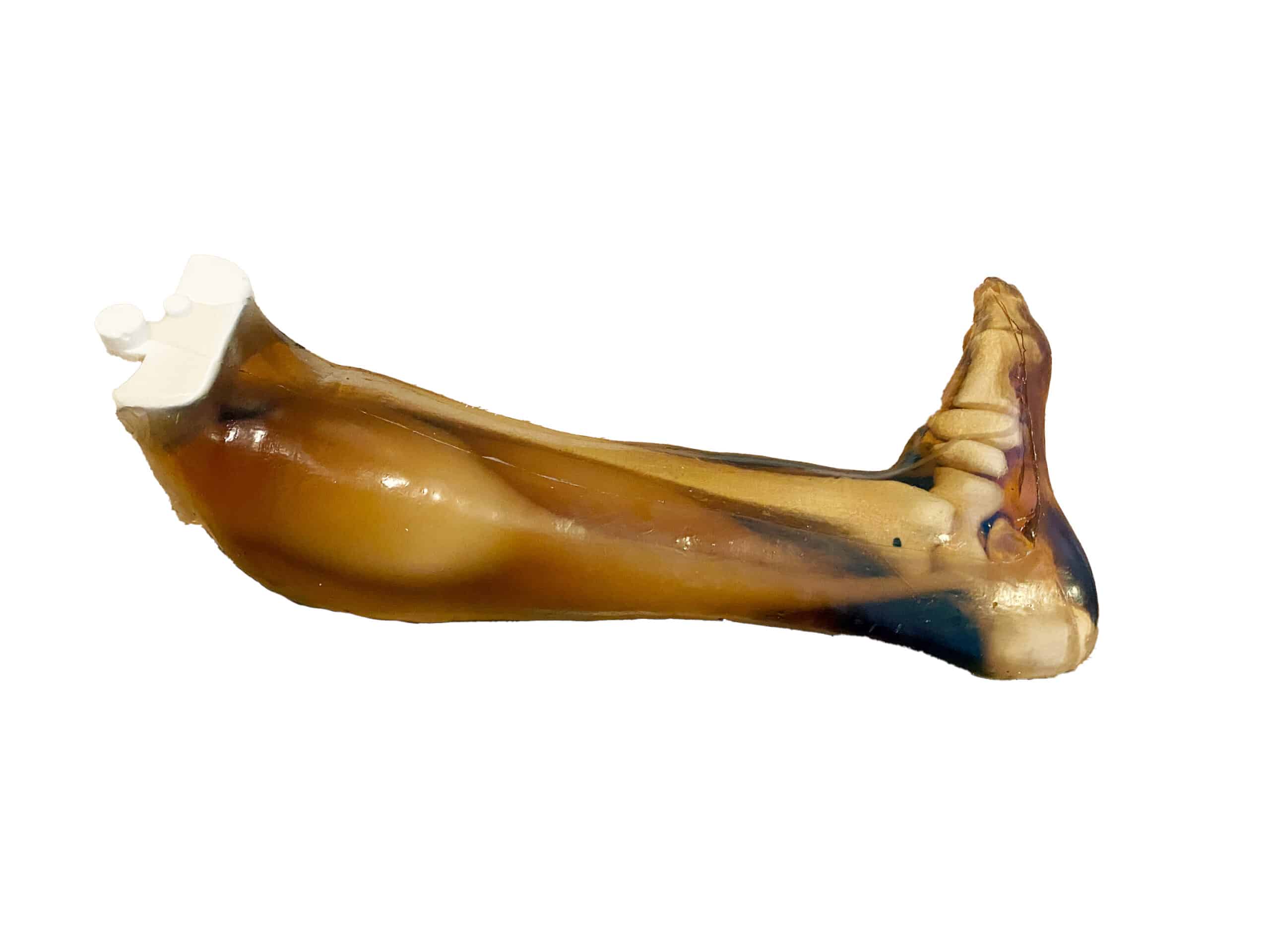

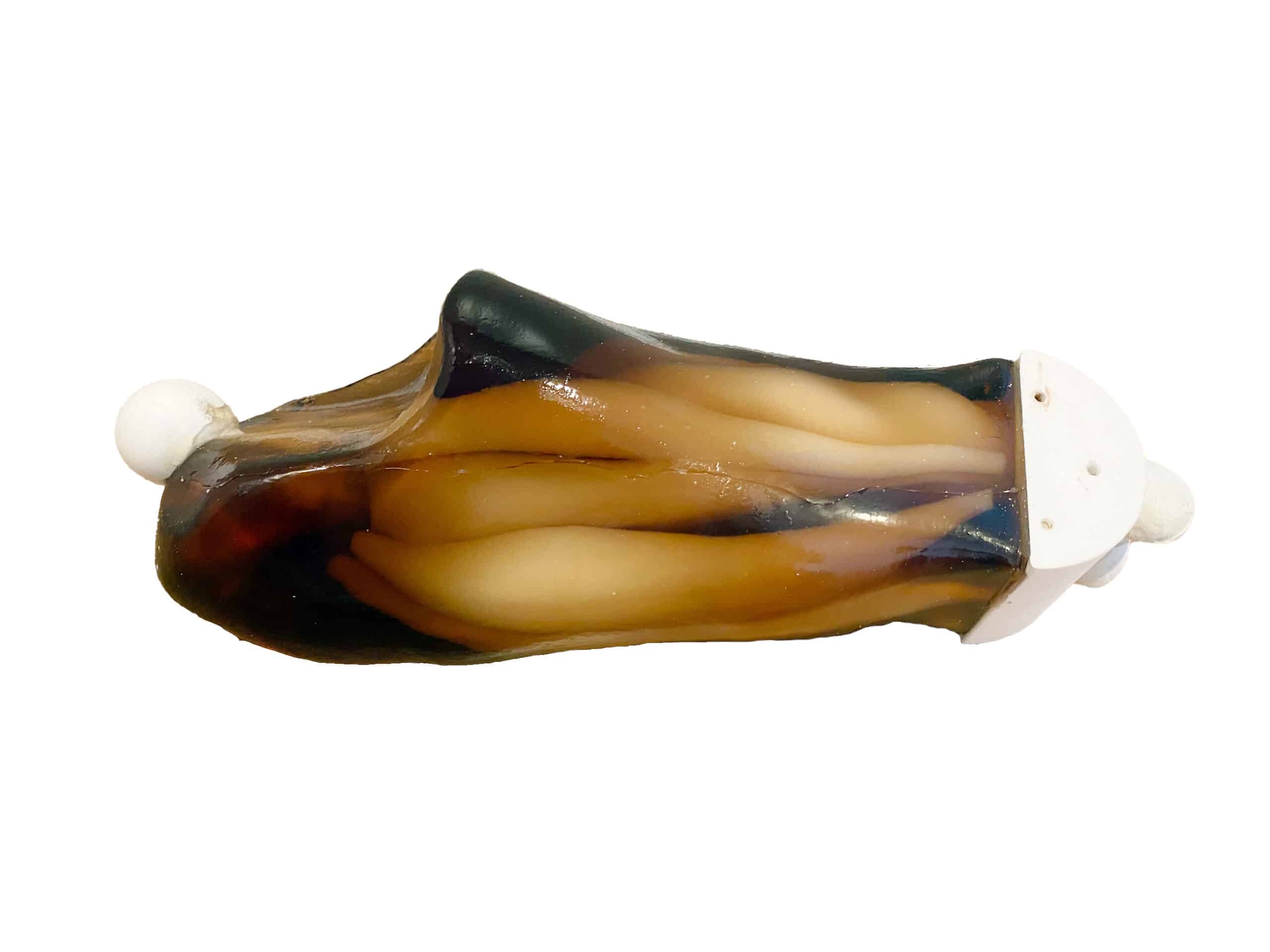

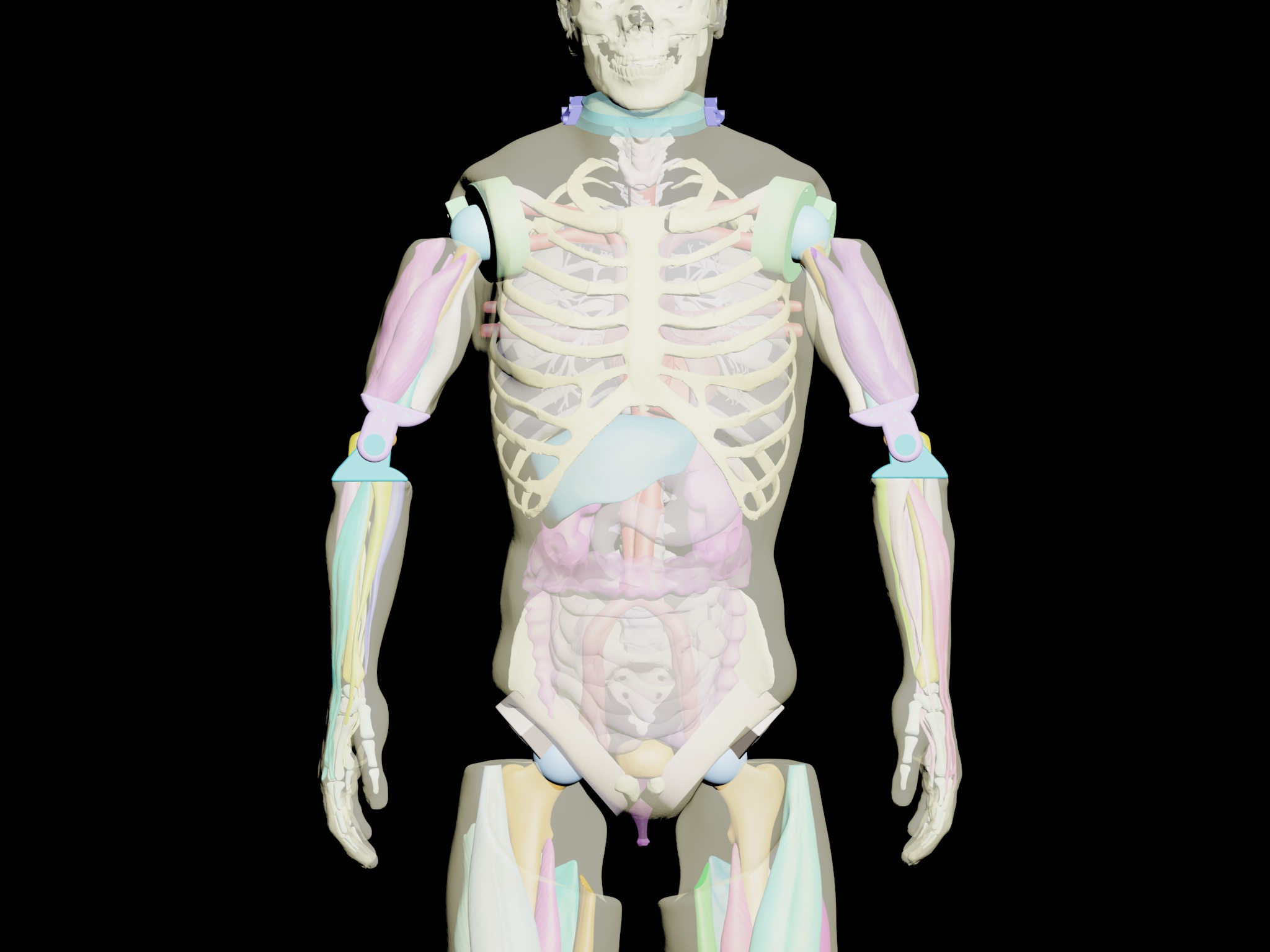

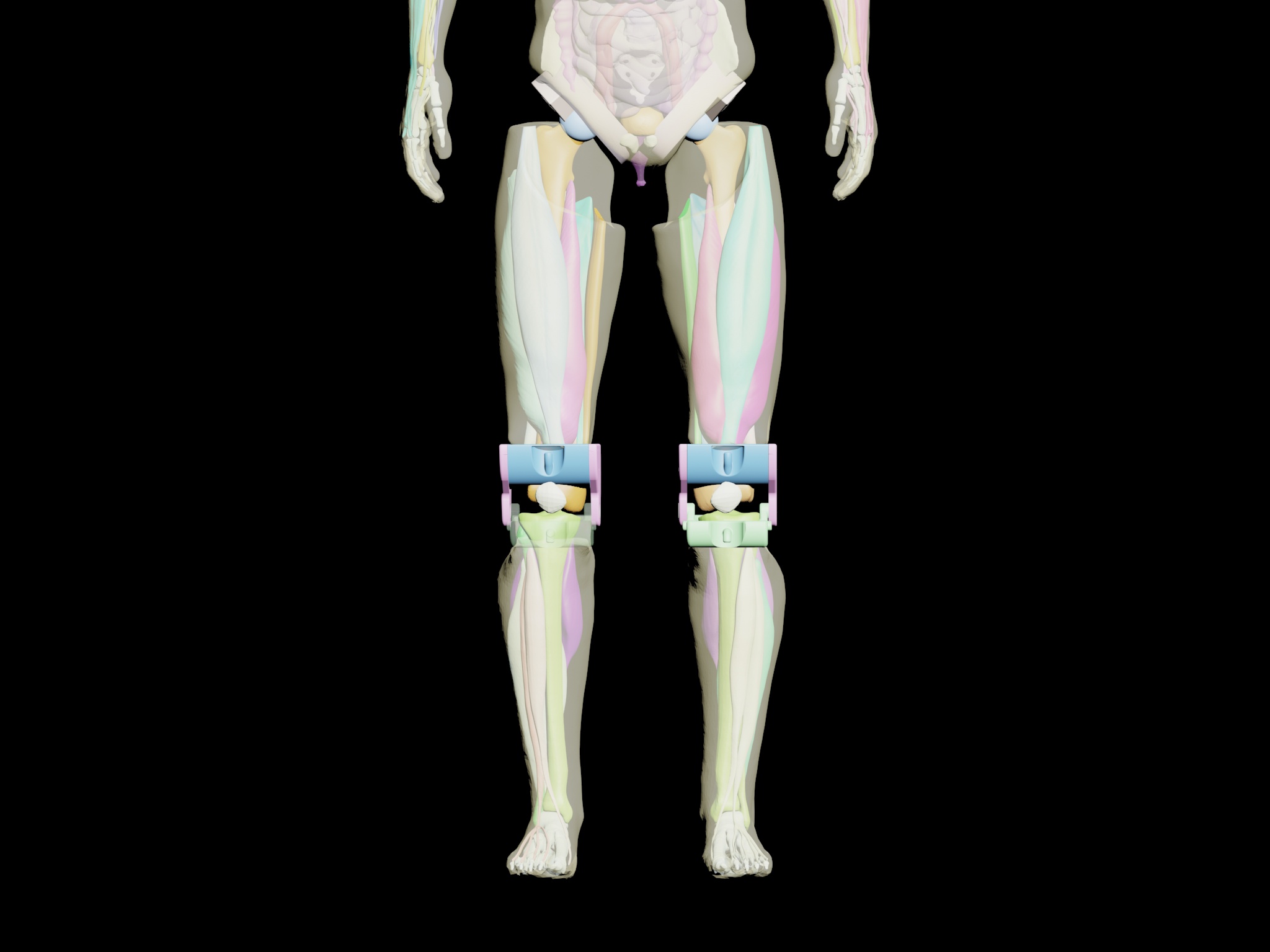

The Adult Full Body Phantom with Muscles is an X-Ray CT and US-compatible training product. Above other functionality listed below, this phantom was specifically enhanced to mimic the major muscle structure of arms and legs. The primary application of this phantom is hands-on experience with diagnostic imaging techniques and visual evaluation to find optimal scanning conditions.
The model of this phantom is based on an adult male body that weighs about 70 kg (154 lb) and measures 172 cm (69 in) in height.
The skeleton is built from individually cast bones made from a patented synthetic material that has a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of the particular project. Customizable with different pathologies (lesion, tumor, infection, abnormality) upon request. This positioning phantom can be ordered in a translucent or skin-colored version.

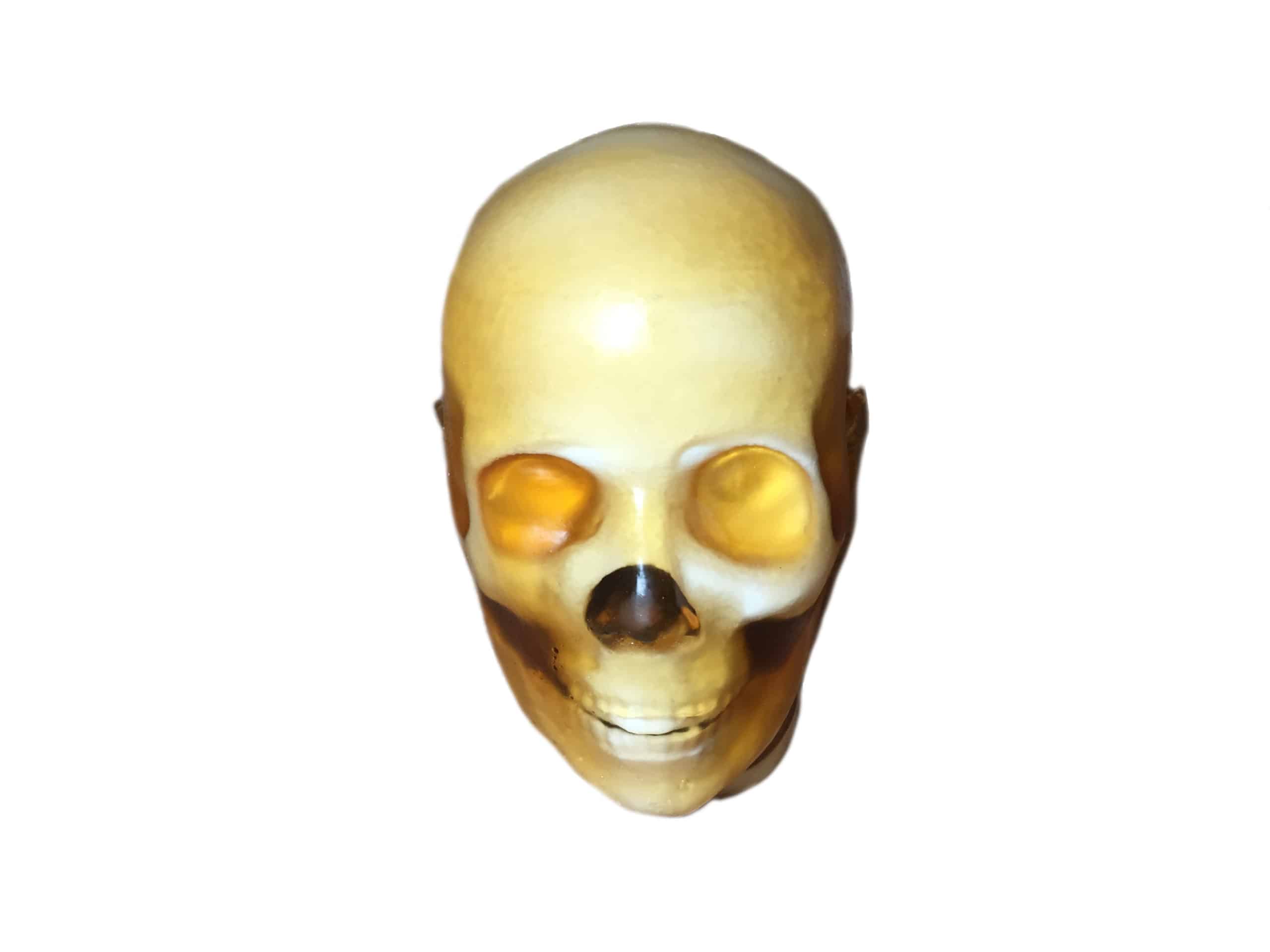

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1435 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1410 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature (Optional) | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Brain Matter | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | YES |
| Brain White Matter | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
| Muscle Tissue | 1400 ± 10 | 1.01 | 1.3 ± 0.2 | 35 | 60 | YES |
Thermal Properties of our Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| Tissue Type | HU Value (Average) |
| Body Tissue | -25 |
| Brain Tissue | -25 |
| Trabecular Bone | 800 |
| Cortical Bone | 1300 |
| Aorta | 40 |
| Vena Cava | 40 |
| Trachea | 80 (Tissue Part), -1000 (Air Filled Part) |
| Lungs | -850 |
| Diaphragm | 80 |
| Pancreas | 110 |
| Tissue Type | HU Value (Average) |
| Spleen | 110 |
| Kidneys | 110 |
| Bladder | 35 |
| Rectum Wall | 100 |
| Sigmoid Colon Wall | 100 |
| Heart | 40 |
| Liver | 110 |
| Gallbladder | 35 |
| Stomach | -850 |
| Large and Small Intestines | 80 (Tissue Part), -1000 (Air Filled Part) |
| Anatomy | Skull | Ribs/ Chest | T Spine | C spine | L Spine | Abdomen | Pelvis | Femur | Tib/Fib | Knee | Foot | Scap Y | Humerus | Hand/ Wrist | ||||||
| Projection | AP | LAT | AP/ PA | AP | LAT | AP | AP | LAT | LAT | AP | AP | LAT | AP | LAT | AP | AP | PA/ Oblique | LAT | AP/ Oblique | LAT |
| E.I. | 375 | 286 | 412 | 412 | 782 | 165 | 448 | 862 | 862 | 650 | 584 | 892 | 551 | 342 | 690 | 293 | 631 | 257 | 556 | 155 |
| D.I. | -0.2 | -1.4 | 0.6 | 0.6 | 2.6 | -3.8 | 1 | 2.4 | 2.4 | 1.8 | 1.7 | 3.6 | 0.4 | -1.6 | 1.4 | -2.3 | 1 | -2.9 | 0.5 | -3.6 |
| kVp | 85 | 75 | 80 | 80 | 85 | 75 | 88 | 90 | 85 | 85 | 80 | 80 | 74 | 74 | 75 | 80 | 58 | 80 | 64 | 84 |
| mAs | 20 | 8 | 5 | 20 | 56 | 6.3 | 45 | 63 | 25 | 25 | 16 | 14 | 2.5 | 2.5 | 5.6 | 8 | 2 | 5.6 | 2 | 10 |

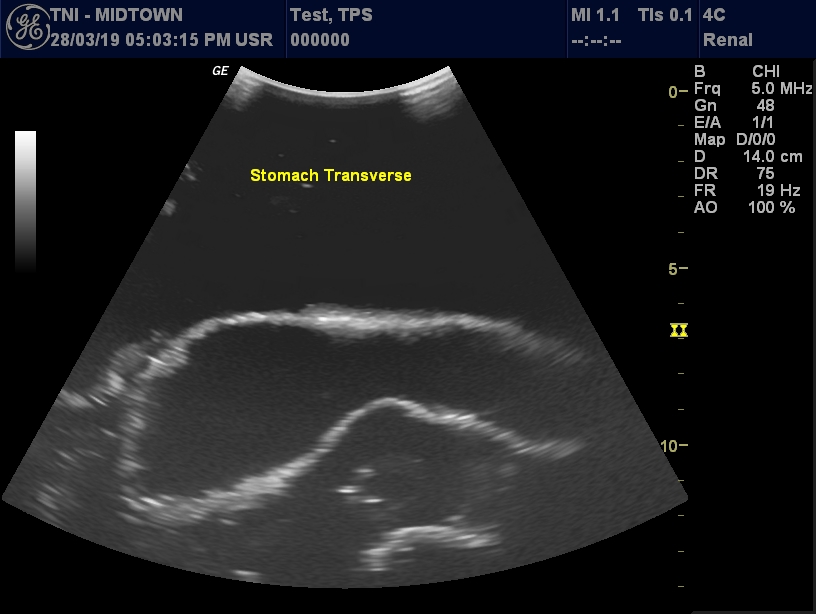

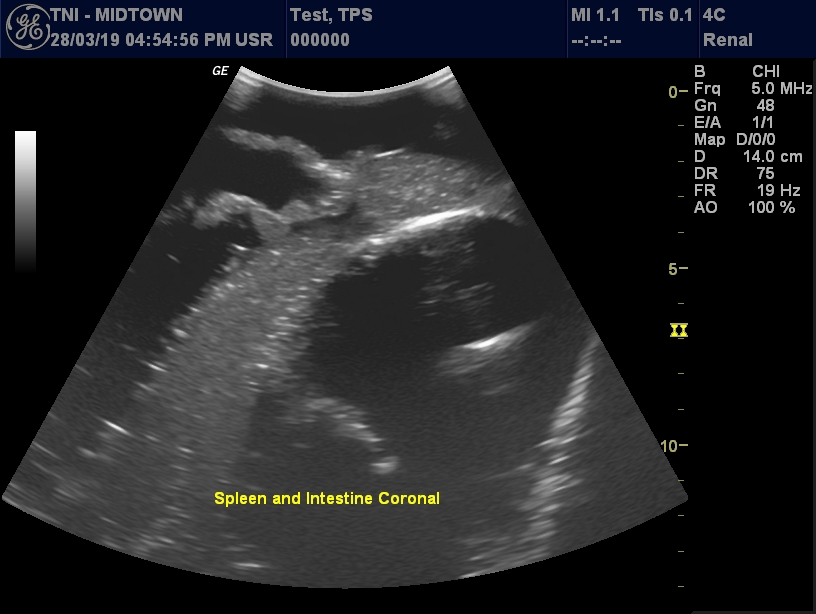

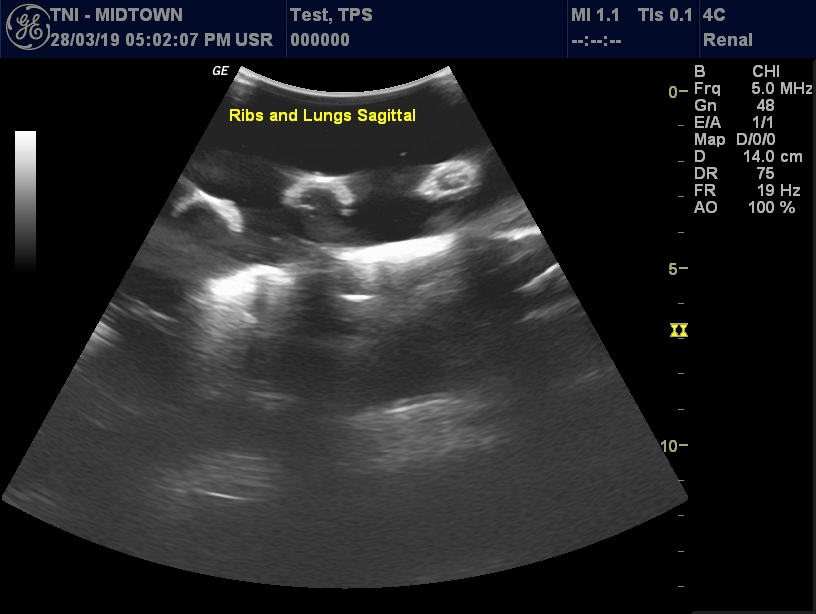

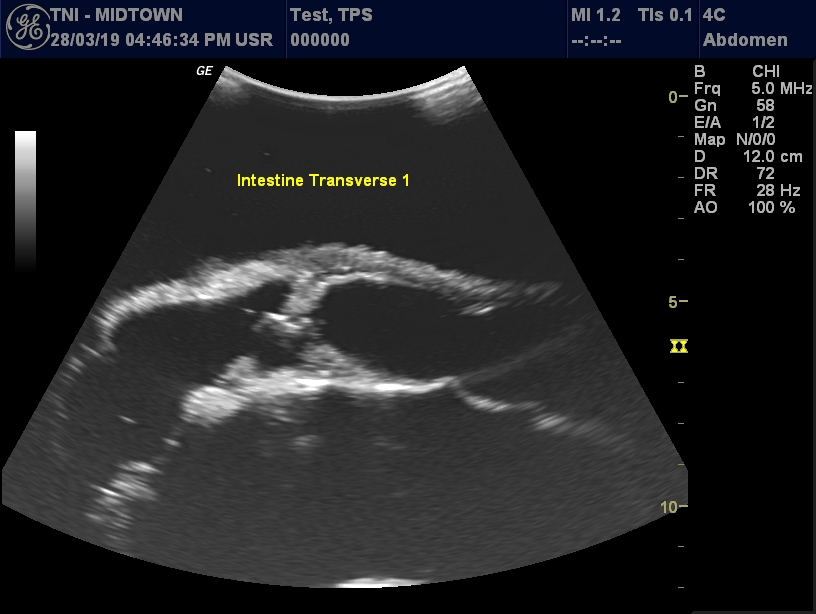

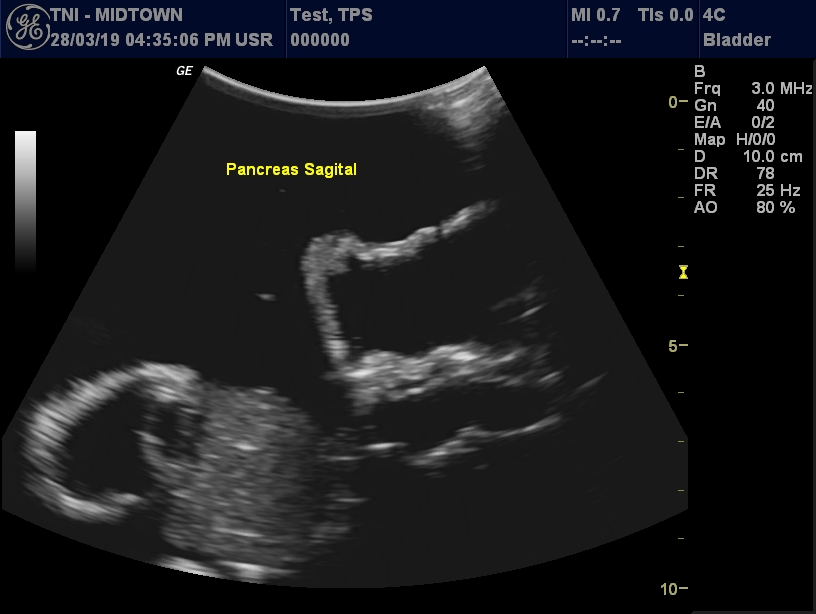

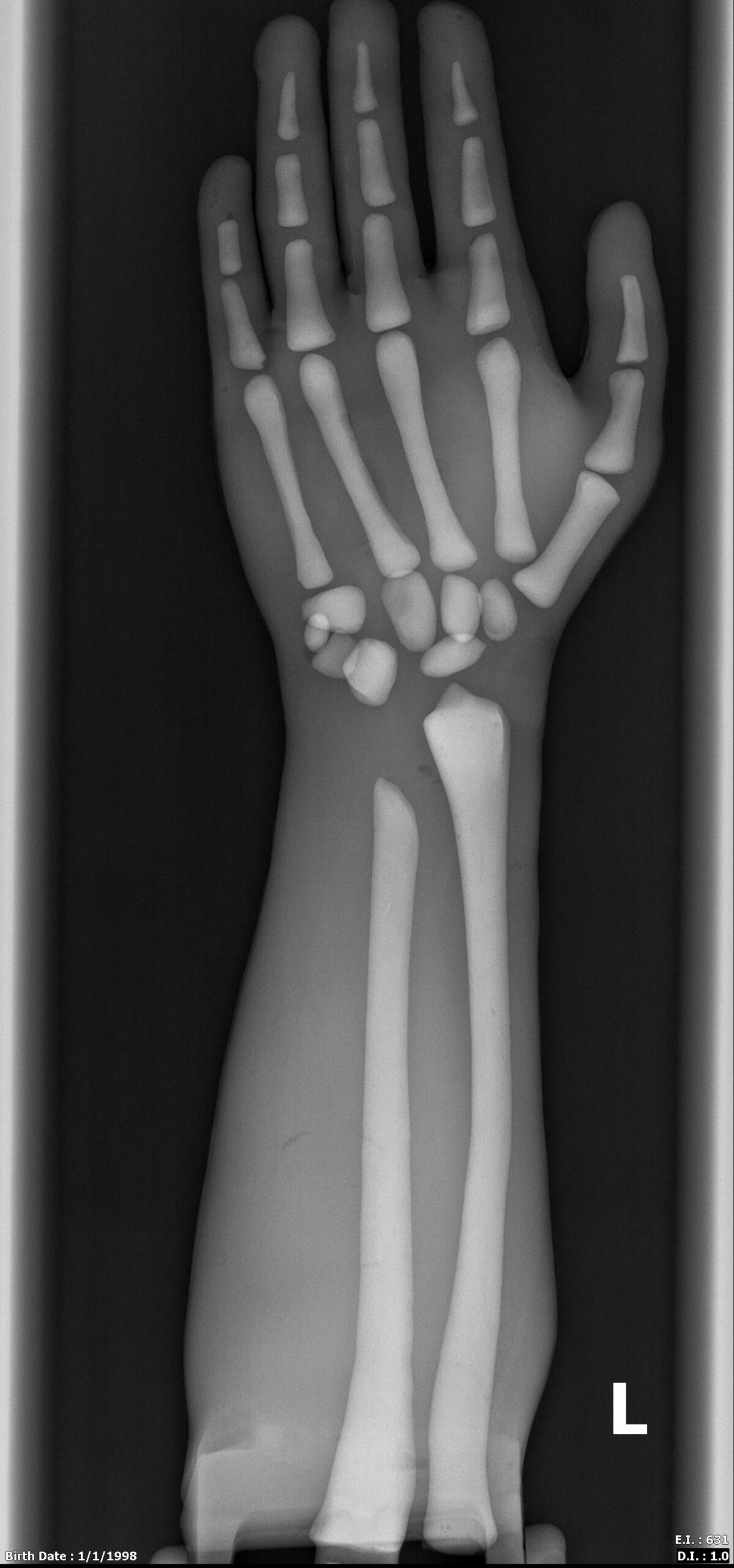

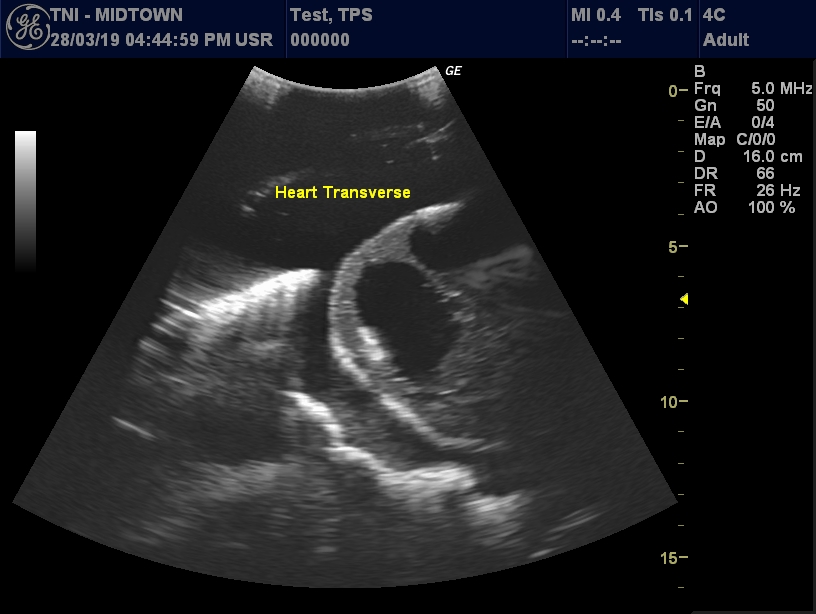

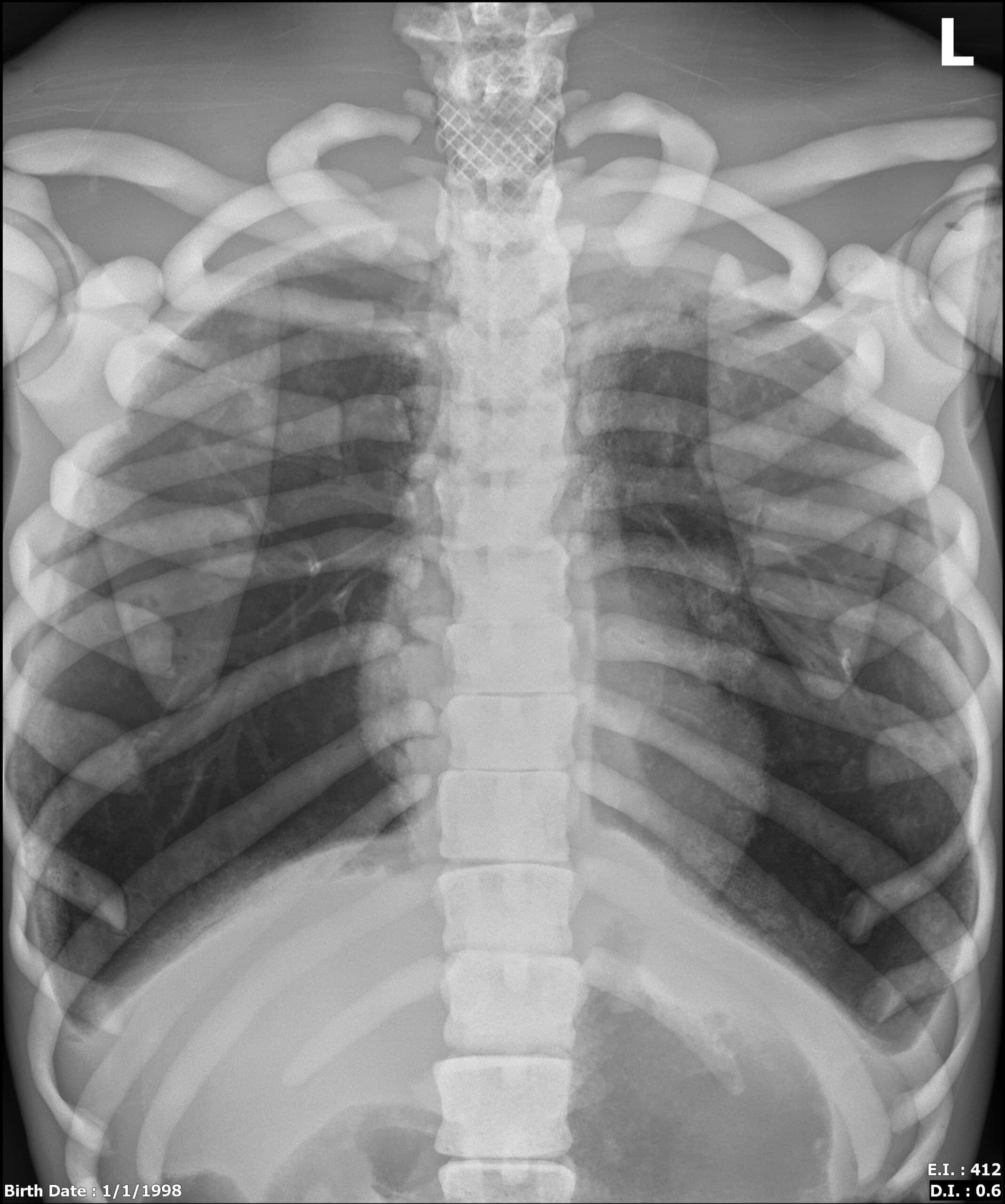

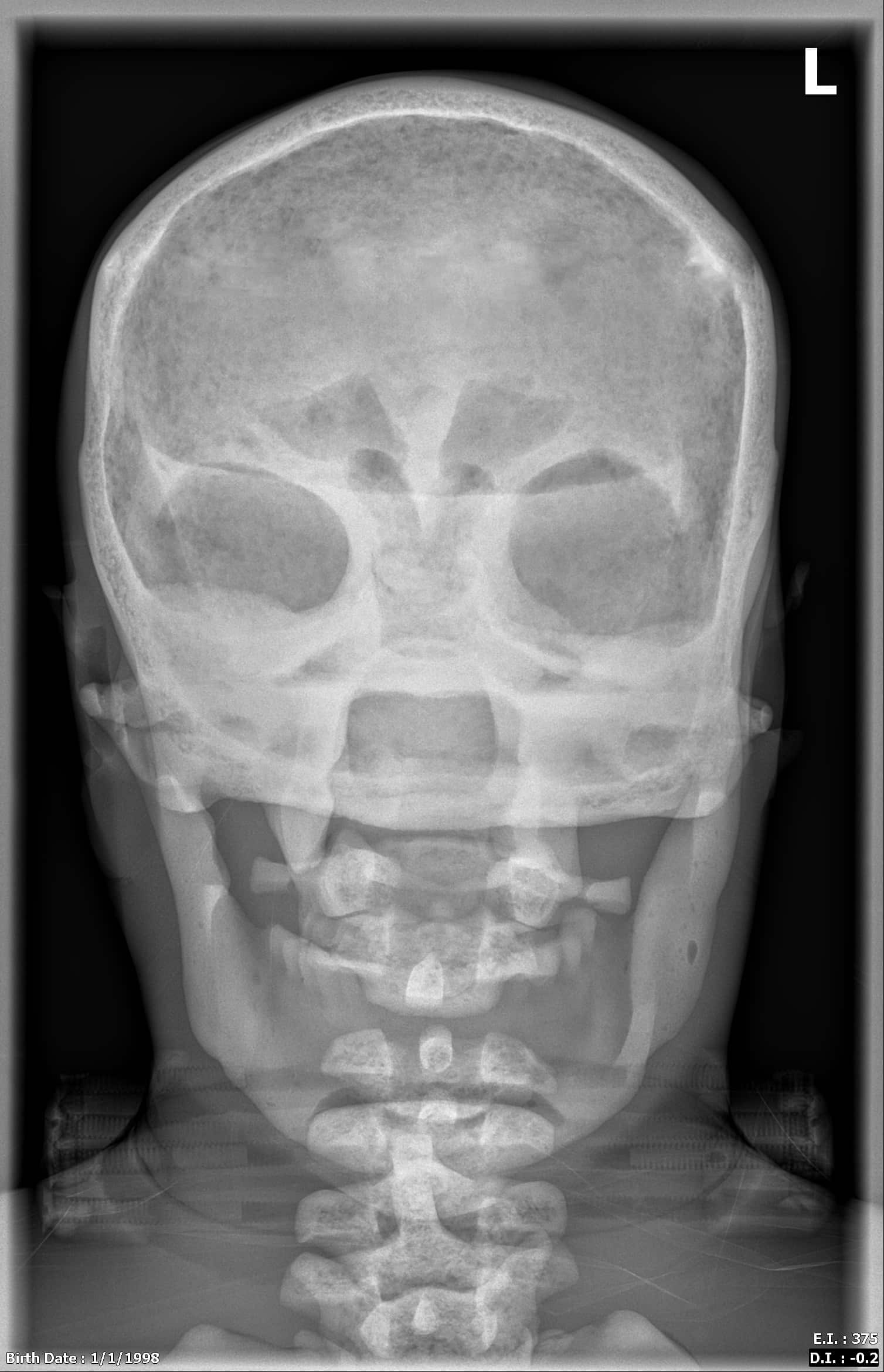

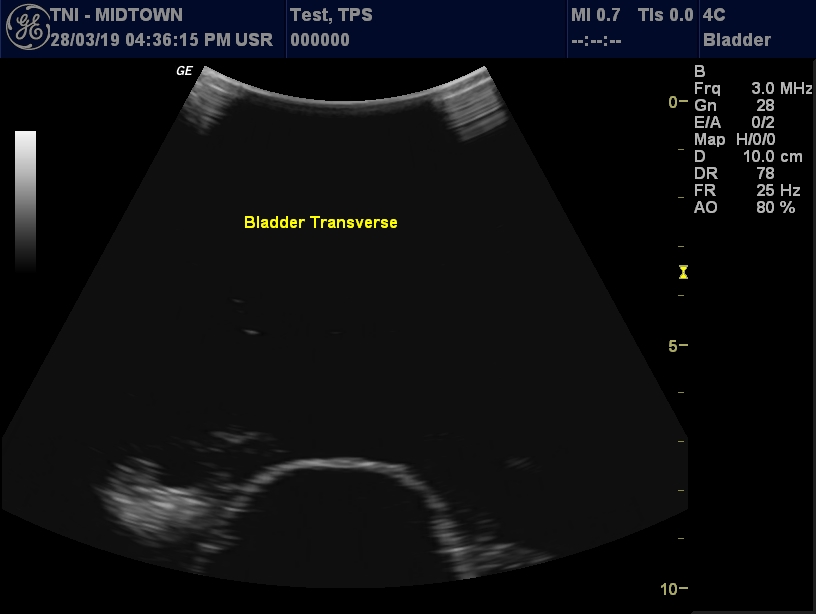

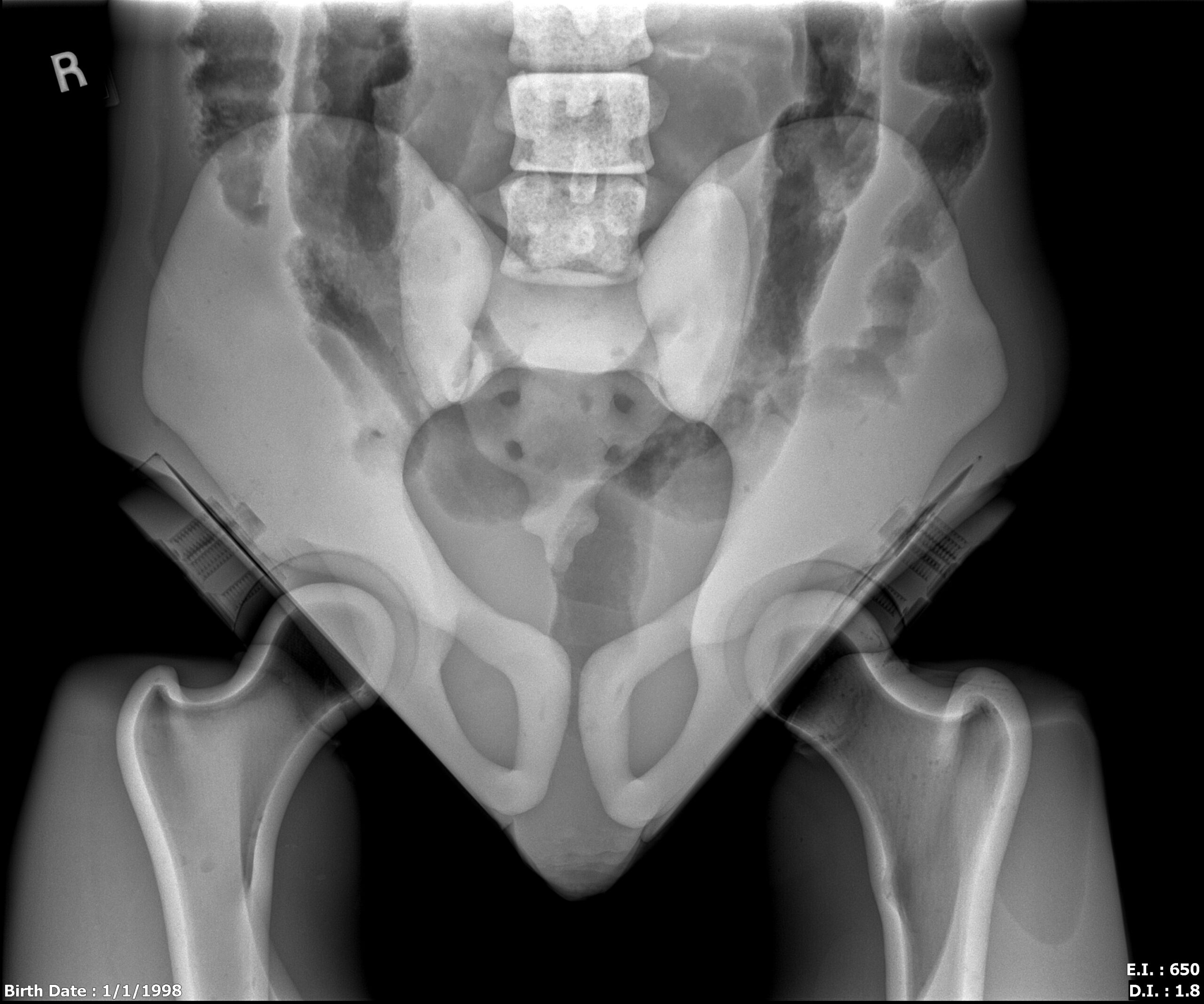

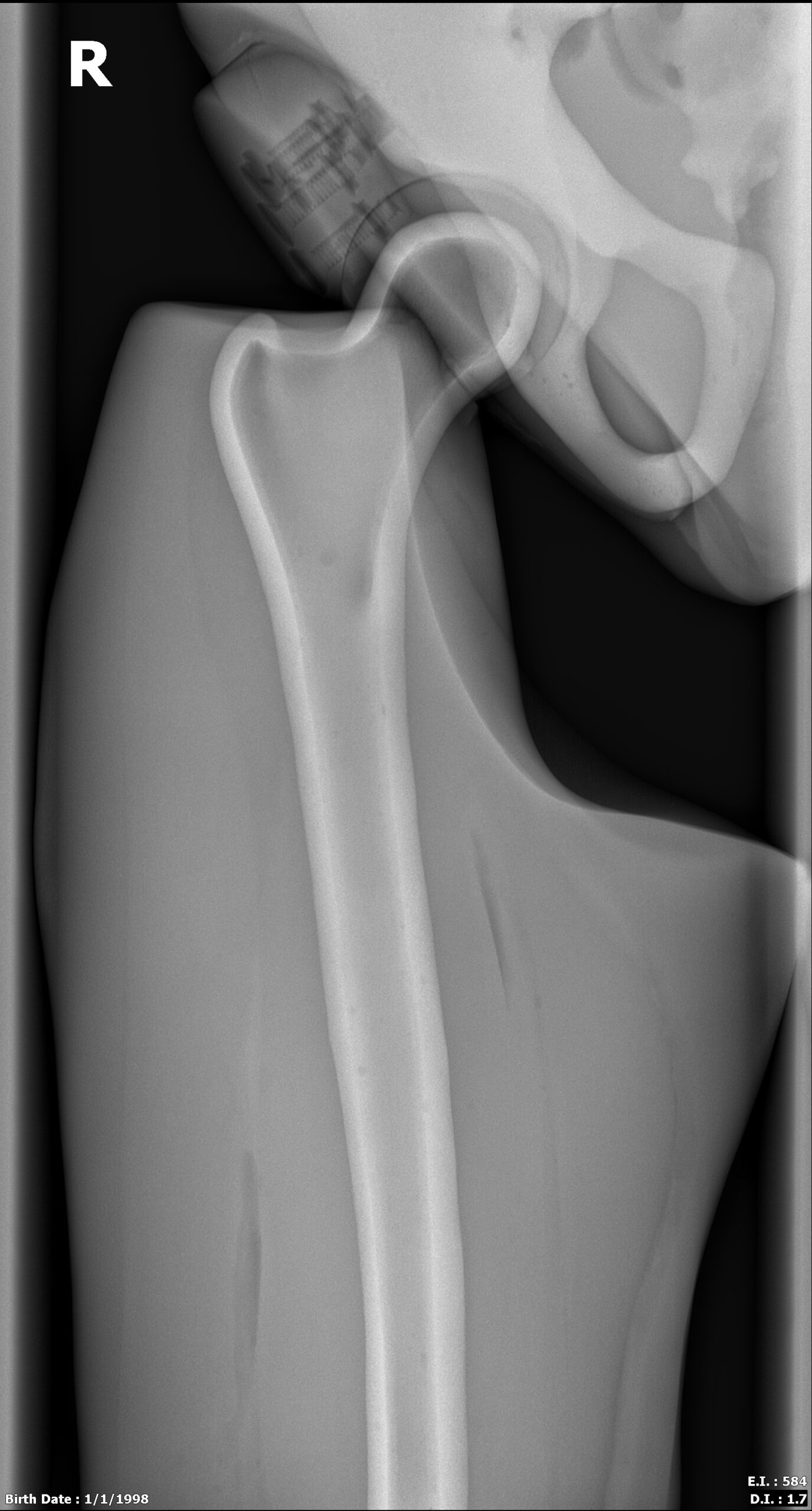

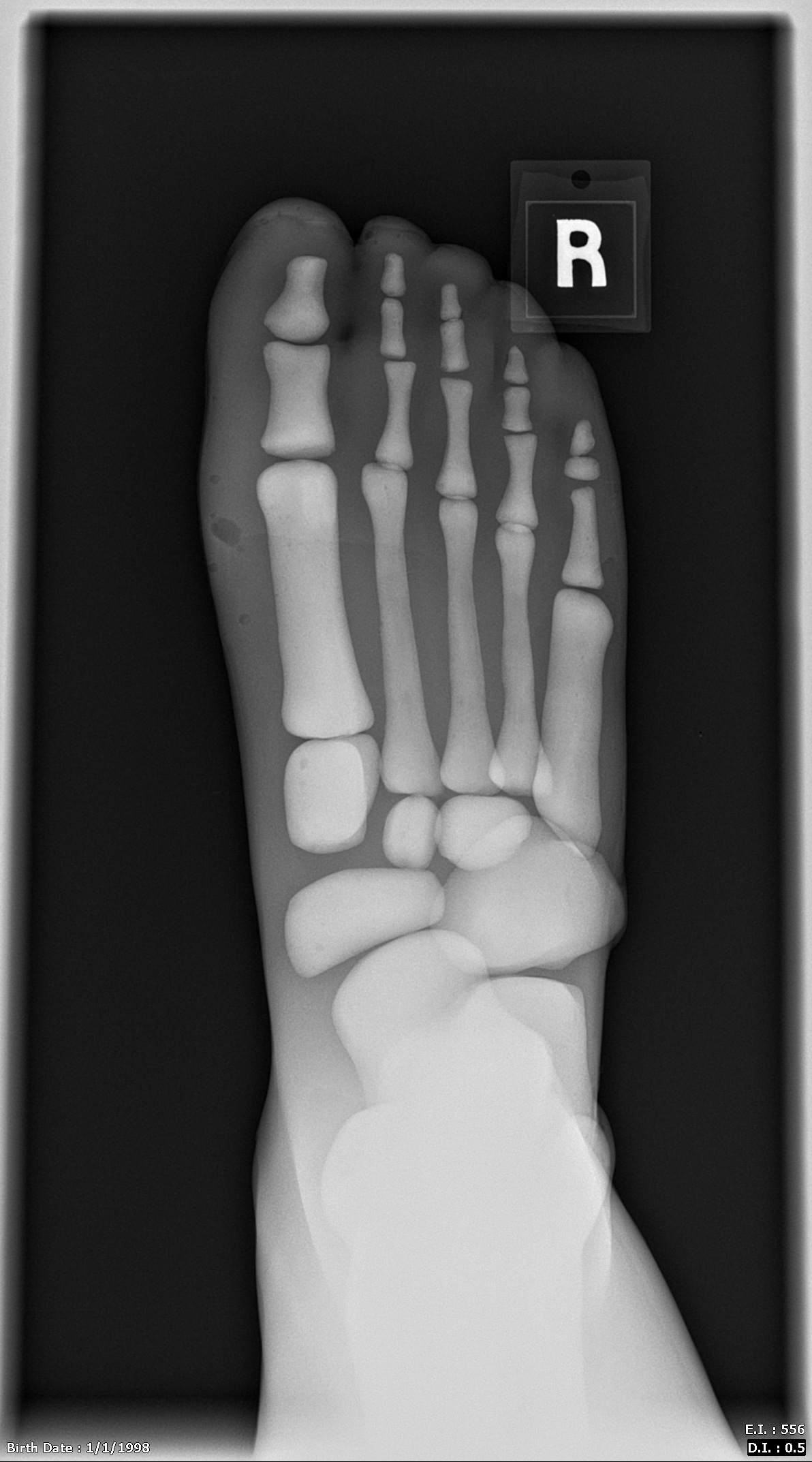

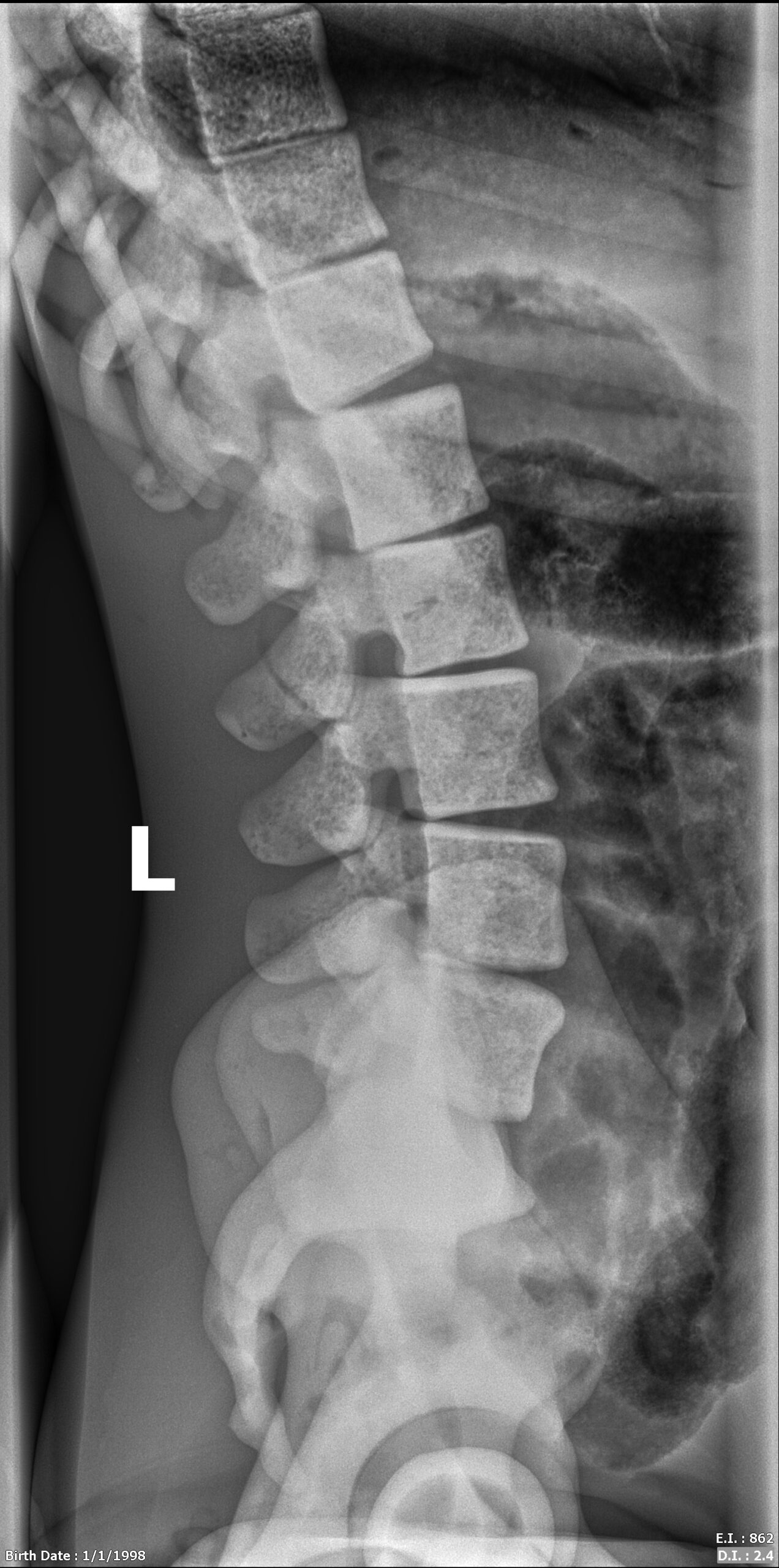

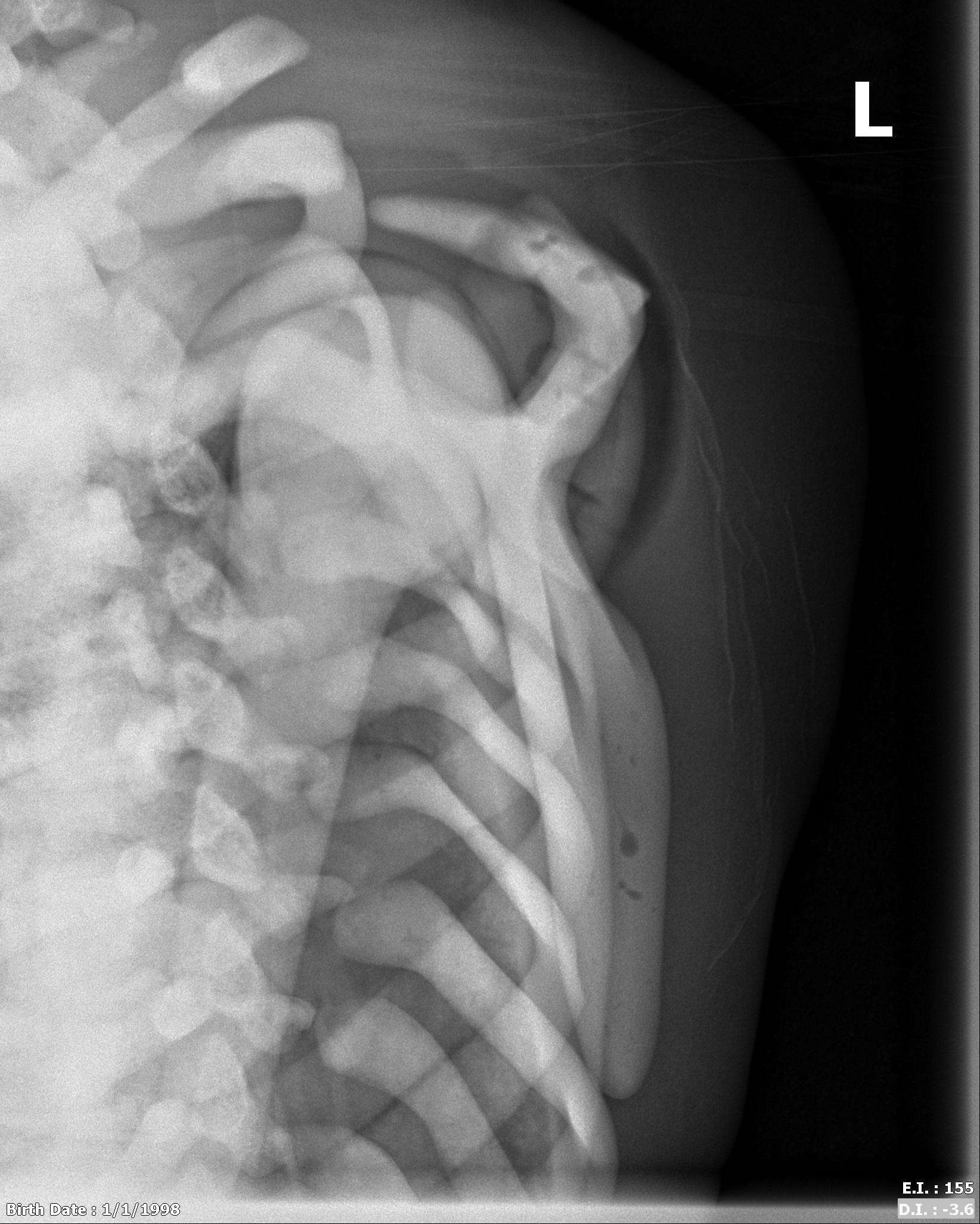

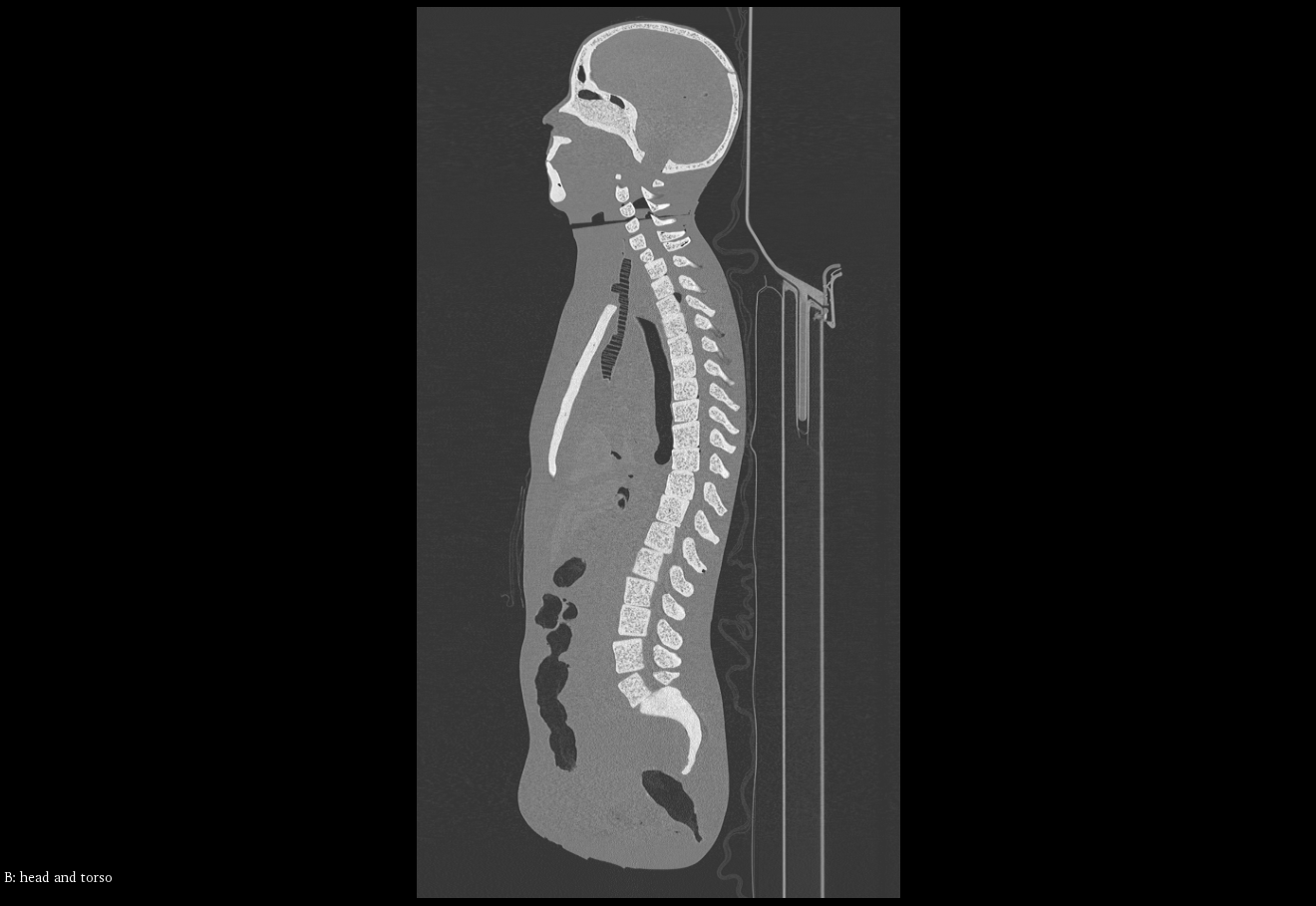

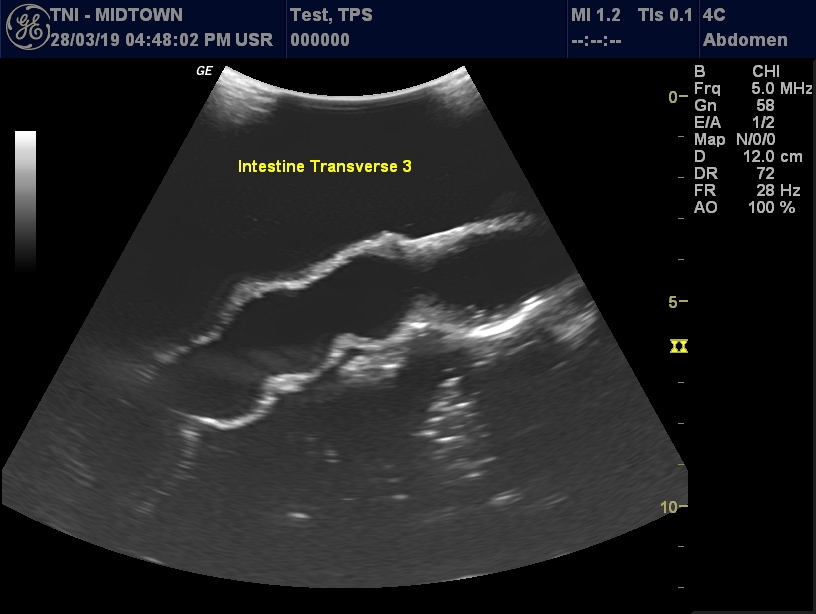

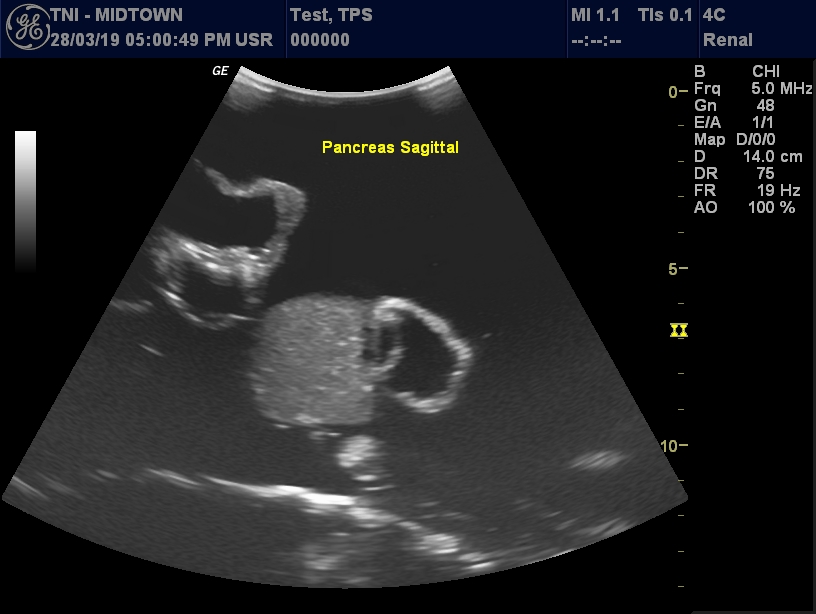

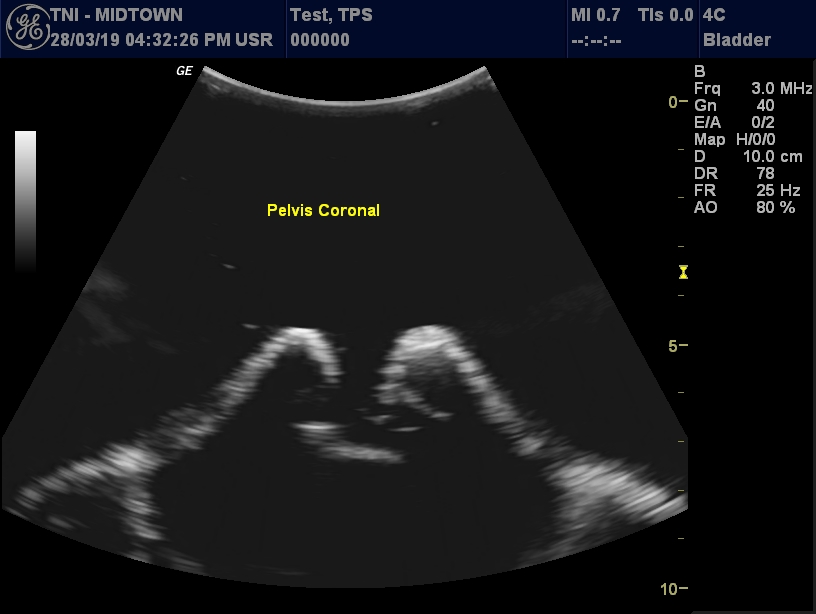

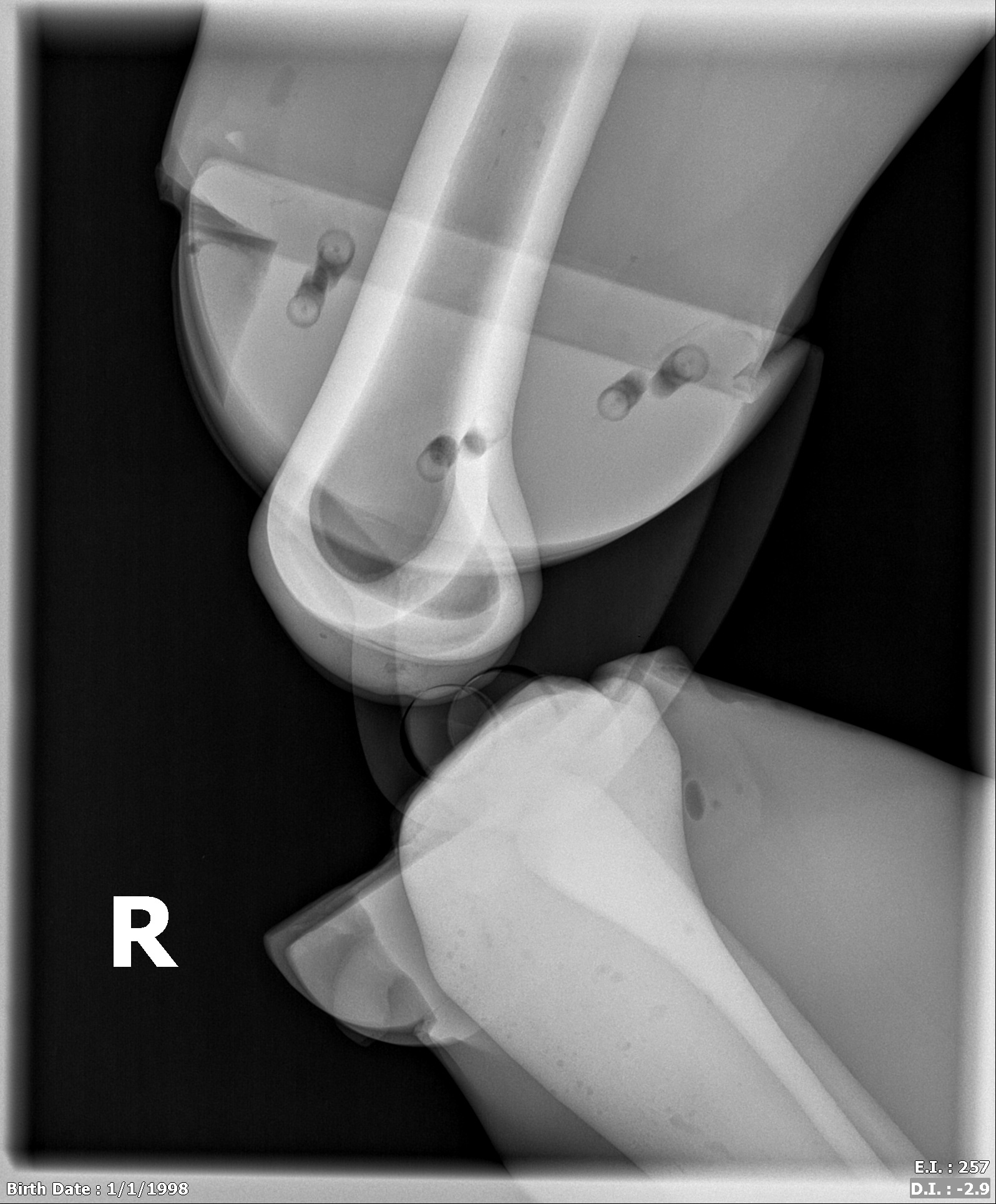

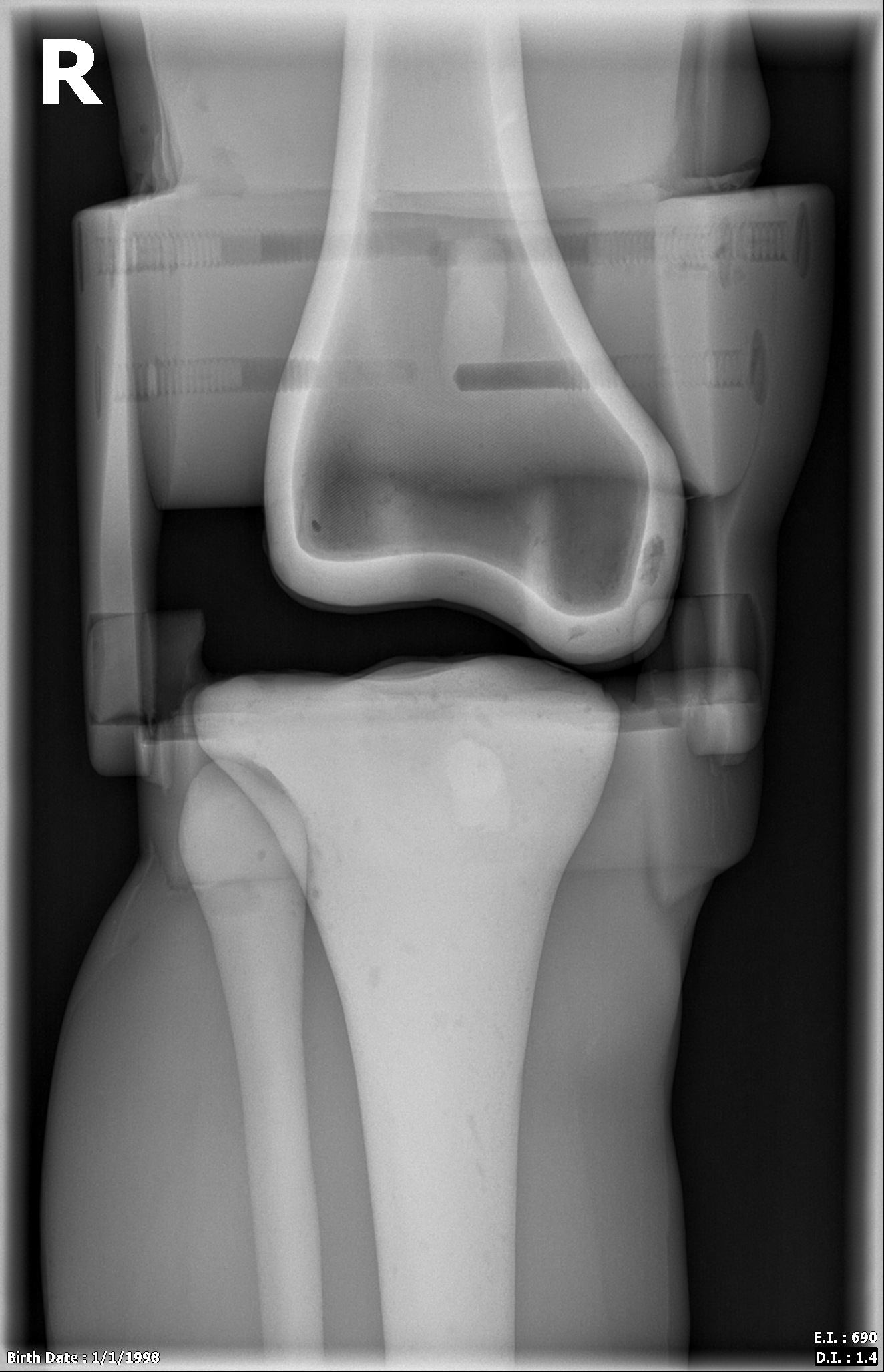

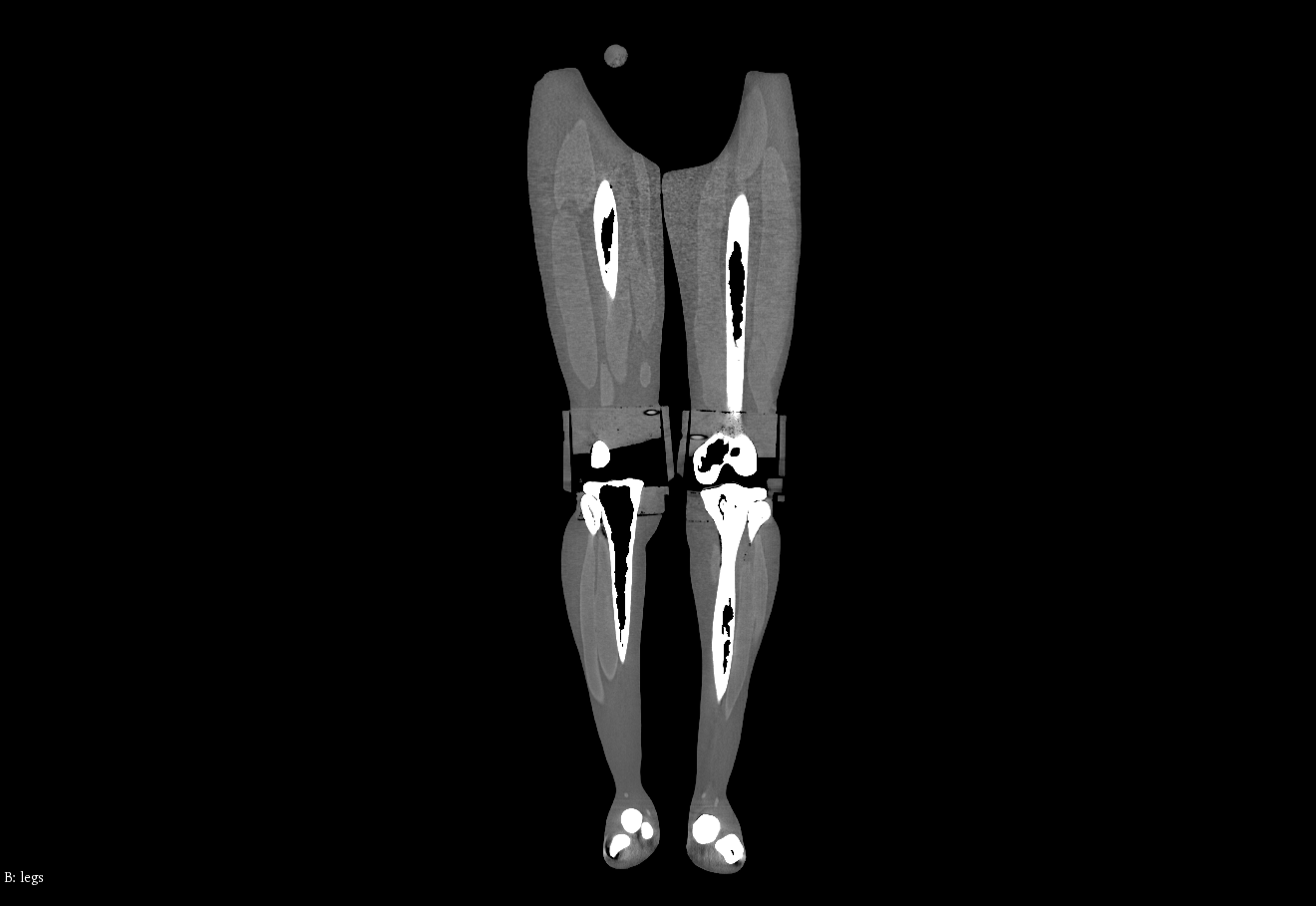

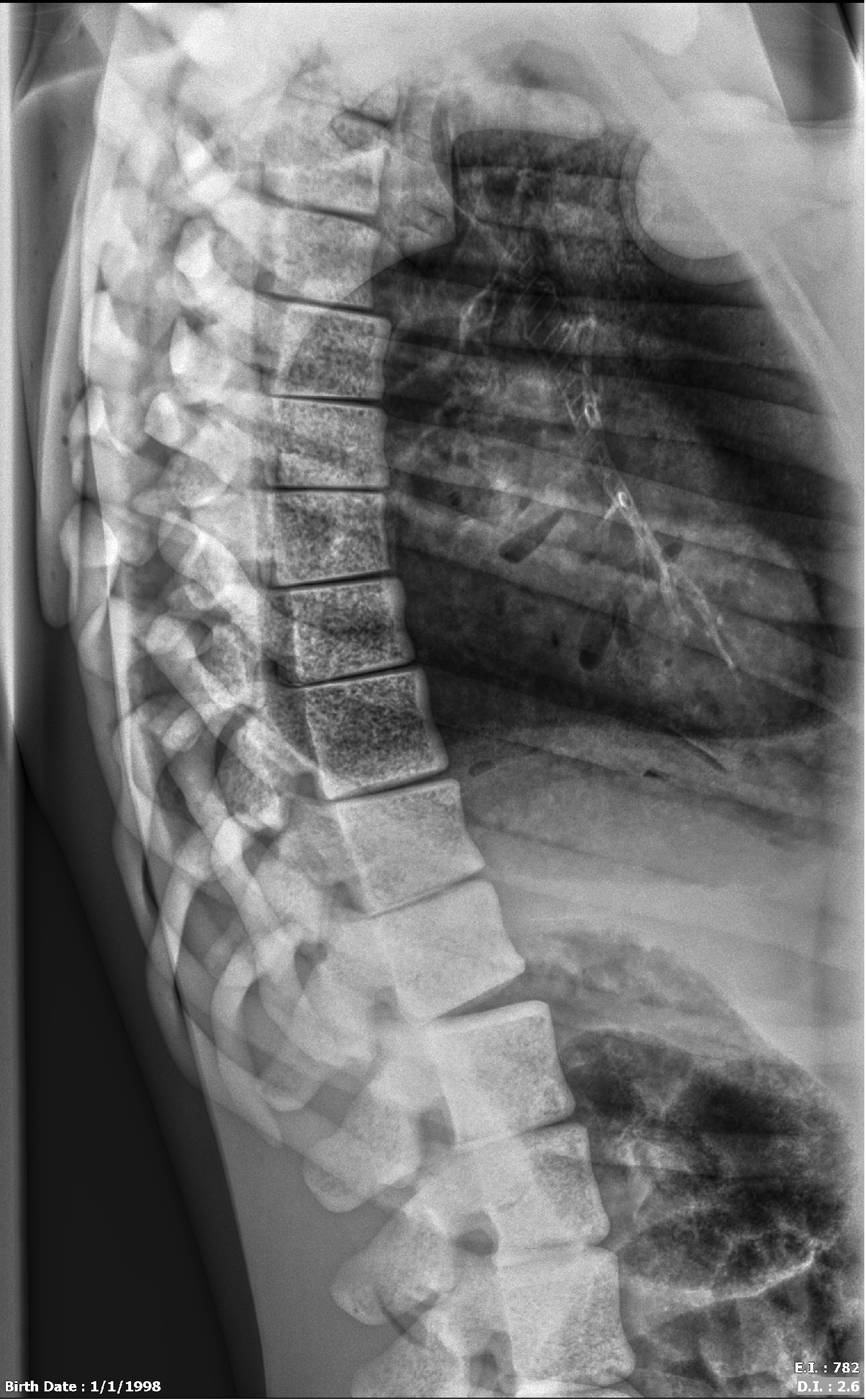

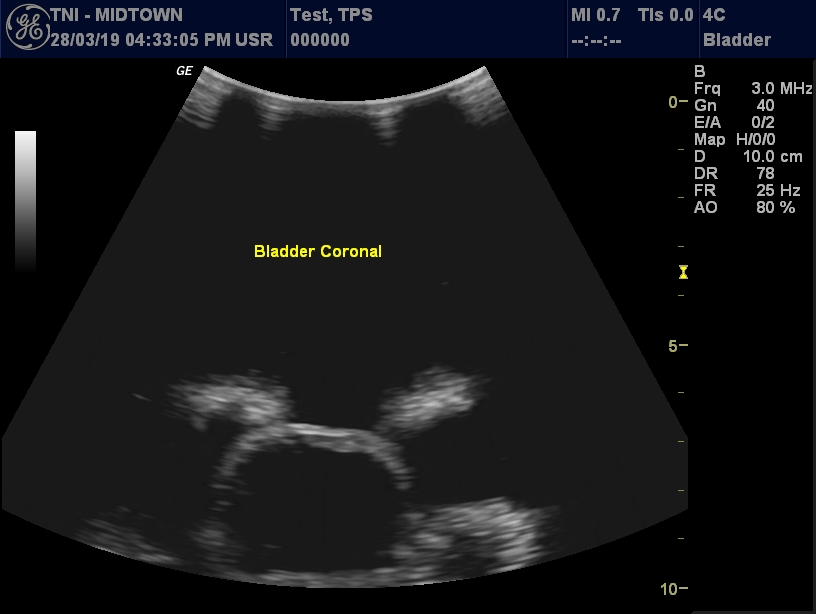

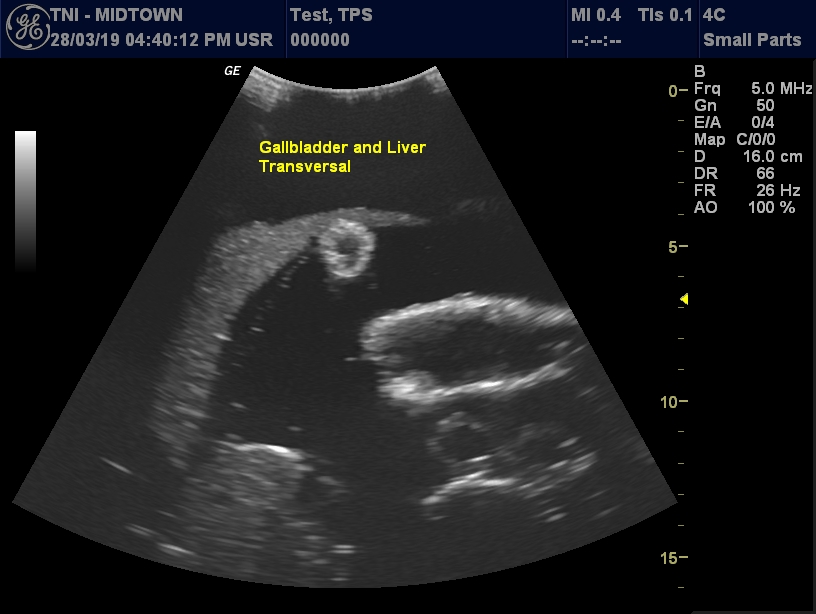

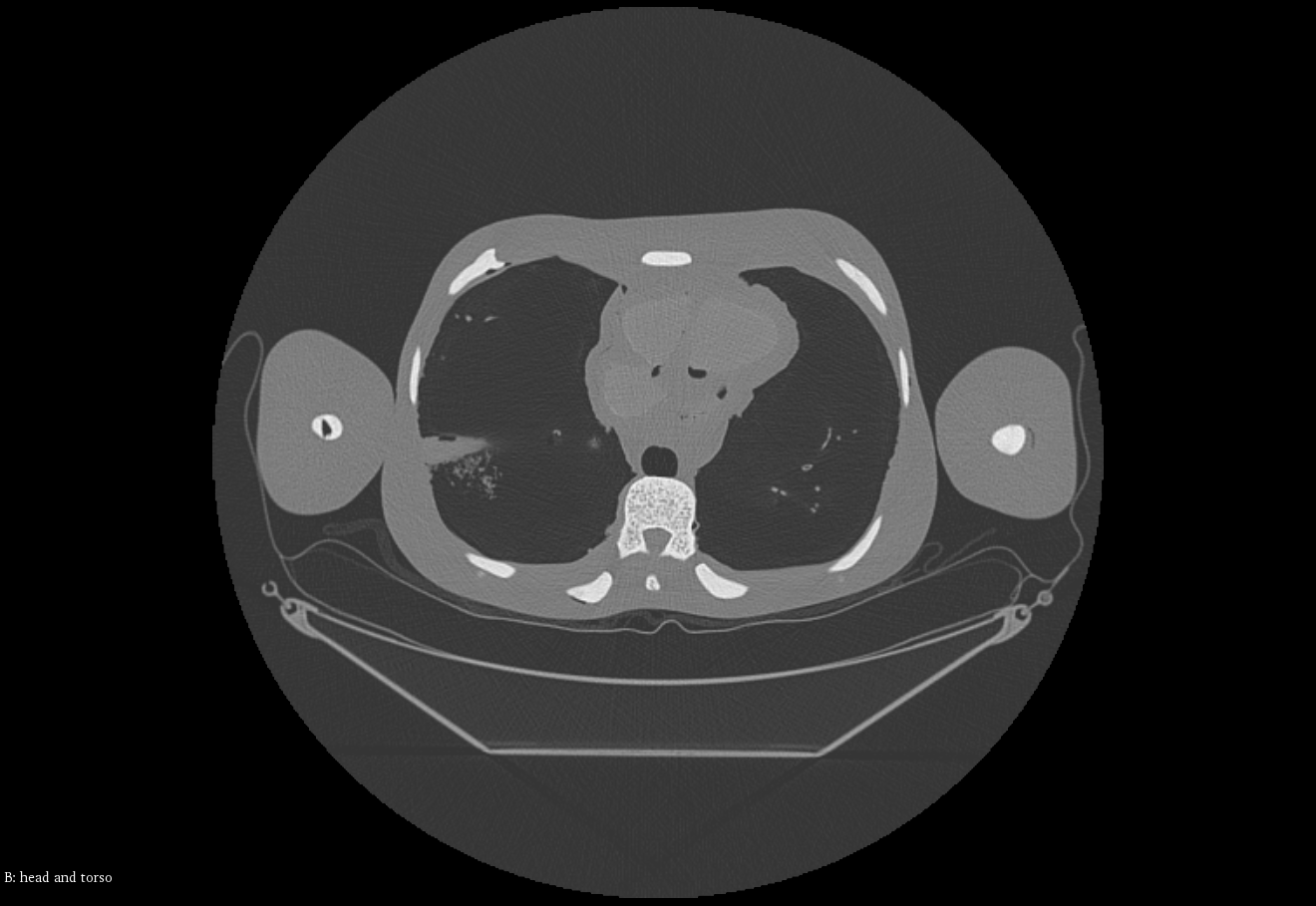

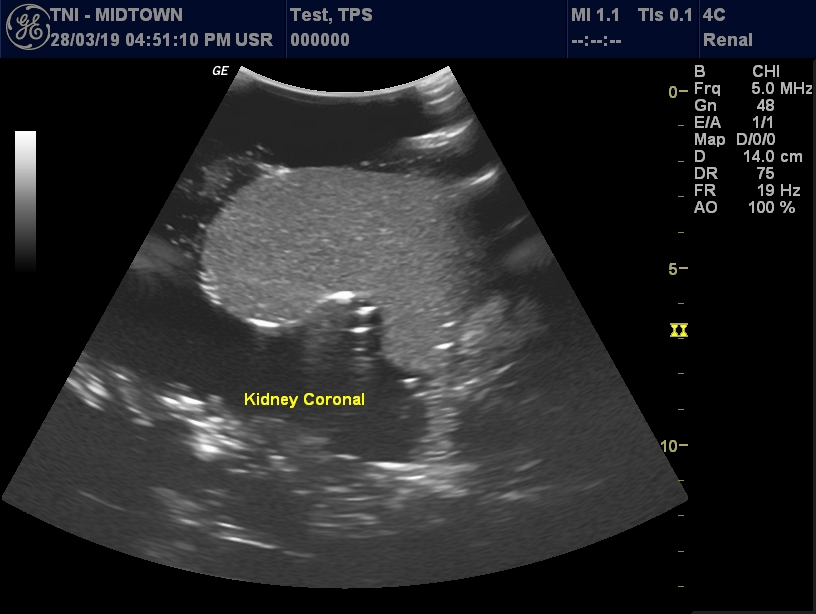

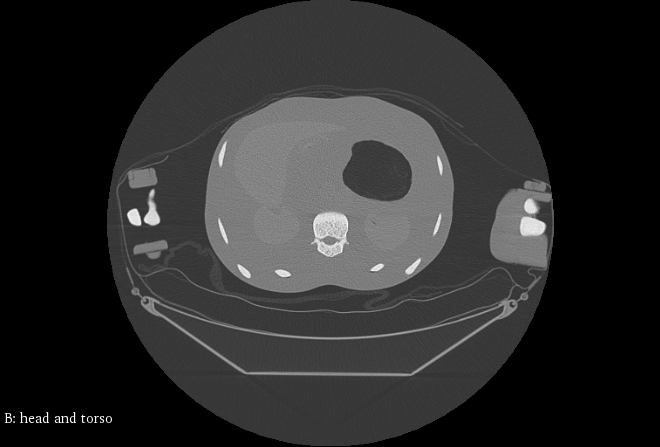

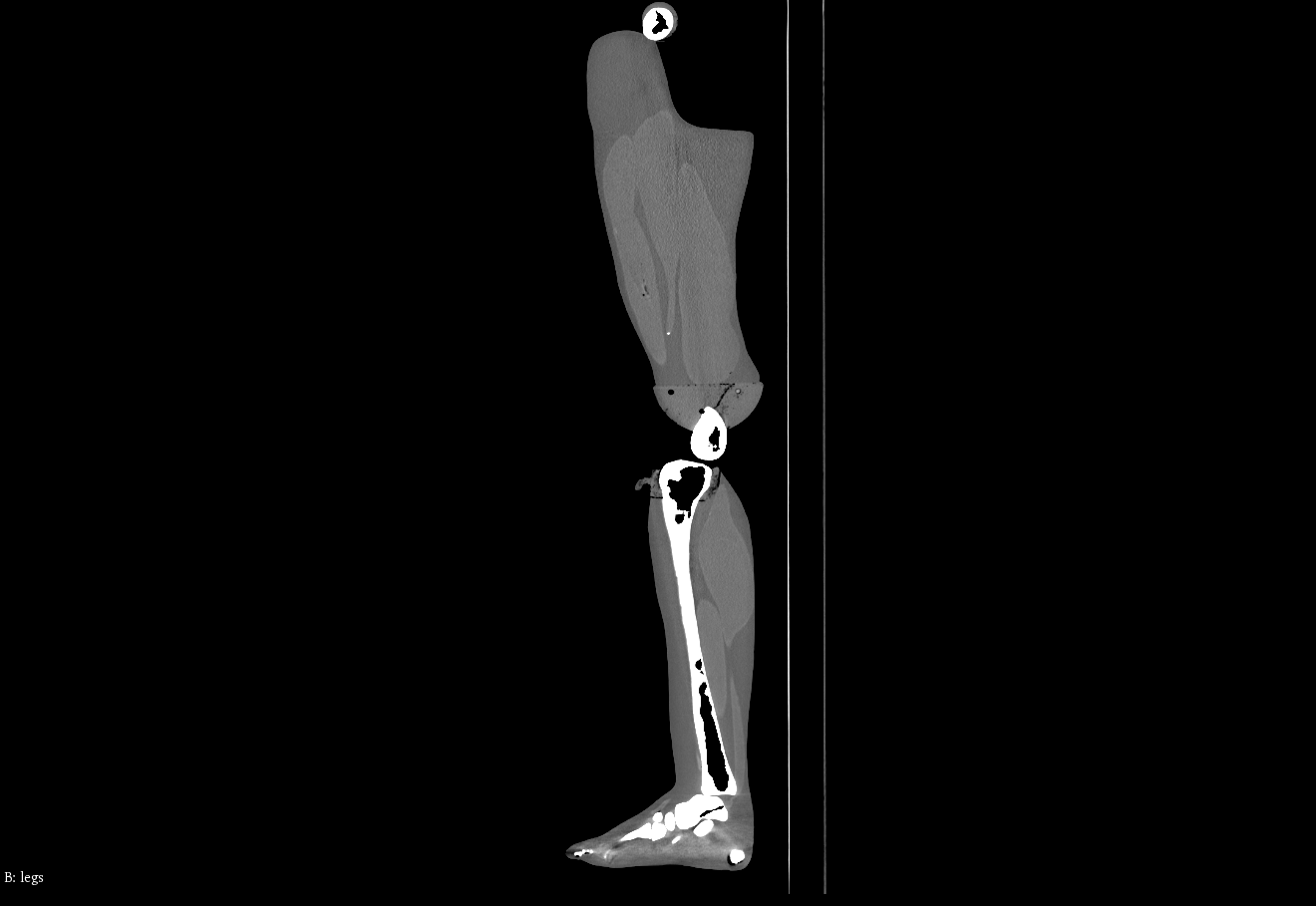

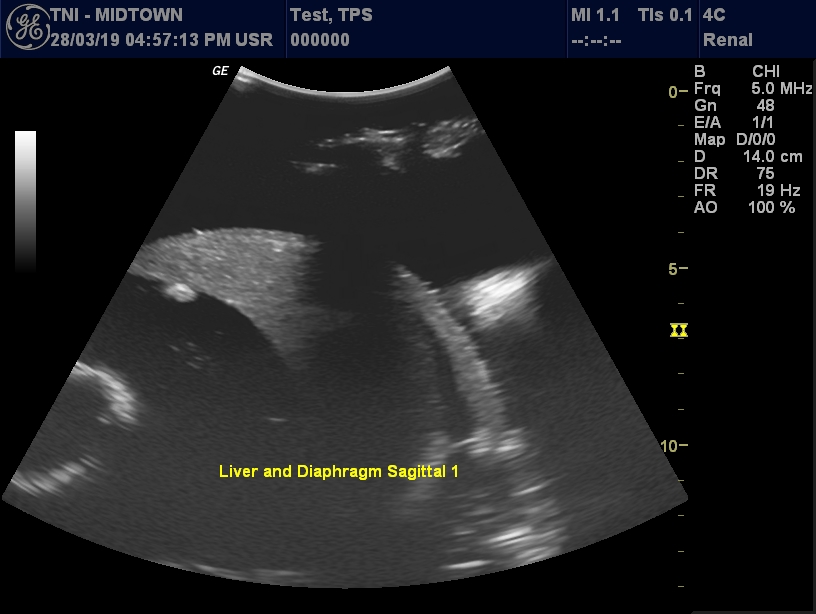

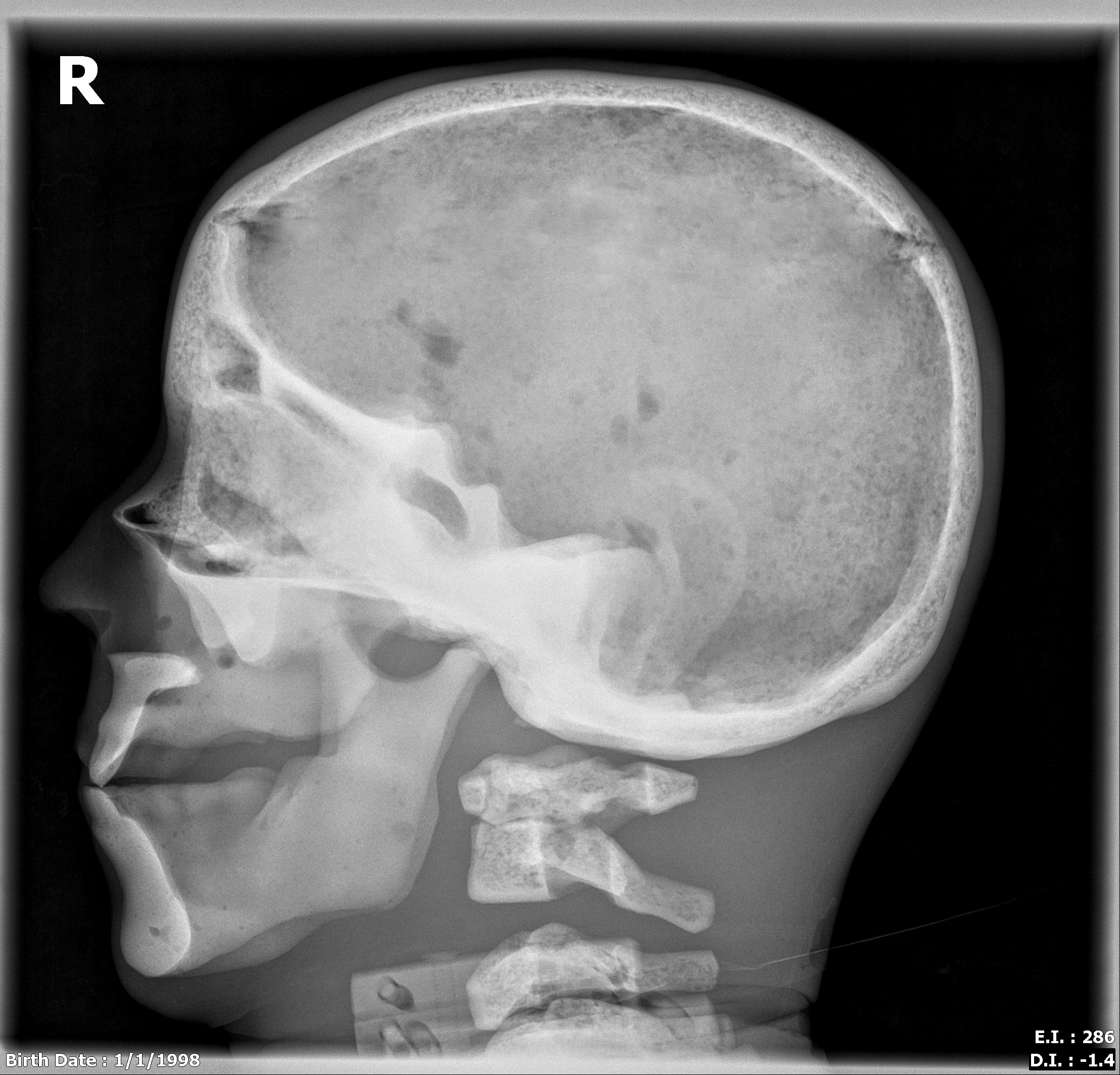

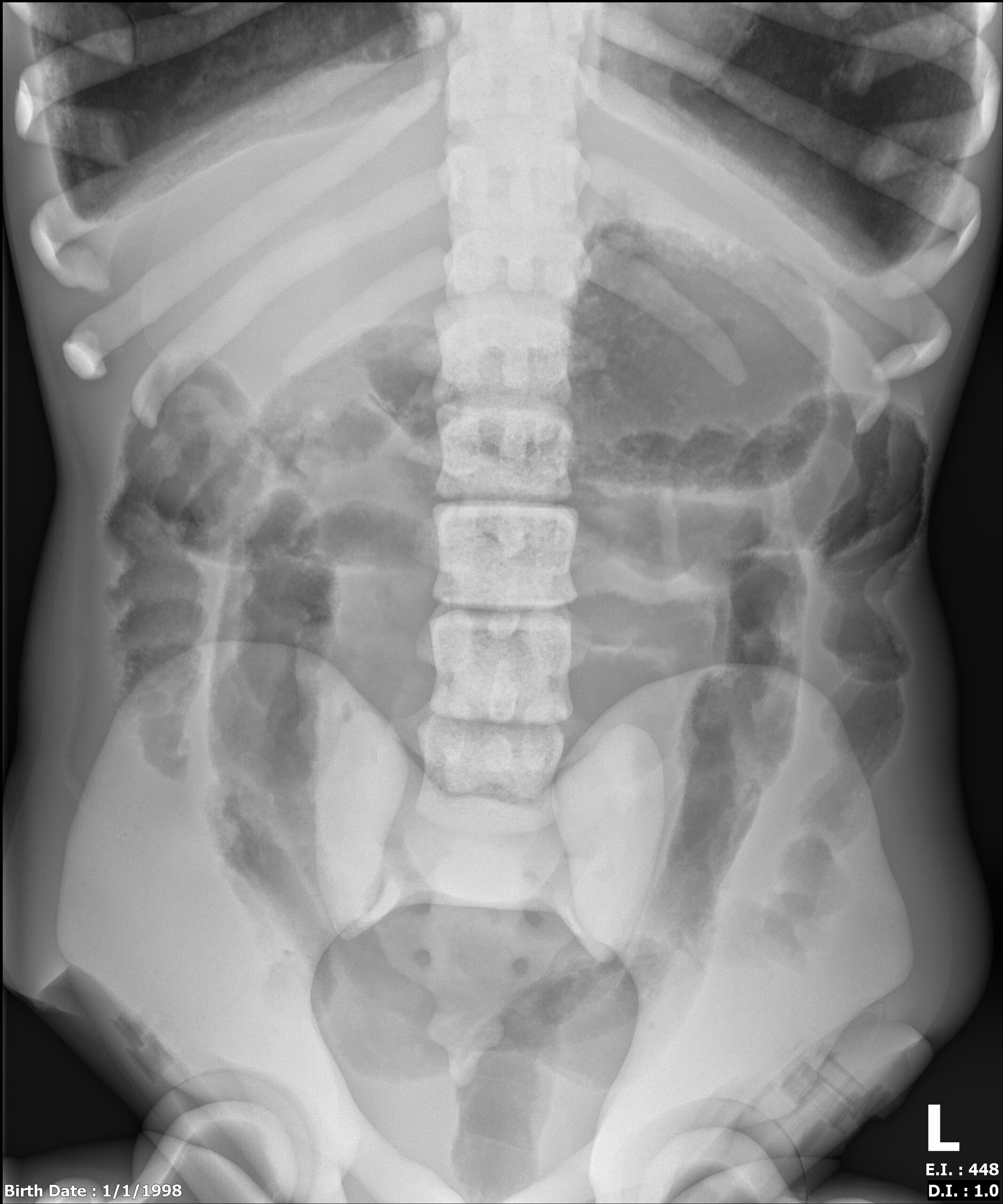

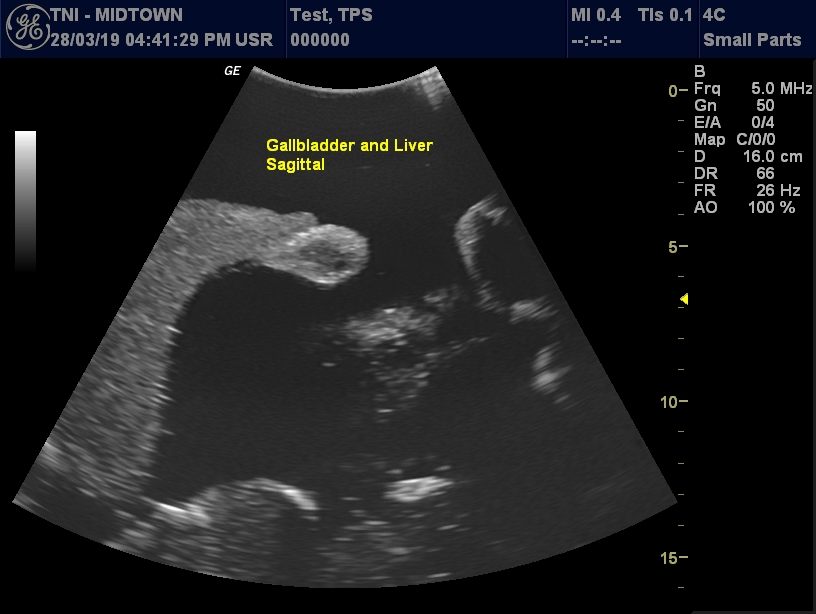

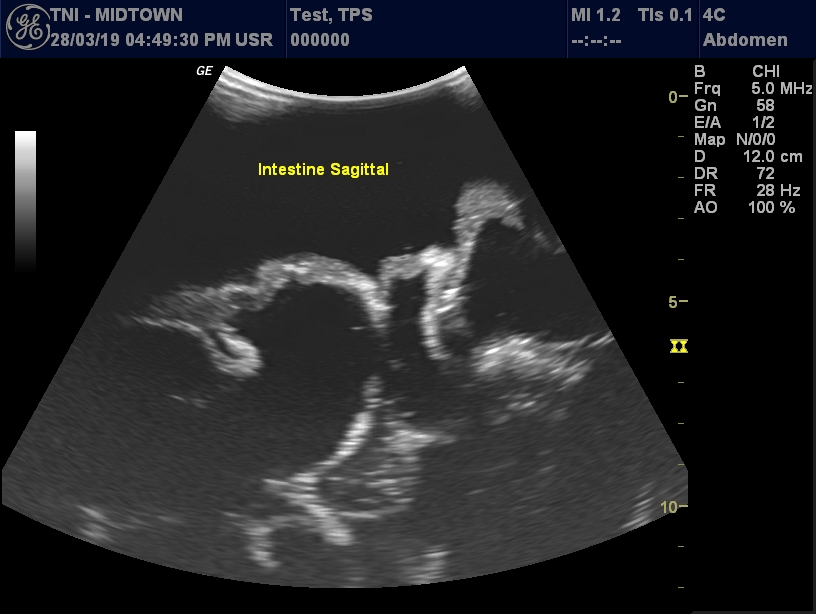

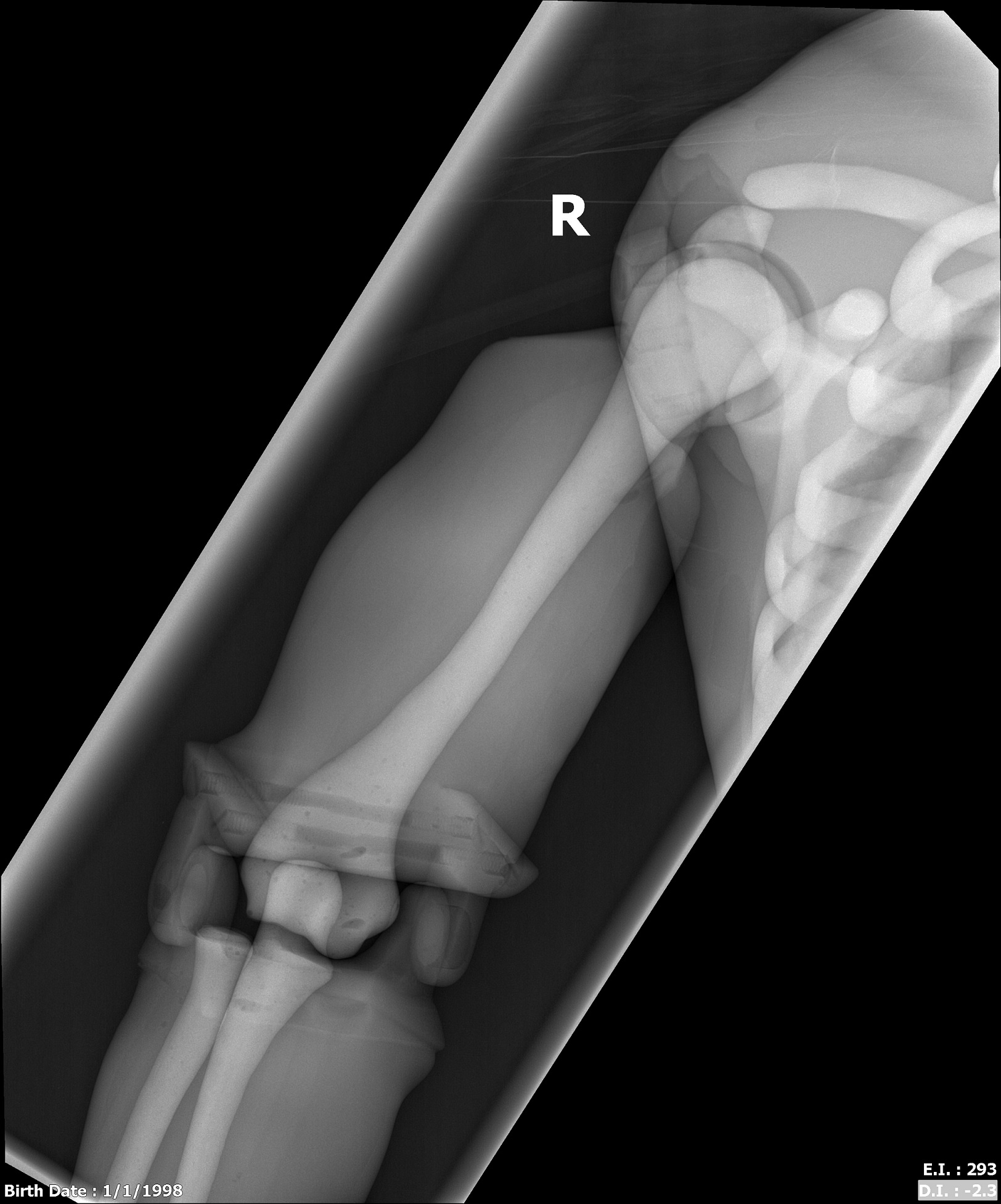

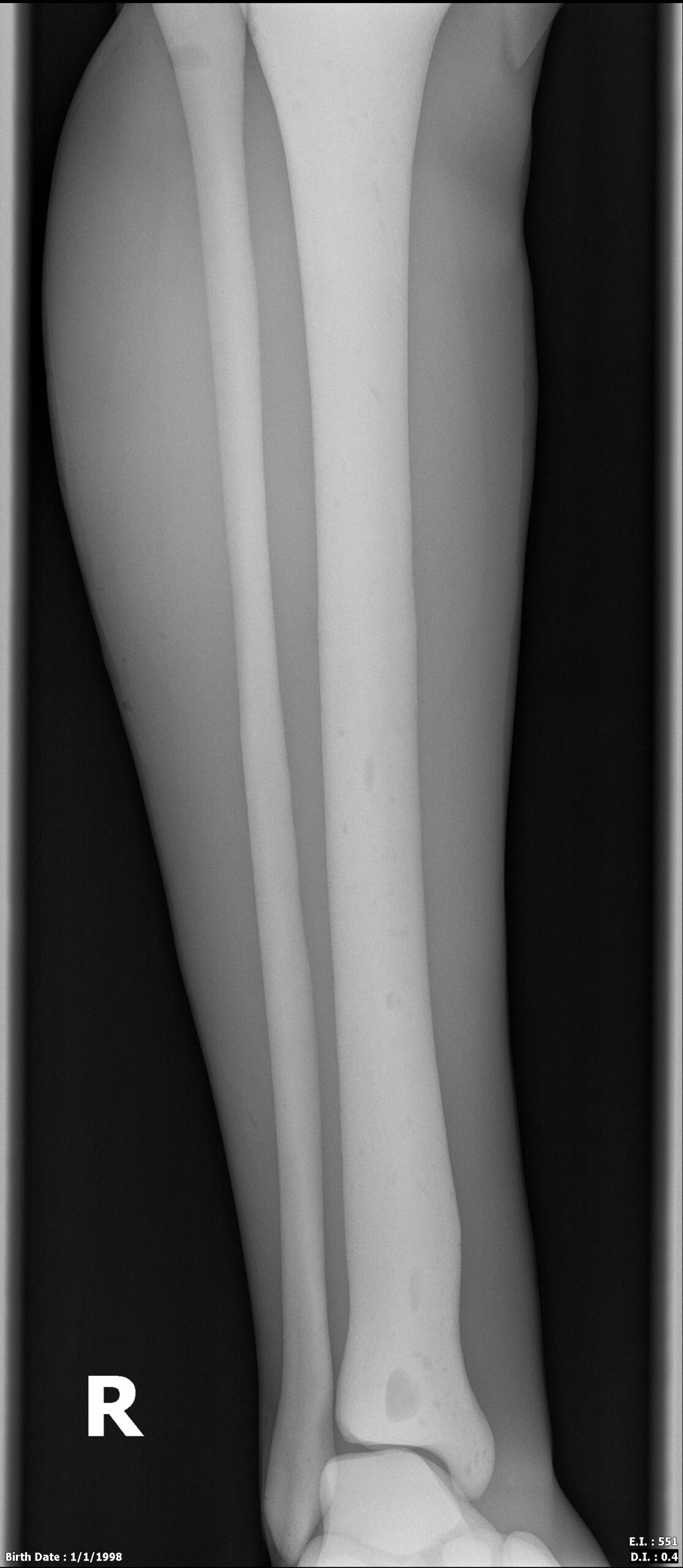

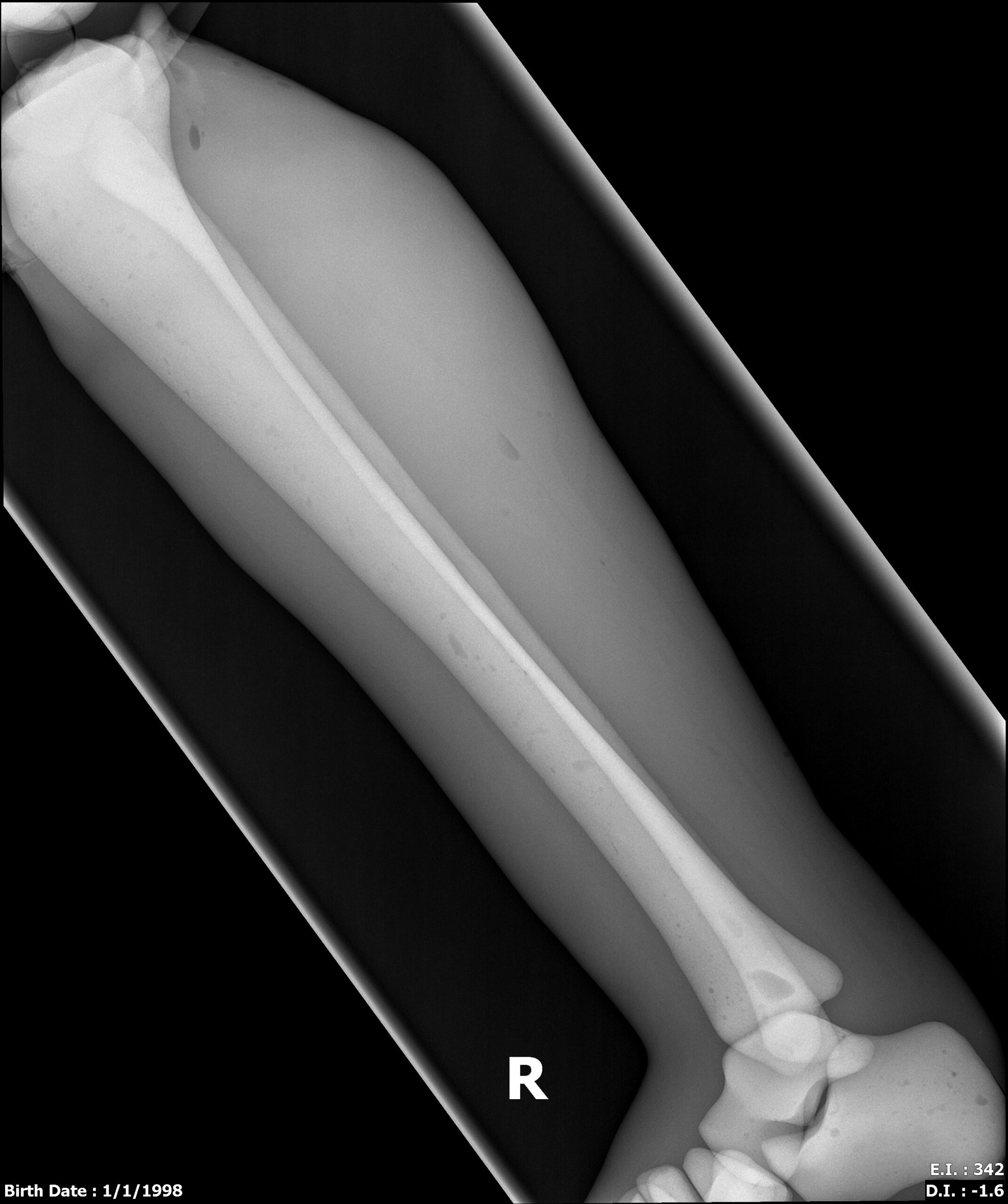

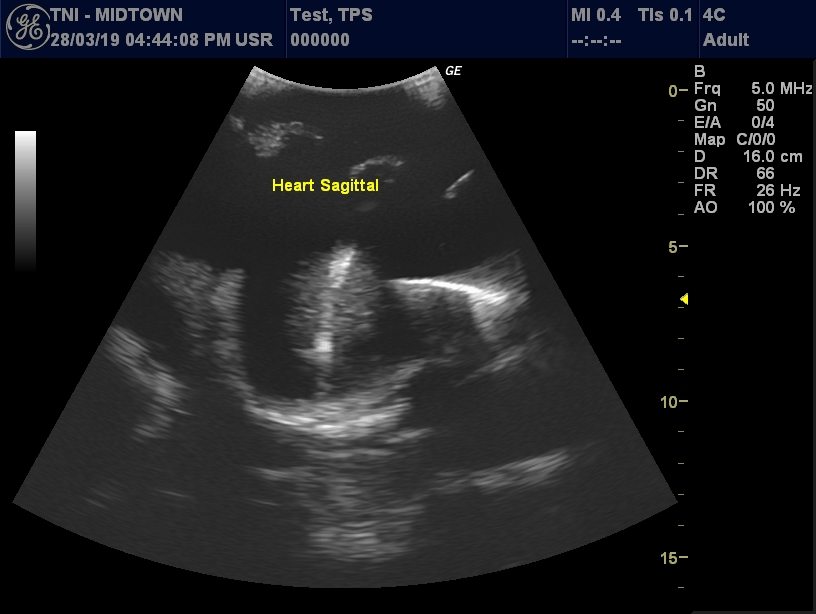

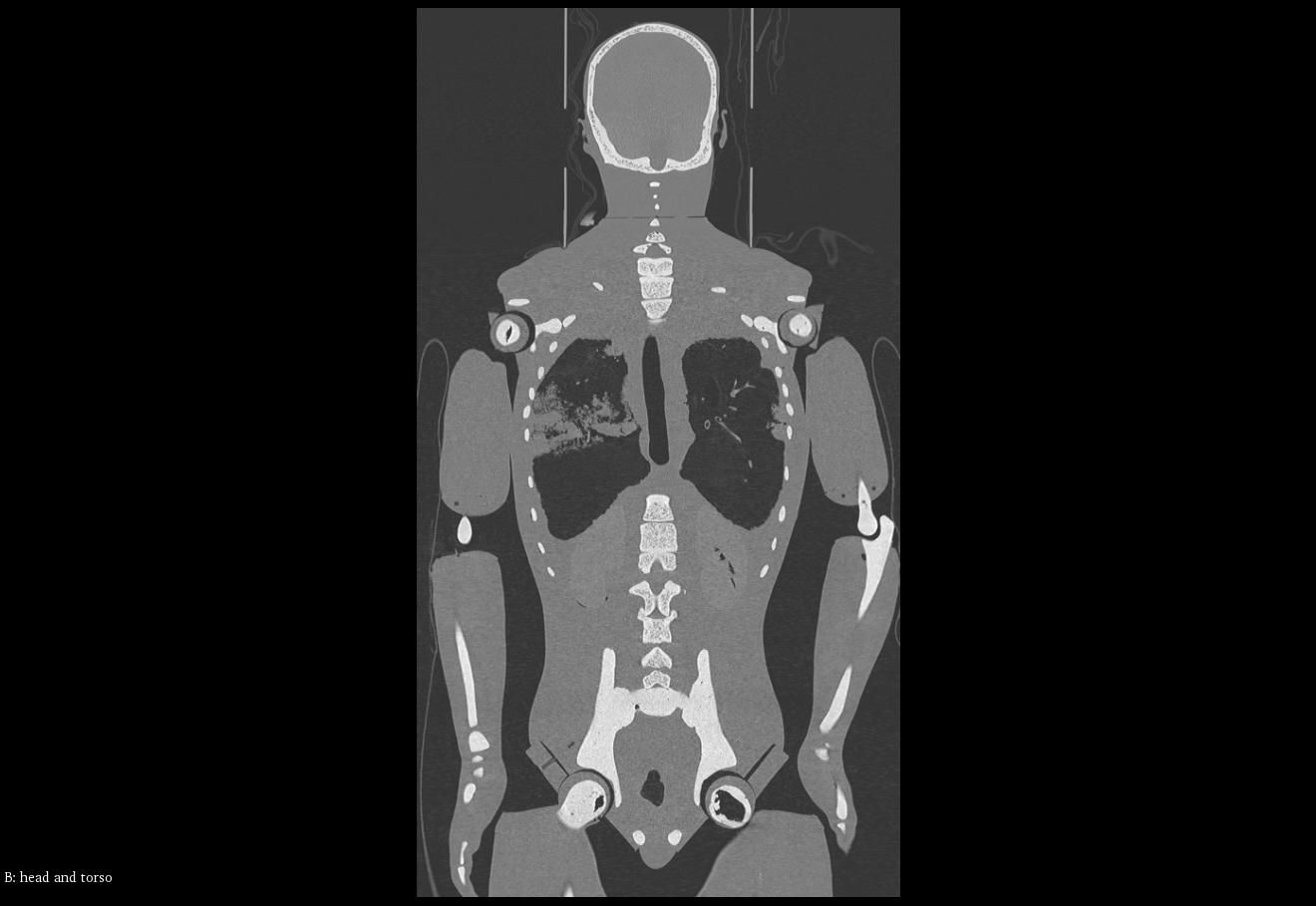

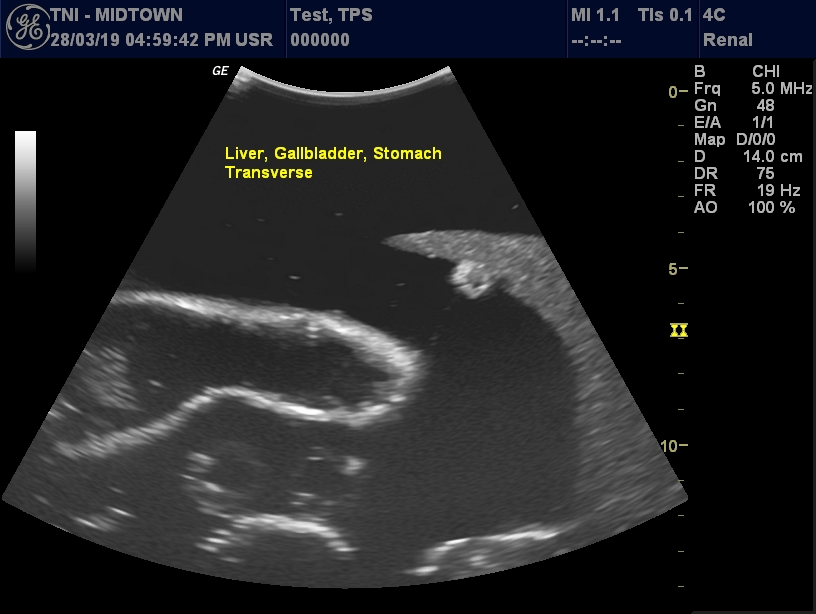

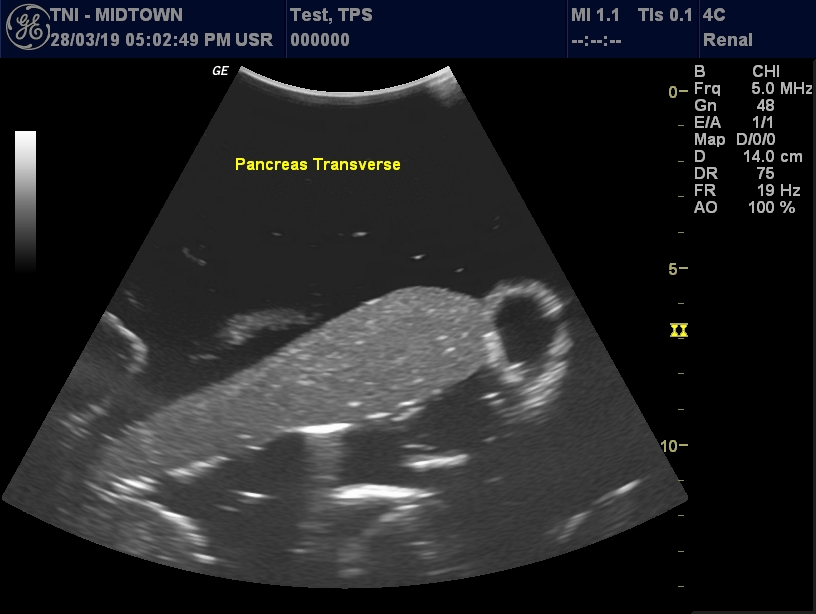

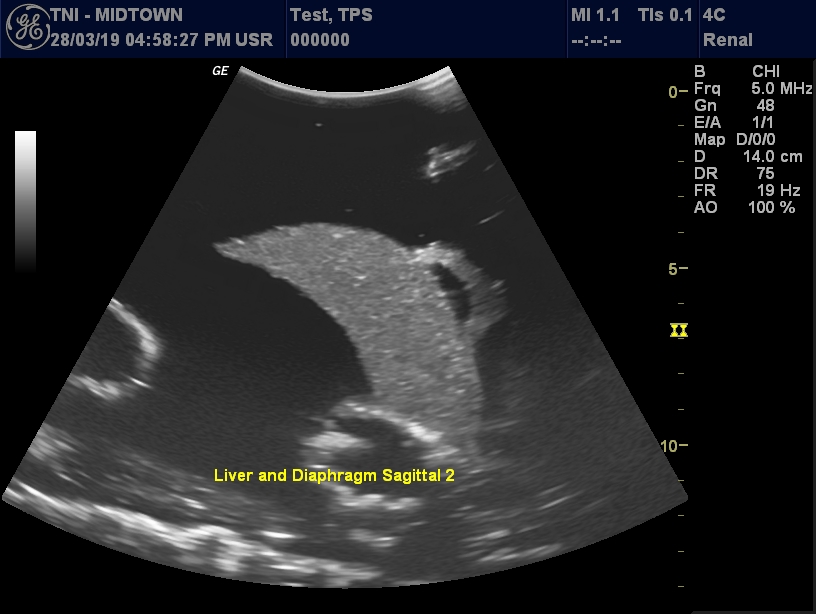

Sample scans of this phantom. Full scan galleries available on request.
